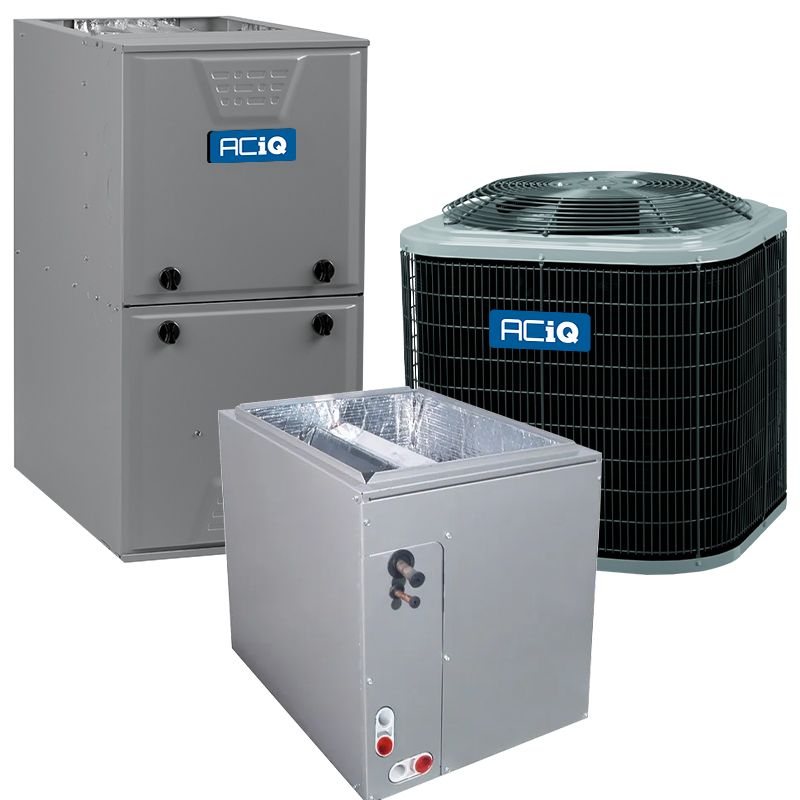

1.5 Ton 14.3 SEER2 96% AFUE 40,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

SAVE $0.00
1.5 Ton 14.3 SEER2 96% AFUE 40,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional
1.5 Ton 14.3 SEER2 96% AFUE 40,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

Required Fields *

Customer reviews
Rating:
4.9 out of 5
Out of stock
By

ACiQ

Out of stock

Model

R4H5S18AKAAA / EAM4X24L17A / N96MSN0401712A

ID

156559

An ACiQ combination system is a great choice to keep your home comfortable all season long. With tons of features and a great price, an ACiQ dual fuel system is a perfect choice for all of your heating and cooling needs.

1.5 Ton ACiQ Hybrid Upgrade - R454B
No Thank You
More Information
ACiQ 1.5 Ton 14.3 SEER2 Heat Pump Condenser - R410A Single Stage
FeatureSpec
SKUR4H5S18AKAAA
Refrigerant Charge15'
Weight (in lbs)135
Brand/ManufacturerACiQ
ReplacesR4H418GKC
UPC634707019692
Cooling BTU18,000
Heating BTU18,000
Decibel Level (dBA)71 Decibels
Horsepower0.083 HP
RefrigerantR410A
HSPF27.5
SEER2 (Efficiency)14.3
EER211.0
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Valve Size3/8
Suction Valve Size5/8"
Electrical208 / 230v 1 Phase 60 Hz
Max Breaker Size20 Amps
Min. Breaker Size13.4 Amps
Tonnage1.5 Ton
Height28 1/4"
Width31 3/16"
Depth31 3/16"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 2 Ton 17.5" Width Multi-Positional Evaporator Cased Coil-R410A
FeatureSpec
SKUEAM4X24L17A
Weight (in lbs)56.5
Brand/ManufacturerACiQ
UPC704674188803
Equivalent

Carrier Equivalent: CAPMP2417ALA

Tempstar Equivalent: EAM4X24L17A

Bryant Equivalent: CAPMP2417ALA

ConfigurationMulti-Positional
RefrigerantR410A
Liquid Line3/8"
Suction Line5/8"
Tonnage2 Ton
StyleA-Coil
CertificationUL Listed
Height25 13/16"
Width17 1/2"
Depth20 5/8"
Warranty10 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
40,000 BTU 96% AFUE Single Stage ACiQ Gas Furnace | 17.5" Width | Multi-Positional
FeatureSpec
SKUN95ESN0401712A
Weight (in lbs)126.58
AHRI Certificate Number213148758
Exhaust Flue RequirementPlastic / PVC
Brand/ManufacturerACiQ
Equivalent

Carrier Equivalent: 59SC5B040E17--12

Tempstar Equivalent: TN95ESN0401712A

Bryant Equivalent: 915SB36040E17

Furnace Efficiency / AFUE 96%
Heating BTU40,000
Blower MotorMulti Speed - ECM
Maximum CFM1010
ConfigurationUpflow/Downflow/Horizontal
Energy StarYes
Electrical120 V. 1 Phase 60 Hz
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height35"
Width17-1/2"
Depth29-1/2"
Warranty20 Year Heat Exchanger / 10 Year Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
1.5 Ton ACiQ Hybrid Upgrade - R454B
FeatureSpec
SKUACIQ-18-EHPD-UPG
Weight (in lbs)120
Brand/ManufacturerACiQ
RefrigerantR454B
Safety InformationPROPOSITION 65 WARNING

Customers Say

Across multiple installations, buyers report fast shipping—often within 2 to 4 days—straightforward DIY setup, and strong heating performance from models including 60,000 and 80,000 BTU units, with one 60,000 BTU furnace easily heating a 1,500 square foot home and another system sized well for a 700 square foot house. Compared to 17-, 20-, 21-, and even 30-year-old furnaces from brands like Carrier and Goodman, users note quieter operation, quicker warmup, and in several cases lower gas bills, though some mention shipping delays, tracking issues, minor damage, a leaking flexible gas line, or small installation adjustments such as propane conversion steps.

AI Generated from the text of customer reviews

Top reviews
  1. Great BUY
    Quality
    100%
    Service
    100%
    Price
    100%
    Fantastic delivery, installed with no problem. Works great! Doesn't run constantly Hot or Cold immediate! Homeowner, and I did it myself!

    Review by

    Posted on

  2. New 60,000 btu furnace
    Quality
    100%
    Service
    100%
    Price
    100%
    My 21 year old furnace died in the middle of winter. Called on Friday and had a new 60,000 btu Aciq delivered to my garage in 4 days . Installed it the next day and it’s been doing great. Hopefully helps with the gas bill ????

    Review by

    Posted on

  3. Very impressed
    Quality
    100%
    Service
    100%
    Price
    100%
    Received unit in 3 working days and I am totally satisfied with the unit and the company as a whole, I am planning to remove a FHA oil furnace in another building and will definitely be using your company again!

    Review by

    Posted on

  4. Aciq
    Quality
    100%
    Service
    100%
    Price
    100%
    I’ve sold carrier for years . And this furnace is exactly the same furnace except the name tag

    Review by

    Posted on

  5. Decent unit
    Quality
    80%
    Service
    100%
    Price
    100%
    Been great so far, fairly simple install. Really happy with it so far. Only issues I had was that it came with the bear air filter housing and they didn't tell me that when I was chatting with them about my order. I ordered the housing separately and ended up with two. Also the flexible gas line I ordered in the install kit leaked badly, you could see a ridge down the flare. Not a big deal though all in all it was good. Got it in about a week, and installed it over the weekend. Efficiency seems great, got this unit to replace my 30 year old broken down furnace.

    Review by

    Posted on

  6. Works great
    Quality
    100%
    Service
    100%
    Price
    100%
    Purchased a scratch and dent unit, it was dented as advertised when it arrived. Packaging for shipment to me was very well done. Preexisting damage was nothing that affected installation or operation. Has been working for a month now with no issues. Very satisfied.

    Review by

    Posted on

  7. Easy to DIY install and quiet furnace
    Quality
    100%
    Service
    100%
    Price
    100%
    I got the ACiQ natural gas upflow forced air 80,000 BTU model to replace a failed 20 year old Carrier in my home. I ordered Thursday late afternoon and got it on Monday morning in NJ. I paid for liftgate delivery; the driver brought the unit to my front door. The packaging was fantastic; there were no dents, scratches and damage. Accessories needed to install were all there inside the unit by the blower. The unit is much quieter and simpler design than the one it replaced. It should be easier to maintain. It has been working flawlessly for over a week now. Very happy with my purchase!

    Review by

    Posted on

  8. Looks Good
    Quality
    100%
    Service
    100%
    Price
    100%
    The furnace came promptly and it was packaged well so there was no damage. Looking it over, it seems to be good. I won't know how well it works as it is scheduled to be installed for the next heating season. I would buy here again.

    Review by

    Posted on

See more reviews
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
