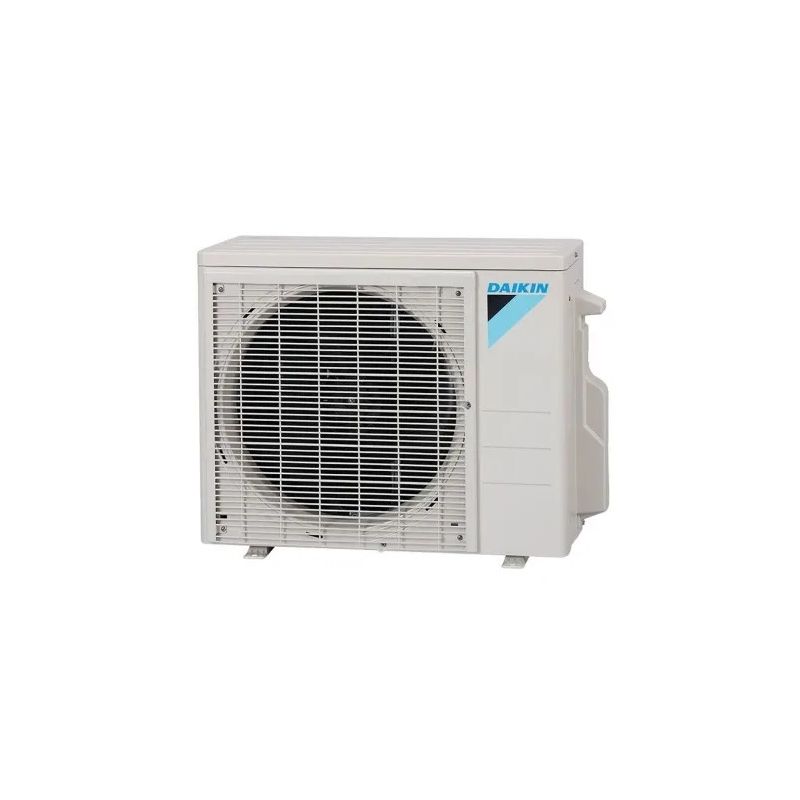

Daikin 12,000 BTU R410A 17-Series Single Zone Mini Split Heat Pump Condenser - 230V

Daikin 12,000 BTU R410A 17-Series Single Zone Mini Split Heat Pump Condenser - 230V
By

Daikin

Out of stock
Model

RXB12AXVJU

ID

207831

Daikin 12,000 BTU R410A 17-Series Single Zone Mini Split Heat Pump Condenser - 230V

Daikin 12,000 BTU 17-Series heat pump with R410A delivers efficient, reliable heating and cooling for single-zone rooms up to 500 sq ft.

Key Features

  • 12,000 BTU capacity for cooling and heating small to medium-sized rooms.
  • R410A refrigerant for superior energy efficiency and environmentally-friendly performance.
  • Heat pump functionality to provide both cooling in the summer and heating in the winter.
  • 230V compatibility for easy integration into most residential and light commercial systems.
  • Quiet operation, ensuring minimal disruption in living or working environments.
  • Inverter-driven compressor for energy-efficient performance and stable temperature control.
  • Compact design for easy installation and space-saving benefits.

Feature Highlights

Eco-Friendly R410A Refrigerant

The Daikin 17-Series uses R410A refrigerant, which offers better energy efficiency than traditional refrigerants, making it a sustainable choice for homeowners and businesses looking to reduce their carbon footprint while maintaining optimal performance.

Year-Round Comfort with Heat Pump Technology

Equipped with heat pump capabilities, the Daikin 12,000 BTU unit provides both cooling and heating, making it versatile for use in all seasons. Whether you need to cool off during the summer or warm up in the winter, this system adjusts to meet your comfort needs year-round.

Energy-Efficient Inverter Technology

The inverter-driven compressor helps the unit adjust its speed based on demand, reducing energy consumption compared to traditional systems. This minimizes energy waste and helps maintain a consistent indoor temperature while lowering energy bills.

What’s Included

  • 1 × Daikin 12,000 BTU 17-Series Single Zone Mini Split Heat Pump Condenser
  • Pre-charged with R410A refrigerant for quick installation
  • Installation accessories and hardware
  • Comprehensive user manual

Recommended Accessories

  • Compatible Daikin indoor unit (sold separately)
  • Pre-charged line set for efficient installation
  • Mounting bracket or wall pad for secure outdoor unit placement
  • Surge protector to safeguard the unit’s electronics

Warranty

Daikin offers a solid manufacturer warranty for the 17-Series Mini Split Heat Pump Condenser. Be sure to register your unit to enjoy full warranty benefits. For further details on the warranty terms, refer to the product documentation.

More Information
Daikin 12,000 BTU R410A 17-Series Single Zone Mini Split Heat Pump Condenser - 230V
FeatureSpec
SKURXB12AXVJU
Refrigerant Chargeprecharged for: 25'
Weight (in lbs)57
AHRI Certificate Number10574119
Brand/ManufacturerDaikin
UPC689526849708
Cooling BTU11,000
Heating BTU11,300
Maximum CFM232 - 360
Decibel Level (dBA)30 - 42
Energy StarNo
RefrigerantR410A
HSPF9
SEER1 (Efficiency)16-17
EER8.5
Compressor TypeSwing
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size15 amps
Min. Breaker Size7.95 amps
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Min/Max Outdoor Temp for Heating 5°F - 65°F
Min/Max Outdoor Temp for Cooling50°F - 115°F
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
Height21.63"
Width25.94"
Depth10.75"
Warranty10 Years with Online Registration
