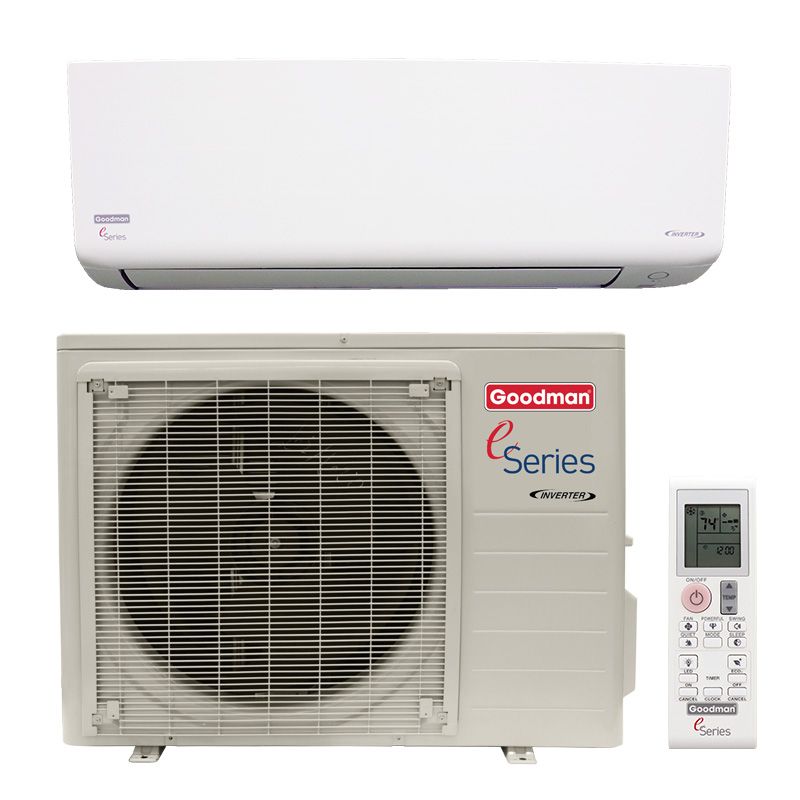

Goodman Mini Split E-Series 12,000 BTU Cooling + Heating Single Zone Wall Mounted System - 18 SEER2

By

Goodman

Model

RXNG12AXVJU / FTXNG12AXVJU

ID

134180

Rating:
93% of 100
Availability: In Stock - Ready to Ship
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:211594220

Suggested Retail $268.00
Your Low Price $113.00
Free Shipping
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing
Compare to Similar Products
  1. 12,000 BTU 21.4 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi
    12,000 BTU 21.4 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi
    Rating:
    100%
    Suggested Retail $1,060.00
    Special Price $689.00
  2. 9,000 BTU 25.5 SEER ACiQ Single Zone Wall Mount Mini Split System w/ Extreme Heat & WiFi
    9,000 BTU 25.5 SEER ACiQ Single Zone Wall Mount Mini Split System w/ Extreme Heat & WiFi
    Rating:
    100%
    Suggested Retail $1,418.38
    Special Price $1,109.00
  3. 24,000 BTU 18 SEER ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi
    24,000 BTU 18 SEER ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi
    Rating:
    100%
    Suggested Retail $1,721.54
    Special Price $1,119.00
  4. 18,000 BTU 20 SEER ACiQ Single Zone Wall Mount Mini Split System
    18,000 BTU 20 SEER ACiQ Single Zone Wall Mount Mini Split System
    Rating:
    100%
    Suggested Retail $1,495.00
    Special Price $1,150.00
9,000 BTU 19 SEER ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi - 115V
SAVE $357.39
12,000 BTU 21.4 SEER2 ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi
SAVE $371.00
9,000 BTU 25.5 SEER ACiQ Single Zone Wall Mount Mini Split System w/ Extreme Heat & WiFi
SAVE $309.38
24,000 BTU 18 SEER ACiQ Single Zone Wall Mounted Mini Split System w/ WiFi
SAVE $602.54
SAVE $345.00

Description

Goodman mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. Single zone systems are the perfect choice for a basement or garage conversion, or any single space in your home that needs a boost.
12,000 BTU Goodman Single Zone Wall Mounted Air Handler

OVERVIEW

Goodman is one of the biggest names in home cooling, heating and energy-efficient home comfort. The FTXNG12AXVJU single zone air handler can handle small to medium spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.

  • Able to cover up to a small room in ideal conditions
  • 12,000 BTU wall-mounted air handler with remote
  • Intelligent comfort at an affordable cost

Powerful operation

Once activated, this feature will engage the indoor fan motor to run at maximum speed for 20 minutes. The turbo airflow enables the desired temperature to be achieved faster, especially in larger spaces.

ECO+

An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an eco-friendly level while limiting the maximum power consumption.

Sleep mode

Pressing the Sleep button activates the Sleep Mode. This function prevents excessive cooling/heating for a pleasant sleep.

Catechin Filter

This filter is infused with catechin extracted from green tea. This substance deactivate bacteria and virus captured on the filter surface. On top of that, this substance stop any mildew grow on the filter surface.

Titanium Apatite Deodorizing Filter

Titanium apatite filter is a filter with advanced adsorption power and effectively deodorizing odors. The filter delivers consistent performance for approximately 3 years if washing with water is performed once every 6 months.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

Cielo Breez Plus Mini-Split Thermostat with WiFi

The Breez Plus made by Cielo is a plug and play smart air conditioner controller. It connects through WiFi allowing you to use your smartphone, Alexa or Google Home to control your AC / Heat Pump system. It is simple to install. It does not need extra wiring, just plug in the Micro USB power cord and hang it on a wall or set it on a table. As long as the Breez Plus is with in line of sight of the air handler it can communicate with IR signals. Download the "Cielo Home" app on your phone to register your device be amazed by the simplicity of Cielo's design.


Features:

  • Energy Savings
  • WiFi Connectivity
  • Weekly Schedule
  • Temperature & Humidity Sensor
  • Air Filter Status
  • Usage Statistics
  • Geo Fencing

Weekly Schedule will allow you to set on and off periods throughout the 7 day week based on your needs

Air Filter Status will keep track of filter health and tell you when it needs replaced so you can continue breathing clean air

Usage Statistics provide information on energy output and times of use so you can determine the best usage of your system

Geo Fencing finds your location by using your smartphones location services. It can use your location to trigger actions in your system. For instance if you leave the house it can turn the system down or off, or if you have entered a 20 mile radius it can turn the system on for you before you get home.

Buttons on the face are used for local control and include ON/OFF, up and down temperature arrows, and Menu (bars on the left)
The Menu button can be used to change the mode (tap once), fan speed (tap twice), and swing position ( tap thrice).

The Breez Plus can also be hard wired as opposed to using a plug

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Diversitech E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

  • Insulated
  • Flared Line Ends
  • Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 23" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 23" Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

Product Specifications

More Information
12,000 BTU Goodman Single Zone Mini Split Heat Pump Condenser
SKURXNG12AXVJU
Refrigerant Charge25'
Weight (in lbs)62.000000
Brand/ManufacturerGoodman
HSPF9
Cooling BTU11000
Heating BTU11300
Decibel Level (dBA)48
Electric HeatHeat Pump
RefrigerantR410A
SEER1 (Efficiency)18
Compressor TypeSwing
Liquid Line1/4"
Suction Line3/8"
Electrical208/ 230V 1 Phase 60 Hz
BTU/Tonnage12,000 BTU/1 Ton
Mini-Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height21-11/16"
Width26-1/2"
Depth11-3/16"
Warranty5 year limited warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
12,000 BTU Goodman Single Zone Wall Mounted Air Handler
SKUFTXNG12AXVJU
Weight (in lbs)21.400000
Brand/ManufacturerGoodman
HSPF9
Cooling BTU11000 BTU
Heating BTU11300 BTU
Maximum CFM473
RefrigerantR410A
SEER1 (Efficiency)18
Liquid Line1/4"
Suction Line3/8"
BTU/Tonnage12,000 BTU/1 Ton
Mini-Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height11-1/3"
Width30-5/16"
Depth9-3/16"
Warranty5 year limited warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Cielo Breez Plus Mini-Split Thermostat with WiFi
SKUBREEZ PLUS
Weight (in lbs)1.000000
Brand/ManufacturerCielo
ElectricalMicro USB with Standard Plug
Height4.25"
Width4.25"
Depth1"
Warranty1 Year Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight (in lbs)397.000000
Brand/ManufacturerOnline Supply
Diversitech E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight (in lbs)16.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
SKU201813
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
SKU366390
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
SKU216740
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
SKU366395
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
SKU366396
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length23"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

Reviews 3

Write Your Own Review
You're reviewing: Goodman Mini Split E-Series 12,000 BTU Cooling + Heating Single Zone Wall Mounted System - 18 SEER2
Your Rating

Questions and Answers

Customer Questions
What is the dBA for the 12,000 BTU Goodman air handler?
The following are decibels based on it's setting: Cooling - 45/37/31/19 Heating - 43/36/30/26. If you have any further questions please feel free to give us a call! Thank you.
