AHRI Number:201753411

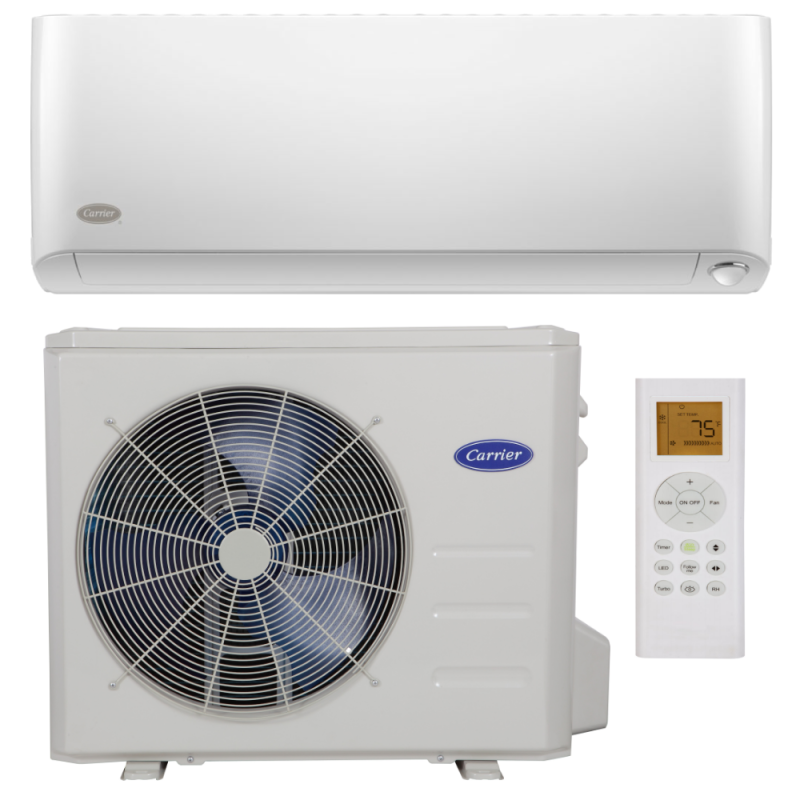

The 40MPHAQ12XA3 / 38MPRAQ12AA3 Infinity series single zone mini split is a heat pump solution with a wall mounted air handler for almost any space. With its wide heating and cooling range and quiet operation, the 40MPHAQ12XA3 / 38MPRAQ12AA3 is a reasonably priced solution for almost any application.
With an output of 12,000 BTU, the 40MPHAQ12XA3 / 38MPRAQ12AA3 has the capability to heat and cool up to a small room in average climates. With an extremely high efficiency rating of 32 SEER, bringing comfort to that space is possible while not paying a lot of money to remain comfortable in your home.
With an installation that follows your state and local installation codes and registration through the manufacturer within 90 days of installation, the 40MPHAQ12XA3 / 38MPRAQ12AA3 is backed by Carrier's 10 year parts and compressor warranty for the original registrant.
With its many settings selectable from the unit's included remote, the 40MPHAQ12XA3 / 38MPRAQ12AA3 can match almost any comfort-based need, from its Follow Me setting that senses the temperature at the remote instead of at the unit to your standard, unchanged output setting. These settings along with others and its quiet operation allow the 40MPHAQ12XA3 / 38MPRAQ12AA3 to bring a high quality of comfort to almost any space.
For a much more reliable operation, safety monitors all over the 40MPHAQ12XA3 / 38MPRAQ12AA3 are constantly taking readings to prevent any possible problems that may arise from general wear-and-tear on the unit. Moreover, the unit has an integrated base pan heater, allowing it to heat all the way down to -22°F.
The 40MPHAQ12XA3 / 38MPRAQ12AA3 Infinity series air handler is designed to bring built-in smart controls to efficient comfort. With its built in WiFi compatibility and the companion CliMate app, you can control each individual air handler from the convenience of your smartphone, anywhere in the world that you have Internet. To view the applications to control each unit, follow the links below.
| 12,000 BTU 32 SEER Wall Mounted Carrier Mini-Split Infinity Series Single Zone Heat Pump | |
|---|---|
| SKU | 40MPHAQ12XA3 / 38MPRAQ12AA3 |
| Refrigerant Charge | Pre-charged for: 25' |
| Weight (in lbs) | 89.000000 |
| AHRI Certificate Number | 201753411 |
| Brand/Manufacturer | Carrier |
| Controller | Wireless Included |
| Additional Information | Heat Pump |
| Additional Information | Minimum Line Set Length: 10' |
| Additional Information | Maximum Line Set Length: 98' |
| Additional Information | Drain: 1" |
| HSPF | 14 |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 168-357 CFM |
| Energy Star | No |
| Refrigerant | R410A |
| Capacity | Dehumidification Rate: 0.32 gal/hr |
| SEER1 (Efficiency) | 31-42 |
| EER | 13.5 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 20 Amps |
| Min. Breaker Size | 15 Amps |
| Amperage Requirement | 20A |
| Tonnage | 1.5 Ton |
| System Tonnage | 1.5 Ton |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini-Split Type | Wall Mounted |
| Min/Max Outdoor Temp for Heating | -22°F-86°F |
| Min/Max Outdoor Temp for Cooling | -22°F-122°F |
| Zone Compatibility | Single Zone |
| Height | Indoor Unit: 11.7" | Outdoor Unit: 27.64" |
| Width | Indoor Unit: 35.2" | Outdoor Unit: 33.27" |
| Depth | Indoor Unit: 9.8" | Outdoor Unit: 14.29" |
| Warranty | 10 years with online registration, 5 years without |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
