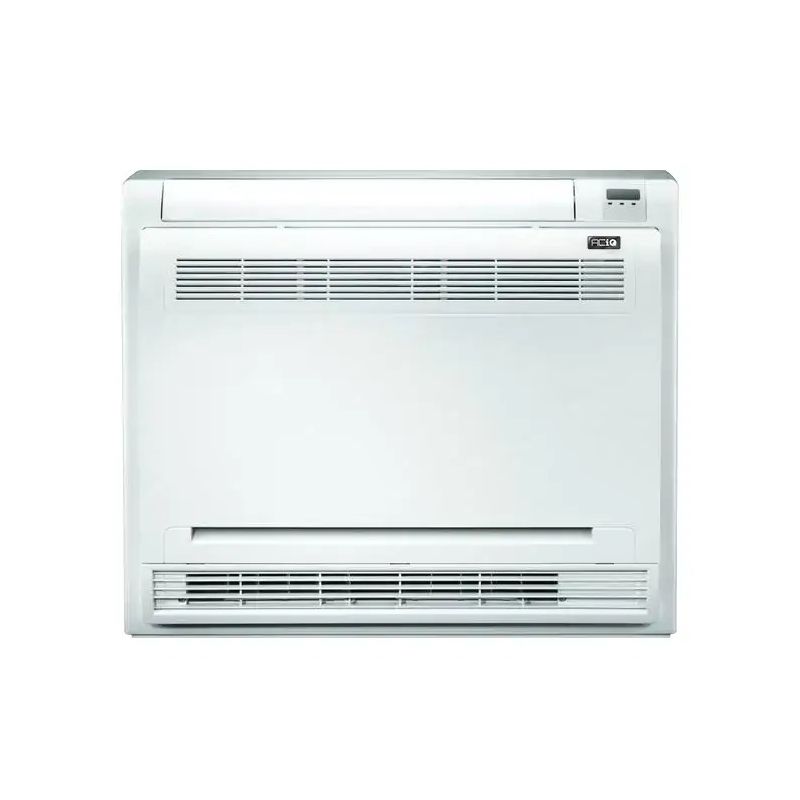

ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a heat console type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.
Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom. This is ideal for heating. By delivering warm air at floor level, stratification due to heat rise is eliminated. When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
12,000 BTU Floor Mounted ACiQ Mini-Split Air Handler | |
---|---|
SKU | ACIQ-12FM-HH-MB |
Weight (in lbs) | 41.450000 |
Brand/Manufacturer | ACiQ |
Controller | Wireless Included |
Cooling BTU | 12,000 BTU |
Heating BTU | 12,000 BTU |
Maximum CFM | 441 |
Decibel Level (dBA) | As low as 25 |
Electric Heat | Heat Pump |
Energy Star | Yes |
Refrigerant | R410A |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
Max Breaker Size | 15 |
Min. Breaker Size | 15 |
BTU/Tonnage | 12,000 BTU/1 Ton |
Mini-Split Type | Floor Mounted |
Zone Compatibility | Multi Zone |
Height | 24.45" |
Width | 31.26 |
Depth | 7.87 |
Warranty | 12 year compressor, 7 year parts with online registration |
