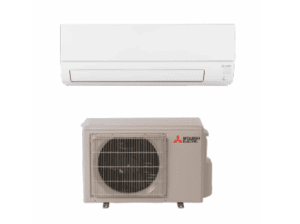

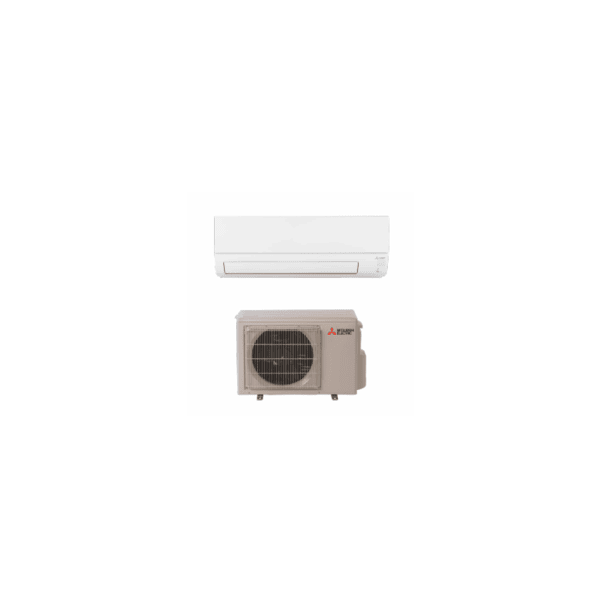

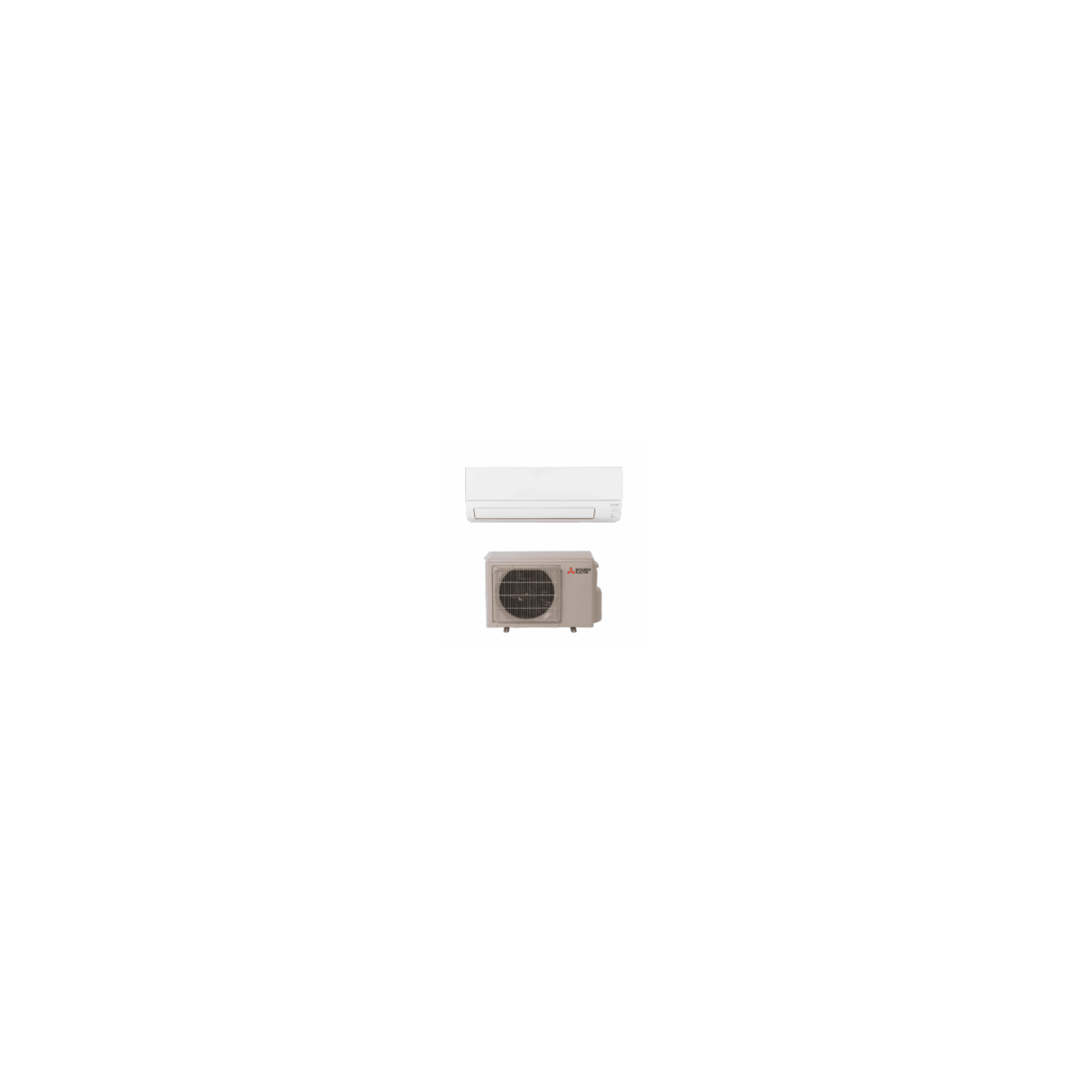

Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

13
Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL 13 Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V - MUZ-HX12NL / MSZ-HX12NL MUZ-HX12NL MUZ-HX12NL MUZ-HX12NL MSZ-HX12NL MSZ-HX12NL 201813 / CW-144-15 366390 / CW-144-25 216740 / CW-144-30 366395 / CW-144-35 366396 / CW-144-50 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 HW-600 MSK001 MHK2 MHK2 MHK2 MHK2

Required Fields *

Customer reviews
Rating:
5 out of 5
5 out of 5 View All 1  Review Add Your Review
In Stock - 26 Ready to Ship
Free Shipping
By

Mitsubishi

In stock

Model

MUZ-HX12NL / MSZ-HX12NL

ID

199124

Was $2,405.63
Your Low Price $2,116.95

Customize Mitsubishi 12,000 BTU HX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
12,000 BTU Mitsubishi Single Zone Condenser - R454B
12,000 BTU Mitsubishi Single Zone Condenser - R454B
12,000 BTU Mitsubishi Single Zone Condenser - R454B   + $1,329.90
12,000 BTU Mitsubishi HX-Series Wall Mount Mini Split Air Handler - R454B
12,000 BTU Mitsubishi HX-Series Wall Mount Mini Split Air Handler - R454B
12,000 BTU Mitsubishi HX-Series Wall Mount Mini Split Air Handler - R454B   + $787.05
15 feet - 1/4" and 3/8" Line Set & Control Wire
Equipment Pad and Risers Kit
Installation Kit for Condensers
Mitsubishi MHK2 Wireless Remote Controller
13

$2,116.95

Get Premium Comfort for up to 35% Less.

Efficient mini split heat pump system designed to deliver quiet year-round comfort for medium spaces with dependable performance.

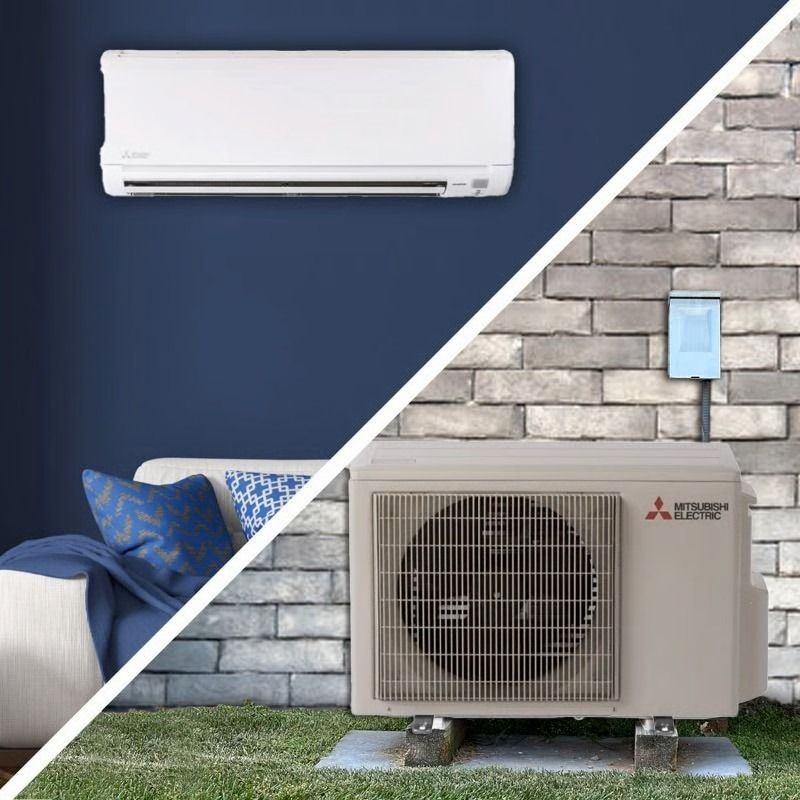

The Mitsubishi HX-Series 12,000 BTU single-zone mini split heat pump system provides reliable heating and cooling for medium spaces, including bedrooms, offices, and living areas. With inverter-driven technology and a wall-mounted indoor unit, it delivers dependable comfort, efficient operation, and a clean, space-saving design.

Mitsubishi HX-Series Single Zone Wall Mount Features and Benefits

  • 20 SEER2 Efficiency – Provides efficient heating and cooling performance with reliable energy savings.
  • Year-Round Comfort – Delivers dependable heating and cooling from one complete system.
  • Wall-Mounted Design – Saves floor space with a sleek, modern indoor unit.
  • R454B Refrigerant – Uses a lower-GWP refrigerant for a more eco-conscious footprint.

Quiet Comfort

The indoor and outdoor components are engineered for low-noise operation, making this system a great choice for bedrooms, offices, and everyday living spaces.

Compact Wall-Mounted Design

The slim indoor unit provides flexible installation while saving valuable floor space and blending seamlessly into a variety of room styles.

Right-Sized Performance

With 12,000 BTU of capacity, this system is an excellent choice for medium spaces requiring efficient and reliable year-round climate control.

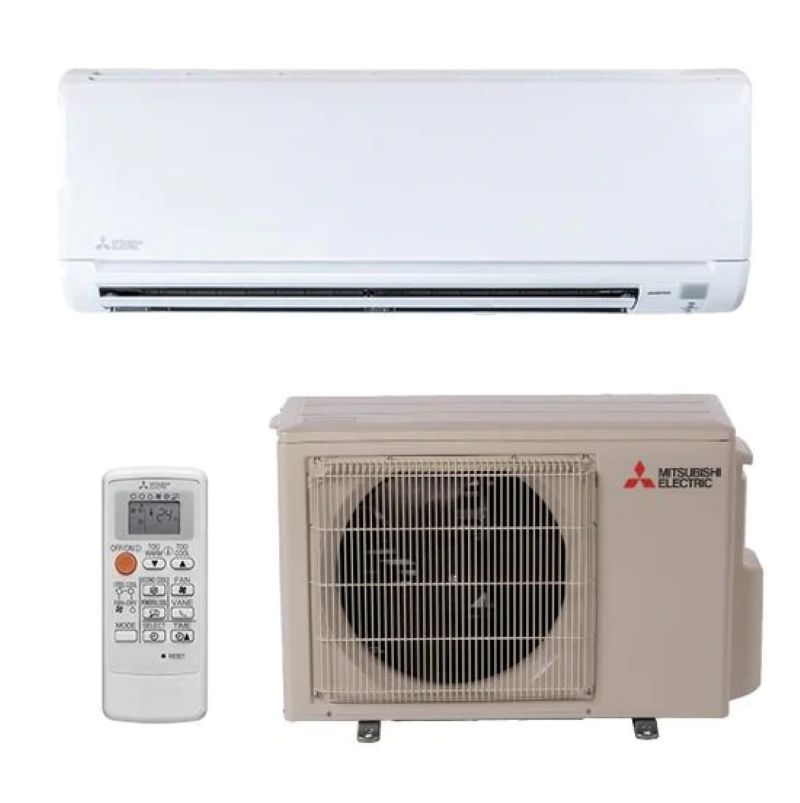

What’s Included

  • Mitsubishi Single Zone Mini Split Heat Pump Condenser — MUZ-HX12NL, 12,000 BTU
  • Mitsubishi 12,000 BTU Wall-Mounted Mini Split Indoor Unit — MSZ-HX12NL
  • Wireless remote control
  • Owner's Manual, Guides, and Other Documents

Recommended Accessories

  • 17" Wall Mount Bracket for Mini Split Systems – HW-600
  • Mitsubishi Wireless Remote Controller– MHK2
  • E Lite Equipment Pad and Risers Kit- 87762 / EL1838-3
  • Installation Kit – MSK001
    • • 3/4" x 6' Electrical Whip – SKU: 84138 • 60A Non-Fused Disconnect – SKU: 83335 • Surge Protector – SKU: ICM517 • CPS Charging Adapter – SKU: 87-AD87 • Telescoping Wall Sleeve – SKU: NFP-75
  • Additional line set options
    • • 15 ft – 201813 / CW-144-15 • 25 ft – 366390 / CW-144-25 • 30 ft – 216740 / CW-144-30 • 35 ft – 366395 / CW-144-35 • 50 ft – 366396 / CW-144-50

Warranty

10-year limited warranty with online registration.

More Information
Mitsubishi 12,000 BTU HX-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V
FeatureSpec
SKUMUZ-HX12NL
Refrigerant Charge2.02 lbs (Pre-charged for 25ft line set)
Weight (in lbs)81
Brand/ManufacturerMitsubishi
ReplacesMUZ-HM12NA-U2
UPC605468208830
Cooling BTU12,000 BTU
Heating BTU12,200 BTU
Decibel Level (dBA)51 dBA
Energy StarYes
RefrigerantR454B
HSPF210
SEER2 (Efficiency)20
EER212.5
Liquid Line1/4"
Suction Line3/8"
Electrical230V | 1 Phase | 60Hz
Max Breaker Size28 Amps
BTU/Tonnage12,000 BTU/1 Ton
Min/Max Outdoor Temp for Heating-5°F to 75°F
Min/Max Outdoor Temp for Cooling14°F to 115°F
Zone CompatibilitySingle Zone
Height21.63"
Width31.5"
Depth11.25"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Mitsubishi 12,000 BTU HX-Series Single Zone Wall Mounted Mini Split Air Handler R454B | 230V
FeatureSpec
SKUMSZ-HX12NL
Weight (in lbs)20
Brand/ManufacturerMitsubishi
ReplacesMSZ-HM12NA-U2
UPC605468288009
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM448 Turbo / 353 Hi / 256 Med / 172 Lo
Decibel Level (dBA)45 dBA
RefrigerantR454B
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V | 1 Phase | 60Hz
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height11.03"
Width33.00"
Depth9.25"
Warranty10 Year Compressor / 7 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight (in lbs)15
Brand/ManufacturerOnline Supply
UPCna
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 50 feet
FeatureSpec
SKU366396 / CW-144-50
Weight (in lbs)45
Brand/ManufacturerOnline Supply
UPCna
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 35 feet
FeatureSpec
SKU366395 / CW-144-35
Weight (in lbs)35
Brand/ManufacturerOnline Supply
UPCna
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 30 feet
FeatureSpec
SKU216740 / CW-144-30
Weight (in lbs)30
Brand/ManufacturerOnline Supply
UPCna
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 25 feet
FeatureSpec
SKU366390 / CW-144-25
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends & Control Wire - 15 feet
FeatureSpec
SKU201813 / CW-144-15
Weight (in lbs)15
Brand/ManufacturerOnline Supply
UPCna
Liquid Line1/4"
Suction Line3/8"
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
17" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKUHW-600
Weight (in lbs)9.2
Brand/ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Mitsubishi MHK2 Wireless Remote Controller
FeatureSpec
SKUMHK2
Weight (in lbs)2
Brand/ManufacturerMitsubishi
ReplacesMHK3
UPC85267267533
LengthCable:39-23/64"
HeightThermostat: 4-5/64” | Receiver: 3-3/32”
WidthThermostat: 4-5/64” | Receiver: 1-3/4”
DepthThermostat: 1-1/16" | Receiver: 39/64”
Warranty5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
