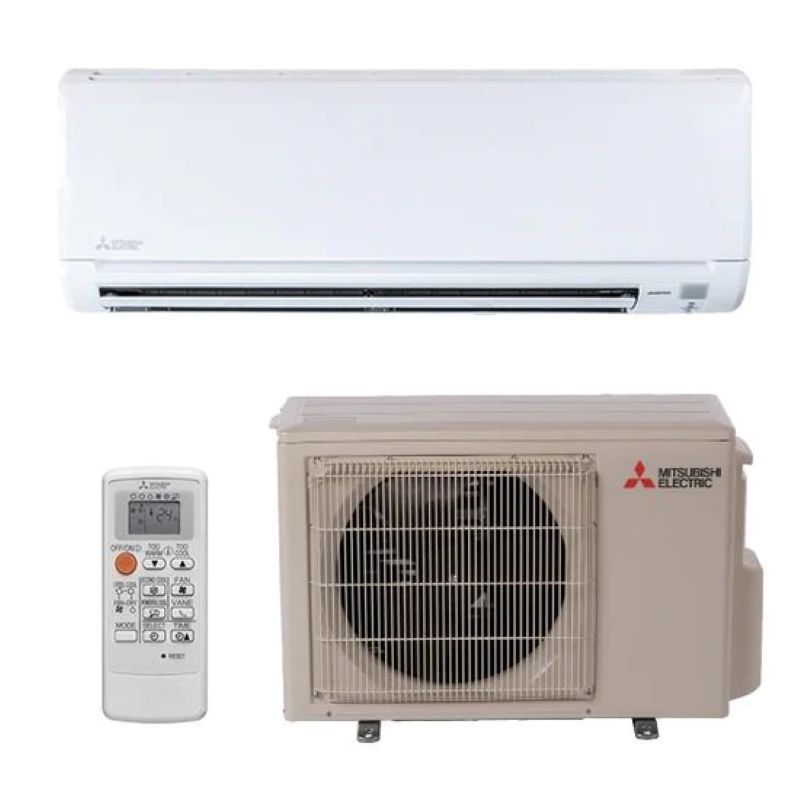

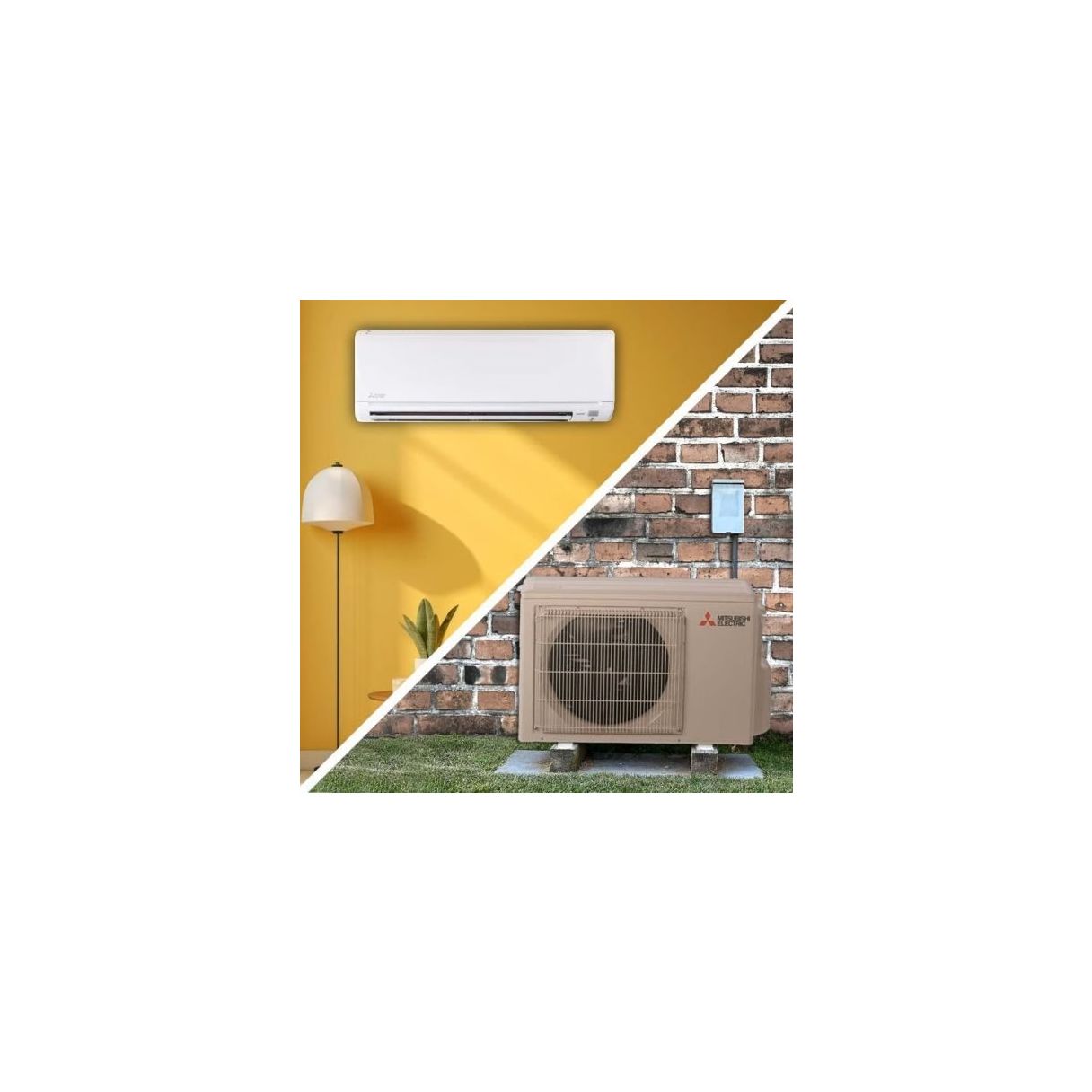

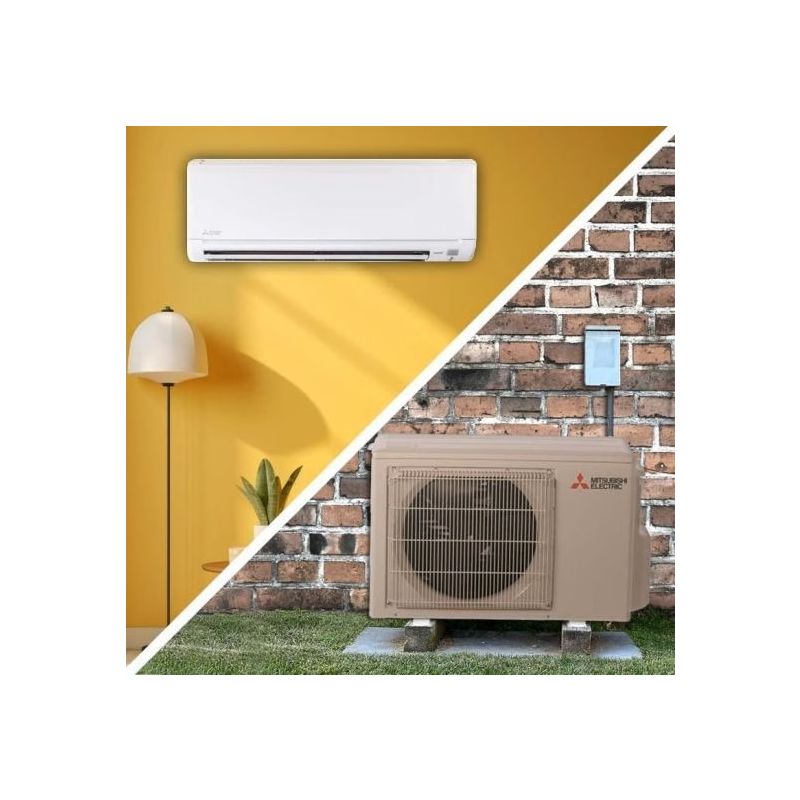

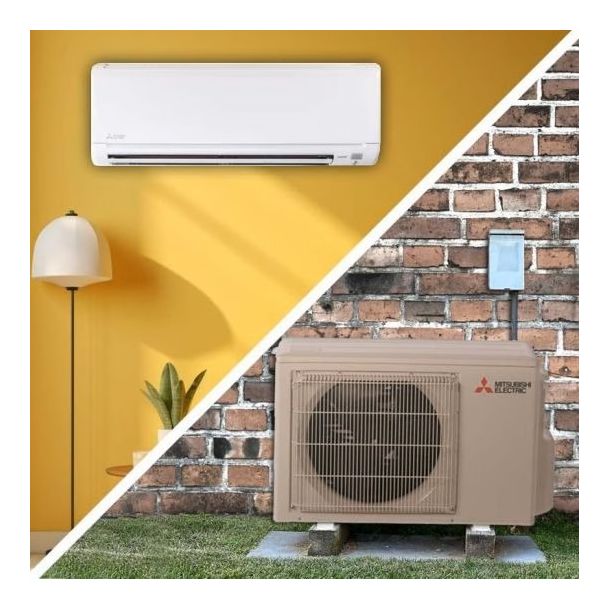

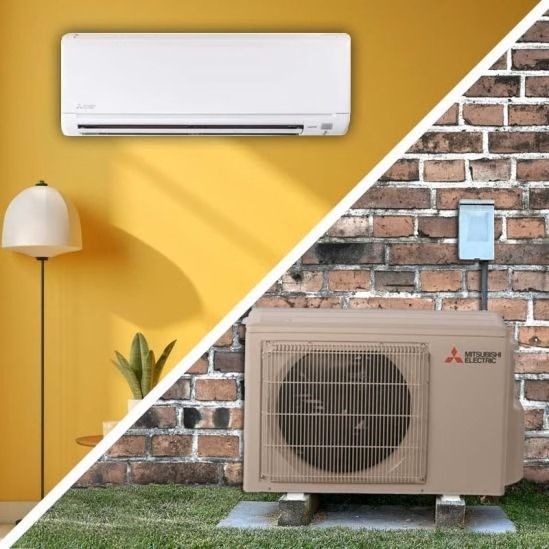

Mitsubishi 12,000 BTU WX-Series 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

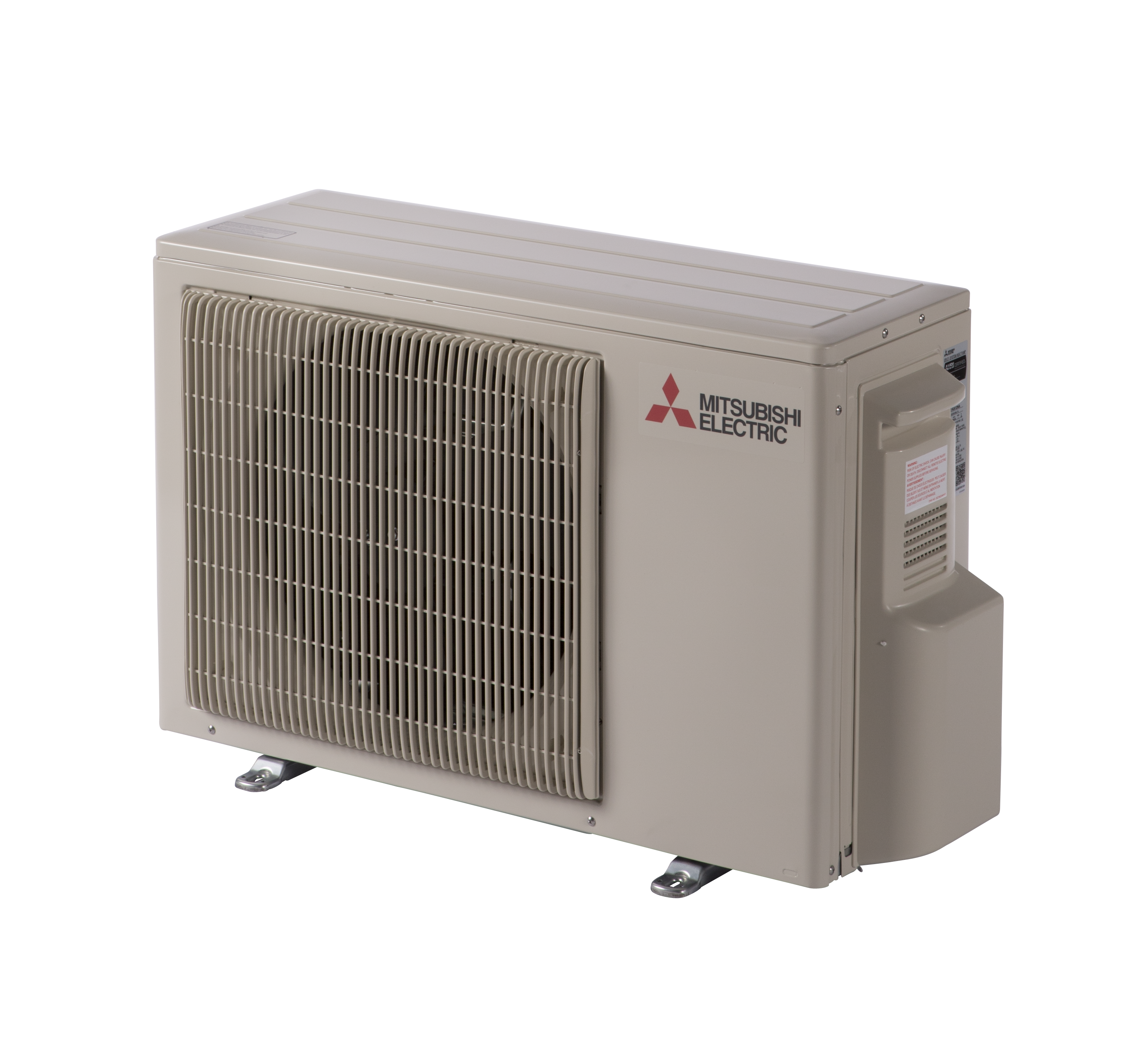

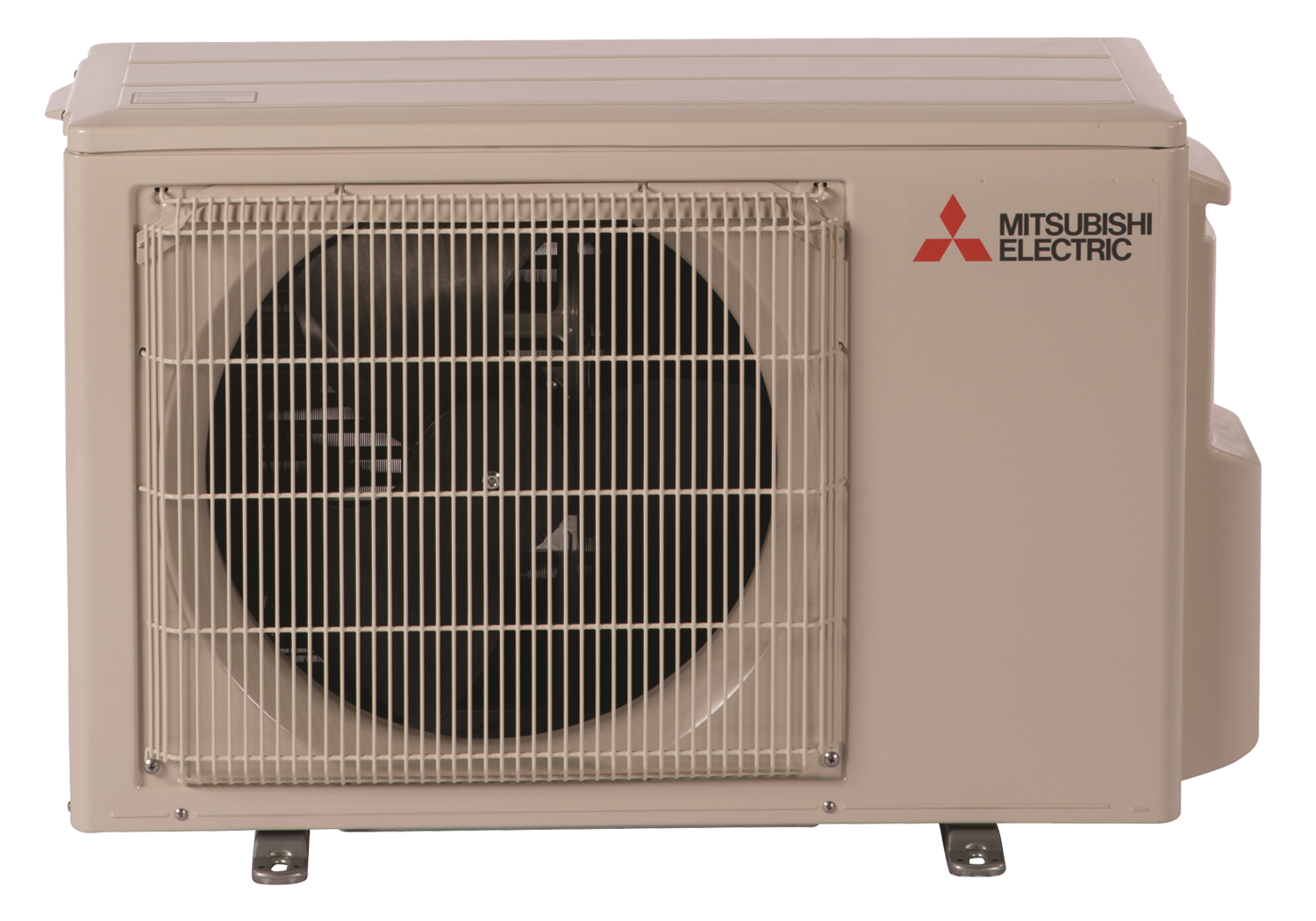

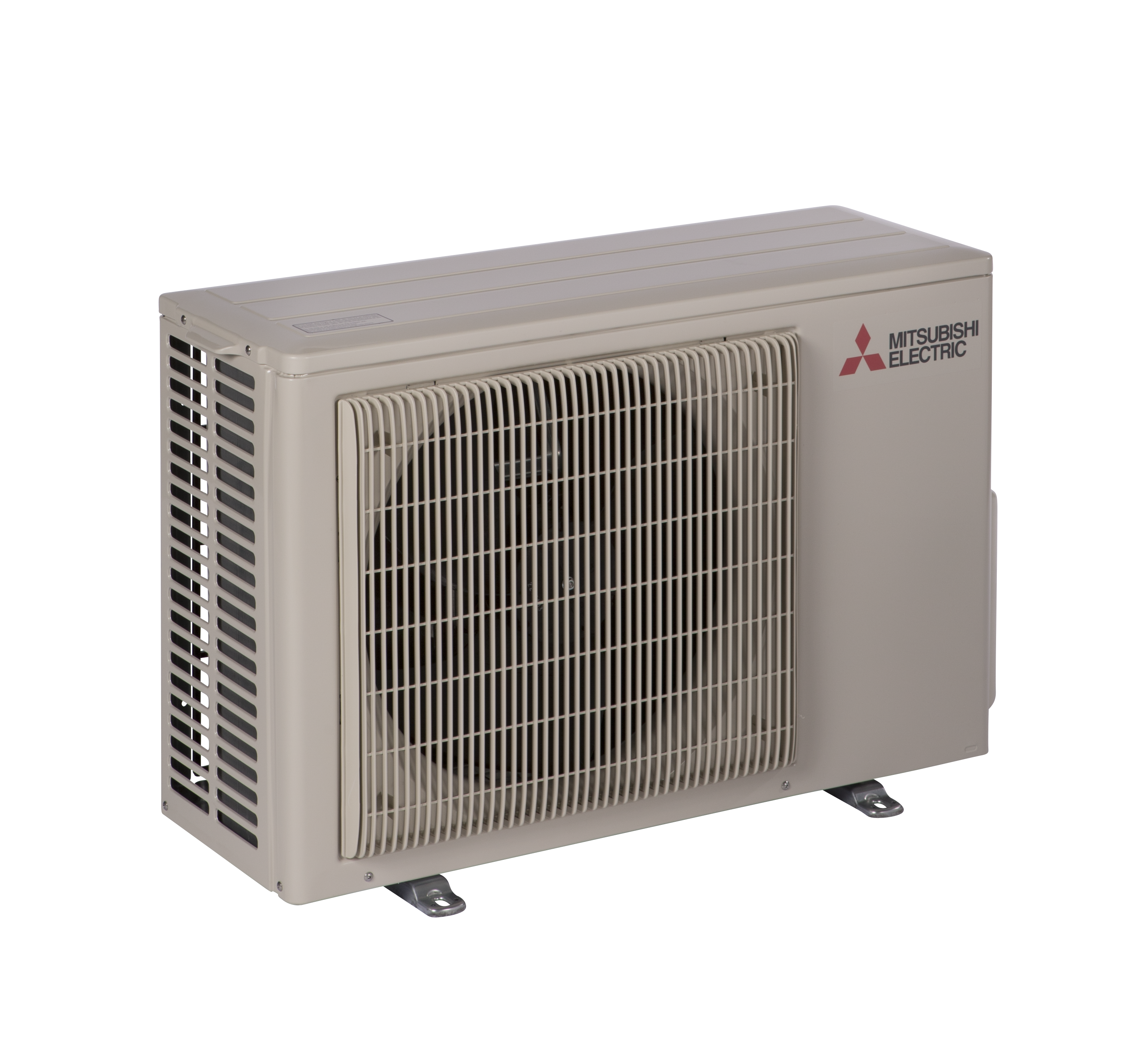

MUZ-WX12NL - Inverter Heat Pump Outdoor Unit

The MUZ-WX12NL is an advanced inverter-driven outdoor unit designed for both cooling and heating applications. Paired with the MSZ-WX12NL indoor unit, this system offers efficient performance, quiet operation, and durability, making it suitable for residential and light commercial spaces.

Key Features:

• Blue Fin Coating: The Blue Fin coating on the heat exchanger helps protect against corrosion, especially in coastal and industrial environments.
• Inverter-Driven Compressor: The inverter-driven compressor adjusts capacity to precisely meet temperature demands, ensuring energy-efficient performance.
• Quiet Operation: The outdoor unit operates at sound levels of 51 dB(A) in both cooling and heating modes, ensuring a quiet atmosphere.
• Reverse Cycle Defrost: This feature helps prevent frost build-up on the heat exchanger, maintaining efficient operation in cold temperatures.
• Base Pan Heater (Optional): The optional base pan heater prevents ice accumulation in colder environments, enhancing reliability.

Specifications:

• Cooling Capacity: Rated at 12,000 BTU/h, with a maximum of 12,200 BTU/h and a minimum of 3,800 BTU/h at 95°F outdoor temperature.
• Heating Capacity: Rated at 12,200 BTU/h at 47°F, with a maximum of 14,500 BTU/h and a minimum of 4,500 BTU/h at 17°F outdoor temperature.
• Power Input: Rated at 1,330W in cooling mode and 1,090W in heating mode for energy-efficient operation.
• SEER2: 18, providing excellent energy efficiency for reduced operational costs.
• HSPF2: 8.5, making it ideal for energy-efficient heating in colder climates.
• Electrical Requirements: 208/230V, 1 phase, 60Hz with a recommended fuse size of 15A and wire size of AWG 14.
• Refrigerant: Uses R454B refrigerant with a pre-charged amount of 1 lb 6 oz and an additional charge rate of 0.22 oz/ft of piping.
• Airflow Rate: 1,141 CFM in both cooling and heating modes for optimal air distribution.
• Dimensions: The outdoor unit measures 31-1/2 x 11-1/4 x 21-5/8 inches and weighs 20 lbs (9 kg).
• Sound Pressure Level: 51 dB(A) in both cooling and heating modes for quiet operation.

The MUZ-WX12NL is a robust, energy-efficient outdoor unit designed to provide year-round comfort with quiet operation and reliable performance.

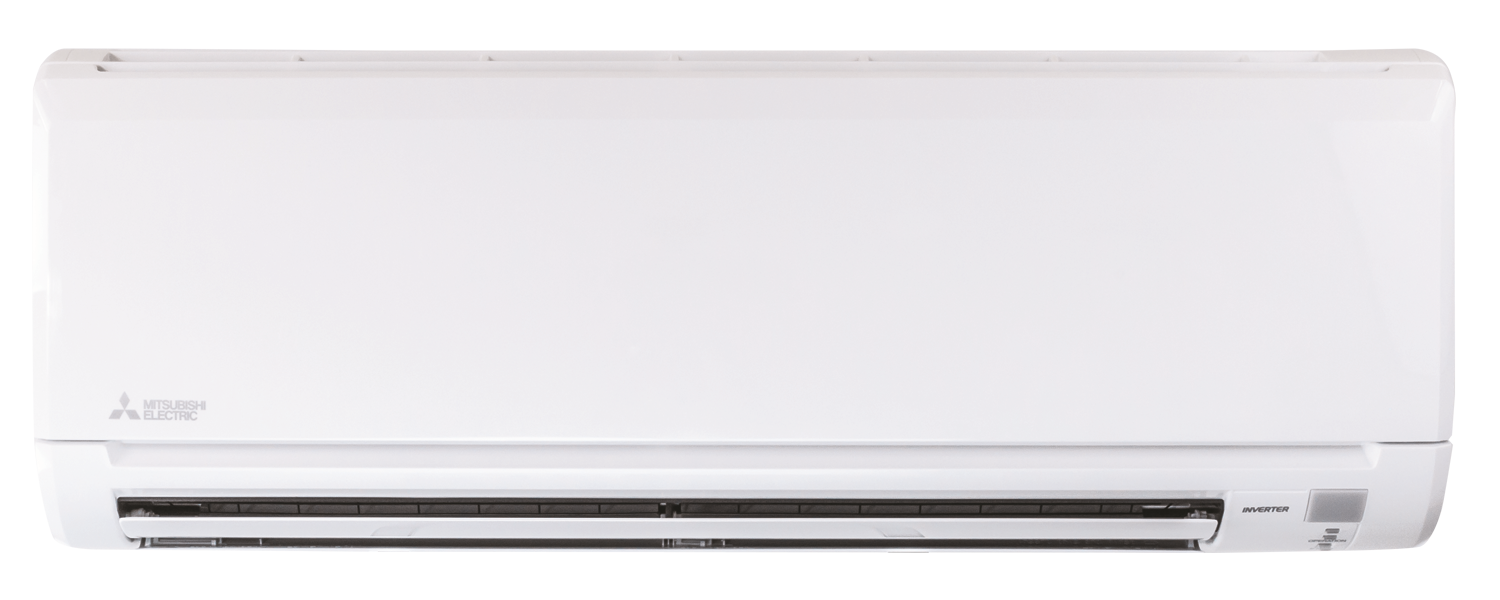

MSZ-WX12NL Air Handler Overview

The MSZ-WX12NL air handler delivers high-performance heating and cooling for residential and light commercial spaces. Paired with the MUZ-WX12NL outdoor unit, it features advanced Inverter technology, Hyper Heating, and a compact, modern design for year-round comfort and energy-efficient operation. Its high-performance filtration also improves indoor air quality, making it ideal for homes and small businesses.

Key Features

• Energy Efficiency: Inverter technology adjusts the compressor speed to meet exact heating or cooling demand, reducing energy usage and maintaining consistent comfort.
• Quiet Operation: Low-noise performance ensures a peaceful environment in bedrooms, offices, or other noise-sensitive spaces.
• Compact and Stylish Design: Sleek, small footprint integrates seamlessly into modern interiors and allows flexible installation.
• Improved Indoor Air Quality: High-performance filters capture dust, allergens, and other particles for cleaner, healthier air.
• Durability: Built with corrosion-resistant materials for long-lasting performance.

Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 14,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 30-5/8" W x 11-7/8" H x 21-5/8" D
• Weight: 21.8 lbs

Advanced Features

• Inverter Technology: Adjusts operation to real-time cooling/heating needs for energy savings and precise temperature control.
• Hyper Heating: Maintains efficient heating even in extremely cold outdoor temperatures.
• Quiet Mode: Minimal operational noise for comfortable, undisturbed indoor spaces.
• Auto Restart: Automatically resumes previous settings after power loss.
• Remote Control: Conveniently adjusts temperature, fan speed, and modes from anywhere in the room.

Installation and Maintenance

• Flexible Installation: Compact and lightweight design allows easy installation in tight spaces.
• Low Maintenance: Minimal upkeep with periodic filter cleaning and basic inspections.
• Washable Filters: Easy-to-clean filters reduce replacements and promote better air quality.

Applications

• Residential Use: Perfect for medium-sized homes, bedrooms, living rooms, and home offices.
• Light Commercial Use: Ideal for small offices, retail shops, or restaurants seeking quiet, efficient climate control.

Overall, the MSZ-WX12NL air handler combines energy efficiency, quiet operation, and reliable performance. Its advanced Inverter technology, Hyper Heating, and improved filtration ensure optimal comfort, healthier air, and consistent year-round temperatures, making it an excellent choice for homes and small businesses.

4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

The KJR-120N connects to your ACiQ Brand Ceiling Cassette, Concealed Duct and Ducted Air Handlers to give you WiFi control over your systems.
Compatible with the following models:
Ducted air handlers: ACiQ-24-AHB, ACiQ-36-AHB, ACiQ-48-AHB, ACiQ-60-AHB, ACiQ-18AHB-HH-M, ACiQ-24AHB-HH-M, ACiQ-30AHB-HH-M, ACiQ-36AHB-HH-M
Ceiling cassette air handlers: ACiQ-09CC-HH-MB, ACiQ-12CC-HH-MB, ACiQ-18CC-HH-MB, ACiQ-24CC-HH-MB
Concealed duct air handlers: ACiQ-09CD-HH-MB, ACiQ-12CD-HH-MB, ACiQ-18CD-HH-MB, ACiQ-24CD-HH-MB
Floor mount air handlers: ACIQ-18FM-HH-MB, ACIQ-24FM-HH-MB

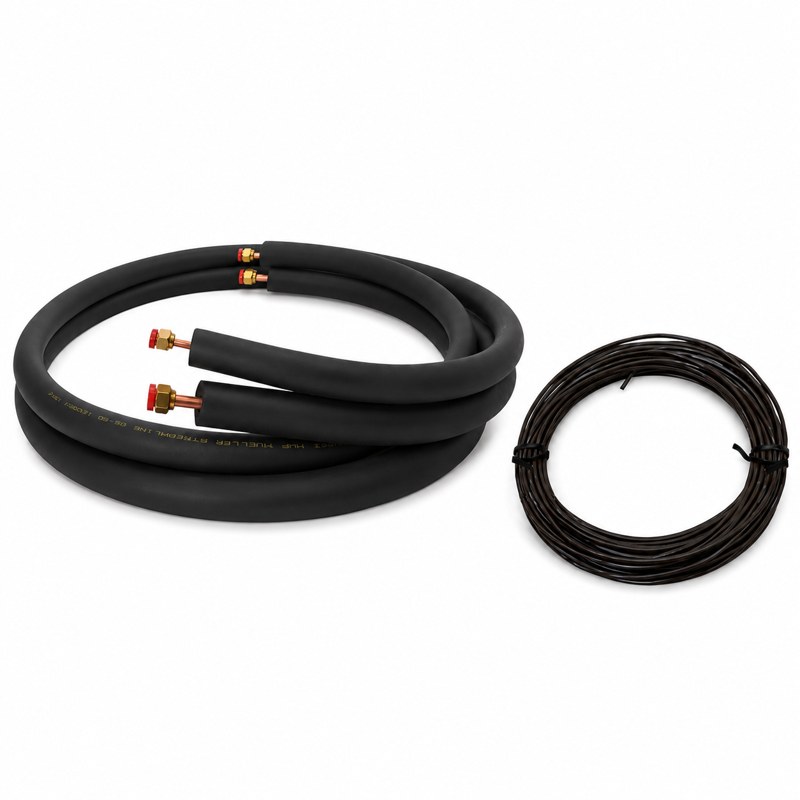

Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 3/8" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.

The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.

What's Included

• 35 ft. insulated refrigerant line set
• 35 ft. 14/4 mini-split control wire
• 1/4" liquid line with flared ends
• 3/8" suction line with flared ends

Features

• 1/2" thick insulation for improved efficiency
• Heavy-duty refrigerant line construction
• Stranded copper wire for reliable conductivity
• Flexible and durable installation materials
• Compatible with most mini-split systems
• Ideal for HVAC installations and replacements

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

• 17” Arm Length
• Weight capacity of 220 lbs per arm
• Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.
