12,000 BTU MRCOOL Advantage 21.3 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

12,000 BTU MRCOOL Advantage 5th Gen 21.3 SEER2 Single Zone Mini Split - R454B | 230V - A-12-HP-230D-O
12,000 BTU MRCOOL Advantage 5th Gen 21.3 SEER2 Single Zone Mini Split - R454B | 230V - A-12-HP-230D-O 12,000 BTU MRCOOL Advantage 5th Gen 21.3 SEER2 Single Zone Mini Split - R454B | 230V - A-12-HP-230D-O A-12-HP-C-230D-O A-12-HP-C-230D-O A-12-HP-WMAH-230D-O A-12-HP-WMAH-230D-O A-12-HP-WMAH-230D-O MSK001 201813 366390 216740 366395 366396 HW-600
SAVE $91.00

Required Fields *

By

MRCOOL

In stock

Model

A-12-HP-230D-O

ID

198422

Be the first to review this product
In Stock - Ready to Ship
Was $996.00
Your Low Price $905.00

Free Shipping
  • Heating & Cooling
  • Ductless Solution
  • Perfect for a 400-600sqft Rooms
  • Wi-Fi & Smartphone App Capabilities
    • Customize 12,000 BTU MRCOOL Advantage 21.3 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

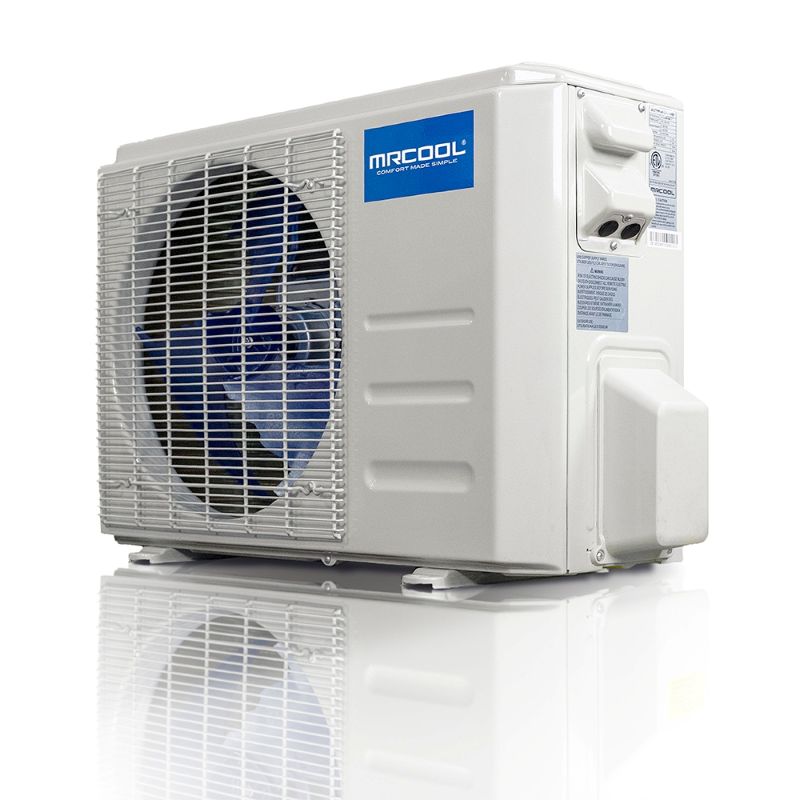

    12,000 BTU MRCOOL Single Zone Condenser - R454B
    12,000 BTU MRCOOL Single Zone Condenser - R454B
    12,000 BTU MRCOOL Single Zone Condenser - R454B   + $610.00
    12,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B
    12,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B
    12,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B   + $295.00
    15 feet - 1/4" and 3/8" Line Set
    Wall Mount Bracket for Mini Split Systems
    Installation Kit for Condensers
    12,000 BTU MRCOOL Advantage 5th Gen 21.3 SEER2 Single Zone Mini Split - R454B | 230V - A-12-HP-230D-O

    $905.00

    Please note this unit is meant to be installed by a licensed professional. Want a to Do-It-Yourself unit? Check it out here!

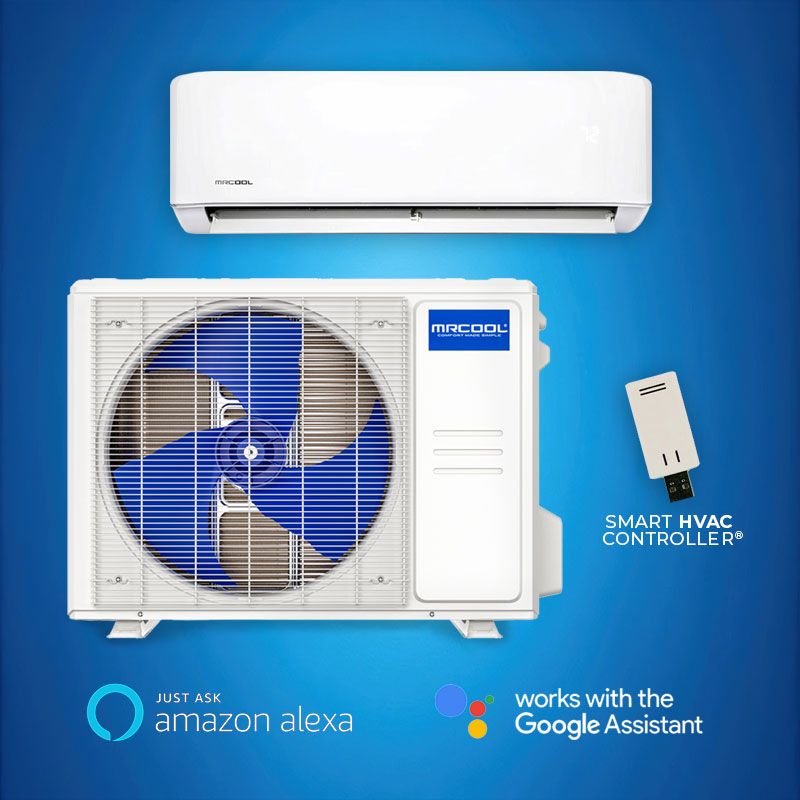

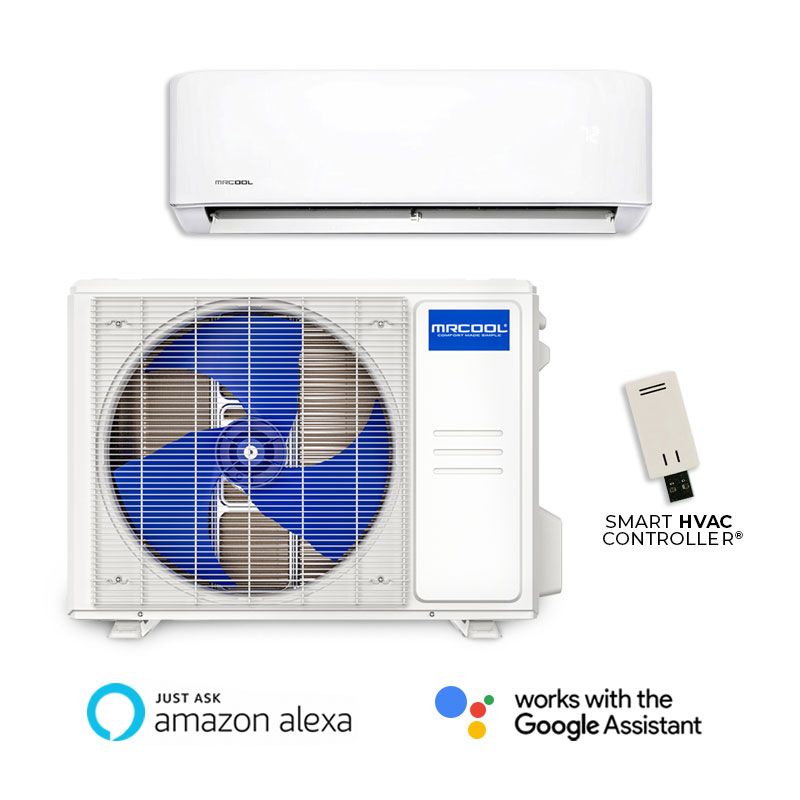

    MRCOOL Advantage 5th Gen 12,000 BTU Mini Split System (A-12-HP-230D-O)

    The MRCOOL Advantage 5th Generation single-zone mini split offers efficient heating and cooling with a 12,000 BTU capacity and a high 21.3 SEER2 / 9.1 HSPF2-4 rating. Designed for rooms up to 550 square feet, it uses eco-friendly R-454B refrigerant. The system includes a quiet indoor air handler and an inverter-driven outdoor condenser with Gold Fin corrosion-resistant coating and built-in Wi-Fi Smart HVAC Controller for smartphone and voice control.

    Key Features

    • High Efficiency: 21.3 SEER2, 12.6 EER2, 9.1 HSPF2-4 for energy savings
    • Eco-Friendly Refrigerant: Uses low-GWP R-454B refrigerant
    • Smart Controls: Wi-Fi enabled with app and voice control via Alexa and Google Assistant
    • Quiet Operation: Indoor unit operates quietly for comfortable environments
    • Durable Design: Gold Fin condenser coating resists corrosion
    • Low Ambient Cooling: Operates efficiently down to 5 F
    • Professional Installation: Requires licensed HVAC installation
    • Warranty: Includes 2-year parts and 1-year compressor warranty, with optional extended coverage

    Benefits & Applications

    • Zone Comfort: Ideal for single rooms, offices, or small apartments
    • Energy Efficient: High SEER2 and HSPF2 ratings reduce energy costs
    • Smart Home Ready: Remote control and voice commands for convenience
    • Quiet and Reliable: Minimizes noise while delivering consistent comfort
    • Environmentally Responsible: Utilizes next-generation refrigerant with low environmental impact

    Package Includes

    • 12,000 BTU inverter condenser
    • 230V wall-mounted air handler with Wi-Fi module
    • Wireless remote control
    • Installation and user manuals

    This MRCOOL Advantage 5th Gen 12,000 BTU Mini Split system combines high efficiency, smart connectivity, and quiet operation to provide comfortable heating and cooling in spaces up to 550 sq ft.

    More Information
    12,000 BTU MRCOOL Advantage Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
    SKUA-12-HP-WMAH-230D-O
    Weight19.400000
    ManufacturerMRCOOL
    Cooling BTU12000
    Heating BTU12000
    Maximum CFM359
    Decibel Level (dBA)32
    RefrigerantR454B
    SEER221.3
    Compressor TypeRotary
    Liquid Line1/4
    Suction Line3/8
    Liquid Valve Size 1/4
    Suction Valve Size 3/8
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size15
    Min. Breaker Size3
    BTU/Tonnage12,000 BTU/1 Ton
    Zone CompatibilitySingle Zone
    Height11.69"
    Width31.57"
    Depth7.44"
    Warranty2 Years Base Compressor Warranty, 1 Year Base Parts Warranty, Extended Limited Lifetime Registered Warranty
    Resources You will need Adobe Acrobat Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    12,000 BTU MRCOOL Advantage Single Zone Mini Split Heat Pump Condenser - R454B | 230V
    SKUA-12-HP-C-230D-O
    Weight59.080000
    ManufacturerMRCOOL
    HSPF29.1
    Cooling BTU12000
    Heating BTU12000
    Decibel Level (dBA)54
    RefrigerantR454B
    SEER221.3
    Compressor TypeRotary
    Liquid Line1/4
    Suction Line3/8
    Liquid Valve Size 1/4
    Suction Valve Size 3/8
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size15
    Min. Breaker Size13
    BTU/Tonnage12,000 BTU/1 Ton
    Zone CompatibilitySingle Zone
    Height21.85"
    Width30.12"
    Depth11.93"
    Warranty2 Years Base Compressor Warranty, 1 Year Base Parts Warranty, Extended Limited Lifetime Registered Warranty
    Resources You will need Adobe Acrobat Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
    SKU201813
    Weight15.000000
    ManufacturerOnline Supply
    Length15'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
    SKU366395
    Weight35.000000
    ManufacturerOnline Supply
    Length35'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
    SKU366396
    Weight45.000000
    ManufacturerOnline Supply
    Length50'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
    SKU366390
    Weight25.000000
    ManufacturerOnline Supply
    Length25'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
    SKU216740
    Weight30.000000
    ManufacturerOnline Supply
    Length30'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Wall Mount Bracket for Mini Split Systems
    SKUHW-600
    Weight9.200000
    ManufacturerOnline Supply
    Length17"
    Height20"
    Width6"
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    Installation Kit for Condensers - Accessory Set
    SKUMSK001
    Weight15.000000
    ManufacturerOnline Supply
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
