12,000 BTU Stealth Comfort Designer+ Floor or Ceiling Mounted Multi Zone Air Handler

SAVE $1,022.41
12,000 BTU Stealth Comfort Designer+ Floor or Ceiling Mounted Multi Zone Air Handler
By

Stealth

Out of stock
Model

SC-12FM-HP230

ID

107179

No Return Policy: All sales of this product are final and are non-refundable.

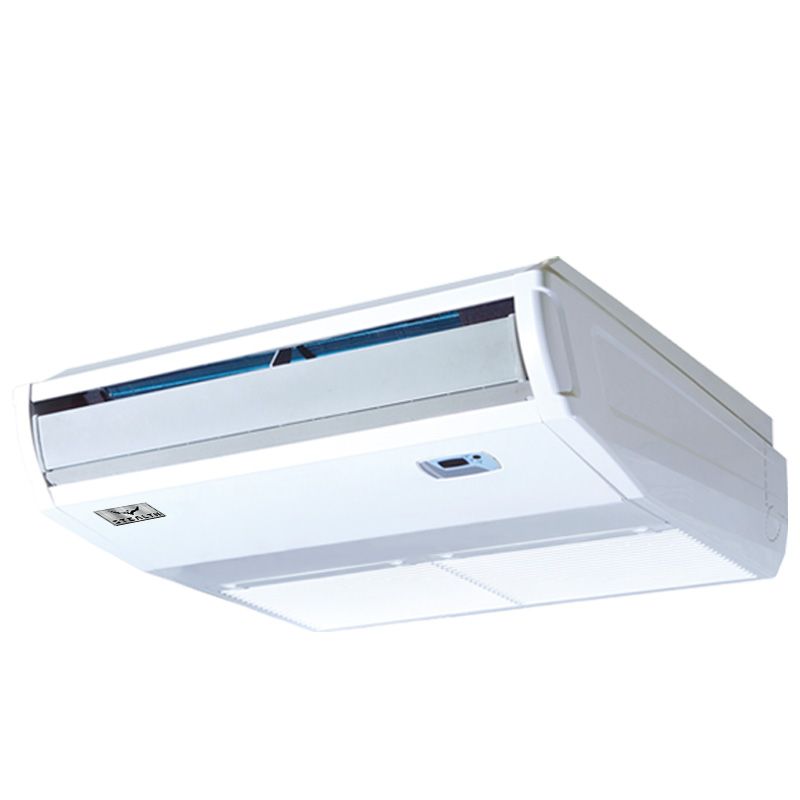

12,000 BTU Floor or Ceiling Mount Air Handler

Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement. The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room. Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water.

Please note:

This air handler must be connected to an outdoor condenser in order to function.

*Note: the 12k btu is floor mount only and cannot be located on the ceiling.

More Information
12,000 BTU Stealth Comfort Designer+ Floor or Ceiling Mounted Multi Zone Air Handler
FeatureSpec
SKUSC-12FM-HP230
Weight (in lbs)110
Brand/ManufacturerStealth
UPC00850048551367
Additional InformationDrain: 5/8"
Cooling BTU11,946
Heating BTU13,140
Maximum CFM382 CFM
Decibel Level (dBA)Indoor Unit: 36-40 dB(A)
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60Hz
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeFloor Mounted
Zone CompatibilityMulti Zone
Height27.5"
Width48"
Depth9"
Warranty14 year compressor, 5 year parts with online registration
