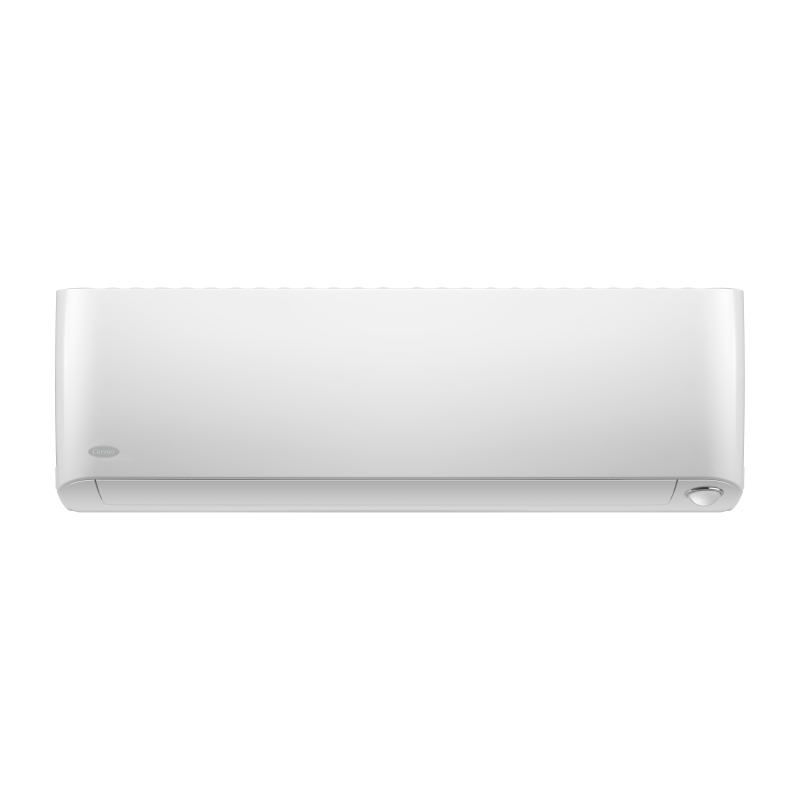

12,000 BTU Wall Mounted Carrier Mini-Split Infinity Series Air Handler

12,000 BTU Wall Mounted Carrier Mini-Split Infinity Series Air Handler
By

Carrier

Out of stock
Model

40MPHAQ12XA3

ID

79120

Please note that in order to function, this air handler must be installed with a compatible condenser and other installation equipment, all available at an additional cost.

  • Can heat and cool up to a small room in ideal conditions
  • 12,000 BTU wall-mounted air handler with remote
  • Quiet and efficient operation with an ECO mode
  • Automated louver control with a sensor to determine where airflow should be directed
  • Easy maintenance access
  • Built-in WiFi connection

The 40MPHAQ12XA3 Infinity series air handler is designed to bring built-in smart controls to efficient comfort. With its built in WiFi compatibility and the companion CliMate app, you can control each individual air handler from the convenience of your smartphone, anywhere in the world that you have Internet. The 40MPHAQ12XA3 also has a built-in sensor that allows for automated airflow redirection to where adjustments are needed most, and another mode uses the on-board occupancy sensor to run more effectively when movement is detected.

CliMate App Links

More Information
12,000 BTU Wall Mounted Carrier Mini-Split Infinity Series Air Handler
FeatureSpec
SKU40MPHAQ12XA3
Weight (in lbs)40
Brand/ManufacturerCarrier
ControllerWireless Included
Additional InformationDrain: 1"
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM168-357 CFM
RefrigerantR410A
CapacityDehumidification Rate: 0.31625 gal/hr
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Amperage Requirement0.3 Amps
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-7/10"
Width35-1/5"
Depth9-4/5"
Warranty10 years with online registration, 5 years without
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:12,000 BTU Wall Mounted Carrier Mini-Split Infinity Series Air Handler
Your Rating
Customer Questions
What all comes with it?
Thank you for your question. This particular product comes with the pictured indoor air handler and the corresponding remote. To view one of our available systems that includes this air handler and the outdoor condenser, please click here. For more assistance, please give us a call at 1-888-376-5487.
Is compressor built in?
Thank you for your question. The compressor is in connection with the outdoor condenser unit, which is what would connect to this indoor air handler unit. To view a system that includes both this air handler unit and the outdoor condenser, pleaseclick here. For more assistance, please give us a call at 1-888-376-5487.
