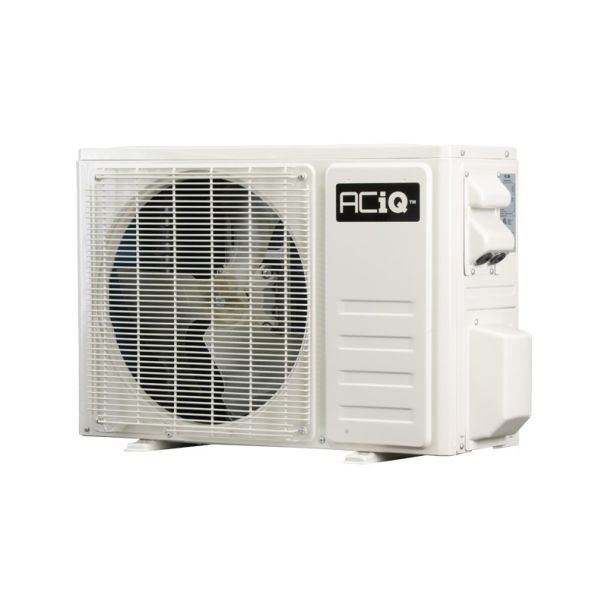

12,000 BTU ACiQ Essentials Single Zone Mini Split Heat Pump Condenser - R454B | 230V

12,000 BTU ACiQ Single Zone Condenser - 230V - ACIQ-K12Z-HP230B
12,000 BTU ACiQ Single Zone Condenser - 230V - ACIQ-K12Z-HP230B
SAVE $250.24
12,000 BTU ACiQ Essentials Single Zone Mini Split Heat Pump Condenser - R454B | 230V
By

ACiQ

In stock
Model

ACIQ-K12Z-HP230B

ID

197943

Be the first to review this product
4 Questions Answered
In Stock - 132 Ready to Ship
Was $714.98 Your Low Price Special Price $464.74
Free Shipping
  • Intelligent LED Display
  • Heating & Cooling
  • Ductless Solution for a 400-600 sq ft Room/Zone
  • Sleek Wall Mounted Design
  • Wi-Fi Enabled, Google Assistant & Amazon Alexa Compatible
  • Single-Zone/Room Compatible

OVERVIEW

The ACiQ Single Zone series ACiQ-K12Z-HP230B heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACiQ-K12Z-HP230B uses as little power as possible without sacrificing comfort. That's why we say that ACiQ brings intelligence to your heating and cooling needs.

QUICK FACTS

  • Intelligent comfort at an affordable cost
  • Ideal for up to a small room (depending on climate)
  • 12,000 BTU, 19 SEER2 wall mounted mini split
  • Efficient cooling from 5 F to 122 F outdoor temperatures
  • Efficient heating from 5 F to 86 F outdoor temperatures
  • Gold Fin full-protection coating
  • Quiet operation at even the highest workloads

12,000 BTU, 19 SEER2

At a rated capacity of 12,000 BTU, the output of the ACiQ-K12Z-HP230B when paired with a matching air handler can easily cover a small to medium room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACiQ-K12Z-HP230B has an efficiency of 19 SEER2. With such a high system 19 SEER2 rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency
ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

More Information
12,000 BTU ACiQ Essentials Single Zone Mini Split Heat Pump Condenser - R454B | 230V
SKUACIQ-K12Z-HP230B
Refrigerant Charge30.34 oz.
Weight (in lbs)65.000000
Brand/ManufacturerACiQ
Product FeaturesNew Refrigerant Compliant, WiFi
HSPF2Region IV / V: 9.5 / 8.2
Cooling BTU12000 BTU
Heating BTU12000 BTU
Decibel Level (dBA)55 (Max)
RefrigerantR454B
SEER1 (Efficiency)20
SEER2 (Efficiency)20
Compressor TypeRotary
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V, 1 Ph, 60 Hz
PhaseSingle Phase
Max Breaker SizeMOP: 15A
Min. Breaker SizeMCA: 11A
Tonnage1.0 Ton
System Tonnage1 Ton
BTU/Tonnage12,000 BTU/1 Ton
Min/Max Outdoor Temp for Heating-4°F ~ 86°F
Min/Max Outdoor Temp for Cooling5°F ~ 122°F
Zone CompatibilitySingle Zone
Height19.61"
Width30.98"
Depth11.42"
