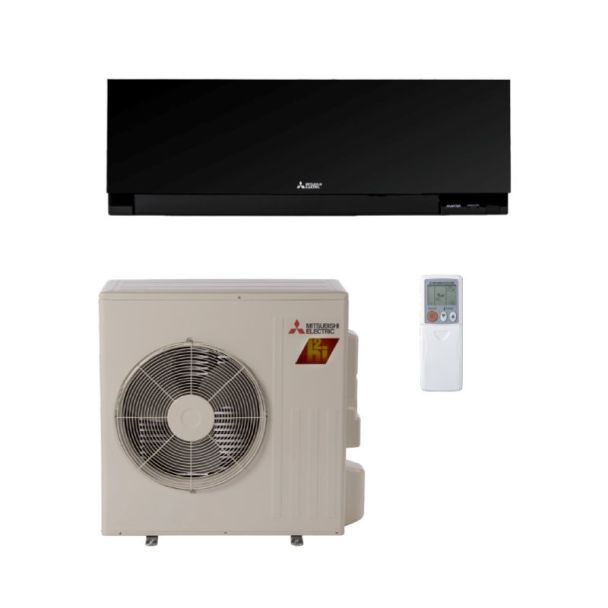

12,000 BTU Mitsubishi EX-Series 17.6 SEER2 Single Wall Mounted Mini Split Hyper Heat Pump System - R454B | SUZ-AA12NLHZ / MSZ-EX12NLB

SUZ-AA12NLHZ - 12,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA12NLHZ is a powerful 12,000 BTU outdoor heat pump unit, designed to provide reliable heating and cooling for residential and commercial spaces. It is part of a versatile system and offers energy-efficient performance for a range of temperature conditions.

Outdoor Unit Features (SUZ-AA12NLHZ):

• Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger's aluminum fins to prevent damage caused by salt, sulfur, and other airborne contaminants.
• Built-in Base Pan Heater: Enhances system reliability by preventing ice buildup and ensuring smooth operation even in cold climates.
• Hot-Start Technology: Ensures that the fan operates only once the heat exchanger is sufficiently warm, preventing cold air bursts when the unit starts up.
• Hyper-Heating INVERTER® (H2i®): Provides 100% heating capacity down to 5°F, with guaranteed heating down to -13°F, making it suitable for harsh winter conditions.
• Joint Lap DC Motor: Innovative motor design for enhanced efficiency and long-term reliability.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, and in the event of a power outage, the system will restart automatically when power returns.
• Pulse Amplitude Modulation Technology: Optimizes compressor performance and enhances energy efficiency by adjusting the power supply.
• Quiet Operation: Designed to operate quietly, with outdoor units as quiet as a typical conversation, and most indoor units are whisper quiet.

Specifications:

• Cooling Capacity: 12,000 BTU/h (Rated), with a minimum of 5,000 BTU/h.
• Heating Capacity: 15,000 BTU/h at 47°F, 9,300 BTU/h at 17°F, 9,000 BTU/h at -13°F.
• Energy Efficiency: SEER2 rating of 17.2, EER2 of 13.9, and HSPF2 of 10.
• Refrigerant: R410A for effective cooling and heating.
• Sound Levels: Operates at 54 dB(A) during cooling and 55 dB(A) during heating.
• Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches with a weight of 93 lbs.

The SUZ-AA12NLHZ outdoor unit is built to provide consistent and efficient heating and cooling, even in the most challenging environments. It is ideal for use with compatible indoor units in various residential and commercial setups.

Mitsubishi Electric MSZ-EX12NLB Wall-Mounted Indoor Unit

The Mitsubishi Electric MSZ-EX12NLB is a high-performance, wall-mounted indoor unit designed to provide efficient and reliable cooling and heating for residential and commercial spaces. With a rated capacity of 12,000 BTU/h for both cooling and heating, this unit ensures optimal comfort throughout the year.

Key Features

• Dual Barrier Coating: This patented coating reduces the accumulation of contaminants such as dust, fibers, smoke, and oil on internal surfaces, ensuring optimal airflow and simplifying maintenance.
• Econo Cool Mode: Automatically adjusts airflow based on the heat exchanger's temperature, slightly increasing the set temperature to conserve energy while maintaining comfort.
• Modern, Sleek Design: The unit's contemporary aesthetics allow it to blend seamlessly into various interior decors.
• Multiple Control Options: Equipped with a back-lit screen hand-held remote controller and compatible with comfort apps, third-party interfaces, and both wired and wireless controllers for versatile operation.

Performance Specifications

• Cooling Capacity: Rated at 12,000 BTU/h, with a maximum capacity of 12,000 BTU/h and a minimum of 2,700 BTU/h.
• Heating Capacity: Rated at 12,000 BTU/h, with a maximum capacity of 15,000 BTU/h and a minimum of 5,300 BTU/h.
• Moisture Removal: Capable of removing up to 1.9 pints per hour, aiding in effective humidity control.
• Airflow Rates (Cooling, Dry): Offers multiple fan speed settings with airflow rates of 143, 164, 228, 305, and 391 CFM to cater to diverse comfort preferences.
• Sound Pressure Levels (Cooling): Ranges from 21 dB(A) at the lowest fan speed to 42 dB(A) at the highest, ensuring whisper-quiet operation.
• Energy Efficiency Ratings: Achieves a Seasonal Energy Efficiency Ratio (SEER2) of 21.7 and an Energy Efficiency Ratio (EER2) of 12.2, reflecting high energy efficiency.
• ENERGY STAR® Certification: Yes, signifying compliance with energy efficiency guidelines set by the U.S. Environmental Protection Agency.

Electrical Specifications

• Power Supply: Operates on a voltage range of 208/230 V AC, single-phase, 60 Hz.
• Guaranteed Voltage Range: Functional within a voltage range of 198 - 253 V AC.
• Fan Motor Output: 30 W, contributing to the unit's energy-efficient performance.

Physical Specifications

• Dimensions (W x D x H): 34-13/16" x 7-11/16" x 11-3/4" (885 mm x 195 mm x 299 mm).
• Unit Weight: 26 lbs (11.5 kg).
• Drain Pipe Size: 5/8" (16 mm) outer diameter.

The Mitsubishi Electric MSZ-EX12NLB indoor unit combines advanced technology with user-friendly features to provide a comfortable and energy-efficient environment. Its innovative design and high-performance capabilities make it an excellent choice for those seeking reliable climate control solutions.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
