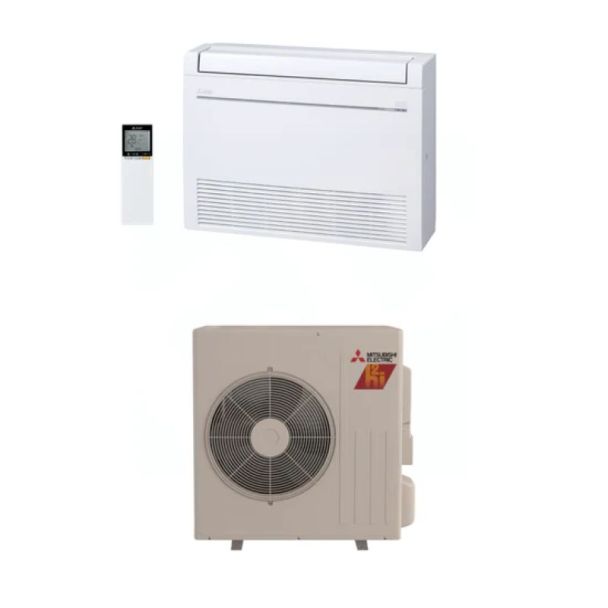

12,000 BTU Mitsubishi M-Series 17.2 SEER2 Single Zone Floor Mount Mini Split Hyper Heat Pump System - R454B | SUZ-AA12NLHZ / MFZ-KX12NL

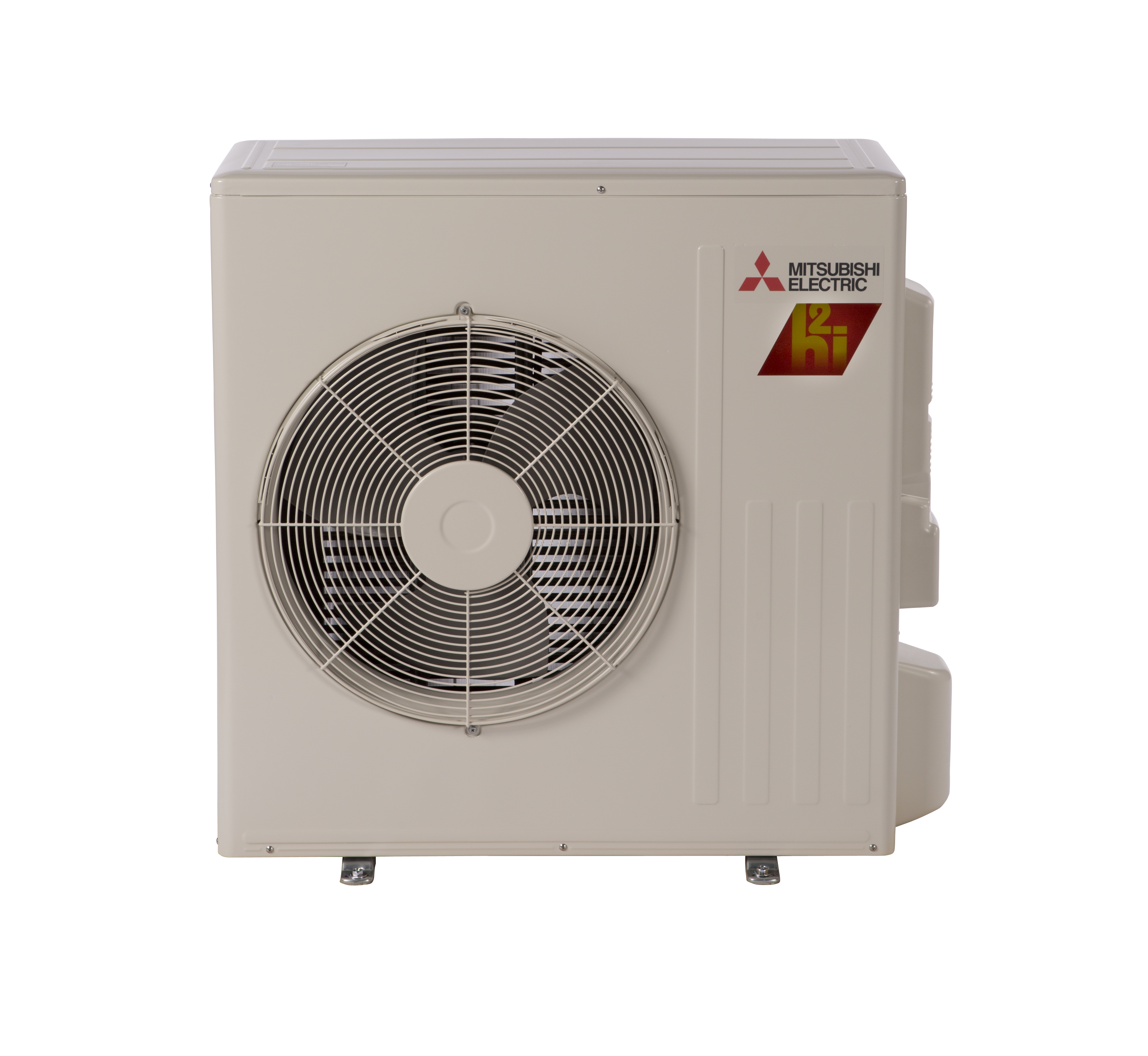

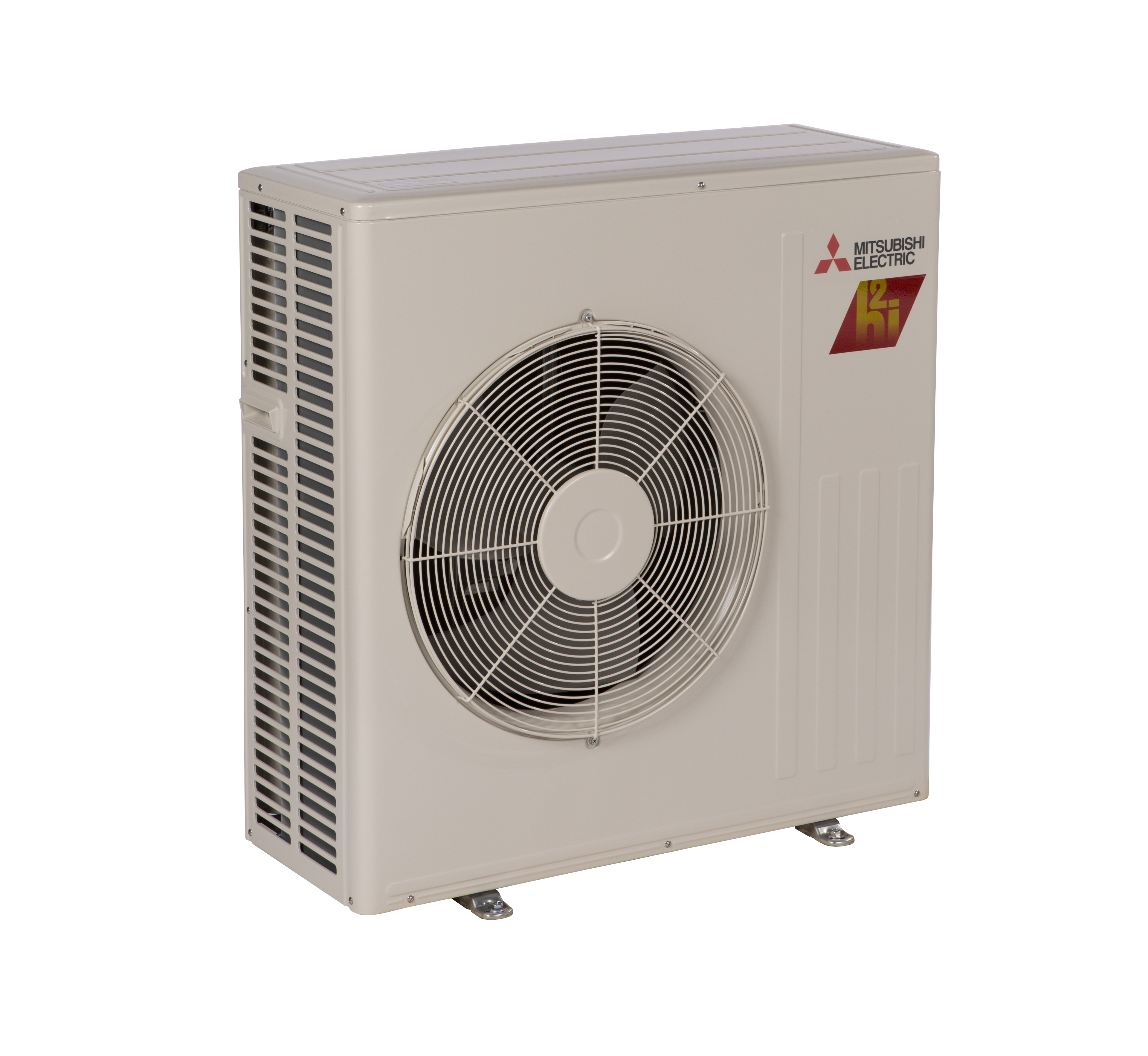

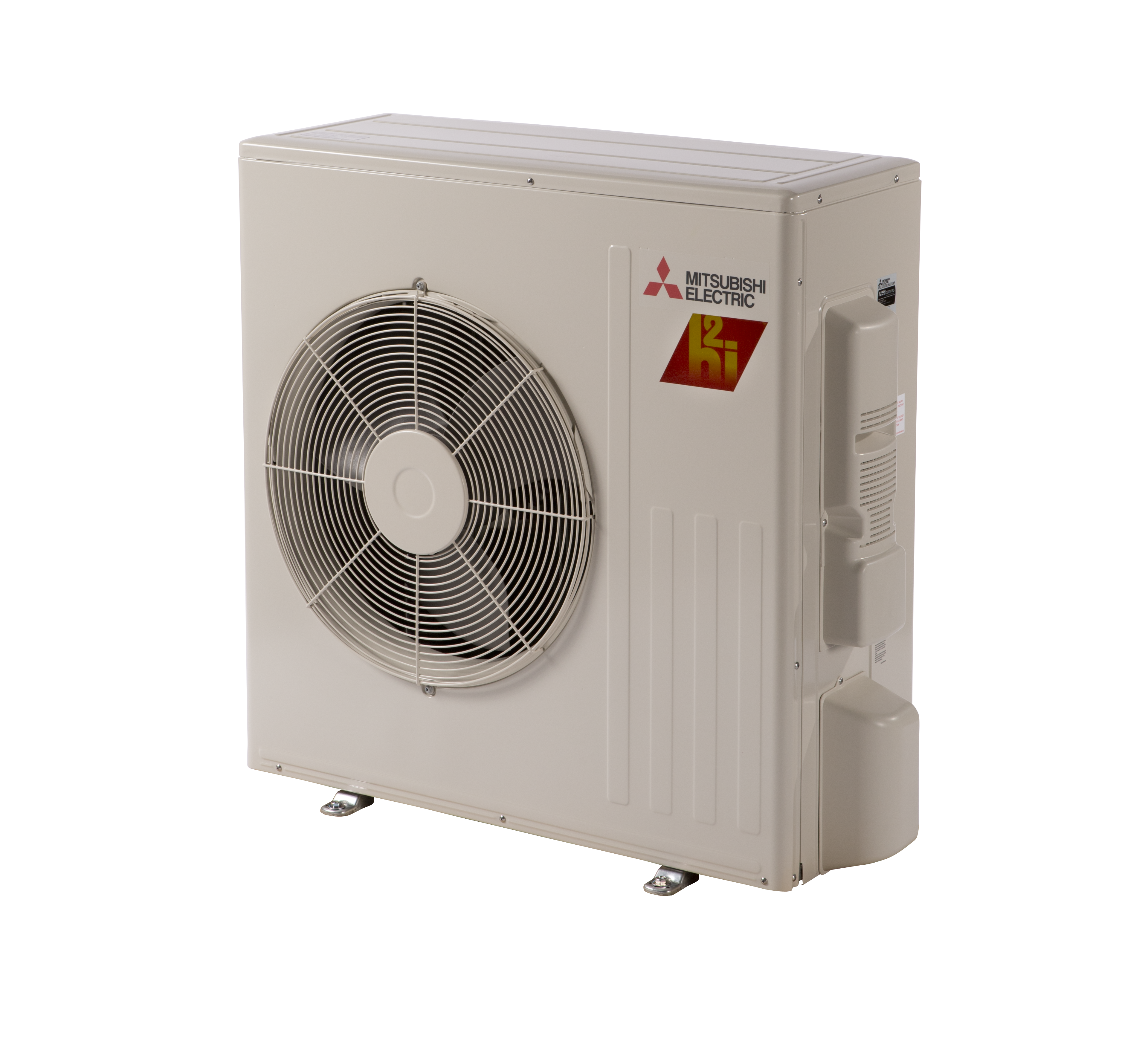

SUZ-AA12NLHZ - 12,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA12NLHZ is a powerful 12,000 BTU outdoor heat pump unit, designed to provide reliable heating and cooling for residential and commercial spaces. It is part of a versatile system and offers energy-efficient performance for a range of temperature conditions.

Outdoor Unit Features (SUZ-AA12NLHZ):

• Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger's aluminum fins to prevent damage caused by salt, sulfur, and other airborne contaminants.
• Built-in Base Pan Heater: Enhances system reliability by preventing ice buildup and ensuring smooth operation even in cold climates.
• Hot-Start Technology: Ensures that the fan operates only once the heat exchanger is sufficiently warm, preventing cold air bursts when the unit starts up.
• Hyper-Heating INVERTER® (H2i®): Provides 100% heating capacity down to 5°F, with guaranteed heating down to -13°F, making it suitable for harsh winter conditions.
• Joint Lap DC Motor: Innovative motor design for enhanced efficiency and long-term reliability.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, and in the event of a power outage, the system will restart automatically when power returns.
• Pulse Amplitude Modulation Technology: Optimizes compressor performance and enhances energy efficiency by adjusting the power supply.
• Quiet Operation: Designed to operate quietly, with outdoor units as quiet as a typical conversation, and most indoor units are whisper quiet.

Specifications:

• Cooling Capacity: 12,000 BTU/h (Rated), with a minimum of 5,000 BTU/h.
• Heating Capacity: 15,000 BTU/h at 47°F, 9,300 BTU/h at 17°F, 9,000 BTU/h at -13°F.
• Energy Efficiency: SEER2 rating of 17.2, EER2 of 13.9, and HSPF2 of 10.
• Refrigerant: R410A for effective cooling and heating.
• Sound Levels: Operates at 54 dB(A) during cooling and 55 dB(A) during heating.
• Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches with a weight of 93 lbs.

The SUZ-AA12NLHZ outdoor unit is built to provide consistent and efficient heating and cooling, even in the most challenging environments. It is ideal for use with compatible indoor units in various residential and commercial setups.

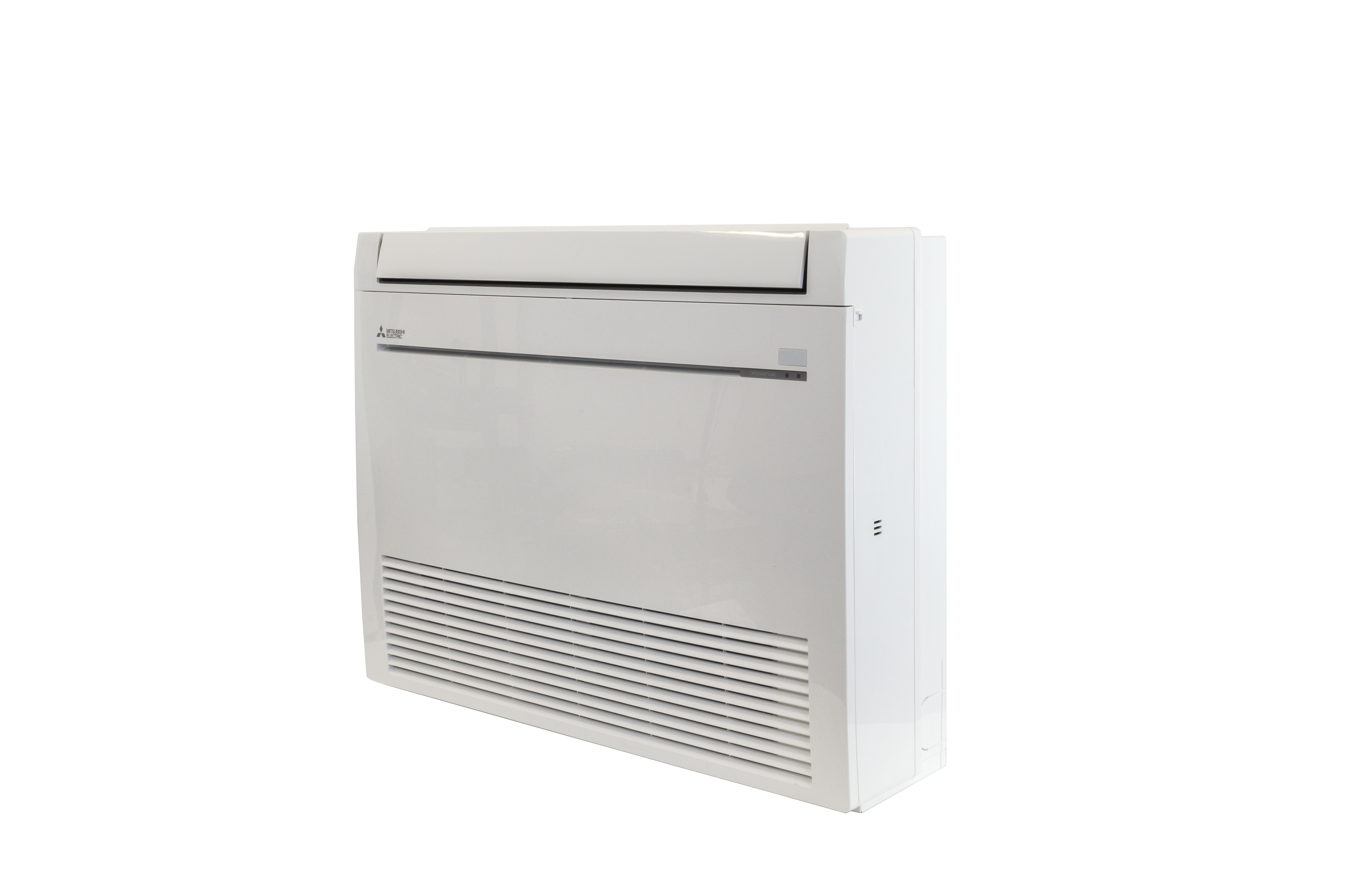

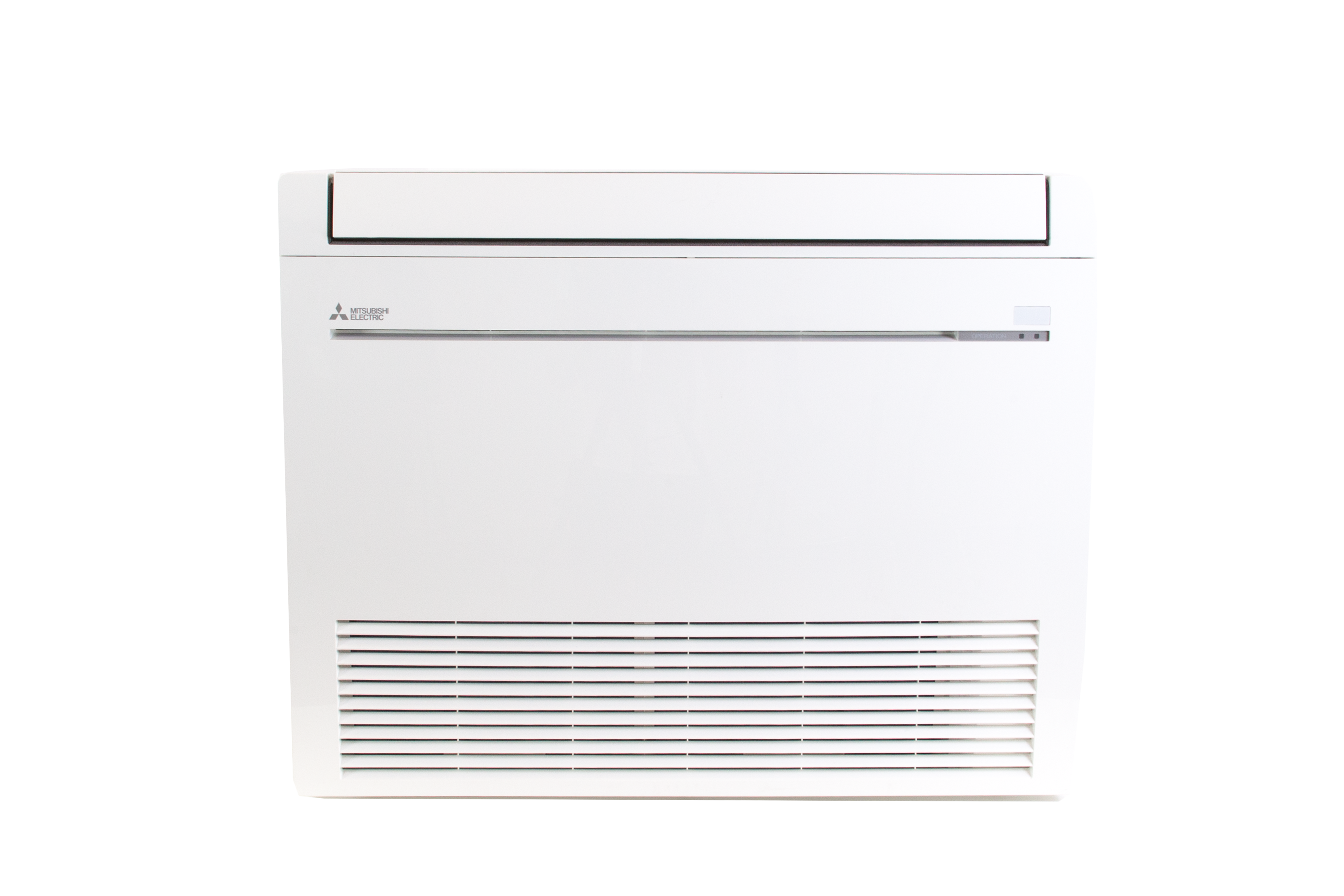

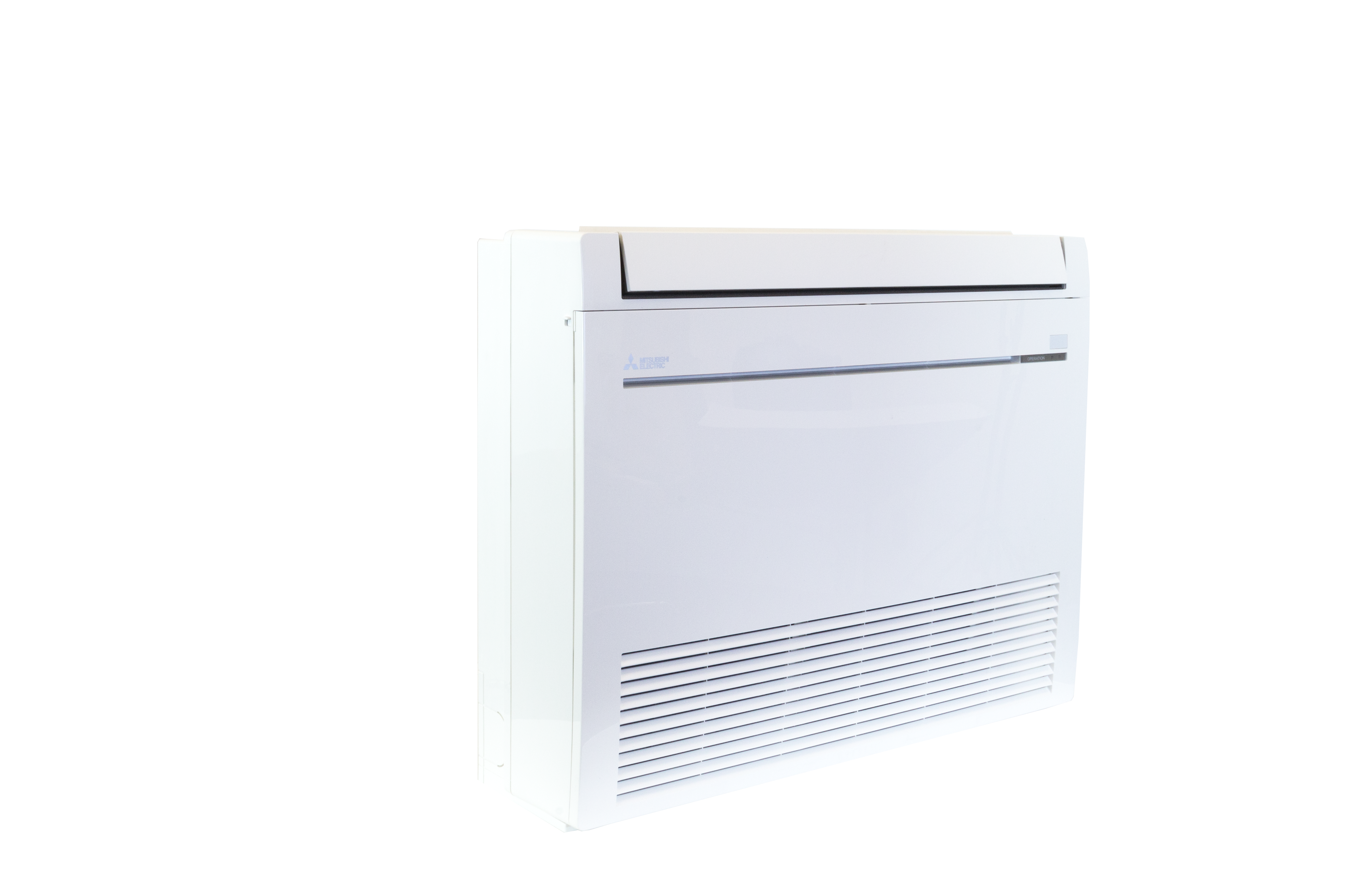

Mitsubishi Electric MFZ-KX12NL Floor-Mounted Air Handler

The Mitsubishi Electric MFZ-KX12NL is a high-performance, floor-mounted air handler designed for residential and light commercial spaces. With advanced features such as multi-flow vanes, powerful heating capability, and quiet operation, this unit ensures year-round comfort and energy efficiency.

Key Features

• Econo Cool Technology: Automatically adjusts airflow based on heat exchanger temperature to optimize energy savings while maintaining comfort.
• Multi-Flow Vane: Distributes warm air efficiently for rapid heating.
• Powerful Mode: Temporarily increases fan speed and temperature adjustment for fast heating or cooling.
• Quiet Operation: Operates as low as 21 dB(A) for whisper-quiet performance.
• Wi-Fi Enabled: Compatible with the Mitsubishi Comfort app for remote control and scheduling.

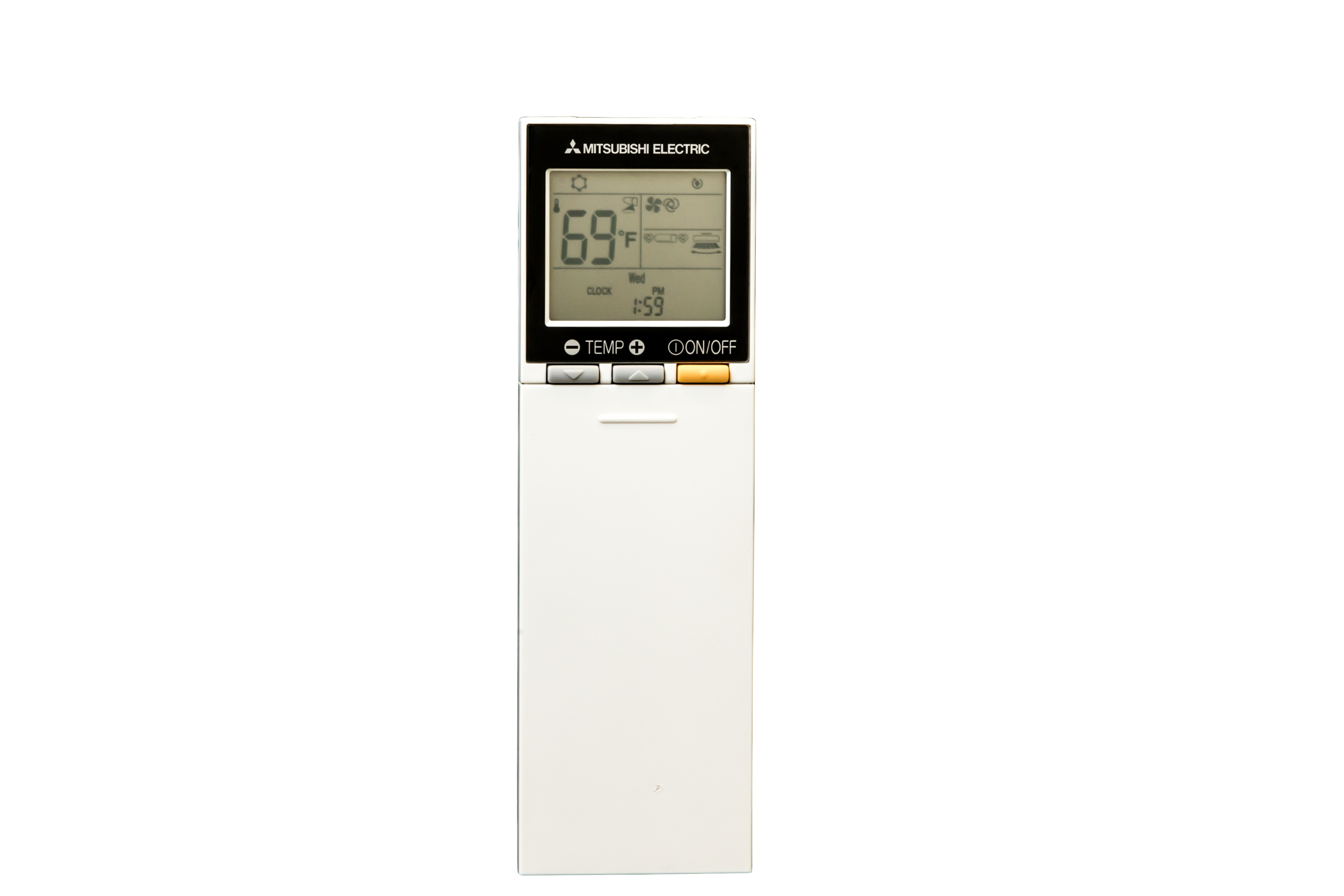

• Multiple Control Options: Includes a hand-held remote, wired and wireless controller support, and third-party integration.
• High-Efficiency Filtration: Features a Nano Platinum Filter to capture airborne particles and reduce odors.
• Flexible Installation: Can be floor-mounted or recessed into a wall.

Performance Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: Up to 18,000 BTU/h with Hyper-Heating INVERTER® (H2i®) technology.
• Fan Speeds: Low, Medium, High, Powerful, Auto
• Sound Pressure Levels: Ranges from 21 dB(A) to 46 dB(A) depending on mode.

Efficiency Ratings

• SEER2: 17.2
• EER2: 13.9
• HSPF2: 10.0
• ENERGY STAR® Certified: Yes

Dimensions and Installation

• Unit Dimensions: 29.5" W x 8.4" D x 23.6" H
• Weight: 33 lbs
• Mounting Options: Floor-mounted or recessed installation.

The Mitsubishi Electric MFZ-KX12NL air handler is an efficient, quiet, and flexible heating and cooling solution. Its advanced features, high energy efficiency, and multiple control options make it an excellent choice for maintaining comfort in various environments.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
