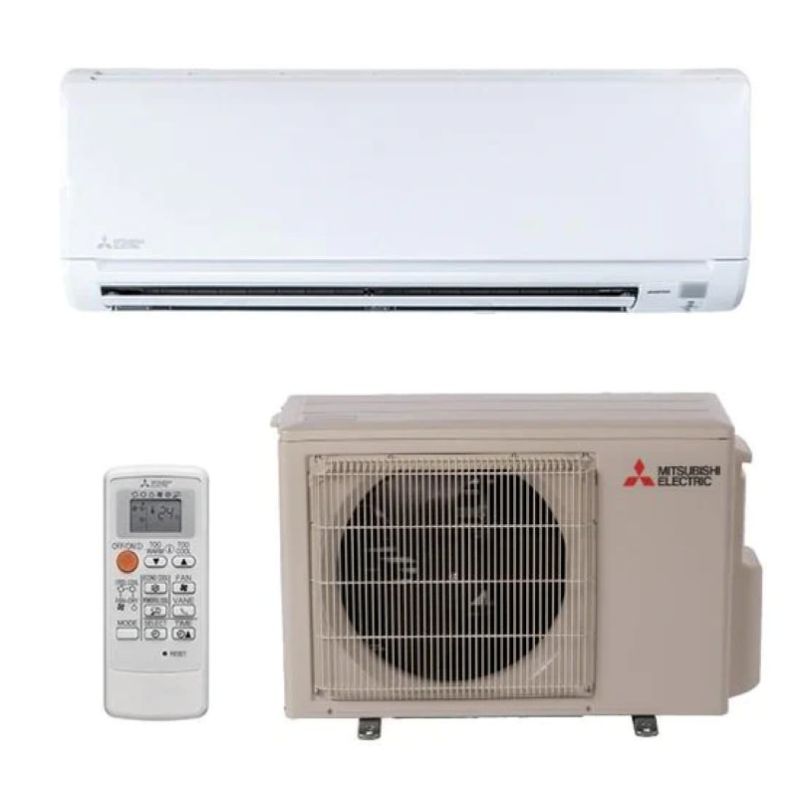

Mitsubishi 15,000 BTU GX-Series 22.2 SEER2 Single Zone Wall Mount Mini Split Cooling Only System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
MUY-GX15NL / MSY-GX15NL
ID
199077
In Stock - Ready to Ship
Was $3,171.57
Your Low Price $2,537.25
Free Shipping
People that viewed this product purchased this instead:

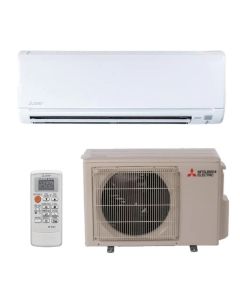

Mitsubishi 15,000 BTU GX-Series 22.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
Was $3,686.25
Special Price $2,949.00

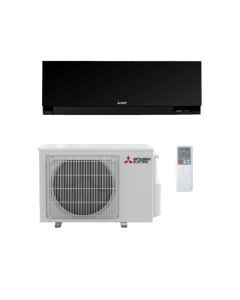

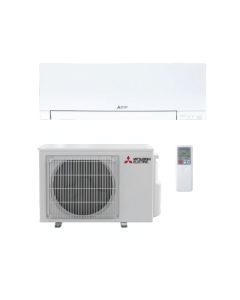

Mitsubishi 15,000 BTU EX-Series 20.9 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V
Was $3,779.06
Special Price $3,023.25

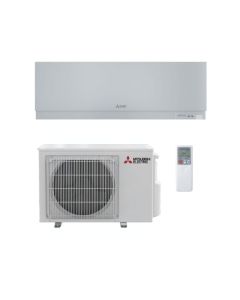

Mitsubishi 15,000 BTU EX-Series 20.9 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V
Was $3,779.06
Special Price $3,023.25
Mitsubishi 15,000 BTU EX-Series 20.9 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V
Was $3,779.06
Special Price $3,023.25
15,000 BTU Mitsubishi GX-Series 22.2 SEER2 Single Wall Mounted Mini Split Cooling Only System - R454B | MUY-GX15NL / MSY-GX15NL
The 15,000 BTU Mitsubishi GX-Series Cooling Only Mini Split provides reliable cooling for medium to large spaces. With a 22.2 SEER2 rating and quiet operation, it's ideal for residential or light commercial use.
Key Features:- 22.2 SEER2 Efficiency: Delivers strong cooling with smart energy use.
- Cooling Only Operation: Built for cooling only – no heating feature included.
- Wall-Mounted Design: Slim indoor unit fits neatly into a variety of room layouts.
- Quiet Operation: Maintains a calm indoor environment while running efficiently.
- R454B Refrigerant: Reduces environmental impact while delivering strong cooling power.
- Indoor Unit: MSY-GX15NL Wall-Mounted Air Handler
- Outdoor Unit: MUY-GX15NL Condenser
- Ideal for living rooms, workspaces, or large bedrooms
- Clean, modern look
- Energy efficient without sacrificing power
- Includes wireless remote for easy use
Stay cool and comfortable with the Mitsubishi GX-Series 15,000 BTU system, built for performance and long-term reliability.

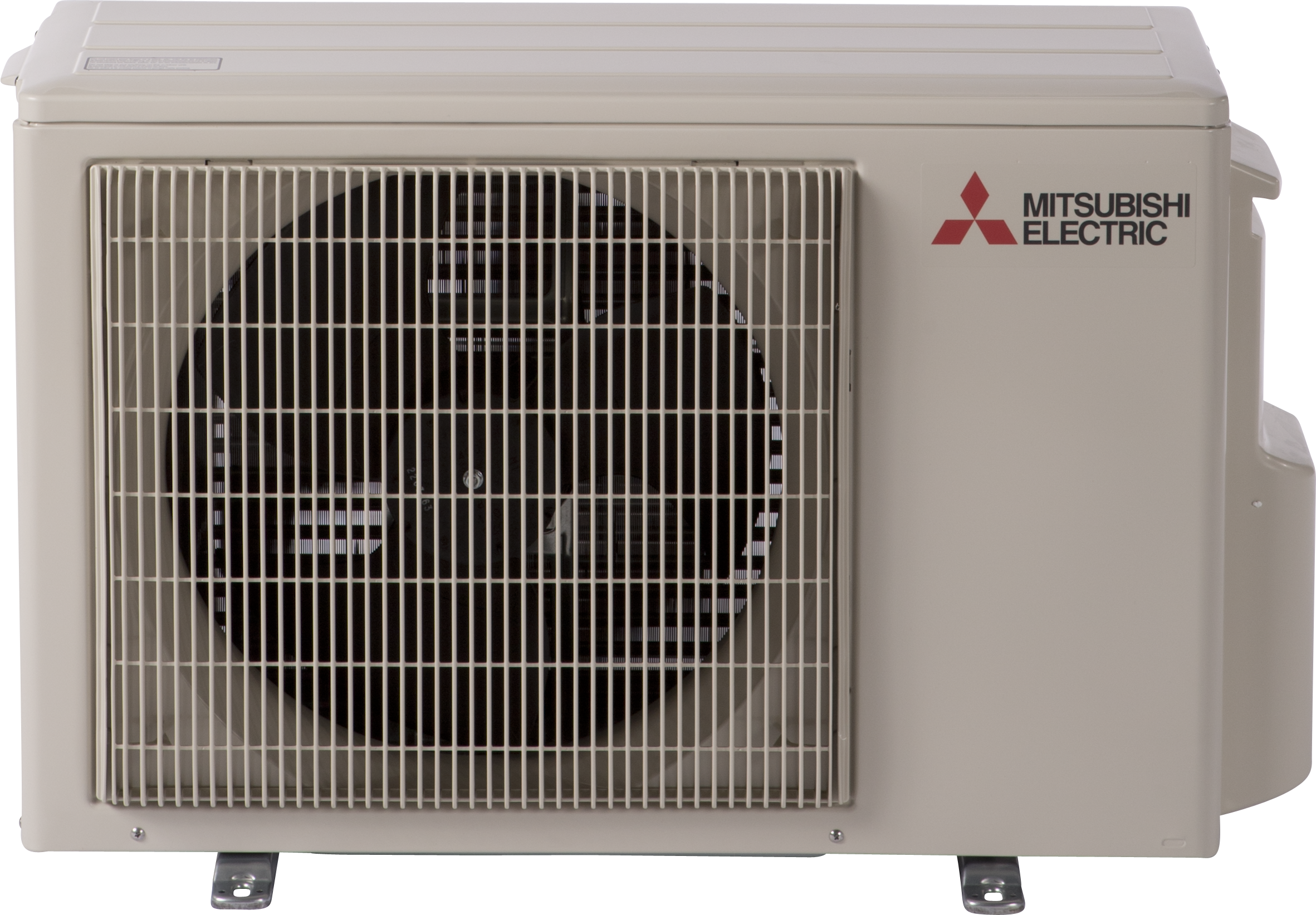

15,000 BTU Mitsubishi Single Zone Condenser - R454B
MUY-GX15NL - Inverter Cooling Outdoor Unit
The MUY-GX15NL outdoor unit is a high-efficiency inverter-driven cooling solution designed to deliver reliable performance while maintaining optimal energy usage. It pairs with the MSY-GX15NL indoor unit for efficient comfort in residential or light commercial spaces. Below are the key features and specifications of this outdoor unit:
Key Features:
- Inverter-Driven Compressor: The inverter-driven compressor allows for precise control of the cooling capacity, ensuring energy savings and consistent temperature maintenance.
- Blue Fin Coating: The heat exchanger of the outdoor unit is treated with a Blue Fin coating to prevent corrosion from salt, sulfur, and airborne contaminants, making it ideal for coastal or industrial environments.
- Quiet Operation: The MUY-GX15NL operates quietly, with a sound pressure level of 49 dB(A), ensuring minimal noise disturbance in both residential and commercial spaces.
- Automatic Power Restart: In case of a power outage, the system automatically restarts when power is restored, ensuring continuous operation.
- Energy Efficiency: With a SEER2 rating of 22.2 and an EER21 rating of 13, the MUY-GX15NL offers excellent energy efficiency, reducing energy consumption and operational costs.
- Cooling Capacity: The unit provides a rated cooling capacity of 14,000 BTU/h, with a maximum capacity of 18,200 BTU/h, ensuring effective cooling in medium to large spaces.
- Refrigerant: Utilizes R454B refrigerant, a more environmentally friendly option with reduced global warming potential compared to traditional refrigerants.
- Built-in Defrost Function: The unit includes a reverse cycle defrost system to maintain efficient performance in colder conditions.
Specifications:
- Electrical Requirements: 208-230V, 1 phase, 60Hz with a maximum power input of 2,200W and a rated power input of 1,075W.
- Airflow Rate: The unit offers an airflow of 1,166 CFM to ensure consistent and effective cooling throughout the area.
- Dimensions: The outdoor unit measures 31-1/2 inches (W) x 11-1/4 inches (D) x 21-5/8 inches (H), with a weight of 81 lbs (36.6 kg).
- Noise Level: With a noise level of 49 dB(A) during cooling, this unit ensures quiet and unobtrusive operation.
- Maximum Piping Length: The unit supports a maximum piping length of 65 feet, allowing flexibility in installation locations.
- Operating Temperature Range: The unit operates efficiently in cooling temperatures from 14°F to 115°F, ensuring reliable performance in a wide range of climates.
- Pre-Charged Refrigerant: The unit comes pre-charged with 2 lbs 4 oz of R454B refrigerant, reducing the need for additional refrigerant during installation.
The MUY-GX15NL outdoor unit is designed for reliable and efficient cooling in various environments, offering superior performance while ensuring energy savings and long-term durability. Its quiet operation, high energy efficiency, and advanced features make it an excellent choice for residential or commercial cooling applications.

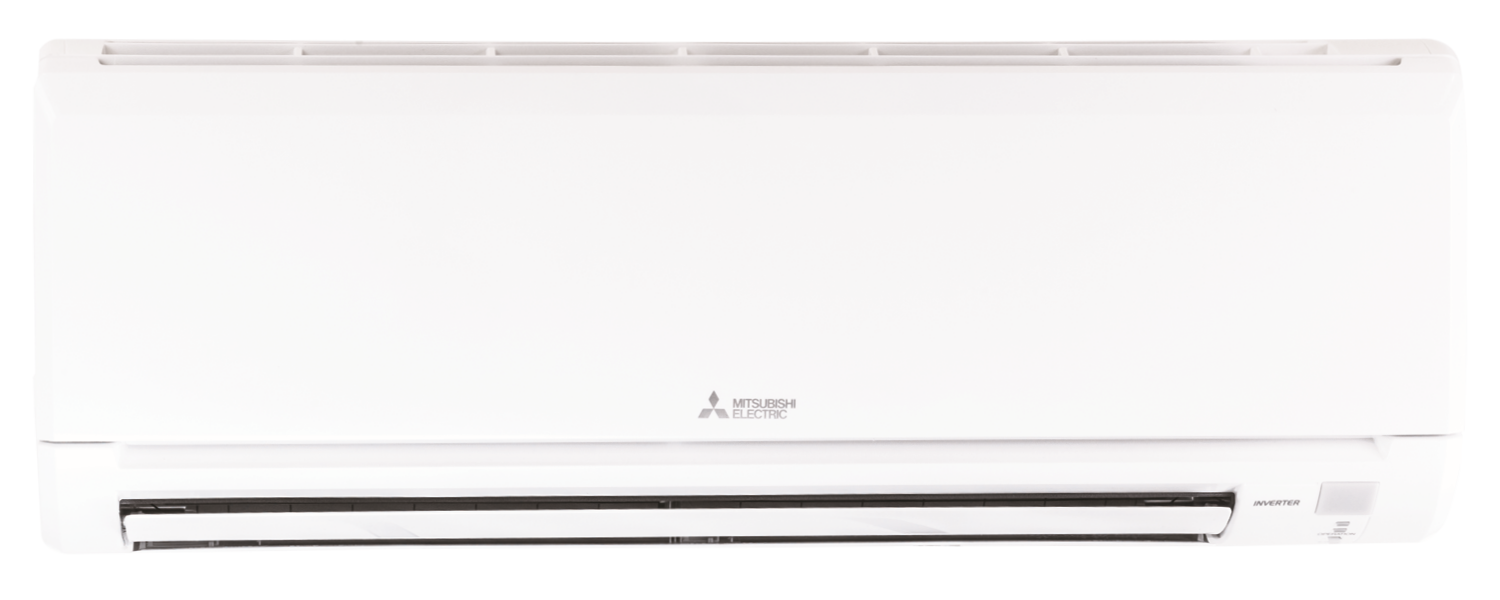

15,000 BTU Mitsubishi GX-Series Wall Mount Air Handler - R454B
MSY-GX15NL Wall-Mounted Air Handler
The MSY-GX15NL is a high-efficiency, wall-mounted air handler designed to deliver powerful cooling performance with advanced features for optimal comfort and energy savings.
Key Features:
- Dual Barrier Coating: Reduces buildup of contaminants on internal surfaces, ensuring cleaner air and better efficiency.
- Econo Cool Mode: Adjusts airflow based on heat exchanger temperature to save energy while maintaining comfort.
- Multiple Control Options: Includes a backlit remote controller, app control, and compatibility with wired and wireless controllers.
- Powerful Mode: Quickly adjusts temperature and fan speed to reach the desired comfort level faster.
- Nano Platinum Filter: Helps reduce certain airborne contaminants and odors for improved air quality.
- Smart Dry Mode: Enhances humidity control without excessive cooling.
- Smart Set Function: Allows users to recall preferred temperature settings with one button press.
- Quiet Operation: Designed for whisper-quiet indoor performance.
- Wi-Fi Compatibility: Can be controlled via a smart app for enhanced convenience.
With its sleek design, energy-efficient operation, and multiple comfort-enhancing features, the MSY-GX15NL is an excellent choice for zoned cooling applications.

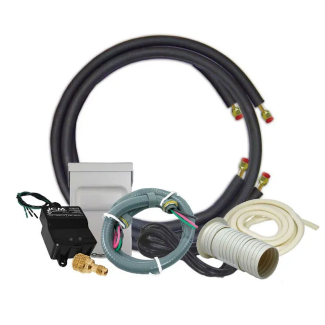

Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.

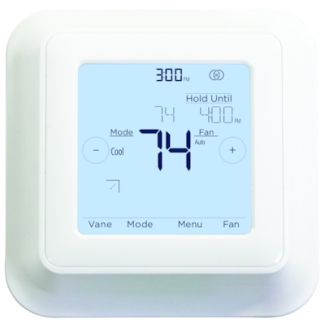

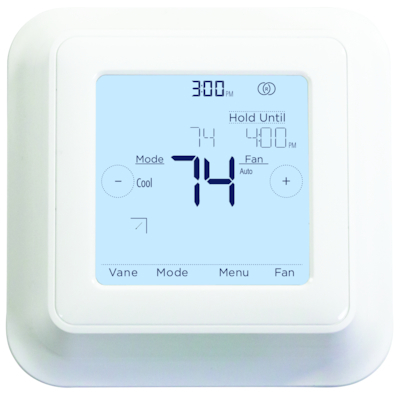

Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
