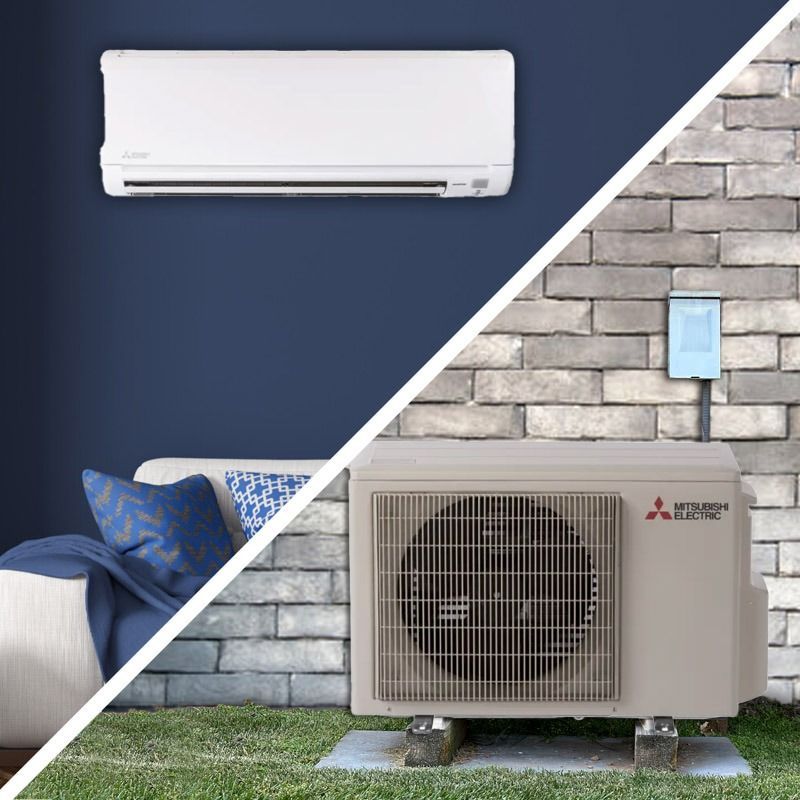

15,000 BTU Mitsubishi HM-Series 18 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A

15,000 BTU Mitsubishi HM-Series 18 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A | MUZ-HM15NA / MSZ-HM15NA
15,000 BTU Mitsubishi HM-Series 18 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A | MUZ-HM15NA / MSZ-HM15NA 15,000 BTU Mitsubishi HM-Series 18 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A | MUZ-HM15NA / MSZ-HM15NA MSK001 EL1838-3 87762 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 HW-600 MHK2 MHK2 201814 216741 366402 366400 366401 MHK2 MHK2
15,000 BTU Mitsubishi HM-Series 18 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A
15,000 BTU Mitsubishi HM-Series 18 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A

Required Fields *

Be the first to review this product
Out of stock
By

Mitsubishi

Out of stock

Model

MUZ-HM15NA / MSZ-HM15NA

ID

207049

15,000 BTU Mitsubishi HM-Series Single Zone Mini Split System - MSZ-HM15NA / MUZ-HM15NA - R410A

This Mitsubishi 15,000 BTU HM-Series Single Zone Mini Split System includes the MSZ-HM15NA air handler and MUZ-HM15NA condenser for powerful, efficient heating and cooling. Designed for larger rooms, it features inverter-driven technology and quiet operation. Perfect for living rooms, home offices, or shared spaces.

  • 15,000 BTU single-zone mini split system
  • Features the MSZ-HM15NA indoor unit and MUZ-HM15NA outdoor condenser
  • Uses R410A refrigerant
  • Energy-efficient inverter compressor
  • Quiet and reliable operation

This HM-Series system delivers strong year-round comfort with Mitsubishi’s trusted technology.

More Information
15,000 BTU Mitsubishi HM-Series Single Zone Mini Split Heat Pump Condenser - R410A
FeatureSpec
SKUMUZ-HM15NA
Refrigerant ChargePre-Charged For: 25'
Weight (in lbs)81
AHRI Certificate Number202680602
Brand/ManufacturerMitsubishi
UPC605468092644
Cooling BTU14,000
Heating BTU18,000
Decibel Level (dBA)49-51
Energy StarNo
RefrigerantR410A
CapacityDehumidification Rate: 0.19 gal/hr
HSPF10
SEER2 (Efficiency)20
EER12
EER212
Compressor TypeTwin Rotary
Liquid Line1/4"
Suction Line1/2"
Liquid Valve Size 1/4
Suction Valve Size 1/2
Electrical208/230V, 1 phase, 60Hz
PhaseSingle Phase
Max Breaker Size15
Min. Breaker Size10
Tonnage1.25 Ton
BTU/Tonnage15,000 BTU/1.25 Ton
Min/Max Outdoor Temp for Heating-4°F – 75°F
Min/Max Outdoor Temp for Cooling14°F – 115°F
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
Height21.5
Width31.25
Depth11.17
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

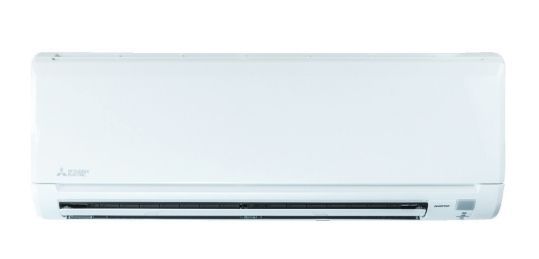

15,000 BTU Mitsubishi HM-Series Single Zone Wall Mounted Air Handler - R410A
FeatureSpec
SKUMSZ-HM15NA
Weight (in lbs)22
Brand/ManufacturerMitsubishi
UPC605468366554
Cooling BTU14,000 BTU
Heating BTU18,000 BTU
Maximum CFM247-533
Decibel Level (dBA)30-49
RefrigerantR410A
CapacityDehumidification Rate: 0.41 gal/hr
HSPF210
Liquid Line1/4"
Suction Line1/2"
Electrical208/230v 1 Phase 60 Hz
PhaseSingle Phase
BTU/Tonnage15,000 BTU/1.25 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Operating ModeCooling, Heating
Height11.63
Width31.44
Depth9.13
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight (in lbs)15
Brand/ManufacturerOnline Supply
UPCna
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
FeatureSpec
SKUEL1838-3
Weight (in lbs)16
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
FeatureSpec
SKU87762
Weight (in lbs)5
Brand/ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
FeatureSpec
SKU201814
Weight (in lbs)15
Brand/ManufacturerOnline Supply
UPCna
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
FeatureSpec
SKU216741
Weight (in lbs)30
Brand/ManufacturerOnline Supply
UPCna
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
FeatureSpec
SKU366402
Weight (in lbs)45
Brand/ManufacturerOnline Supply
UPCna
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
FeatureSpec
SKU366400
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
FeatureSpec
SKU366401
Weight (in lbs)35
Brand/ManufacturerOnline Supply
UPCna
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
17" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKUHW-600
Weight (in lbs)9.2
Brand/ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Mitsubishi MHK2 Wireless Remote Controller
FeatureSpec
SKUMHK2
Weight (in lbs)2
Brand/ManufacturerMitsubishi
ReplacesMHK3
UPC85267267533
LengthCable:39-23/64"
HeightThermostat: 4-5/64” | Receiver: 3-3/32”
WidthThermostat: 4-5/64” | Receiver: 1-3/4”
DepthThermostat: 1-1/16" | Receiver: 39/64”
Warranty5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
