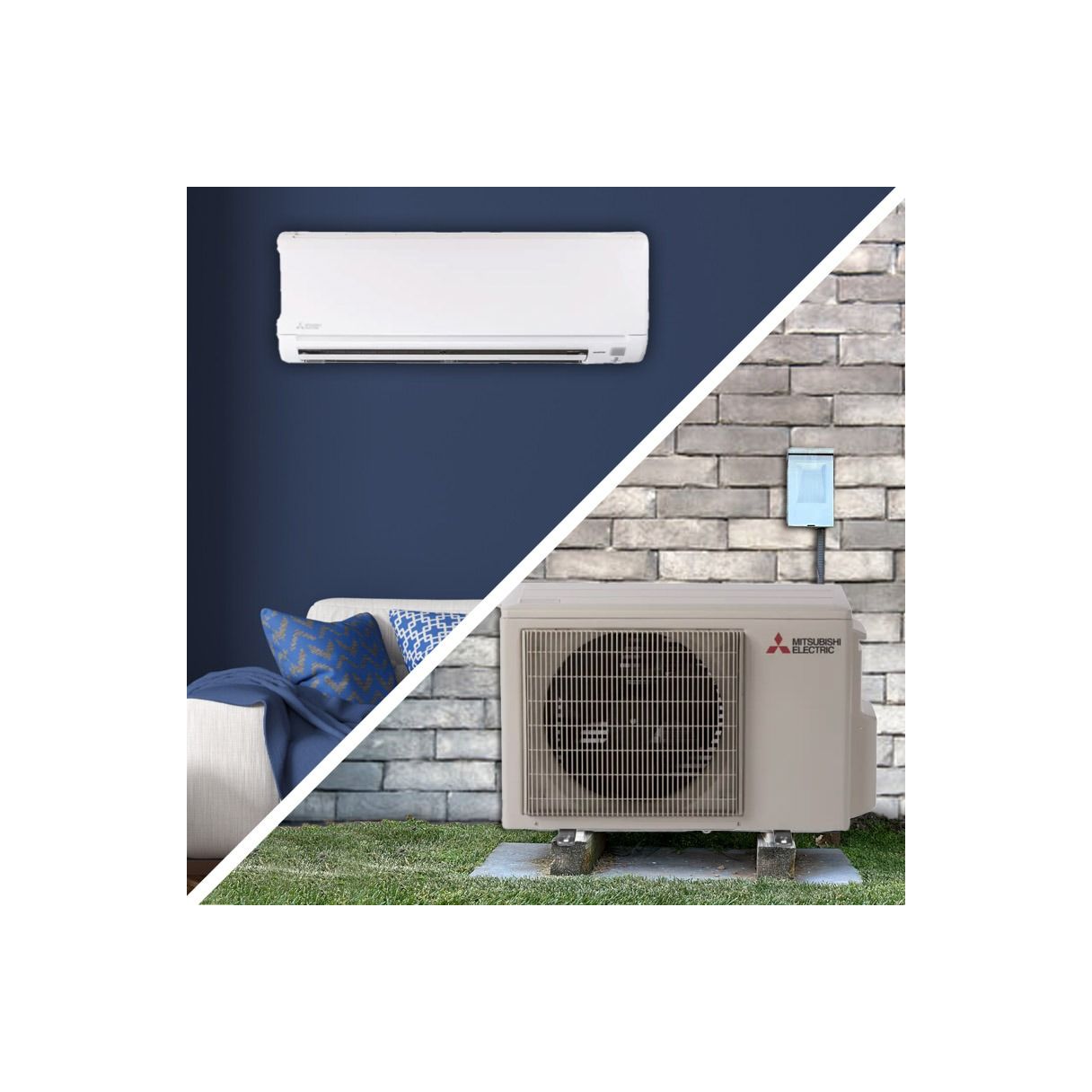

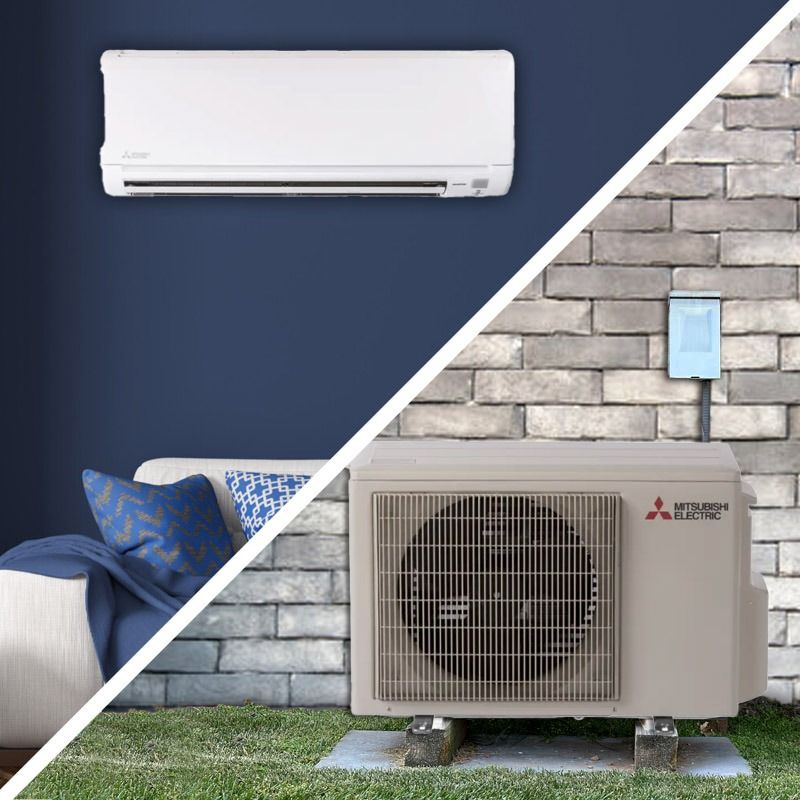

9,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A

Name: 9,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A
Brand: Mitsubishi
SKU: MUZ-HM09NA / MSZ-HM09NA
Price: 65 USD
Availability: OutOfStock

9,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A | MUZ-HM09NA / MSZ-HM09NA

9,000 BTU Mitsubishi HM-Series 20 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System - R410A

Required Fields *

Be the first to review this product

Out of stock

Mitsubishi

Out of stock

Model

MUZ-HM09NA / MSZ-HM09NA

207047

Description

No Return Policy: All sales of this product are final and are non-refundable.

9,000 BTU Mitsubishi HM-Series Single Zone Mini Split System - MSZ-HM09NA / MUZ-HM09NA - R410A

This Mitsubishi 9,000 BTU HM-Series Single Zone Mini Split System combines the MSZ-HM09NA air handler and MUZ-HM09NA condenser for efficient, quiet heating and cooling. Designed for small spaces, it uses R410A refrigerant and inverter-driven technology for reliable year-round comfort. Perfect for bedrooms, home offices, or small living areas.

9,000 BTU single-zone mini split system
Features the MSZ-HM09NA indoor unit and MUZ-HM09NA outdoor condenser
Uses R410A refrigerant
Energy-efficient inverter compressor
Compact and quiet operation

This HM Series system offers a trusted, energy-saving solution for smaller single-zone spaces.

Looking to find out more about the HM Series?

Check out other R410a HM Series Sizes below!

Check out two of our articles below:

Limited-Time Offer: Buy a R410a Mitsubishi HM Mini Split and Save with Closeout Pricing here.

Why the Mitsubishi HM Series is Still a Top Mini Split Choice in 2025 here.

Product Specs

More Information
9,000 BTU Mitsubishi HM-Series Single Zone Mini Split Heat Pump Condenser - R410A
Feature	Spec
SKU	MUZ-HM09NA
Refrigerant Charge	Pre-Charged For: 25'
Weight (in lbs)	73
AHRI Certificate Number	201754645
Brand/Manufacturer	Mitsubishi
UPC	605468002551
Cooling BTU	9,000
Heating BTU	10,900
Decibel Level (dBA)	46-50
Energy Star	No
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.19 gal/hr
HSPF2	10.0
SEER2 (Efficiency)	20
EER2	12
Compressor Type	Twin Rotary
Liquid Line	1/4"
Suction Line	3/8"
Liquid Valve Size	1/4
Suction Valve Size	3/8
Electrical	208/230V, 1 phase, 60Hz
Phase	Single Phase
Max Breaker Size	15
Min. Breaker Size	-U1/2: 9 -U8: 12
Tonnage	0.75 Ton
BTU/Tonnage	9,000 BTU/0.75 Ton
Min/Max Outdoor Temp for Heating	-4°F – 75°F
Min/Max Outdoor Temp for Cooling	14°F – 115°F
Zone Compatibility	Single Zone
Operating Mode	Cooling, Heating
Height	21.63
Width	31.5
Depth	11.25
Warranty	10 Years with Online Registration
Resources	Submittal Installation Manual Service Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Mitsubishi 9,000 BTU HM-Series Single Zone Mini Split Heat Pump Condenser – R410A \| 230V
Feature	Spec

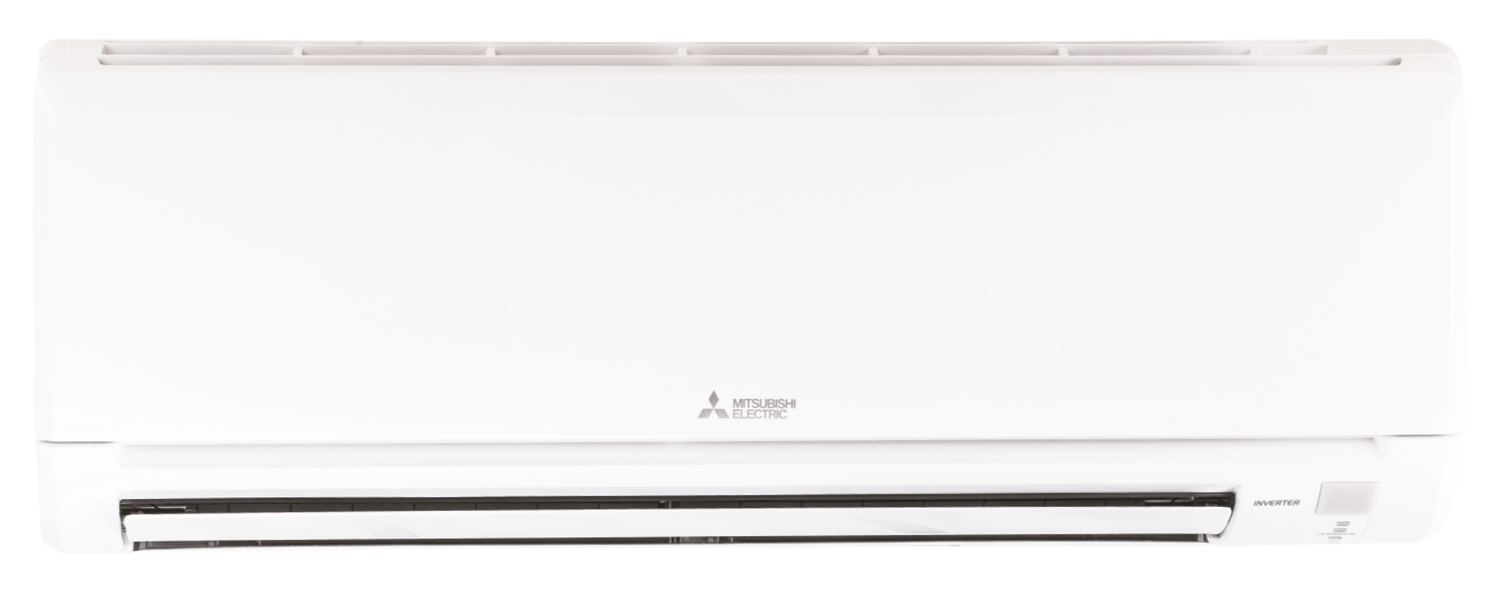

SKU	MSZ-HM09NA
Weight (in lbs)	22
Brand/Manufacturer	Mitsubishi
UPC	605468471678
Cooling BTU	9,000 BTU
Heating BTU	10,900 BTU
Maximum CFM	134-406 CFM
Decibel Level (dBA)	22-43
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.23 gal/hr
HSPF2	10
Liquid Line	1/4"
Suction Line	3/8"
Electrical	208/230v 1 Phase 60 Hz
BTU/Tonnage	9,000 BTU/0.75 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Operating Mode	Cooling, Heating
Height	11.63
Width	31.44
Depth	9.13
Warranty	10 Years with Online Registration
Resources	Submittal Installation Manual Operation Manual Service Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Installation Kit for Condensers - Accessory Set
Feature	Spec
SKU	MSK001
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Resources	Surge Protector Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad 18" x 38" x 3"
Feature	Spec
SKU	EL1838-3
Weight (in lbs)	16
Brand/Manufacturer	Online Supply
UPC	na
Height	3"
Width	18"
Depth	38"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
Feature	Spec
SKU	87762 / EL1838-3
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Height	3"
Width	18"
Depth	38"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Condenser Risers - 4" x 18" - 2 Pack
Feature	Spec
SKU	87762
Weight (in lbs)	5
Brand/Manufacturer	Online Supply
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
Feature	Spec
SKU	201813
Weight (in lbs)	15
Brand/Manufacturer	Online Supply
UPC	na
Length	15'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
Feature	Spec
SKU	366395
Weight (in lbs)	35
Brand/Manufacturer	Online Supply
UPC	na
Length	35'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
Feature	Spec
SKU	366396
Weight (in lbs)	45
Brand/Manufacturer	Online Supply
UPC	na
Length	50'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
Feature	Spec
SKU	366390
Weight (in lbs)	25
Brand/Manufacturer	Online Supply
UPC	na
Length	25'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
Feature	Spec
SKU	216740
Weight (in lbs)	30
Brand/Manufacturer	Online Supply
UPC	na
Length	30'
Height	1/2"
Width	1/2"
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
17" Wall Mount Bracket for Mini Split Systems
Feature	Spec
SKU	HW-600
Weight (in lbs)	9.2
Brand/Manufacturer	Online Supply
Length	17"
Height	20"
Width	6"
Resources	HW-600 Install Guide You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Mitsubishi MHK2 Wireless Remote Controller
Feature	Spec
SKU	MHK2
Weight (in lbs)	2
Brand/Manufacturer	Mitsubishi
Replaces	MHK3
UPC	85267267533
Length	Cable:39-23/64"
Height	Thermostat: 4-5/64” \| Receiver: 3-3/32”
Width	Thermostat: 4-5/64” \| Receiver: 1-3/4”
Depth	Thermostat: 1-1/16" \| Receiver: 39/64”
Warranty	5 Years Parts Warranty
Resources	MHK2 Installation Manual MHK2 Submittal MHK2 FAQs You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
