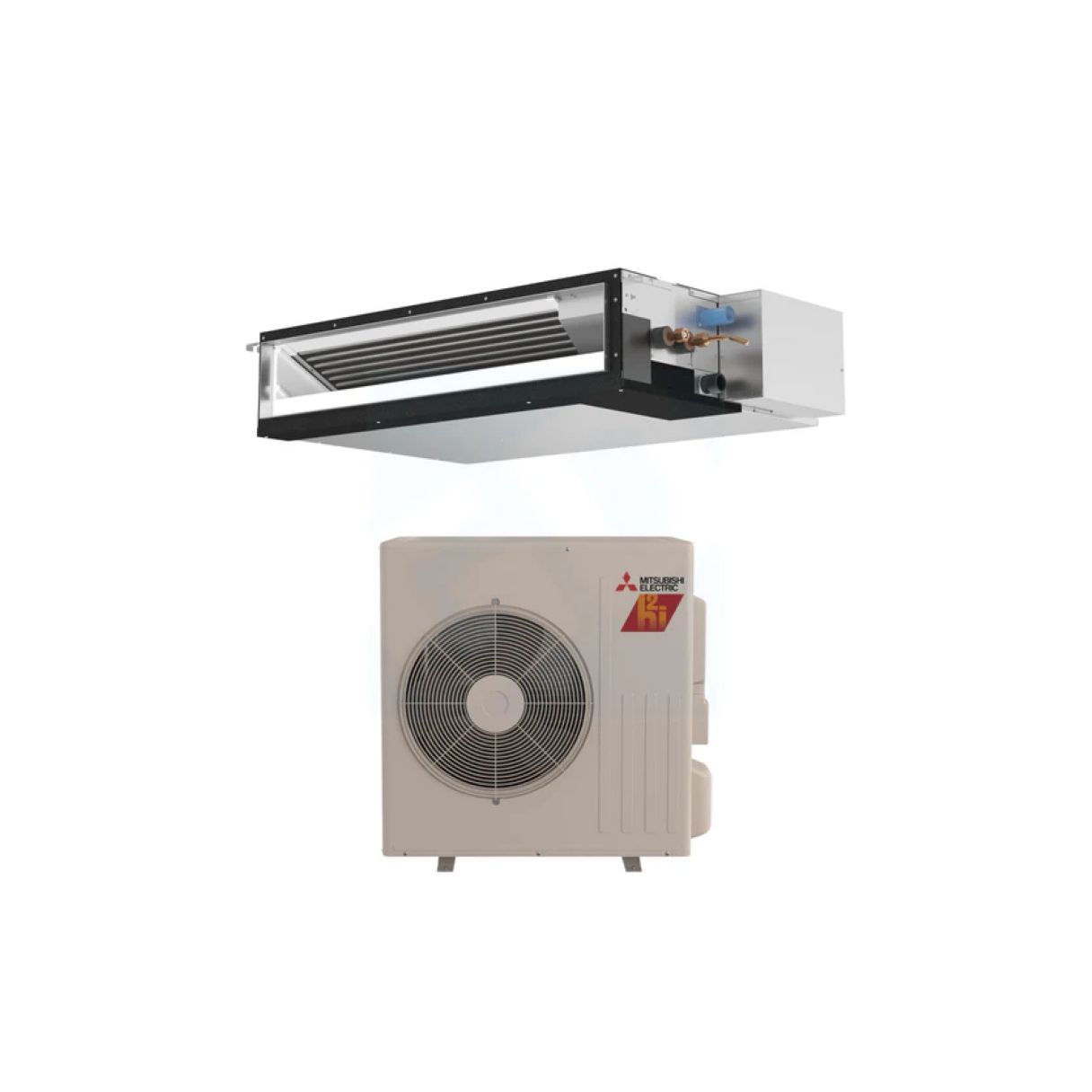

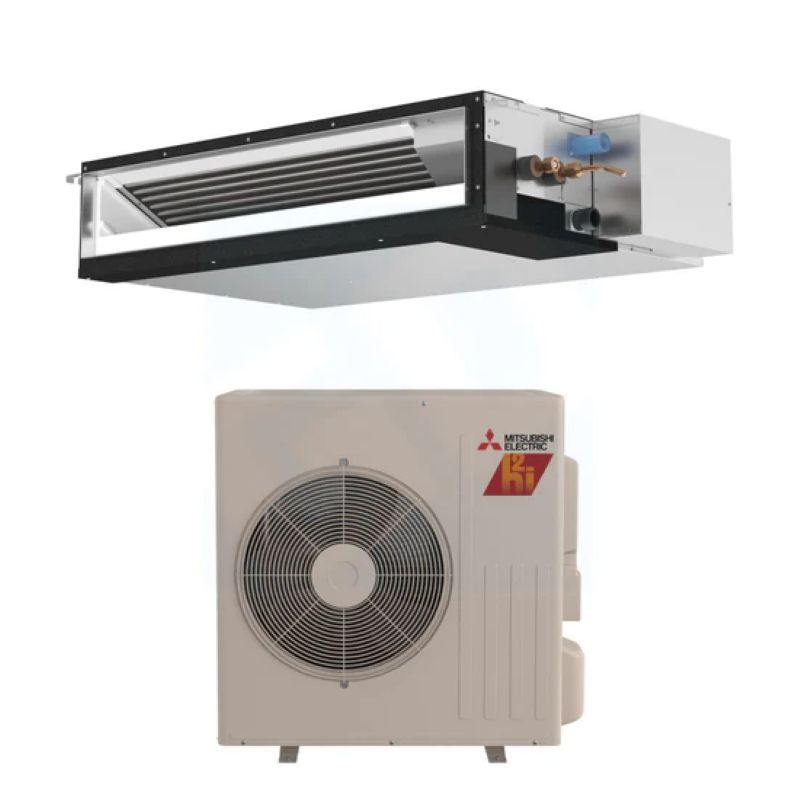

Mitsubishi 15,000 BTU Hyper Heat 17.3 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 208/230V

15,000 BTU Mitsubishi Hyper Heat 16.9 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 208/230V - SUZ-AA15NLHZ / SEZ-AD15NL
15,000 BTU Mitsubishi Hyper Heat 16.9 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 208/230V - SUZ-AA15NLHZ / SEZ-AD15NL SUZ-AA15NLHZ SUZ-AA15NLHZ SUZ-AA15NLHZ SEZ-AD15NL 230-B2L 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 366402 / CW-144-50 366401 / CW-144-35 216741 / CW-144-30 366400 / CW-144-25 201814 / CW-144-15 MSK001 KJR-120N KJR-120N MHK2 MHK2 230-B2L MHK2 MHK2

Required Fields *

By

Mitsubishi

In stock

Model

SUZ-AA15NLHZ / SEZ-AD15NL

ID

216065

Was $5,289.38
Your Low Price $4,231.50
Be the first to review this product

In Stock - Ready to Ship
Customize Mitsubishi 15,000 BTU Hyper Heat 17.3 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 208/230V
15,000 BTU Mitsubishi Single Zone Condenser - R454B
15,000 BTU Mitsubishi Single Zone Condenser - R454B
15,000 BTU Mitsubishi Single Zone Condenser - R454B   + $2,692.50
15,000 BTU Concealed Duct
15,000 BTU Concealed Duct
15,000 BTU Concealed Duct   + $1,539.00
Wall Bracket
50 feet - 1/4" and 1/2" Line Set & Control Wire
Installation Kit for Condensers
Recommended: KJR-120N - Wired Mini Split Controller w/ WiFi
15,000 BTU Mitsubishi Hyper Heat 16.9 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 208/230V - SUZ-AA15NLHZ / SEZ-AD15NL

$4,231.50

Free Shipping

15,000 BTU Mitsubishi SEZ-AD Hyper Heat 17.6 SEER2 Single Zone Concealaed Duct Mini Split Heat Pump System – R454B | 208/230V

The SEZ-AD15NLHZ / SUZ-AA15NLHZ is a Mitsubishi Hyper-Heating Single Zone Mini-Split Heat Pump, designed to deliver efficient heating and cooling even in extremely cold climates. Its ductless design makes it ideal for room additions, converted spaces, or areas without existing ductwork.

Product Overview

  • Cooling Capacity: 15,000 BTU
  • Heating Capacity: 15,000 BTU (Hyper Heat for extreme cold)
  • SEER2: Up to 17.6
  • Refrigerant: R454B
  • Voltage: 208/230V

Key Features

  • Hyper-Heating Technology: Provides reliable heating performance in sub-zero temperatures.
  • Quiet Operation: Low sound levels for maximum comfort.
  • Durable Design: Corrosion-resistant components for long-lasting performance.
  • Energy Efficient: High SEER2 rating helps reduce energy costs.
  • Ductless Installation: Quick setup without the need for ductwork.
  • Self-Diagnostics: Built-in error codes and indicators simplify troubleshooting and maintenance.

Warranty

Eligible equipment may receive a 10 Years with Online Registration with Mitsubishi.

* Please Note * This product does NOT include a remote controller and one would need to be purchased separately. The MHK2 Thermostat can be used in place of a remote controller.
More Information
Mitsubishi 15,000 BTU KD-Series Concealed Duct Mini Split Air Handler R454B | 230V
FeatureSpec
SKUSEZ-AD15NL
Weight (in lbs)55.000000
Brand/ManufacturerMitsubishi
ReplacesSEZ-KD15NA4R1.TH
ControllerNot Included
Additional InformationDrain: 1-1/4"
Cooling BTU14,100 BTU
Heating BTU18,000 BTU
Maximum CFM317-529 CFM
Decibel Level (dBA)30-37
RefrigerantR454B
CapacityDehumidification Rate: 0.24 gal/hr
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
PhaseSingle Phase
BTU/Tonnage15,000 BTU/1.25 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Operating ModeCooling, Heating
Height7-7/8"
Width39"
Depth27-9/16"
Warranty10 Years with Online Registration
Resources
Safety InformationPROPOSITION 65 WARNING
Mitsubishi 15,000 BTU SEZ-AD-Series Single Zone Mini Split Hyper Heat Pump Condenser R454B | 230V
FeatureSpec
SKUSUZ-AA15NLHZ
Weight (in lbs)115.000000
Brand/ManufacturerMitsubishi
ReplacesSUZ-KA15NAHZ.TH
Cooling BTU15000
Heating BTU15,000 BTU
Decibel Level (dBA)55
RefrigerantR454B
SEER2 (Efficiency)17.5
Compressor TypeTwin Rotary
Liquid Valve Size 1/4
Suction Valve Size 1/2
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size42
Min. Breaker Size25
BTU/Tonnage15,000 BTU/1.25 Ton
Zone CompatibilitySingle Zone
Height34.63"
Width33.06"
Depth13"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
21" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKU230-B2L
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length40"
Height3"
Width6"
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 50 feet
FeatureSpec
SKU366402 / CW-144-50
Weight (in lbs)45.000000
Brand/ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 35 feet
FeatureSpec
SKU366401 / CW-144-35
Weight (in lbs)35.000000
Brand/ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 30 feet
FeatureSpec
SKU216741 / CW-144-30
Weight (in lbs)30.000000
Brand/ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 25 feet
FeatureSpec
SKU366400 / CW-144-25
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 1/2" Line Ends & Control Wire - 15 feet
FeatureSpec
SKU201814 / CW-144-15
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
KJR-120N - Wired Mini Split Controller w/ WiFi
FeatureSpec
SKUKJR-120N
Weight (in lbs)1.000000
Brand/ManufacturerACiQ
Resources You will need Adobe® Acrobat® Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING
Mitsubishi MHK2 Wireless Remote Controller
FeatureSpec
SKUMHK2
Weight (in lbs)2.000000
Brand/ManufacturerMitsubishi
ReplacesMHK3
LengthCable:39-23/64"
HeightThermostat: 4-5/64” | Receiver: 3-3/32”
WidthThermostat: 4-5/64” | Receiver: 1-3/4”
DepthThermostat: 1-1/16" | Receiver: 39/64”
Warranty5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
