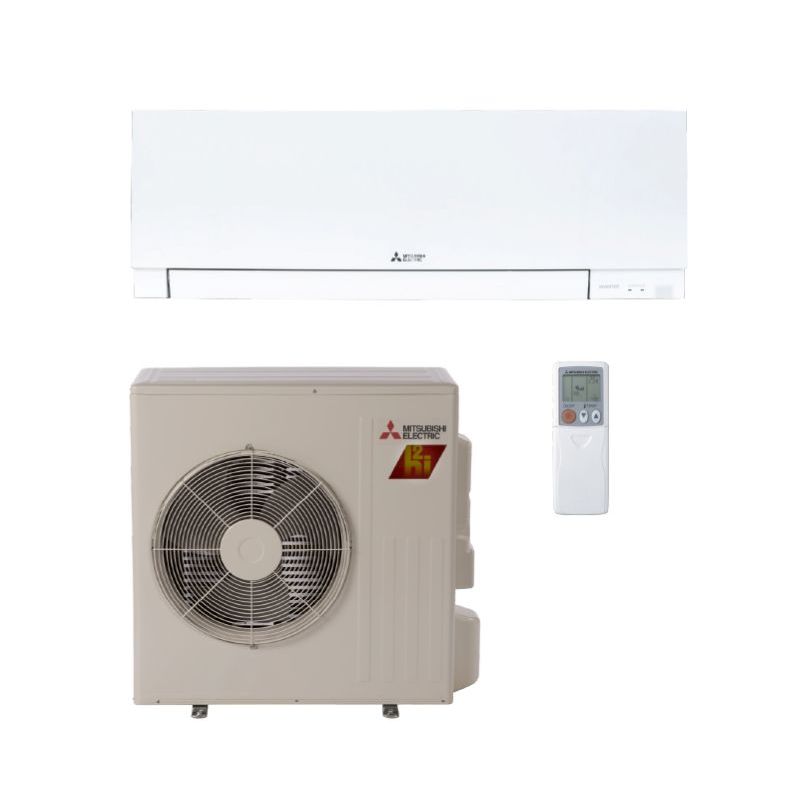

Mitsubishi 15,000 BTU EX-Series 17.5 SEER2 Single Zone Wall Mounted Mini Split Hyper Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA15NLHZ / MSZ-EX15NLW
ID
199098
Was $4,624.69
Your Low Price $3,699.75
In Stock - Ready to Ship
Free Shipping
People that viewed this product purchased this instead:
Mitsubishi 15,000 BTU GX-Series 22.2 SEER2 Single Zone Wall Mount Mini Split Cooling Only System – R454B | 230V
Was $3,171.57
Special Price $2,537.25
Mitsubishi 15,000 BTU GX-Series 22.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
Was $3,686.25
Special Price $2,949.00
Mitsubishi 15,000 BTU EX-Series 20.9 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V
Was $3,779.06
Special Price $3,023.25
Mitsubishi 15,000 BTU EX-Series 20.9 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V
Was $3,779.06
Special Price $3,023.25
15,000 BTU Mitsubishi EX-Series 17.5 SEER2 Single Wall Mounted Mini Split Hyper Heat Pump System - R454B | SUZ-AA15NLHZ / MSZ-EX15NLW
The 15,000 BTU Mitsubishi EX-Series Wall Mounted Mini Split Hyper Heat Pump System with R454B refrigerant provides exceptional heating and cooling performance with a 17.5 SEER2 rating, making it a highly energy-efficient choice for residential or commercial spaces. Equipped with advanced inverter technology and the environmentally friendly R454B refrigerant, this system ensures a comfortable and eco-conscious climate year-round.
Key Features:- 17.5 SEER2 Efficiency: Offering a 17.5 SEER2 rating, this unit ensures energy savings and reduced operating costs while providing efficient climate control for any room.
- Wall-Mounted Design: The MSZ-EX15NLW indoor unit is designed to mount on the wall, optimizing space and blending seamlessly with your room's aesthetic.
- Inverter Technology: Inverter-driven compressors provide consistent, energy-efficient performance, automatically adjusting the system's output to match the current heating or cooling demand.
- Eco-Friendly R454B Refrigerant: The R454B refrigerant used in this system is a more sustainable alternative to traditional refrigerants, reducing greenhouse gas emissions while maintaining optimal performance.
- Quiet Operation: This system operates quietly, making it ideal for spaces where noise is a concern, such as bedrooms, offices, or living areas.
- Indoor Unit: MSZ-EX15NLW Wall-Mounted Air Handler
- Outdoor Unit: SUZ-AA15NLHZ Heat Pump Condenser
- Energy-efficient 17.5 SEER2 rating for reduced energy consumption and lower electricity bills.
- Wall-mounted design that saves floor space while delivering superior comfort.
- Inverter technology for quieter operation and more precise temperature control.
- Eco-friendly R454B refrigerant that supports environmental sustainability without sacrificing system performance.
- Perfect for a variety of applications, including bedrooms, offices, and living rooms, with quiet and efficient performance.
The 15,000 BTU Mitsubishi EX-Series 17.5 SEER2 Wall Mounted Mini Split Hyper Heat Pump System is an excellent choice for those looking for efficient, quiet, and environmentally-friendly climate control. Whether you are looking to cool down during the summer or stay warm during the winter, this system offers reliable comfort with minimal environmental impact.
15,000 BTU Mitsubishi Single Zone Condenser - R454B
SUZ-AA15NLHZ - 15,000 BTU/H Heat Pump Outdoor Unit
The SUZ-AA15NLHZ is a high-performance 15,000 BTU outdoor heat pump unit, designed for residential and light commercial applications. It is part of a comprehensive system, featuring a sleek, modern design and energy-efficient technology.
Outdoor Unit Features (SUZ-AA15NLHZ):
- Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger's aluminum fins, protecting it from salt, sulfur, and other airborne contaminants.
- Built-in Base Pan Heater: Ensures reliable operation in colder climates by preventing ice buildup on the unit's base.
- Hot-Start Technology: The fan activates only once the heat exchanger reaches a warm temperature, eliminating cold air blasts at startup.
- Hyper-Heating INVERTER® (H2i®): Provides 100% heating capacity down to 5°F, with guaranteed heating performance down to -13°F.
- Joint Lap DC Motor: Advanced motor design for high efficiency and reliable operation.
- Outdoor Unit Directed Power: The outdoor unit powers the indoor unit and automatically restarts the system in case of a power outage.
- Pulse Amplitude Modulation Technology: Enhances energy efficiency by optimizing compressor performance and adjusting the power supply.
- Quiet Operation: Designed to operate quietly, providing minimal disturbance during both cooling and heating modes.
Specifications:
- Cooling Capacity: 15,000 BTU/h (Rated), with a minimum of 5,000 BTU/h.
- Heating Capacity: 19,300 BTU/h at 47°F and 17,000 BTU/h at 17°F.
- Energy Efficiency: SEER2 rating of 17.5, EER2 of 11.9, and HSPF2 of 9.8.
- Refrigerant: R410A refrigerant for efficient heat exchange.
- Sound Levels: Operates at 55 dB(A) for both cooling and heating.
- Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches with a weight of 115 lbs.
The SUZ-AA15NLHZ is ideal for efficient, reliable heating and cooling in a variety of environments, providing superior comfort year-round.
15,000 BTU Mitsubishi EX-Series White Wall Mount Mini Split Air Handler - R454B
Mitsubishi Electric MSZ-EX15NLW Wall-Mounted Indoor Unit
The MSZ-EX15NLW is a high-performance 15,000 BTU wall-mounted indoor unit that offers cooling and heating solutions when paired with the SUZ-AA15NL outdoor unit. This unit combines energy efficiency with advanced features, delivering optimal comfort for both residential and light commercial applications.
Indoor Unit Features
- Dual Barrier Coating: Reduces dust, fibers, smoke, and oil accumulation on the heat exchanger, ensuring optimal airflow and easier maintenance.
- Econo Cool: Automatically adjusts the airflow based on heat exchanger temperature to save energy while maintaining comfort.
- Modern Design: A sleek and contemporary design that fits well with a variety of interiors.
- Multiple Control Options: Includes a backlit remote controller, mobile app, third-party interfaces, and both wired and wireless controllers.
Outdoor Unit Features
- Blue Fin Coating: Anti-corrosion treatment on the heat exchanger fins, protecting against corrosion from salt, sulfur, and other contaminants.
- High-Performance Grooved Piping: Increases heat exchange efficiency for improved overall performance.
- Hot-Start Technology: Ensures the fan activates only once the heat exchanger is warm, preventing cold air blasts.
- Inverter-Driven Compressor: Adjusts capacity precisely to maintain the desired temperature efficiently.
- Pulse Amplitude Modulation Technology: Optimizes compressor performance and energy consumption by adjusting the power supply.
- Quiet Operation: Operates quietly, maintaining comfort without disturbance.
- Single-Zone System: Connects one outdoor unit to one indoor unit, providing dedicated comfort control for a single space.
Performance Specifications
- Cooling Capacity: Rated at 15,000 BTU/h (minimum 3,300 BTU/h, maximum 15,000 BTU/h).
- Heating Capacity: Rated at 18,000 BTU/h at 47°F (maximum 20,000 BTU/h), 11,100 BTU/h at 17°F, and 9,900 BTU/h at 5°F.
- Moisture Removal: 3.9 pints per hour to maintain comfortable humidity levels.
- Sound Pressure Levels: 28 dB(A) to 48 dB(A) depending on operating mode.
- Energy Efficiency: SEER2 of 20.9, EER21 of 12.1, and HSPF2 of 10.6, ensuring high efficiency and energy savings.
- ENERGY STAR® Certified: Yes, meeting high efficiency standards.
Electrical Specifications
- Voltage: 208/230 V AC, single-phase, 60 Hz with a voltage range of 198-253 V AC.
- Indoor Unit Fan Motor Output: 30 W.
- Recommended Fuse/Breaker Size (Outdoor): 20 A.
- Recommended Wire Size: AWG 14 for indoor to outdoor connection.
Physical Specifications
- Unit Dimensions: 34-13/16" x 7-11/16" x 11-3/4" (885 mm x 195 mm x 299 mm).
- Unit Weight: 26 lbs (11.5 kg).
- Drain Pipe Size: 5/8" (16 mm) outer diameter.
The MSZ-EX15NLW indoor unit, when combined with the SUZ-AA15NL outdoor unit, delivers superior performance with energy-saving features, ideal for residential and light commercial applications requiring effective cooling and heating solutions.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
50 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 50 ft. insulated refrigerant line set
- 50 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
35 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 35 ft. insulated refrigerant line set
- 35 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Recommended: KJR-120N - Wired Mini Split Controller w/ WiFi
The KJR-120N connects to your ACiQ Brand Ceiling Cassette, Concealed Duct and Ducted Air Handlers to give you WiFi control over your systems.
Compatible with the following models:
Ducted air handlers: ACiQ-24-AHB, ACiQ-36-AHB, ACiQ-48-AHB, ACiQ-60-AHB, ACiQ-18AHB-HH-M, ACiQ-24AHB-HH-M, ACiQ-30AHB-HH-M, ACiQ-36AHB-HH-M
Ceiling cassette air handlers: ACiQ-09CC-HH-MB, ACiQ-12CC-HH-MB, ACiQ-18CC-HH-MB, ACiQ-24CC-HH-MB
Concealed duct air handlers: ACiQ-09CD-HH-MB, ACiQ-12CD-HH-MB, ACiQ-18CD-HH-MB, ACiQ-24CD-HH-MB
Floor mount air handlers: ACIQ-18FM-HH-MB, ACIQ-24FM-HH-MB
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 30 ft. insulated refrigerant line set
- 30 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Wall Bracket
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
- 21" Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
25 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 25 ft. insulated refrigerant line set
- 25 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
15 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 15 ft. insulated refrigerant line set
- 15 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Write Your Own Review
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
