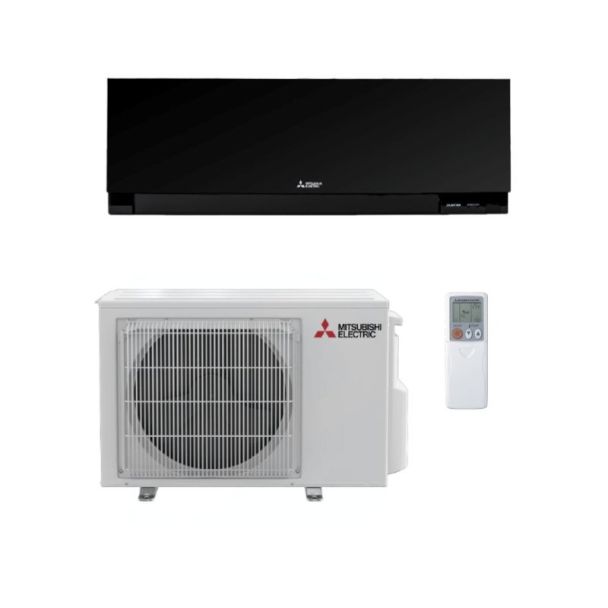

Mitsubishi 15,000 BTU EX-Series 20.9 SEER2 Single Wall Mounted Mini Split Heat Pump System – R454B | 230V

SUZ-AA15NL - 15,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA15NL is a robust 15,000 BTU outdoor heat pump unit designed to deliver reliable heating and cooling for residential and commercial environments. It features energy-efficient components and is ideal for use with various indoor units in a single-zone configuration.

Outdoor Unit Features (SUZ-AA15NL):

• Blue Fin Coating: Provides anti-corrosion protection to the heat exchanger's aluminum fins, enhancing durability in coastal or industrial areas.
• High-Performance Grooved Piping: Increases heat exchange efficiency for optimal performance.
• Hot-Start Technology: Ensures the fan operates only once the heat exchanger has reached a warm temperature, preventing cold air bursts at startup.
• INVERTER-driven Compressor: Uses precise inverter technology to adjust cooling or heating capacity to meet the desired temperature efficiently.
• Joint Lap DC Motor: This advanced motor design increases system reliability and operational efficiency.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, with automatic restart functionality after power outages.
• Pulse Amplitude Modulation Technology: This technology optimizes compressor performance by adjusting the power supply, enhancing energy efficiency.
• Quiet Operation: Designed for quiet operation, ensuring minimal disturbance during both cooling and heating cycles.
• Single-Zone System: Connects a single outdoor unit to one indoor unit for independent control of the comfort level in a specific space.

Specifications:

• Cooling Capacity: 15,000 BTU/h (Rated), with a minimum of 3,300 BTU/h.
• Heating Capacity: 20,000 BTU/h at 47°F, 11,100 BTU/h at 17°F, and 9,900 BTU/h at 5°F.
• Energy Efficiency: SEER2 rating of 20.9, EER2 of 12.1, and HSPF2 of 10.6.
• Refrigerant: R410A for efficient cooling and heating.
• Sound Levels: Operates at 49 dB(A) during cooling and 51 dB(A) during heating.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches with a weight of 81 lbs.

The SUZ-AA15NL is built for year-round comfort and reliability, providing high-efficiency heating and cooling performance in a wide range of environments.

Mitsubishi Electric MSZ-EX15NLB Wall-Mounted Indoor Unit

The MSZ-EX15NLB is a 15,000 BTU wall-mounted indoor unit designed to provide both efficient heating and cooling when paired with the SUZ-AA15NL outdoor unit. This unit is designed for superior performance, energy efficiency, and comfort in residential or light commercial spaces.

Key Features

• Dual Barrier Coating: A patented coating that helps reduce contaminants such as dust, fibers, smoke, and oil, promoting optimal airflow and easier maintenance.
• Econo Cool: This feature automatically adjusts airflow based on heat exchanger temperature, slightly increasing the set temperature to save energy while maintaining comfort.
• Modern Design: The sleek and modern design of the unit blends seamlessly with various interior styles.
• Multiple Control Options: Includes a backlit remote control, app-based controls, wired, and wireless options for flexible system management.

Performance Specifications

• Cooling Capacity: Rated at 15,000 BTU/h with a minimum of 3,300 BTU/h and a maximum of 15,000 BTU/h.
• Heating Capacity: Rated at 18,000 BTU/h at 47°F outdoor temperature and 11,100 BTU/h at 17°F.
• Moisture Removal: Removes 3.9 pints per hour for effective humidity control.
• Sound Pressure Levels: Operating sound pressure levels range from 28 dB(A) in cooling mode to 48 dB(A) in heating mode.
• Energy Efficiency: SEER2 of 20.9, EER21 of 12.1, and HSPF2 of 10.6, ensuring high energy savings and performance.
• ENERGY STAR® Certified: Yes, ensuring the unit meets high efficiency standards.

Electrical Specifications

• Voltage: 208/230 V AC, single-phase, 60 Hz.
• Voltage Range: Operates within a voltage range of 198-253 V AC.
• Indoor Unit Fan Motor Output: 30 W for optimal performance and energy efficiency.

Physical Specifications

• Unit Dimensions (W x D x H): 34-13/16" x 7-11/16" x 11-3/4" (885 mm x 195 mm x 299 mm).
• Unit Weight: 26 lbs (11.5 kg).
• Drain Pipe Size: 5/8" (16 mm) outer diameter for efficient drainage.

Outdoor Unit Features

• Blue Fin Coating: Protects the heat exchanger fins from corrosion caused by salt, sulfur, and other airborne contaminants.
• High-Performance Grooved Piping: Increases heat exchange efficiency for improved system performance.
• Hot-Start Technology: Prevents cold air blasts at startup by ensuring the fan operates only after the heat exchanger is warm.
• Inverter-Driven Compressor: Offers precise capacity adjustment to maintain desired temperatures efficiently.
• Quiet Operation: Operates with low noise, making it ideal for quiet environments.
• Single-Zone System: A single outdoor unit connects to one indoor unit, providing precise control over a specific area.

The MSZ-EX15NLB indoor unit, paired with the SUZ-AA15NL outdoor unit, delivers advanced technology, energy efficiency, and reliable performance for year-round comfort in your home or office space.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
