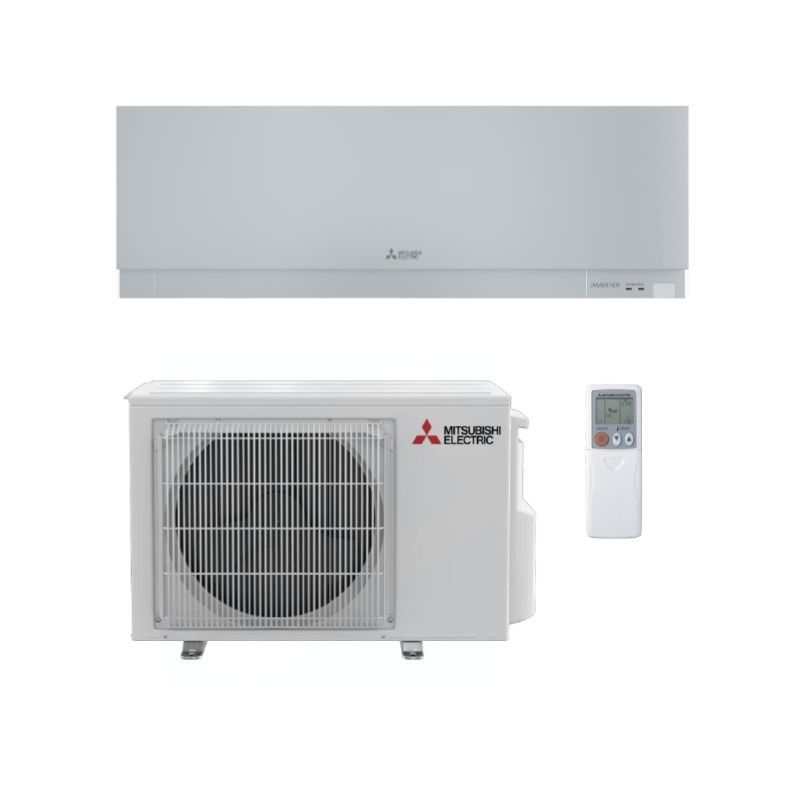

Mitsubishi 15,000 BTU EX-Series 20.9 SEER2 Single Wall Mounted Mini Split Heat Pump System – R454B | 230V

SUZ-AA15NL - 15,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA15NL is a robust 15,000 BTU outdoor heat pump unit designed to deliver reliable heating and cooling for residential and commercial environments. It features energy-efficient components and is ideal for use with various indoor units in a single-zone configuration.

Outdoor Unit Features (SUZ-AA15NL):

• Blue Fin Coating: Provides anti-corrosion protection to the heat exchanger's aluminum fins, enhancing durability in coastal or industrial areas.
• High-Performance Grooved Piping: Increases heat exchange efficiency for optimal performance.
• Hot-Start Technology: Ensures the fan operates only once the heat exchanger has reached a warm temperature, preventing cold air bursts at startup.
• INVERTER-driven Compressor: Uses precise inverter technology to adjust cooling or heating capacity to meet the desired temperature efficiently.
• Joint Lap DC Motor: This advanced motor design increases system reliability and operational efficiency.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, with automatic restart functionality after power outages.
• Pulse Amplitude Modulation Technology: This technology optimizes compressor performance by adjusting the power supply, enhancing energy efficiency.
• Quiet Operation: Designed for quiet operation, ensuring minimal disturbance during both cooling and heating cycles.
• Single-Zone System: Connects a single outdoor unit to one indoor unit for independent control of the comfort level in a specific space.

Specifications:

• Cooling Capacity: 15,000 BTU/h (Rated), with a minimum of 3,300 BTU/h.
• Heating Capacity: 20,000 BTU/h at 47°F, 11,100 BTU/h at 17°F, and 9,900 BTU/h at 5°F.
• Energy Efficiency: SEER2 rating of 20.9, EER2 of 12.1, and HSPF2 of 10.6.
• Refrigerant: R410A for efficient cooling and heating.
• Sound Levels: Operates at 49 dB(A) during cooling and 51 dB(A) during heating.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches with a weight of 81 lbs.

The SUZ-AA15NL is built for year-round comfort and reliability, providing high-efficiency heating and cooling performance in a wide range of environments.

MSZ-EX15NLS Air Handler Overview

The MSZ-EX15NLS is a compact, energy-efficient air handler designed to provide superior cooling and heating performance for residential and light commercial applications. Paired with the SUZ-AA15NL outdoor unit, it ensures a comfortable indoor climate all year round while maintaining low operating costs. The MSZ-EX15NLS combines innovative technology with quiet operation and easy maintenance, making it an ideal choice for users seeking reliable and efficient HVAC solutions.

Key Features

• Energy Efficiency: The MSZ-EX15NLS offers high energy efficiency, helping to reduce energy consumption and lower utility bills while maintaining consistent comfort throughout the year.
• Quiet Operation: Designed with noise reduction in mind, the MSZ-EX15NLS air handler operates quietly, ensuring a peaceful environment in residential and commercial spaces.
• Compact Design: The sleek, compact design of the MSZ-EX15NLS allows for flexible installation in a variety of spaces. Its slim profile ensures it blends seamlessly into your home or office without taking up valuable space.
• Advanced Filtration: The air handler is equipped with an advanced filtration system that captures dust, allergens, and other airborne particles, improving indoor air quality and contributing to a healthier living environment.
• Corrosion-Resistant Coating: The MSZ-EX15NLS features a corrosion-resistant coating, ensuring the unit's durability and reliability, even in environments where moisture or other contaminants may be present.

Specifications

• Cooling Capacity: 15,000 BTU/h
• Heating Capacity: 18,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 33-7/16" (W) x 11-5/8" (H) x 25-1/4" (D)
• Weight: 24 lbs

Advanced Features and Benefits

• Hyper Heating Technology: The MSZ-EX15NLS air handler incorporates Hyper Heating technology, which allows for efficient heating even in extremely cold outdoor conditions, ensuring year-round comfort in all climates.
• Inverter Technology: With the advanced inverter-driven compressor, the MSZ-EX15NLS adjusts its output based on cooling or heating demand. This ensures more efficient energy use, reduces wear and tear on the system, and maintains consistent indoor temperatures.
• Remote Control: The unit comes with a user-friendly remote control, enabling convenient adjustments of temperature, fan speed, and operating modes from anywhere in the room.
• Auto Restart: In the event of a power outage, the MSZ-EX15NLS automatically restarts and resumes operation using the previous settings, eliminating the need for manual reset after a power failure.
• Self-Diagnosis and Error Reporting: The air handler features a self-diagnosis function that detects potential system issues and displays error codes for quick troubleshooting, reducing downtime and ensuring reliable performance.

Installation and Maintenance

• Easy Installation: The MSZ-EX15NLS is designed for simple and flexible installation. Its compact size allows it to fit easily into a variety of spaces, and the system can be installed with minimal disruption.
• Low Maintenance: This air handler is designed for easy maintenance, with washable filters that can be removed and cleaned, reducing the need for frequent replacements and ensuring continued optimal airflow.
• Washable Filters: The MSZ-EX15NLS features filters that are easy to clean, improving the unit's efficiency and extending its lifespan while maintaining good air quality in the space.

Applications

• Residential Use: The MSZ-EX15NLS is ideal for use in homes and apartments, where energy efficiency, quiet operation, and reliable climate control are essential. It is well-suited for living rooms, bedrooms, and home offices.
• Commercial Use: This air handler is also a great option for light commercial applications, such as small offices, retail spaces, and server rooms, where efficient and quiet cooling and heating are required.

In conclusion, the MSZ-EX15NLS air handler provides reliable, energy-efficient cooling and heating, making it an excellent choice for residential and light commercial applications. With features such as Hyper Heating technology, advanced filtration, and a compact design, it ensures year-round comfort, clean air, and low operating costs. Its quiet operation and ease of installation and maintenance make it a valuable addition to any space, offering long-term reliability and performance.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
