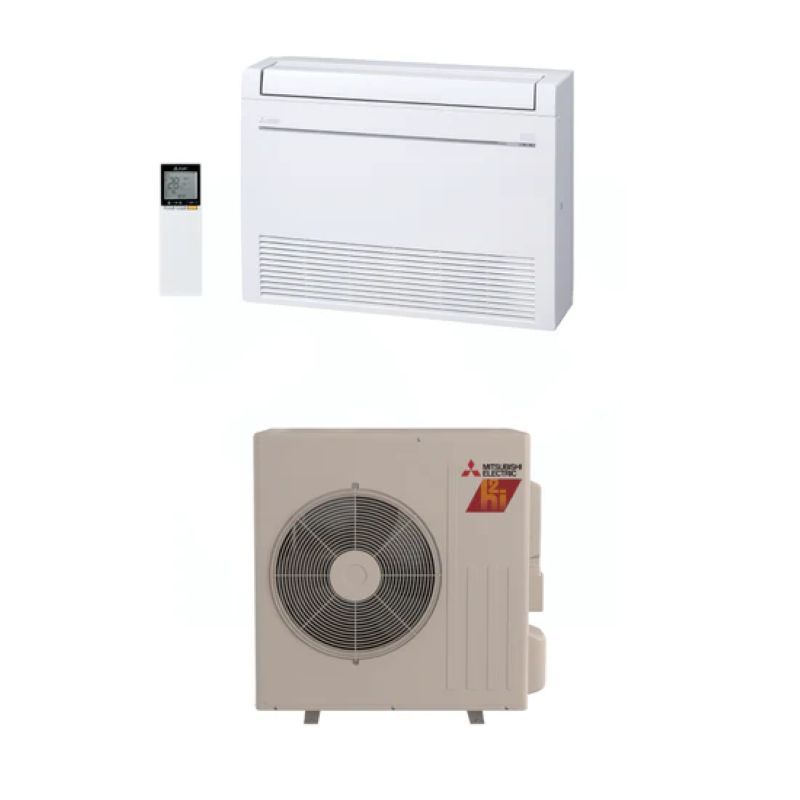

Mitsubishi 15,000 BTU SEZ-AD-Series 17.3 SEER2 Single Zone Floor Mount Mini Split Hyper Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA15NLHZ / MFZ-KX15NL
ID
199066
Was $5,788.13
Your Low Price $4,630.50
Customer reviews
In Stock - Ready to Ship
Free Shipping
People that viewed this product purchased this instead:
Mitsubishi 15,000 BTU SEZ-AD-Series 20.1 SEER2 Single Zone Floor Mount Mini Split Heat Pump System – R454B | 230V
Was $4,942.50
Special Price $3,954.00
15,000 BTU Mitsubishi M-Series 17.3 SEER2 Single Zone Floor Mount Mini Split Hyper Heat Pump System - R454B | SUZ-AA15NLHZ / MFZ-KX15NL
The Mitsubishi M-Series 15,000 BTU Single Zone Floor Mount Mini Split Hyper Heat Pump System is designed to deliver exceptional comfort and energy efficiency. With its floor-mounted indoor unit and advanced inverter technology, it's an ideal solution for rooms with limited wall space or unique installation needs.
Key Features:- High Efficiency: Achieves up to 17.3 SEER2 for excellent energy savings and year-round performance.
- Floor-Mounted Design: Perfect for rooms with limited wall height or where conventional wall-mounted units are not ideal.
- Quiet Operation: Engineered for ultra-quiet performance both indoors and outdoors.
- Inverter Technology: Maintains consistent indoor temperature while reducing energy consumption.
- Environmentally Friendly: Uses R454B refrigerant with lower global warming potential.
- Indoor Unit: MFZ-KX15NL Floor-Mounted Air Handler
- Outdoor Unit: SUZ-AA15NLHZ Heat Pump Condenser
- Wireless remote control for convenient operation
- Multiple fan speeds and modes for customized comfort
- Optional Wi-Fi control with additional adapter
Offering flexible installation and dependable heating and cooling performance, the Mitsubishi 15,000 BTU Floor Mount Mini Split System is a smart and stylish solution for personalized indoor comfort.
15,000 BTU Mitsubishi Single Zone Condenser - R454B
SUZ-AA15NLHZ - 15,000 BTU/H Heat Pump Outdoor Unit
The SUZ-AA15NLHZ is a high-performance 15,000 BTU outdoor heat pump unit, designed for residential and light commercial applications. It is part of a comprehensive system, featuring a sleek, modern design and energy-efficient technology.
Outdoor Unit Features (SUZ-AA15NLHZ):
- Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger's aluminum fins, protecting it from salt, sulfur, and other airborne contaminants.
- Built-in Base Pan Heater: Ensures reliable operation in colder climates by preventing ice buildup on the unit's base.
- Hot-Start Technology: The fan activates only once the heat exchanger reaches a warm temperature, eliminating cold air blasts at startup.
- Hyper-Heating INVERTER® (H2i®): Provides 100% heating capacity down to 5°F, with guaranteed heating performance down to -13°F.
- Joint Lap DC Motor: Advanced motor design for high efficiency and reliable operation.
- Outdoor Unit Directed Power: The outdoor unit powers the indoor unit and automatically restarts the system in case of a power outage.
- Pulse Amplitude Modulation Technology: Enhances energy efficiency by optimizing compressor performance and adjusting the power supply.
- Quiet Operation: Designed to operate quietly, providing minimal disturbance during both cooling and heating modes.
Specifications:
- Cooling Capacity: 15,000 BTU/h (Rated), with a minimum of 5,000 BTU/h.
- Heating Capacity: 19,300 BTU/h at 47°F and 17,000 BTU/h at 17°F.
- Energy Efficiency: SEER2 rating of 17.5, EER2 of 11.9, and HSPF2 of 9.8.
- Refrigerant: R410A refrigerant for efficient heat exchange.
- Sound Levels: Operates at 55 dB(A) for both cooling and heating.
- Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches with a weight of 115 lbs.
The SUZ-AA15NLHZ is ideal for efficient, reliable heating and cooling in a variety of environments, providing superior comfort year-round.
15,000 BTU Mitsubishi M-Series Floor Mount Air Handler - R454B
Mitsubishi Electric MFZ-KX15NL Floor-Mounted Air Handler
The Mitsubishi Electric MFZ-KX15NL is a high-performance, floor-mounted air handler designed for reliable heating and cooling. It features advanced airflow control, multiple fan speeds, and Wi-Fi capability, ensuring efficient and customizable comfort in residential and light commercial spaces.
Key Features
- Econo Cool Mode: Automatically adjusts airflow based on heat exchanger temperature to enhance energy savings while maintaining comfort.
- Multi-Flow Vane: Ensures rapid heating by distributing warm air efficiently throughout the room.
- Powerful Mode: Temporarily increases fan speed and temperature output for fast heating or cooling.
- Quiet Operation: Operates as low as 28 dB(A) for minimal noise disruption.
- Wi-Fi Enabled: Compatible with the Mitsubishi Comfort app for remote control and scheduling.
- Advanced Filtration: Nano Platinum Filter captures airborne particles and reduces odors for cleaner indoor air.
- Flexible Installation: Can be floor-mounted or recessed into a wall for versatile placement options.
Performance Specifications
- Cooling Capacity: 15,000 BTU/h
- Heating Capacity: Up to 20,400 BTU/h
- Fan Speeds: Low, Medium, High, Powerful, Auto
- Sound Pressure Levels: 28-49 dB(A) depending on mode
Efficiency Ratings
- SEER2: 20.1
- EER2: 13
- HSPF2: 10.5
- ENERGY STAR® Certified: Yes
Dimensions and Installation
- Unit Dimensions: 29.5" W x 8.4" D x 23.6" H
- Weight: 33 lbs
- Mounting Options: Floor-mounted or recessed installation.
The Mitsubishi Electric MFZ-KX15NL is an energy-efficient, whisper-quiet, and versatile air handler, providing advanced heating and cooling performance for year-round comfort.
50 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 50-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 50-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 50 ft. insulated refrigerant line set
- 50 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Wall Bracket
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
- 21" Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
35 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 35-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 35-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 35 ft. insulated refrigerant line set
- 35 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Recommended: KJR-120N - Wired Mini Split Controller w/ WiFi
The KJR-120N connects to your ACiQ Brand Ceiling Cassette, Concealed Duct and Ducted Air Handlers to give you WiFi control over your systems.
Compatible with the following models:
Ducted air handlers: ACiQ-24-AHB, ACiQ-36-AHB, ACiQ-48-AHB, ACiQ-60-AHB, ACiQ-18AHB-HH-M, ACiQ-24AHB-HH-M, ACiQ-30AHB-HH-M, ACiQ-36AHB-HH-M
Ceiling cassette air handlers: ACiQ-09CC-HH-MB, ACiQ-12CC-HH-MB, ACiQ-18CC-HH-MB, ACiQ-24CC-HH-MB
Concealed duct air handlers: ACiQ-09CD-HH-MB, ACiQ-12CD-HH-MB, ACiQ-18CD-HH-MB, ACiQ-24CD-HH-MB
Floor mount air handlers: ACIQ-18FM-HH-MB, ACIQ-24FM-HH-MB
30 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 30-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 30-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 30 ft. insulated refrigerant line set
- 30 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
25 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 25-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 25 ft. insulated refrigerant line set
- 25 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
15 feet - 1/4" and 1/2" Line Set & Control Wire
Complete your mini-split installation with this convenient Line Set & Control Wire Bundle, designed to provide both the refrigerant lines and communication wire needed for reliable system performance. This bundle includes a heavy-duty 15-foot refrigerant line set with 1/4" liquid line and 1/2" suction line featuring durable flared ends for secure connections, along with a matching 15-foot 14/4 stranded copper control wire for dependable communication between indoor and outdoor mini-split components.
The insulated refrigerant lines help improve efficiency and durability, while the flexible control wire is built to withstand demanding HVAC installation environments. Ideal for ductless mini-split air conditioning and heat pump systems, this bundle helps simplify installation by combining two essential components into one convenient package.
What's Included
- 15 ft. insulated refrigerant line set
- 15 ft. 14/4 mini-split control wire
- 1/4" liquid line with flared ends
- 1/2" suction line with flared ends
Features
- 1/2" thick insulation for improved efficiency
- Heavy-duty refrigerant line construction
- Stranded copper wire for reliable conductivity
- Flexible and durable installation materials
- Compatible with most mini-split systems
- Ideal for HVAC installations and replacements
Top reviews
- Sean, sales agent: Sent everything needed to setup.Easily set unit up in three hours. Works great, very happy with the results and purchase.
Posted on
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
