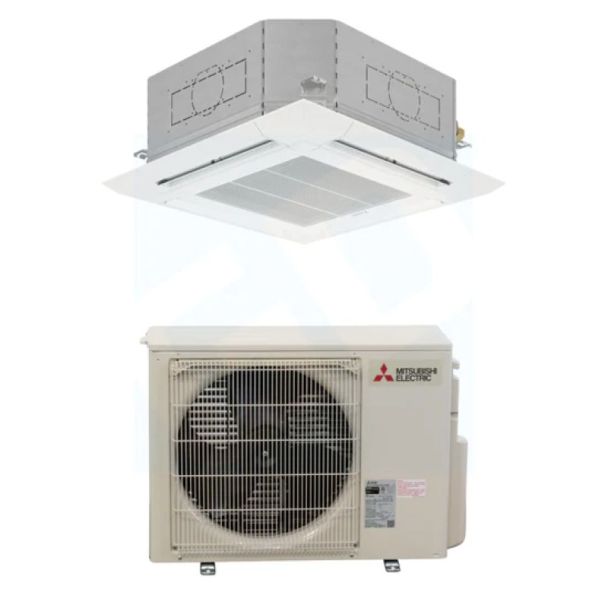

15,000 BTU Mitsubishi P-Series 20.6 SEER2 Single Ceiling Cassette Mini Split Heat Pump System - R454B | SUZ-AA15NL / SLZ-AF15NL

SUZ-AA15NL - 15,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA15NL is a robust 15,000 BTU outdoor heat pump unit designed to deliver reliable heating and cooling for residential and commercial environments. It features energy-efficient components and is ideal for use with various indoor units in a single-zone configuration.

Outdoor Unit Features (SUZ-AA15NL):

• Blue Fin Coating: Provides anti-corrosion protection to the heat exchanger's aluminum fins, enhancing durability in coastal or industrial areas.
• High-Performance Grooved Piping: Increases heat exchange efficiency for optimal performance.
• Hot-Start Technology: Ensures the fan operates only once the heat exchanger has reached a warm temperature, preventing cold air bursts at startup.
• INVERTER-driven Compressor: Uses precise inverter technology to adjust cooling or heating capacity to meet the desired temperature efficiently.
• Joint Lap DC Motor: This advanced motor design increases system reliability and operational efficiency.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, with automatic restart functionality after power outages.
• Pulse Amplitude Modulation Technology: This technology optimizes compressor performance by adjusting the power supply, enhancing energy efficiency.
• Quiet Operation: Designed for quiet operation, ensuring minimal disturbance during both cooling and heating cycles.
• Single-Zone System: Connects a single outdoor unit to one indoor unit for independent control of the comfort level in a specific space.

Specifications:

• Cooling Capacity: 15,000 BTU/h (Rated), with a minimum of 3,300 BTU/h.
• Heating Capacity: 20,000 BTU/h at 47°F, 11,100 BTU/h at 17°F, and 9,900 BTU/h at 5°F.
• Energy Efficiency: SEER2 rating of 20.9, EER2 of 12.1, and HSPF2 of 10.6.
• Refrigerant: R410A for efficient cooling and heating.
• Sound Levels: Operates at 49 dB(A) during cooling and 51 dB(A) during heating.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches with a weight of 81 lbs.

The SUZ-AA15NL is built for year-round comfort and reliability, providing high-efficiency heating and cooling performance in a wide range of environments.

SLZ-AF15NL Air Handler Overview

The SLZ-AF15NL air handler, paired with the SUZ-AA15NL outdoor unit, is designed to deliver high-efficiency comfort in both residential and light commercial applications. Its compact design and advanced features ensure optimal performance, even in spaces where installation space is limited. With quiet operation and a high-quality filtration system, the SLZ-AF15NL provides a comfortable and healthy indoor environment year-round.

Key Features

• Compact Design: The SLZ-AF15NL is designed with a low-profile and compact construction, allowing for easy installation in tight spaces such as ceilings or narrow areas.
• Quiet Operation: This air handler is equipped with noise-reducing components, ensuring quiet operation, making it ideal for use in bedrooms, offices, and other noise-sensitive environments.
• Energy-Efficient Performance: Designed to be energy-efficient, the SLZ-AF15NL helps reduce overall energy consumption while providing optimal comfort. It offers both heating and cooling functions for year-round comfort.
• Improved Air Quality: The air handler is equipped with an advanced filtration system that captures dust, allergens, and other airborne particles, promoting cleaner, healthier air indoors.
• Flexible Drainage Options: The SLZ-AF15NL offers versatile drainage options for both horizontal and vertical configurations, making it easy to accommodate various installation needs.

Specifications

• Cooling Capacity: 15,000 BTU/h
• Heating Capacity: 15,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 29-5/8" x 10-1/8" x 28-1/4”
• Weight: 50.7 lbs
• Refrigerant: R410A
• Airflow: 635 CFM

Benefits

• Space-Saving Design: The compact design allows the SLZ-AF15NL to fit in small and narrow spaces where conventional air handlers may not be feasible. It's ideal for residential and light commercial applications.
• Quiet and Comfortable: Designed to operate quietly, the SLZ-AF15NL ensures comfort without disruption. Its quiet performance makes it ideal for installation in noise-sensitive areas like living rooms and bedrooms.
• Energy Savings: By optimizing energy consumption, the SLZ-AF15NL offers lower operating costs and helps reduce overall electricity bills while maintaining optimal performance.
• Cleaner Air: The air filtration system helps remove dust and allergens from the air, ensuring improved air quality and a healthier indoor environment for all occupants.

Applications

• Residential Applications: The SLZ-AF15NL is a perfect solution for homes, apartments, and condominiums. Its compact size and energy-efficient design make it ideal for spaces where installation space is limited.
• Light Commercial Applications: Ideal for small businesses, offices, and retail spaces, the SLZ-AF15NL provides reliable and efficient climate control while keeping energy consumption low.

Maintenance

• Low Maintenance Requirements: The SLZ-AF15NL is easy to maintain with regular filter cleaning and routine service. These simple maintenance tasks ensure the air handler operates efficiently over time.
• Durable and Long-Lasting: Built with high-quality materials, the SLZ-AF15NL is designed to last, providing long-term reliability and performance.

The SLZ-AF15NL air handler, when paired with the SUZ-AA15NL outdoor unit, is an excellent solution for maintaining year-round comfort in residential and light commercial spaces. Its efficient performance, space-saving design, and quiet operation make it a dependable choice for those seeking reliable climate control. The combination of energy efficiency, improved air quality, and flexible installation options ensures that the SLZ-AF15NL is a smart investment for maintaining a comfortable and healthy indoor environment.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
