Today's Hours 8am - 11pm est18,000 BTU 24 SEER Dual Zone Concealed Duct Stealth Comfort Designer+ Heat Pump System 9+9
Required Fields *
By
Stealth
In stock
Model
SC-18Z-HH-M2 / SC-09CD-HP230 - 2
ID
107470
Was $3,997.69
Your Low Price $1,588.39
- Heating & Cooling
- Ductless Solution
- Compatible with two 600-1000 sq ft Rooms/Zones
- Dual-Zone/Room Compatible
- Wi-Fi & Remote Control Compatible
- 14 Year Compressor & 5 Year Parts Online Warranty
No Return Policy: All sales of this product are final and are non-refundable.
The Stealth Designer+ Series Multi Zone mini-split systems offer elite performance across a range of air handler types suitable for any application. In addition to standard wall mounted air handlers, ceiling cassette, concealed ducted and floor mounted heat console type air handlers are available. With the Designer series, different air handler types can be mixed and matched to create a custom system perfectly suited to any home or space. Additional features include continuous heating down to an outside temperature of -31 degrees and I-Feel temp sensing.
Important Notice: R-410A Direct Replacement Only
Effective January 1, 2026, R-410A systems are restricted to direct replacement use only under applicable regulations. New installations are not permitted.
By purchasing this product, you confirm that it is intended only as a direct replacement for an existing R-410A system and that you understand and will comply with all applicable federal, state, and local regulations.
The seller assumes no responsibility or liability for purchases or installations that do not comply with these requirements, including improper application, misuse, or regulatory violations.
18k BTU Heat Pump Condenser (2 Zone)
No Return Policy: All sales of this product are final and are non-refundable.
OVERVIEW
The Stealth Pinnacle Series Multi Zone SC-18Z-HH-M2 heat pump condenser is Energy Star rated, with Hyper Heat performance down to an outside temperature of –31 degrees Fahrenheit. The outdoor unit has connections for up to 2 air handlers and is pre-charged with R410a refrigerant for 66' of total line set length.
Pinnacle Series condensers have the highest efficiency ratings of any multi zone mini split, up to 23 SEER and 10.5 HSPF.
QUICK FACTS
- Energy Star Rated
- Max efficiency up to 23 SEER and 10.5 HSPF
- Heating temperatures range from -31°F to 75°F
- Cooling temperatures range from 0°F to 118°F
- 14 year compressor, 5 year parts extended warranty with registration
- 18,000 BTU – 42,000 BTU condenser models available
- Rugged construction with acrylic resin fin coating for durability
18,000 BTU, 23 SEER
This condenser has connections for up to 2 air handlers to cover different rooms or zones in your space. The SEER rating of 23 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. The Stealth Pinnacle Series means elite performance at attractive prices.
14 Year Warranty
The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-18Z-HH-M2 is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Pinnacle Series model, resulting in powerful performance across a punishing range of conditions. The SC-18Z-HH-M2 provides continuous heat with outdoor temperatures down to -31 degrees Fahrenheit.
Installation and Maintenance
Every Stealth Pinnacle series condenser comes pre-charged with R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including insulated copper refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. Stealth Pinnacle series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside units.
Please note:

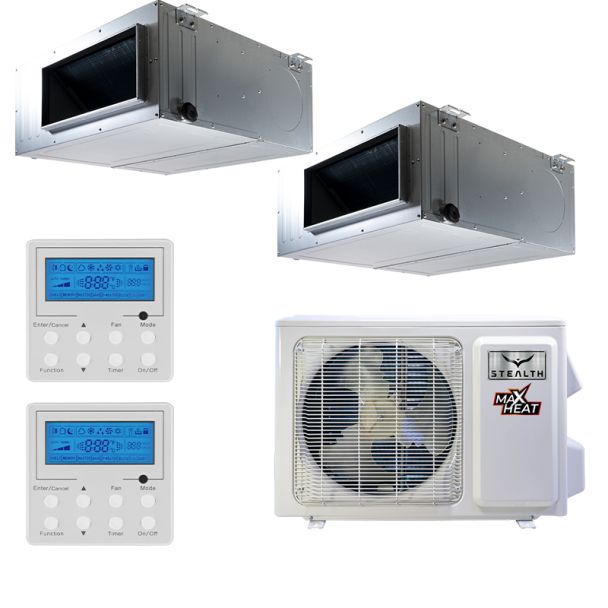

This system includes only the outdoor condenser, indoor air handlers and wall-mounted or remote thermostats (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation.
Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850.
9k BTU Concealed Duct (up to 400 sq ft)
Stealth Comfort Designer+ 9,000 BTU R410A Concealed Duct Multi Zone Air Handler
Provides discreet heating and cooling for spaces up to 800 sq ft, this Stealth Designer concealed ducted air handler uses R410A refrigerant for quiet, consistent comfort.
Key Features
- 9,000 BTU capacity ideal for small rooms, offices, or supplemental zones.
- Concealed duct design for hidden installation and minimal visual impact.
- Compatible with multi-zone outdoor condensers.
- Efficient operation using reliable R410A refrigerant.
- Quiet performance designed for residential comfort.
- Compact design allows installation in ceilings, soffits, or tight spaces.
Feature Highlights
Discreet Climate Control
The concealed duct configuration allows the air handler to remain hidden above the ceiling or within a soffit while distributing conditioned air through vents or short duct runs. This design preserves the aesthetic of your living space while maintaining efficient climate control.
Flexible Multi-Zone Compatibility
Designed to connect with compatible multi-zone outdoor condensers, this air handler allows individual temperature control within a specific room or zone. It works seamlessly as part of a larger multi-room heating and cooling system.
Quiet and Efficient Performance
Engineered for quiet operation, the Designer+ air handler provides consistent airflow and dependable comfort without excessive noise. The system’s R410A refrigerant supports efficient heat transfer and reliable long-term performance.
What’s Included
- 1 × Stealth Comfort Designer+ 9,000 BTU Concealed Duct Indoor Air Handler
- Installation Components
- Controller Interface (varies by installation configuration)
Recommended Accessories
- Compatible Multi-Zone Outdoor Condenser
- Insulated Refrigerant Line Set
- Short Ducting and Ceiling Grilles
- Condensate Drain Line
- Communication Wire for system connection
Warranty
The Stealth Comfort Designer+ concealed duct air handler is supported by a manufacturer warranty that provides confidence in long-term performance. Warranty coverage applies according to manufacturer registration and installation guidelines.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
