Mitsubishi 18,000 BTU 17.2 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V

Required Fields *

By

Mitsubishi

In stock

Model

SUZ-AA18NL / SEZ-AD18NL

ID

216062

Was $5,312.82
Your Low Price $4,250.25

Customize Mitsubishi 18,000 BTU 17.2 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V
18,000 BTU Mitsubishi Single Zone Condenser - R454B
18,000 BTU Mitsubishi Single Zone Condenser - R454B   + $2,523.75
18,000 BTU Mitsubishi KD-Series Concealed Duct Mini Split Air Handler - R454B
18,000 BTU Mitsubishi KD-Series Concealed Duct Mini Split Air Handler - R454B   + $1,726.50

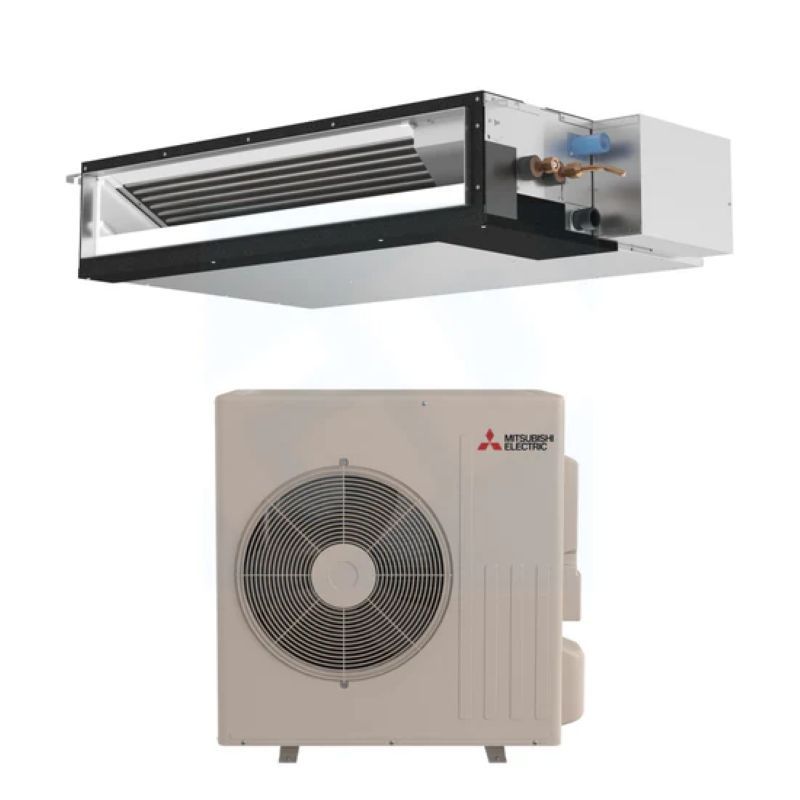

18,000 BTU Mitsubishi 16.5 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V - SUZ-AA18NL / SEZ-AD18NL

$4,250.25

Free Shipping
In Stock - Ready to Ship

18,000 BTU Mitsubishi SEZ-AD 17.6 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System – R454B | 230V

The SEZ-AD18NL / SUZ-AA18NL is a Mitsubishi Single Zone Mini-Split Heat Pump designed for efficient heating and cooling in residential spaces. Its ductless design makes it ideal for room additions, converted areas, or spaces without existing ductwork.

Product Overview

  • Cooling Capacity: 18,000 BTU
  • Heating Capacity: 18,000 BTU
  • SEER2: Up to 17.6
  • Refrigerant: R454B
  • Voltage: 230V

Key Features

  • Quiet Operation: Operates at low sound levels for a comfortable environment.
  • Durable Design: Built with corrosion-resistant components for long-lasting performance.
  • Energy Efficient: High SEER2 rating helps reduce energy costs.
  • Ductless Installation: Quick installation without the need for ductwork.
  • Self-Diagnostics: Built-in error codes and indicators simplify troubleshooting and maintenance.

Warranty

Eligible equipment may receive a 10 Years with Online Registration with Mitsubishi.

* Please Note * This product does NOT include a remote controller and one would need to be purchased separately. The MHK2 Thermostat can be used in place of a remote controller.
More Information
Mitsubishi 18,000 BTU KD-Series Concealed Duct Mini Split Air Handler R454B | 230V
FeatureSpec
SKUSEZ-AD18NL
Maximum CFM317-529 CFM
Depth27-9/16"
Width39"
Height7-7/8"
Weight (in lbs)55.000000
Decibel Level (dBA)30-37
CapacityDehumidification Rate: 0.24 gal/hr
ReplacesSEZ-KD18NA4R1.TH
Warranty10 Years with Online Registration
Resources
ControllerNot Included
Electrical208/230V 1 Phase 60 Hz
Additional InformationDrain: 1-1/4"
BTU/Tonnage15,000 BTU/1.25 Ton
Cooling BTU14,100 BTU
Heating BTU18,000 BTU
Liquid Line1/4"
RefrigerantR454B
Brand/ManufacturerMitsubishi
Suction Line1/2"
PhaseSingle Phase
Operating ModeCooling, Heating
Mini Split TypeConcealed Duct
Safety InformationPROPOSITION 65 WARNING
Zone CompatibilityMulti Zone
Mitsubishi 18,000 BTU SEZ-AD-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V
FeatureSpec
SKUSUZ-AA18NL
Maximum CFM2,193
Depth13"
SEER2 (Efficiency)17.2
Width33.06"
Height34.63"
Weight (in lbs)115.000000
Decibel Level (dBA)55
ReplacesSUZ-KA18NA2.TH
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage18,000 BTU/1.5 Ton
Cooling BTU16400
Heating BTU18,000 BTU
RefrigerantR454B
Brand/ManufacturerMitsubishi
Compressor TypeTwin Rotary
Condenser StagesVariable Speed
Max Breaker Size42
Min. Breaker Size25
Electric HeatHeat Pump
Product FeaturesHigh Efficiency / Inverter, Variable Speed Condenser
Liquid Valve Size 1/4
Min/Max Outdoor Temp for Cooling14 °F - 115 °F
Min/Max Outdoor Temp for Heating−4 °F - 75 °F
Suction Valve Size 1/2
Zone CompatibilitySingle Zone
Ambient Temperature Range14 °F - 115 °F
