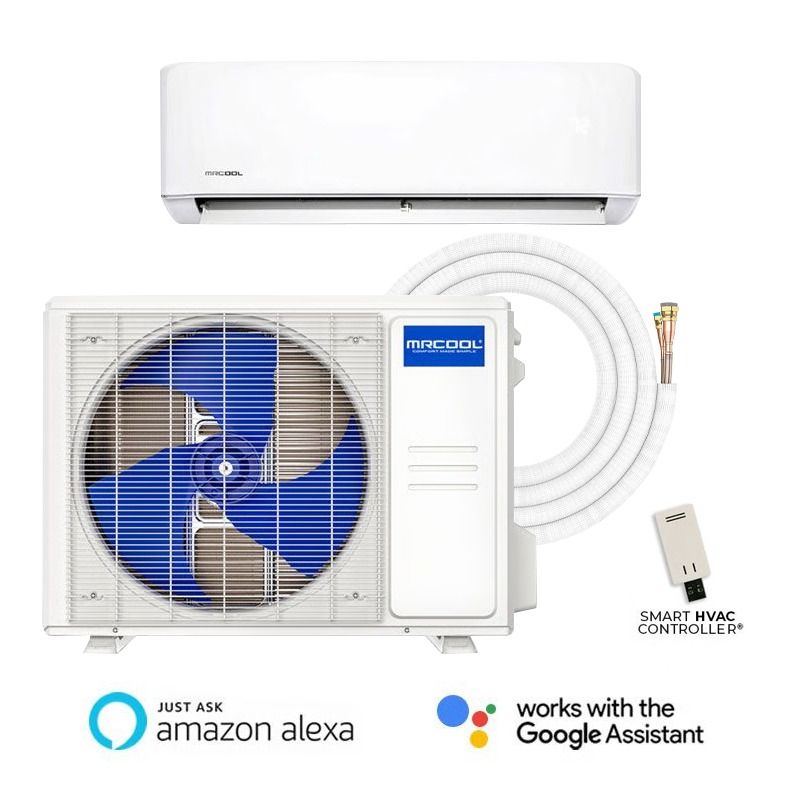

18,000 BTU MRCOOL Advantage 19.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

18,000 BTU MRCOOL Advantage 5th Gen 19.2 SEER2 Single Zone Mini Split - R454B | 230V - A-18-HP-230D-O
18,000 BTU MRCOOL Advantage 5th Gen 19.2 SEER2 Single Zone Mini Split - R454B | 230V - A-18-HP-230D-O 18,000 BTU MRCOOL Advantage 5th Gen 19.2 SEER2 Single Zone Mini Split - R454B | 230V - A-18-HP-230D-O A-18-HP-C-230D-O A-18-HP-C-230D-O A-18-HP-WMAH-230D-O A-18-HP-WMAH-230D-O A-18-HP-WMAH-230D-O MSK001 201814 366400 216741 366401 366402 HW-600
SAVE $118.00

Required Fields *

By

MRCOOL

In stock

Model

A-18-HP-230D-O

ID

198423

Be the first to review this product
In Stock - Ready to Ship
Was $1,298.00
Your Low Price $1,180.00

Free Shipping
  • Heating & Cooling
  • Ductless Solution
  • Perfect for a 600-1000sqft Rooms
  • Wi-Fi & Smartphone App Capabilities
    • Customize 18,000 BTU MRCOOL Advantage 19.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
    18,000 BTU MRCOOL Single Zone Condenser - R454B
    18,000 BTU MRCOOL Single Zone Condenser - R454B
    18,000 BTU MRCOOL Single Zone Condenser - R454B   + $801.00
    18,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B
    18,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B
    18,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B   + $379.00
    Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
    Wall Mount Bracket for Mini Split Systems
    Installation Kit for Condensers
    18,000 BTU MRCOOL Advantage 5th Gen 19.2 SEER2 Single Zone Mini Split - R454B | 230V - A-18-HP-230D-O

    $1,180.00

    Please note this unit is meant to be installed by a licensed professional. Want a to Do-It-Yourself unit? Check it out here!

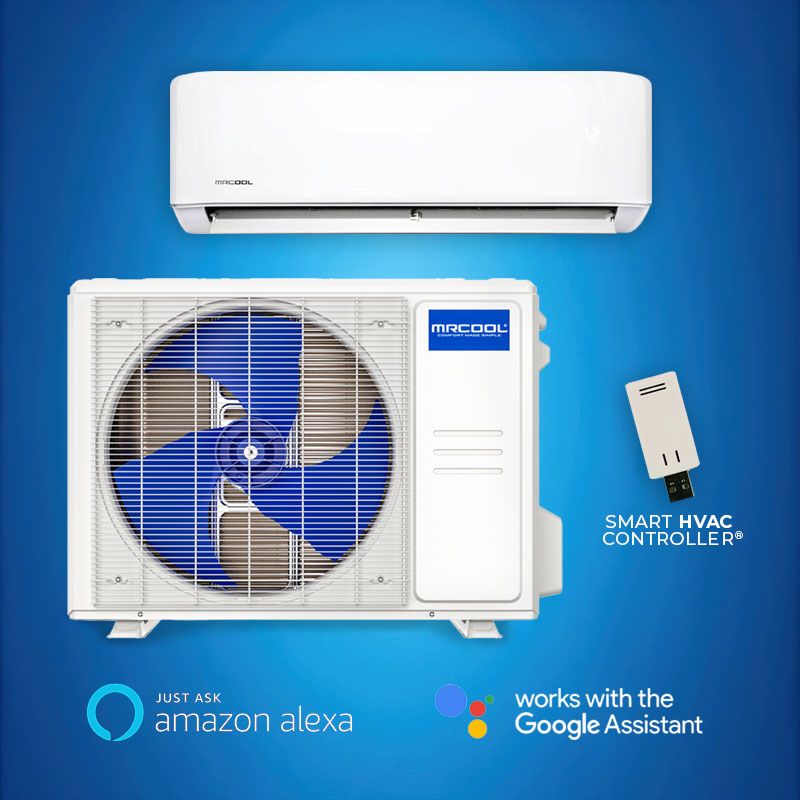

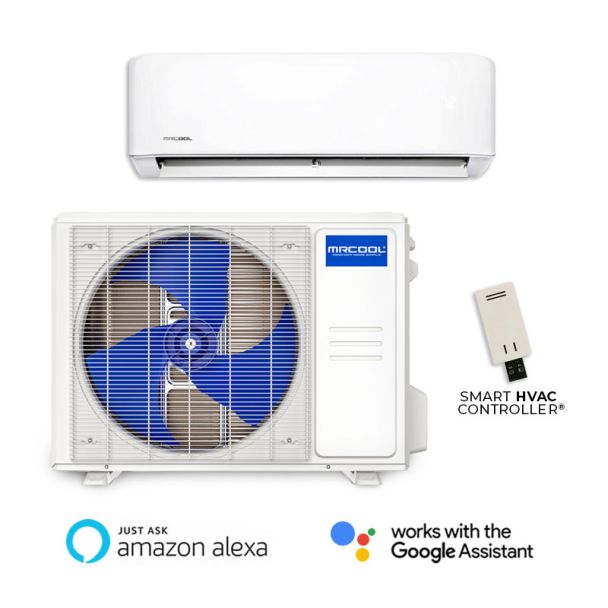

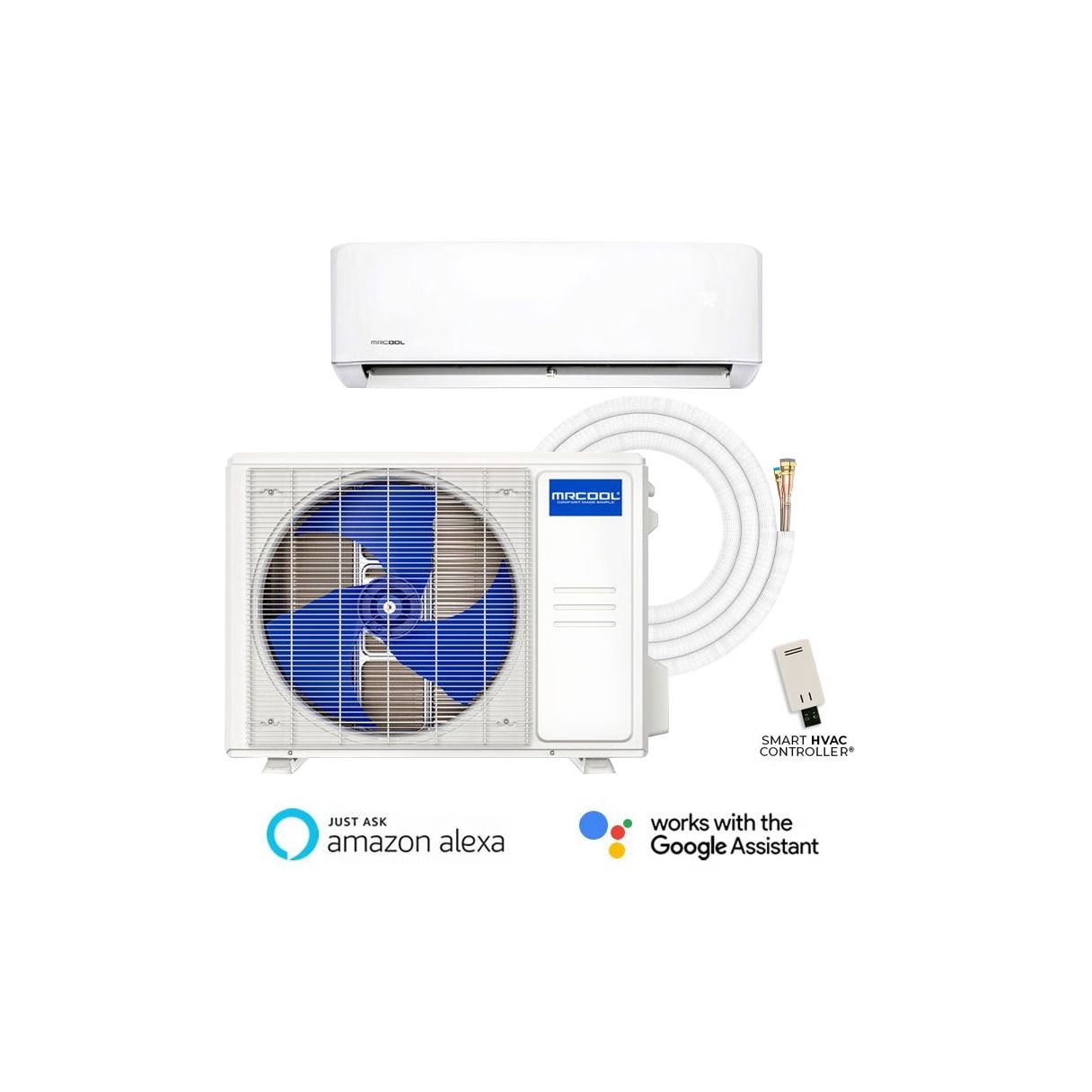

    MRCOOL Advantage 5th Gen 18,000 BTU Mini Split System (A-18-HP-230D-O)

    The MRCOOL Advantage 5th Generation single-zone mini split provides efficient heating and cooling with an 18,000 BTU capacity and a high 19.2 SEER2 / 9.3 HSPF2-4 rating. Designed for rooms up to 1,000 square feet, it utilizes eco-friendly R-454B refrigerant and features a quiet indoor air handler with an inverter-driven outdoor condenser. The outdoor unit is coated with Gold Fin for corrosion resistance and includes a built-in Wi-Fi Smart HVAC Controller for smartphone and voice control.

    Key Features

    • High Efficiency: 19.2 SEER2, 12.4 EER2, 9.3 HSPF2-4 for energy savings
    • Eco-Friendly Refrigerant: Uses low-GWP R-454B refrigerant
    • Smart Controls: Wi-Fi enabled with app compatibility and voice control via Alexa and Google Assistant
    • Quiet Operation: Indoor unit operates quietly for comfortable environments
    • Durable Design: Gold Fin condenser coating resists corrosion
    • Low Ambient Cooling: Operates efficiently down to 5 F
    • Professional Installation: Requires licensed HVAC installation
    • Warranty: Includes 2-year parts and 1-year compressor warranty with optional extended coverage

    Benefits & Applications

    • Zone Comfort: Ideal for larger single rooms, open floor plans, or small apartments
    • Energy Efficient: High SEER2 and HSPF2 ratings reduce energy costs
    • Smart Home Ready: Remote control and voice commands for convenience
    • Quiet and Reliable: Minimizes noise while delivering consistent comfort
    • Environmentally Responsible: Utilizes next-generation refrigerant with low environmental impact

    Package Includes

    • 18,000 BTU inverter condenser
    • 230V wall-mounted air handler with Wi-Fi module
    • Wireless remote control
    • Installation and user manuals

    This MRCOOL Advantage 5th Gen 18,000 BTU Mini Split system offers efficient, smart, and quiet heating and cooling for spaces up to 1,000 sq ft, combining eco-friendly technology with modern convenience.

    More Information

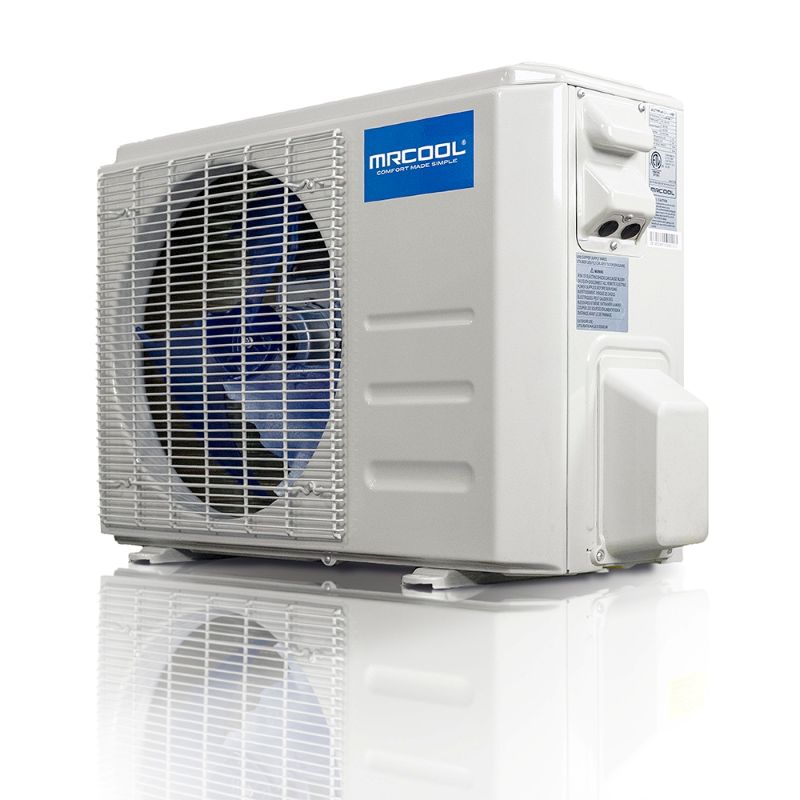

    18,000 BTU MRCOOL Advantage Single Zone Mini Split Heat Pump Condenser - R454B | 230V
    SKUA-18-HP-C-230D-O
    Weight (in lbs)72.310000
    Brand/ManufacturerMRCOOL
    HSPF29.6
    Cooling BTU18000
    Heating BTU18800
    Decibel Level (dBA)56
    RefrigerantR454B
    SEER2 (Efficiency)19.2
    Compressor TypeRotary
    Liquid Line1/4
    Suction Line1/2
    Liquid Valve Size 1/4
    Suction Valve Size 1/2
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size20
    Min. Breaker Size15
    BTU/Tonnage18,000 BTU/1.5 Ton
    Zone CompatibilitySingle Zone
    Height21.81"
    Width31.69"
    Depth12.99"
    Warranty6 Years Base Compressor Warranty, 1 Year Base Parts Warranty, Extended Limited Lifetime Registered Warranty
    Resources You will need Adobe Acrobat Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING

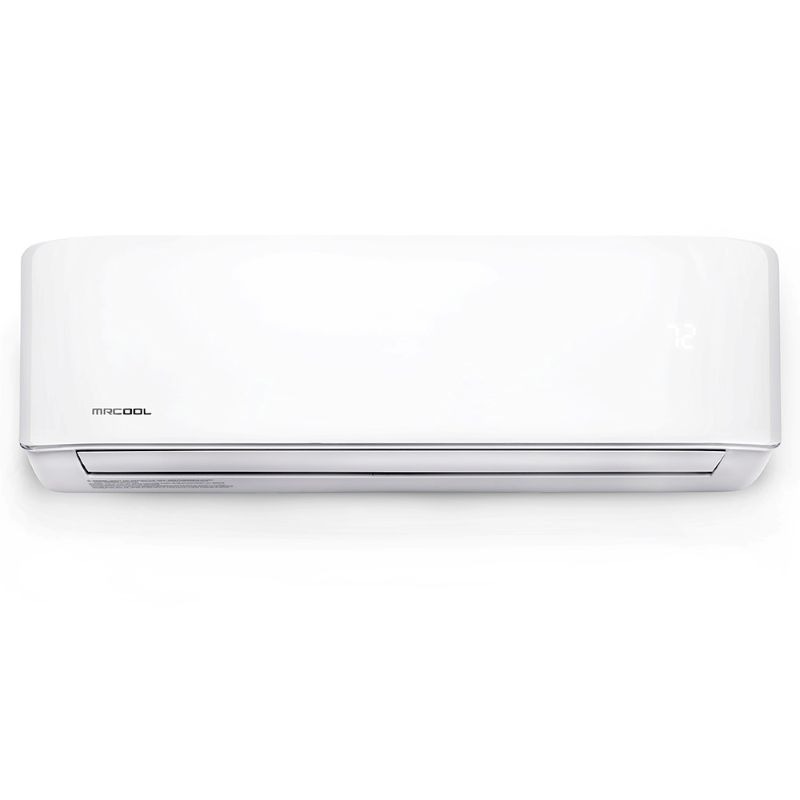

    18,000 BTU MRCOOL Advantage Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
    SKUA-18-HP-WMAH-230D-O
    Weight (in lbs)24.470000
    Brand/ManufacturerMRCOOL
    Cooling BTU18000
    Heating BTU18800
    Maximum CFM429
    Decibel Level (dBA)36
    RefrigerantR454B
    SEER2 (Efficiency)19.2
    Compressor TypeRotary
    Liquid Line1/4
    Suction Line1/2
    Liquid Valve Size 1/4
    Suction Valve Size 1/2
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size15
    Min. Breaker Size3
    BTU/Tonnage18,000 BTU/1.5 Ton
    Zone CompatibilitySingle Zone
    Height12.56"
    Width37.99"
    Depth8.46"
    Warranty2 Years Base Compressor Warranty, 1 Year Base Parts Warranty, Extended Limited Lifetime Registered Warranty
    Resources You will need Adobe Acrobat Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
    SKU201814
    Weight (in lbs)15.000000
    Brand/ManufacturerOnline Supply
    Length15'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
    SKU216741
    Weight (in lbs)30.000000
    Brand/ManufacturerOnline Supply
    Length30'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
    SKU366402
    Weight (in lbs)45.000000
    Brand/ManufacturerOnline Supply
    Length50'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
    SKU366400
    Weight (in lbs)25.000000
    Brand/ManufacturerOnline Supply
    Length25'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
    SKU366401
    Weight (in lbs)35.000000
    Brand/ManufacturerOnline Supply
    Length15'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Wall Mount Bracket for Mini Split Systems
    SKUHW-600
    Weight (in lbs)9.200000
    Brand/ManufacturerOnline Supply
    Length17"
    Height20"
    Width6"
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    Installation Kit for Condensers - Accessory Set
    SKUMSK001
    Weight (in lbs)15.000000
    Brand/ManufacturerOnline Supply
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
