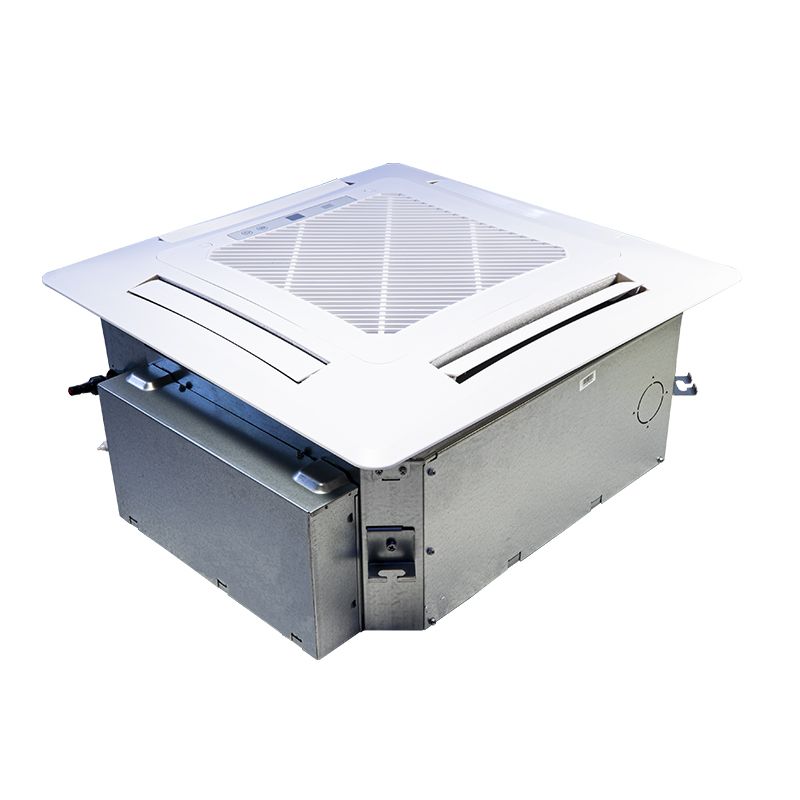

18,000 BTU Stealth Comfort Designer Ceiling Cassette Single Zone Air Handler

SAVE $72.16
18,000 BTU Stealth Comfort Designer Ceiling Cassette Single Zone Air Handler
18,000 BTU Stealth Comfort Designer Ceiling Cassette Single Zone Air Handler
By

Stealth

Out of stock
Model

SC-18CC-UM

ID

107053

No Return Policy: All sales of this product are final and are non-refundable. Stealth Designer Series Ceiling Cassettes flush mount into your existing ceiling, allowing you to maintain the appearance of your walls.  Ceiling Cassettes supply conditioned air in all four directions, resulting in quick, even cooling and heating.  Every Ceiling Cassette has a factory installed condensate drain pump to move water to a safe discharge location.  A wall mount thermostat and remote control are included. 

IMPORTANT:This ceiling cassette requires separate high voltage power, wired directly to the breaker panel in your home.

Please note: Product does not include grille cover – please order from Accessories. 

More Information
18,000 BTU Stealth Comfort Designer Ceiling Cassette Single Zone Air Handler
FeatureSpec
SKUSC-18CC-UM
Weight (in lbs)44
Brand/ManufacturerStealth
UPC689526902762
Cooling BTU17,100
Heating BTU18,400
Maximum CFM445 CFM
Decibel Level (dBA)47 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
HSPF9
SEER1 (Efficiency)16-17
EER10.1
Compressor TypeRotary
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size25
Min. Breaker Size15.9
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeCeiling Cassette
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height08.0"
Width24.4"
Depth35.1"
Warranty14 year compressor, 5 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
