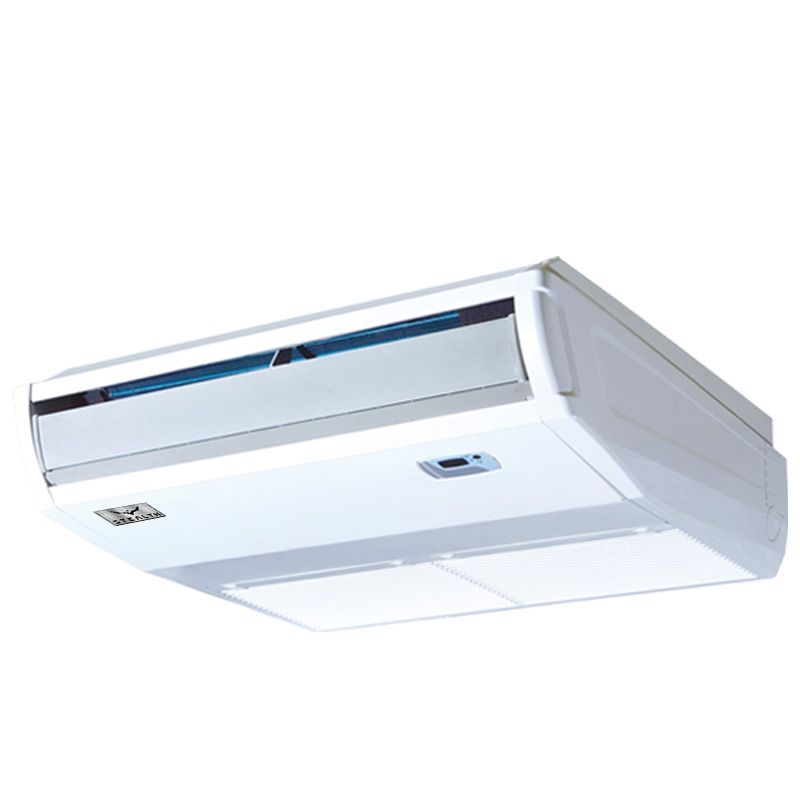

18,000 BTU Floor or Ceiling Mount Air Handler
Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement. The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room. Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water.
Please note:
This air handler must be connected to an outdoor condenser in order to function.
*Note: the 12k btu is floor mount only and cannot be located on the ceiling.
18,000 BTU Stealth Designer+ Floor/Ceiling Multi Zone Air Handler | |
---|---|
SKU | SC-18FM-HP230 |
Weight (in lbs) | 110.000000 |
Brand/Manufacturer | Stealth |
Additional Information | Drain: 5/8" |
Cooling BTU | 17,065 |
Heating BTU | 18,772 |
Maximum CFM | 559 CFM |
Decibel Level (dBA) | Indoor Unit: 40-45 dB(A) |
Refrigerant | R410A |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60Hz |
BTU/Tonnage | 18,000 BTU/1.5 Ton |
Mini-Split Type | Low Wall/Ceiling |
Zone Compatibility | Multi Zone |
Height | 27.5" |
Width | 48" |
Depth | 9" |
Warranty | 14 year compressor, 5 year parts with online registration |
Resources | |
Safety Information | PROPOSITION 65 WARNING |
