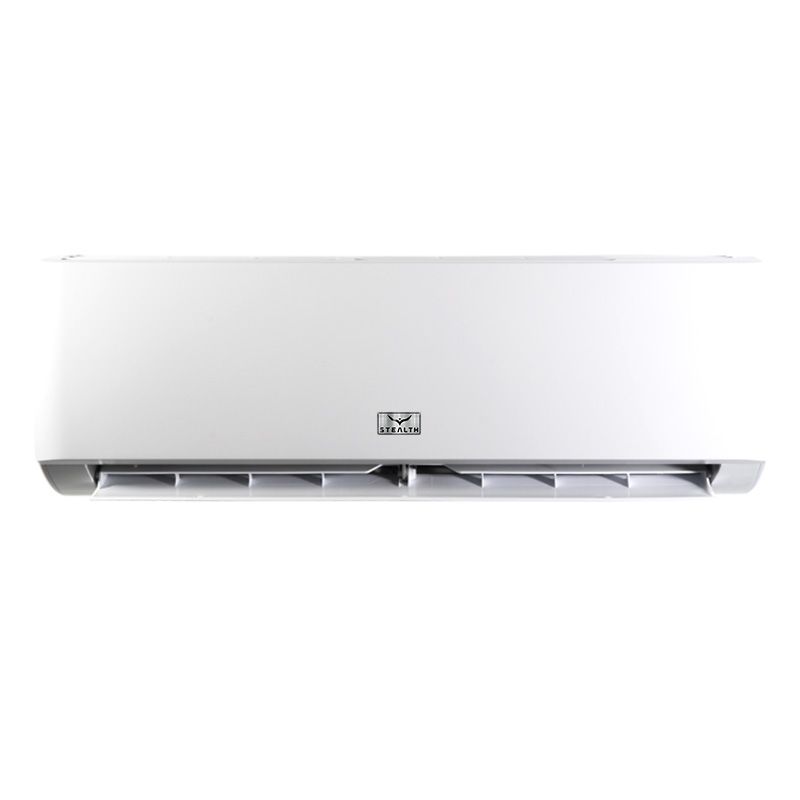

18,000 BTU Stealth Comfort Pinnacle Wall Mount Multi Zone Air Handler

SAVE $583.08
18,000 BTU Stealth Comfort Pinnacle Wall Mount Multi Zone Air Handler
Customer reviews
Rating:
5 out of 5
Out of stock
By

Stealth

Out of stock
Model

SC-18W-HP230

ID

108016

Enhanced Comfort

The Stealth Pinnacle Series wall mounted air handlers feature sleek, unobtrusive design to seamlessly blend with your décor. Temperature is constantly monitored to maintain your comfort as weather conditions change throughout the day and night. 

    Quick Facts

  • Wi-Fi control, iOS, Android, Alexa and Google Home compatible
  • Quiet operation at even the highest workloads
  • Soft LED display for temperature, mode change, diagnostic alerts
  • Timer function, Sleep Mode, Energy Save mode
  • I-Feel function makes the remote into a movable temperature sensor

Information at a glance

Stealth Pinnacle Series air handlers have a soft LED display on the front cover showing temperature, as well as mode changes and diagnostic alert codes.

Wi-Fi Options

The Stealth Pinnacle Series has native Wi-Fi capability. To control via smartphone or tablet, simply download the Gree + app from the app store or Google Play. See instructions for setting it up with Google Home or Alexa.

Please note: This air handler must be connected to an outdoor condenser in order to function.

More Information
18,000 BTU Stealth Comfort Pinnacle Wall Mount Multi Zone Air Handler
FeatureSpec
SKUSC-18W-HP230
Weight (in lbs)35.3
Brand/ManufacturerStealth
UPC00850048551268
Cooling BTU18,000
Heating BTU18,000
Maximum CFM335-559 CFM
Decibel Level (dBA)Indoor Unit: 39-48 dB(A)
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
BTU/Tonnage18,000 BTU/1.5 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11.8"
Width38.2"
Depth8.8"
Warranty14 year compressor, 5 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Best I have seen
    Service
    100%
    Quality
    100%
    Price
    100%
    We had our Stealth pinnacle mini split heat pump installed on 02-24-2023 by Ridgeline Construction Services LLC. Nick the licensed HVAC installer did an excellent job installing the units. The Stealth mini split has worked flawlessly and more than enough to heat the 600 square foot area. The product is quiet and more than meets our expectations so far. The price seemed reasonable and the warranty is one of the best I have seen on a mini split heat pump and I compared many name brands. The service at HVACDirect was exceptional and from inquiry to order and then delivery everything went smoothly. Thanks for your service.

    Review by

    Posted on

Customer Questions
No Questions
