Please note that in order to function, this air handler must be installed with a compatible condenser and other installation equipment, all available at an additional cost.
The 40MAHBQ18XA3 Performance series air handler is designed to provide superior comfort to your home. With its many settings including a follow me mode that uses a thermometer in the remote to match its airflow instead of at the unit, this air handler can suit almost any need while operating efficiently and reliably. When you want an inexpensive system setup that does not sacrifice quality, look no further than Carrier's Performance series air handlers.

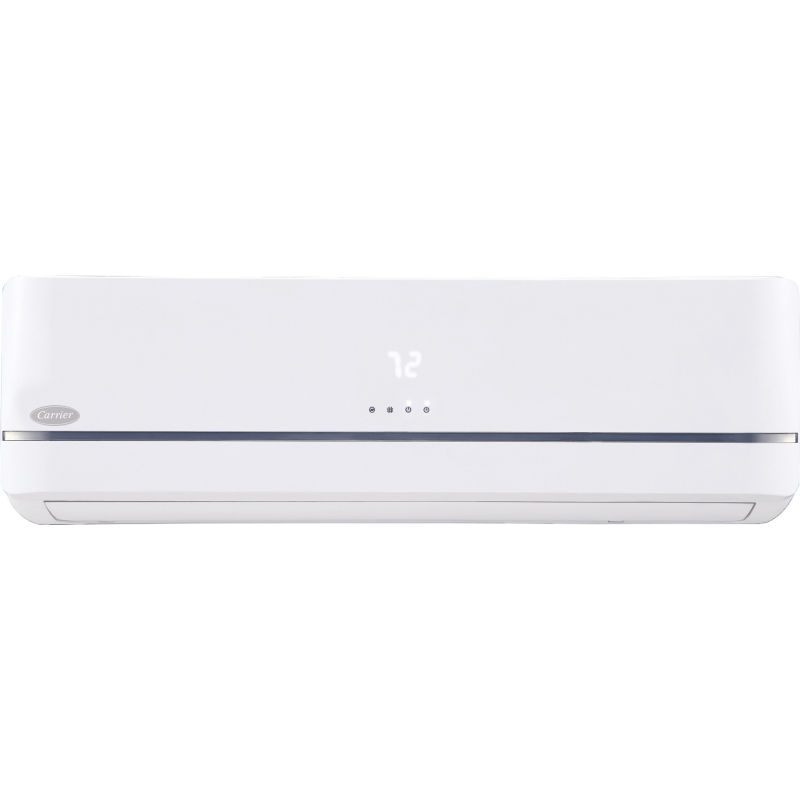

18,000 BTU Wall Mounted Carrier Mini-Split Performance Series Air Handler | |
---|---|
SKU | 40MAHBQ18XA3 |
Weight (in lbs) | 100.000000 |
Brand/Manufacturer | Carrier |
Controller | Wireless Included |
Additional Information | Drain: 5/8" |
Cooling BTU | 18,000 BTU |
Heating BTU | 18,000 BTU |
Maximum CFM | 310-680 CFM |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.475 gal/hr |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
Amperage Requirement | 0.3 Amps |
Tonnage | 1.5 Ton |
BTU/Tonnage | 18,000 BTU/1.5 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Height | 12-2/5" |
Width | 39" |
Depth | 8-3/5" |
Warranty | 10 years with online registration, 5 years without |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
