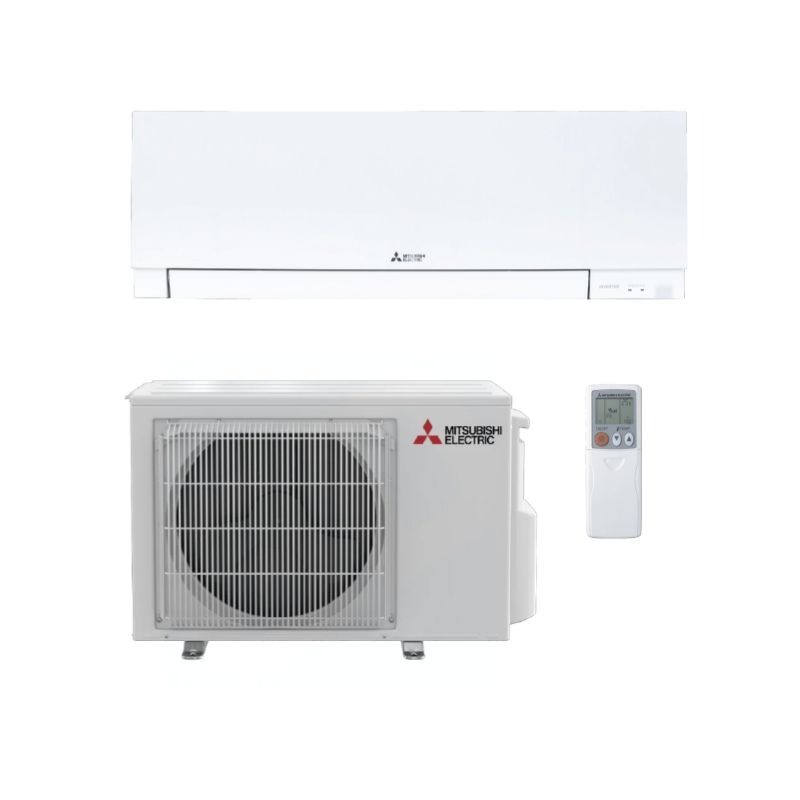

Mitsubishi 18,000 BTU EX-Series 17.5 SEER2 Single Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA18NL / MSZ-EX18NLW
ID
199103
Was $4,553.44
Your Low Price $3,642.75
Customer reviews
Free Shipping
In Stock - Ready to Ship
People that viewed this product purchased this instead:
18,000 BTU ACiQ Standard 24 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $1,999.98
Special Price $1,449.99
18,000 BTU Stealth DIYCOOL 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
Was $2,676.91
Special Price $1,618.19
18,000 BTU ACiQ Extreme 21.4 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $2,769.22
Special Price $1,799.99
Mitsubishi 18,000 BTU WX-Series 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
Was $2,767.50
Special Price $2,214.00
18,000 BTU Mitsubishi EX-Series 17.5 SEER2 Single Wall Mounted Mini Split Heat Pump System - R454B | SUZ-AA18NL / MSZ-EX18NLW
The Mitsubishi EX-Series 18,000 BTU Single Zone Mini Split Heat Pump System delivers reliable, energy-efficient comfort for your home or office. With a 17.5 SEER2 rating and the environmentally friendly R454B refrigerant, this system ensures efficient heating and cooling all year round. The wall-mounted MSZ-EX18NLW indoor unit offers a sleek, minimalist design that blends easily into modern interiors, making it an ideal solution for small to mid-sized rooms.
Key Features:- 17.5 SEER2 Efficiency: Delivers optimal energy savings without sacrificing performance - ideal for keeping utility bills low while maintaining indoor comfort.
- Environmentally Friendly R454B Refrigerant: Designed with sustainability in mind, this system utilizes R454B, a low Global Warming Potential (GWP) refrigerant that helps reduce environmental impact.
- Inverter Compressor Technology: Automatically adjusts output to match your heating and cooling demands, reducing energy waste and keeping temperatures consistent.
- Low Sound Levels: Quiet operation makes this system perfect for bedrooms, home offices, or living areas where silence is golden.
- Stylish Indoor Unit: The MSZ-EX18NLW features a clean white finish and compact design that enhances your room's aesthetics without taking up floor space.
- Indoor Unit: MSZ-EX18NLW Wall-Mounted Air Handler
- Outdoor Unit: SUZ-AA18NL Heat Pump Condenser
- Ideal for medium-sized rooms, providing year-round comfort with high performance and efficiency.
- Easy installation with minimal disruption - perfect for residential or light commercial applications.
- Backed by Mitsubishi's reputation for reliability and long-lasting performance.
- Compatible with smart controllers and advanced filtration options for customized comfort and better indoor air quality.
If you're looking for a high-efficiency, eco-conscious heating and cooling system, the Mitsubishi 18,000 BTU EX-Series with MSZ-EX18NLW is a top-tier choice. Its inverter-driven compressor and low-impact refrigerant make it as smart as it is efficient, delivering comfort you can count on with sustainability in mind.
18,000 BTU Mitsubishi Single Zone Condenser - R454B
SUZ-AA18NL - 18,000 BTU/H Heat Pump Outdoor Unit
The SUZ-AA18NL is a high-performance 18,000 BTU outdoor heat pump unit, designed for residential and light commercial applications. This unit offers reliable operation for both cooling and heating, equipped with advanced features for efficiency and quiet performance.
Outdoor Unit Features (SUZ-AA18NL):
- Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger to protect against salt, sulfur, and other contaminants, especially in coastal or industrial areas.
- High-Performance Grooved Piping: Grooved piping enhances heat exchange efficiency, contributing to the system's overall performance.
- Hot-Start Technology: Ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during startup.
- INVERTER-Driven Compressor: The inverter-driven compressor adjusts capacity to maintain a precise temperature set point, improving energy efficiency and comfort.
- Joint Lap DC Motor: Improves efficiency and reliability with an advanced motor design.
- Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, ensuring system continuity in the event of a power outage, with automatic restart functionality.
- Pulse Amplitude Modulation Technology: Enhances energy efficiency by adjusting the power supply to optimize compressor performance, reducing energy consumption.
- Quiet Operation: Both outdoor and indoor units operate at a low sound level, ensuring a quiet environment.
Specifications:
- Cooling Capacity: 18,000 BTU/h at 95°F outdoor temperature with a minimum capacity of 5,000 BTU/h.
- Heating Capacity: 22,500 BTU/h at 47°F and 13,400 BTU/h at 17°F.
- Energy Efficiency: SEER2 rating of 17.2, EER2 of 12.4, and HSPF2 of 10.3.
- Refrigerant: R454B refrigerant for efficient heat exchange.
- Sound Levels: Operates at 54 dB(A) during cooling and 55 dB(A) during heating for quiet performance.
- Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches with a unit weight of 118 lbs.
With its durable construction, quiet operation, and efficient performance, the SUZ-AA18NL is a perfect choice for ensuring comfort in residential and commercial spaces year-round.

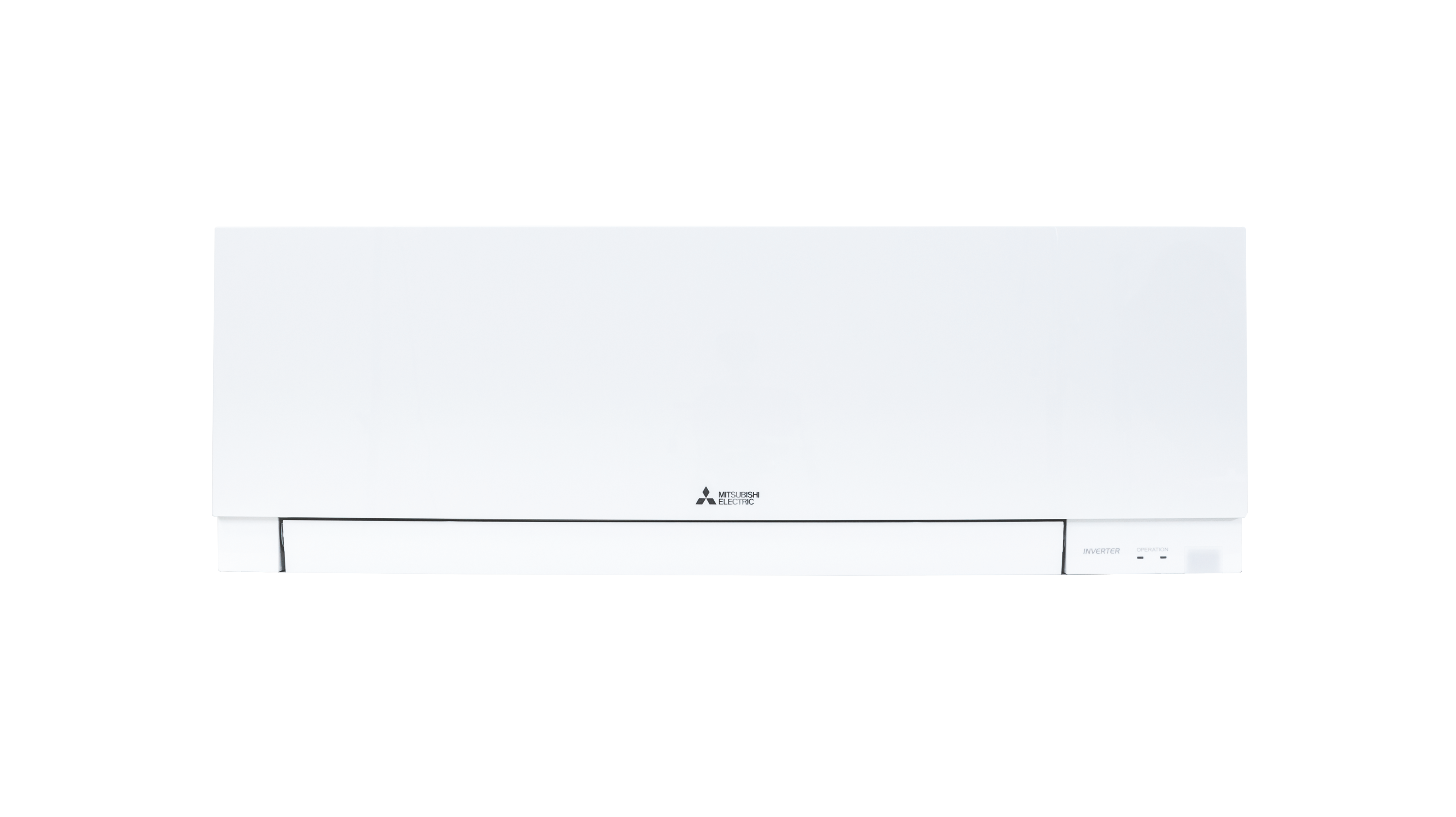

18,000 BTU Mitsubishi EX-Series White Wall Mount Mini Split Air Handler - R454B
Mitsubishi Electric MSZ-EX18NLW Wall-Mounted Indoor Unit
The MSZ-EX18NLW is a highly efficient, wall-mounted indoor unit designed to provide optimal comfort through advanced heating and cooling technologies. It integrates features for both performance and ease of maintenance, making it an ideal choice for residential and commercial applications.
Indoor Unit Features
- Dual Barrier Coating: Helps reduce dust and grime buildup on the heat exchanger for better airflow and easier maintenance.
- Econo Cool: Automatically adjusts airflow to save energy while maintaining comfort by slightly increasing the set temperature.
- Modern Design: The sleek design fits seamlessly into any interior.
- Multiple Control Options: Includes a back-lit remote, mobile app, wired, and wireless control interfaces.
Specifications
- Cooling Capacity: 16,400 BTU/h
- Heating Capacity: 20,000 BTU/h (at 47°F)
- Energy Efficiency: SEER: 17.5, HSPF: 10.6, EER: 11.7
- Power Input: Cooling: 1,390 W, Heating: 1,700 W
- Sound Level: Cooling: 30-43 dB(A), Heating: 30-49 dB(A)
- Unit Dimensions: 34-13/16" x 7-11/16" x 11-3/4"
- Weight: 26 lbs (11.5 kg)
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Top reviews
- Excellent.The purchase was flawless. Everything was as described. The freight company (Dayton Freight) was outstanding. So far the unit is working great.
Posted on
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
