Mitsubishi 18,000 BTU SEZ-AD-Series 17.2 SEER2 Single Zone Horizontal-Ducted Mini Split Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA18NL / PEAD-AA18NL
ID
199155
Was $5,625.00
Your Low Price $4,500.00
Free Shipping
In Stock - Ready to Ship
People that viewed this product purchased this instead:
18,000 BTU ACiQ Extreme 18.4 SEER2 Single Zone Concealed Duct Mini Split System - R454B | 230V
Was $3,461.53
Special Price $2,249.99
Mitsubishi 18,000 BTU 17.2 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 230V
Was $5,312.82
Special Price $4,250.25
Mitsubishi 18,000 BTU Hyper Heat 16.5 SEER2 Single Zone Concealaed Duct Mini Split Heat Pump System - R454B | 208/230V
Was $6,027.19
Special Price $4,821.75

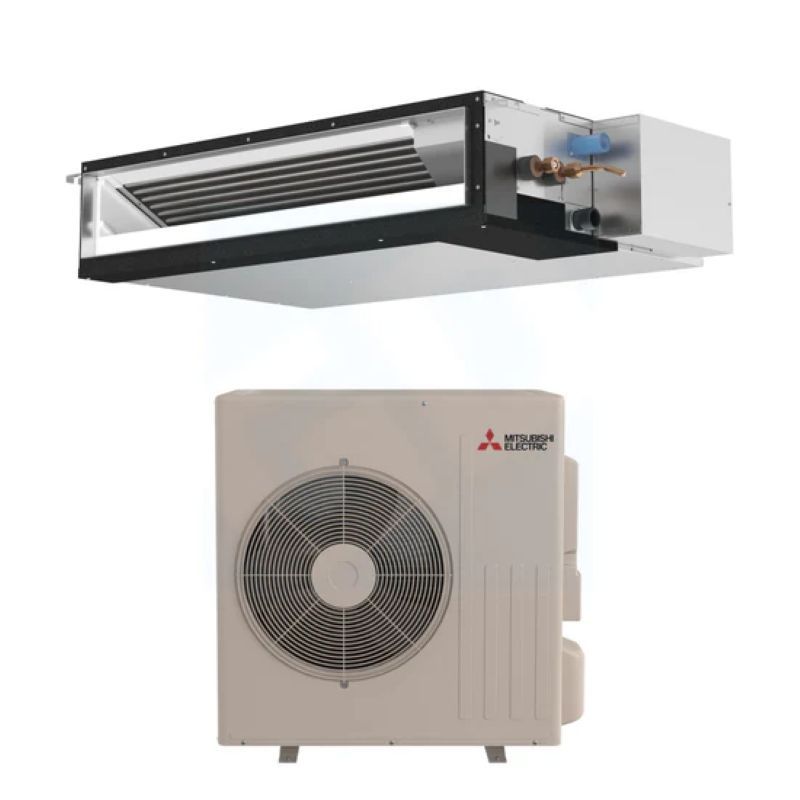

18,000 BTU Mitsubishi P-Series 17.2 SEER2 Single Horizontal-Ducted Mini Split Heat Pump System - R454B | SUZ-AA18NL / PEAD-AA18NL
Experience seamless and efficient comfort with the Mitsubishi P-Series 18,000 BTU Horizontal-Ducted Mini Split Heat Pump System. Combining the discreet PEAD-AA18NL indoor unit with the robust SUZ-AA18NL outdoor condenser, this system delivers reliable heating and cooling performance with a SEER2 rating of 17.2. It's ideal for homeowners or light commercial spaces seeking a hidden HVAC solution without sacrificing energy efficiency.
Key Features:- Energy Efficient: SEER2 rating of 17.2 provides dependable comfort with energy-conscious operation.
- Compact and Concealed: The PEAD-AA18NL indoor unit fits neatly in ceiling or attic spaces for an unobtrusive installation.
- Quiet Operation: Low noise levels make it ideal for bedrooms, offices, or other quiet zones.
- Environmentally Friendly: Utilizes R454B refrigerant for lower global warming potential and compliance with modern eco-standards.
- Durable Outdoor Unit: SUZ-AA18NL is engineered for year-round performance, even in challenging weather conditions.
- Indoor Unit: PEAD-AA18NL Horizontal-Ducted Air Handler
- Outdoor Unit: SUZ-AA18NL Heat Pump Condenser
- Spaces requiring discreet and centralized airflow distribution.
- Retrofits or new installations with ceiling or attic access.
- Homeowners prioritizing eco-friendly and compact HVAC solutions.
The 18,000 BTU Mitsubishi P-Series Mini Split System is the perfect choice for comfort, efficiency, and flexibility - all in a low-profile ducted package that stays out of sight but never out of performance.
* Please Note * This product does NOT include a remote controller and one would need to be purchased separately. The MHK2 Thermostat can be used in place of a remote controller.
18,000 BTU Mitsubishi Single Zone Condenser - R454B
SUZ-AA18NL - 18,000 BTU/H Heat Pump Outdoor Unit
The SUZ-AA18NL is a high-performance 18,000 BTU outdoor heat pump unit, designed for residential and light commercial applications. This unit offers reliable operation for both cooling and heating, equipped with advanced features for efficiency and quiet performance.
Outdoor Unit Features (SUZ-AA18NL):
- Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger to protect against salt, sulfur, and other contaminants, especially in coastal or industrial areas.
- High-Performance Grooved Piping: Grooved piping enhances heat exchange efficiency, contributing to the system's overall performance.
- Hot-Start Technology: Ensures the fan only activates once the heat exchanger is warm, preventing cold air blasts during startup.
- INVERTER-Driven Compressor: The inverter-driven compressor adjusts capacity to maintain a precise temperature set point, improving energy efficiency and comfort.
- Joint Lap DC Motor: Improves efficiency and reliability with an advanced motor design.
- Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, ensuring system continuity in the event of a power outage, with automatic restart functionality.
- Pulse Amplitude Modulation Technology: Enhances energy efficiency by adjusting the power supply to optimize compressor performance, reducing energy consumption.
- Quiet Operation: Both outdoor and indoor units operate at a low sound level, ensuring a quiet environment.
Specifications:
- Cooling Capacity: 18,000 BTU/h at 95°F outdoor temperature with a minimum capacity of 5,000 BTU/h.
- Heating Capacity: 22,500 BTU/h at 47°F and 13,400 BTU/h at 17°F.
- Energy Efficiency: SEER2 rating of 17.2, EER2 of 12.4, and HSPF2 of 10.3.
- Refrigerant: R454B refrigerant for efficient heat exchange.
- Sound Levels: Operates at 54 dB(A) during cooling and 55 dB(A) during heating for quiet performance.
- Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches with a unit weight of 118 lbs.
With its durable construction, quiet operation, and efficient performance, the SUZ-AA18NL is a perfect choice for ensuring comfort in residential and commercial spaces year-round.

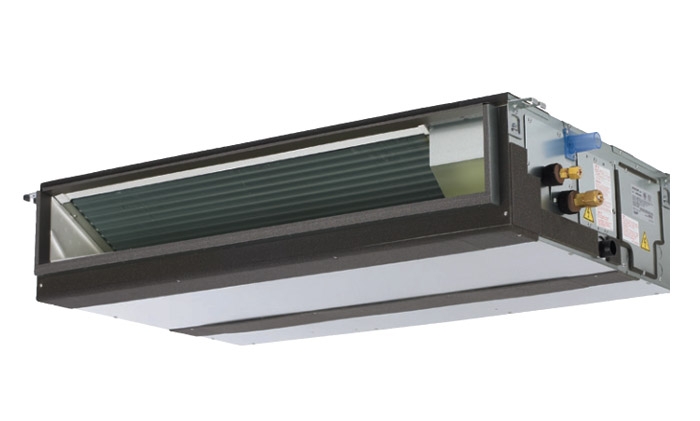

18,000 BTU Mitsubishi Single or Multi Zone Air Handler - R454B
PEAD-AA18NL Air Handler Overview
The PEAD-AA18NL is a highly efficient air handler designed to provide superior cooling and heating performance in residential and light commercial environments. Paired with the PUY-AK18NL outdoor unit, this air handler offers exceptional energy savings, reliable operation, and a quiet, comfortable indoor environment. The PEAD-AA18NL is ideal for spaces that require a compact, efficient, and flexible air handling solution.
Key Features
- Inverter Technology: The PEAD-AA18NL uses advanced inverter-driven technology to regulate the compressor speed based on cooling or heating demands. This results in energy-efficient operation, less wear on components, and superior comfort by maintaining consistent indoor temperatures.
- Quiet Operation: Designed to operate with minimal noise, the PEAD-AA18NL ensures a peaceful and quiet environment. It is an excellent choice for bedrooms, offices, and any area where quiet performance is important.
- Energy Efficiency: The use of inverter technology helps reduce energy consumption, allowing the PEAD-AA18NL to operate at lower energy costs while providing maximum comfort throughout the year.
- Flexible Installation: With its compact size, the PEAD-AA18NL can be installed horizontally or vertically, offering flexibility in installation, especially in tight or constrained spaces.
- Durability: Built with high-quality materials, the PEAD-AA18NL is designed to last for years with minimal maintenance, making it a reliable long-term solution for residential and commercial applications.
Specifications
- Cooling Capacity: 18,000 BTU/h
- Heating Capacity: 20,000 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions (W x H x D): 31-1/2" x 11-3/4" x 24-1/8â€Â
- Weight: 32 lbs
- Refrigerant: R410A
- Airflow: 900 CFM
Benefits
- Enhanced Comfort: The PEAD-AA18NL provides precise temperature control, ensuring consistent comfort in any room. Whether heating or cooling, it delivers optimal air comfort throughout the year.
- Energy Savings: With inverter-driven technology, the PEAD-AA18NL adjusts power usage according to the system's demand, optimizing energy efficiency and reducing electricity bills.
- Quiet Performance: The unit operates at low sound levels, ensuring that it does not interfere with everyday activities or rest, making it ideal for any living or working space.
- Environmentally Friendly: The PEAD-AA18NL uses R410A refrigerant, which is more environmentally friendly than traditional refrigerants, helping to reduce the overall carbon footprint of your cooling and heating system.
- Reliable and Durable: Built to last, the PEAD-AA18NL is designed for long-term, dependable performance. With proper maintenance, this system will continue to perform efficiently for years to come.
Maintenance
- Easy Access for Maintenance: The PEAD-AA18NL is designed for easy access to internal components, simplifying maintenance tasks such as cleaning and servicing, helping to maintain long-term efficiency and reliability.
- Filter Maintenance: The unit comes with washable filters that require periodic cleaning to maintain optimal air quality and system performance. Regular filter maintenance ensures better airflow and energy efficiency.
- Long Lifespan: The PEAD-AA18NL is engineered to require minimal maintenance, with robust and durable components that extend the lifespan of the system, reducing the need for frequent repairs.
Applications
- Residential Use: The PEAD-AA18NL is perfect for homes that require reliable, energy-efficient heating and cooling. It ensures that your home stays comfortable year-round without high energy costs.
- Light Commercial Use: Ideal for small offices, retail stores, and cafes, the PEAD-AA18NL can efficiently heat and cool commercial spaces while keeping operating costs low.
In conclusion, the PEAD-AA18NL air handler offers a combination of energy efficiency, quiet operation, and flexibility. With its inverter technology, it reduces energy consumption while maintaining precise temperature control for consistent comfort. Its compact design allows for flexible installation, and its durable construction ensures reliable long-term performance. Whether you're looking for a solution for your home or light commercial space, the PEAD-AA18NL is a versatile and dependable choice for heating and cooling needs.
* Please Note * This product does NOT include a remote controller and one would need to be purchased separately.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Write Your Own Review
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
