Required Fields *
By
Stealth
Out of stock
Model
EZ-18Z-M2B / EZ-06W-MB-2 / EZ-09W-MB
ID
236828
Your Low Price $1,961.99
People also viewed:
Stealth DIYCOOL Design Your Own 3 Zone Heat Pump System R454B
Was $2,316.91
Special Price $1,505.99
36,000 BTU Stealth DIYCOOL 23 SEER2 3-Zone Mini Split Wall Mount Heat Pump System R454B | 230V - 9 + 9 + 18
Was $6,636.20
Special Price $4,205.99
36,000 BTU Stealth DIYCOOL 23 SEER2 3-Zone Mini Split Wall Mount Heat Pump System R454B | 230V - 9 + 12 + 12
Was $6,625.85
Special Price $4,139.99

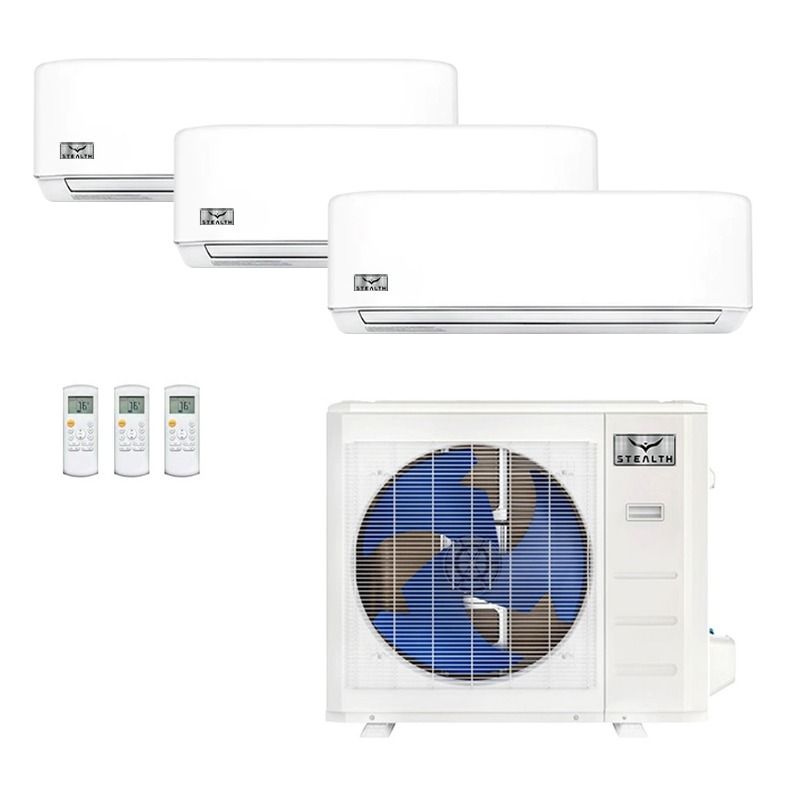

18,000 BTU Stealth DIYCOOL EZ Series 23.9 SEER2 Tri-Zone Wall Mount Mini Split Heat Pump System – R454B | 230V – 6 + 6 + 9
Designed for efficient, flexible comfort in multiple rooms, this Stealth DIYCOOL Tri-Zone system is ideal for homeowners looking to heat and cool three separate spaces with precision. Featuring an 18,000 BTU inverter condenser paired with two 6,000 BTU air handlers and one 9,000 BTU unit, this system delivers quiet, energy-efficient performance for bedrooms, offices, and small living areas.
Product Overview
The Stealth EZ Series combines advanced inverter technology with eco-friendly R454B refrigerant for dependable year-round comfort. The EZ-18Z-M2B outdoor condenser supports three independently controlled zones, allowing customized temperature control while maximizing energy efficiency.
Key Features
- Tri-Zone Comfort: Independently heat or cool three rooms using 6,000 BTU + 6,000 BTU + 9,000 BTU wall-mounted air handlers
- High Efficiency: 23.9 SEER2 inverter technology for lower energy consumption
- Eco-Friendly: Uses low-GWP R454B refrigerant
- Quiet Operation: Engineered for low noise levels indoors and outdoors
- DIY-Ready: Compatible with pre-charged EZ-Connect line sets for simplified installation
Feature Highlights
- Individual temperature control across three rooms
- Consistent airflow with multi-speed fan operation
- Energy-saving performance for year-round use
- Reliable heating and cooling with inverter technology
What’s Included
- 18,000 BTU Stealth DIYCOOL outdoor condenser (EZ-18Z-M2B)
- Two 6,000 BTU wall-mount air handlers (EZ-06W-MB-2)
- One 9,000 BTU wall-mount air handler (EZ-09W-MB)
- Remote controls for each indoor unit
Recommended Accessories
- Pre-charged EZ-Connect line sets
- Outdoor mounting bracket or pad
- Wi-Fi adapter for smart control
- Drain hose and insulation kit
Warranty
This Stealth DIYCOOL system includes up to a 5 year parts and 7 year compressor warranty from the date of initial installation for the original registrant.
18,000 BTU Stealth Multi Zone Condenser-R454B
Achieve flexible, year-round comfort with a high-efficiency multi-zone outdoor condenser designed for easy installation.
The Stealth DIYCOOL Series 18,000 BTU Multi-Zone Mini Split Heat Pump Condenser delivers efficient heating and cooling for spaces up to 1,000 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this inverter-driven outdoor condenser provides powerful performance with up to 23.9 SEER2 efficiency. Designed to support multiple compatible indoor air handlers, it allows homeowners to create customized comfort zones throughout different rooms while maintaining quiet, energy-efficient operation year-round.
Key Features
- Multi-Zone Comfort Control — Supports multiple compatible indoor units, allowing independent temperature control across different rooms or areas.
- High-Efficiency Inverter Performance — Delivers 18,000 BTU of heating and cooling capacity with up to 23.9 SEER2 efficiency for reliable comfort and improved energy savings.
- DIY-Friendly Installation — Designed with Stealth DIYCOOL technology to help simplify setup and provide a more convenient installation experience.
- Quiet, Reliable Operation — Engineered with inverter technology and durable outdoor construction for smooth, low-noise performance in a variety of conditions.
- Smart Comfort Compatibility — Works with compatible Stealth DIYCOOL indoor units featuring convenient comfort functions, including Wi-Fi control and advanced operating modes.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
9,000 BTU Stealth Wall Mounted Air Handler-R454B
Enjoy flexible, year-round comfort with a compact multi-zone wall-mounted indoor air handler designed for efficient performance, quiet operation, and seamless integration with Stealth DIYCOOL Series heat pump systems.
The Stealth DIYCOOL Series 9,000 BTU Multi-Zone Wall Mount Mini Split Air Handler provides efficient heating and cooling for spaces up to 400 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this indoor unit delivers reliable zone comfort with quiet operation and a sleek, space-saving wall-mounted design. Designed to pair with compatible Stealth DIYCOOL Series multi-zone condensers, it is an ideal solution for bedrooms, offices, apartments, and other smaller spaces requiring customized temperature control.
Key Features
- Multi-Zone Compatibility — Designed to work with compatible Stealth DIYCOOL multi-zone heat pump systems, allowing flexible comfort control across multiple rooms or areas.
- Efficient Heating & Cooling — Provides 9,000 BTU of capacity for dependable temperature control in smaller residential and office spaces.
- Quiet Indoor Performance — Engineered with advanced inverter technology for smooth, energy-efficient operation and reduced operating noise.
- DIY-Friendly Wall Mount Design — Features a compact wall-mounted configuration designed for flexible installation and compatibility with Stealth DIYCOOL systems.
- Smart Comfort Features — Includes convenient features such as Wi-Fi capability, sleep mode, auto swing, louver position memory, and self-diagnostic functionality for easier operation and maintenance.
Warranty
Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.
Stealth 50’ EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers - R454B
50 ft Stealth DIYCOOL Multi‑Zone Pre‑Charged Line Set – R454B
The Stealth EZ-50-1412-MB is a 50-foot EZ Connect DIYCOOL line set designed for use with 9,000, 12,000, and 18,000 BTU Stealth air handlers. Compatible with R454B refrigerant, this line set ensures efficient and reliable installation of multi-zone mini-split systems.
Its durable construction and pre-flared connections simplify setup, making it ideal for DIYCOOL or professional installations while maintaining system efficiency.
Key Features
- Length: 50 feet
- Compatible with 9k, 12k, and 18k BTU DIYCOOL air handlers
- Supports eco-friendly R454B refrigerant
- EZ Connect design for simplified installation
- Durable, pre-flared connections for reliable performance
- Ideal for DIYCOOL or professional multi-zone mini-split setups
Note: Line set only; requires compatible indoor and outdoor units for full operation.
The Stealth brand is formerly know as Infinity Living.
21" Wall Mount Bracket
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
- 21" Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Stealth 35’ DIYCOOL Line Set for 9k, 12k, 18k Air Handlers - R454B
35 ft Stealth DIYCOOL Multi‑Zone Pre‑Charged Line Set – R454B
The Stealth EZ-35-1412-MB is a 35-foot EZ Connect DIYCOOL line set designed for use with 9,000, 12,000, and 18,000 BTU Stealth air handlers. Compatible with R454B refrigerant, this line set ensures efficient and reliable installation of multi-zone mini-split systems.
Its durable construction and pre-flared connections simplify setup, making it ideal for DIYCOOL or professional installations while maintaining system efficiency.
Key Features
- Length: 35 feet
- Compatible with 9k, 12k, and 18k BTU DIYCOOL air handlers
- Supports eco-friendly R454B refrigerant
- EZ Connect design for simplified installation
- Durable, pre-flared connections for reliable performance
- Ideal for DIYCOOL or professional multi-zone mini-split setups
Note: Line set only; requires compatible indoor and outdoor units for full operation.
The Stealth brand is formerly know as Infinity Living.
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Stealth 25' EZ Connect DIYCOOL Line Set for 9k, 12k, & 18k Air Handlers - R454B
25 ft Stealth DIYCOOL Multi‑Zone Pre‑Charged Line Set – R454B
The Stealth EZ-25-1412-MB is a 25-foot EZ Connect DIYCOOL line set designed for use with 9,000, 12,000, and 18,000 BTU Stealth air handlers. Compatible with R454B refrigerant, this line set ensures easy and efficient installation of multi-zone mini-split systems.
Its durable construction and pre-flared connections simplify setup, making it ideal for DIYCOOL installations while maintaining reliable performance and system efficiency.
Key Features
- Length: 25 feet
- Compatible with 9k, 12k, and 18k BTU DIYCOOL air handlers
- Supports eco-friendly R454B refrigerant
- EZ Connect design for simplified installation
- Durable, pre-flared connections for reliable performance
- Ideal for DIYCOOL or professional multi-zone mini-split setups
Note: Line set only; requires compatible indoor and outdoor units for full operation.
The Stealth brand is formerly know as Infinity Living.
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Top reviews
- MehYou should know before you buy that this unit will not hold your temp at the setting. It will instead run up to 4 deg below your cool temp or 2 deg above that temp. I have this set on 68 and it will not stop running and cools until it reaches 64deg. If you want precision this is not your unit. If you want the most budget, DIY option, this is what you want but done expect it to run like any other HVAC u it you have ever used before.
