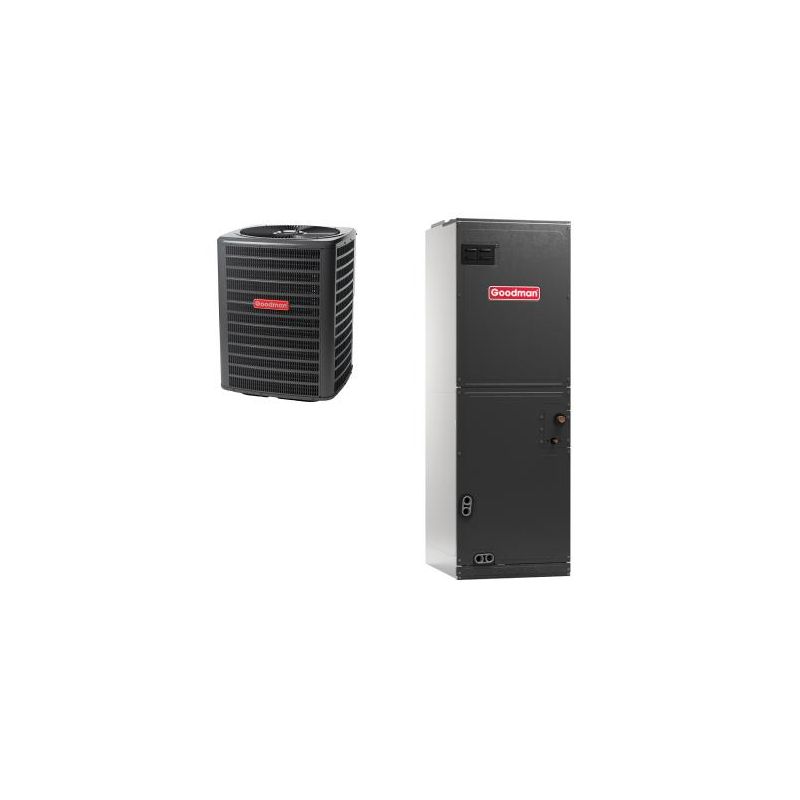

2.5 Ton 13 SEER Goodman Air Conditioner System

2.5 Ton 13 SEER Goodman Air Conditioner System

Required Fields *

Customer reviews
Rating:
4.9 out of 5
Out of stock
By

Goodman

Out of stock

Model

GSX130301 / ARUF29B14

ID

31728

A Goodman combination system is a great choice to keep your home comfortable all year long. With tons of extra features and a great price, the GSX130301 is a perfect choice for an air conditioner.

Not intended for use in mobile homes.

2.5 Ton ACiQ Hybrid Upgrade - R454B
5 Kilowatt 16,200 BTU Goodman Heater Coil

The Goodman HKS-C Series Heat Strip have rust resistant nickel chromium heat elements. Completely assembled and tested including a plug in wiring harness for ease of installation in Air Handlers. The Goodman HKS-C Series Heat Strips offer sequencers for better temperature control. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

Compatible With

  • Goodman ARPT Air Handlers
  • Goodman ARUF Air Handlers
  • Goodman ASPT Air Handlers
  • Goodman ASUF Air Handlers
  • Goodman AVPTC Air Handlers
No Thank You
More Information
Goodman 2.5 Ton 13 SEER Central Air Conditioner Condenser - R410A Single Stage
FeatureSpec
SKUGSX130301
Weight (in lbs)159
Brand/ManufacturerGoodman
UPC650361147014
Cooling BTU30,000
Decibel Level (dBA)73
Energy StarNo
RefrigerantR410A
SEER1 (Efficiency)13
Condenser StagesSingle Stage
Compressor TypeReciprocating
Liquid Line3/8"
Suction Line3/4"
Liquid Valve Size3/8"
Electrical208 / 230 V. 1 Phase 60 Hz
Max Breaker Size25 amps
Min. Breaker Size16.7 amps
Tonnage2.5 Ton
Valve TypeSweat
Height32.5"
Width26"
Depth26"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
2 Ton Multi-Positional Goodman Air Handler
FeatureSpec
SKUARUF29B14
Weight (in lbs)100
Brand/ManufacturerGoodman
UPC689526874229
ControllerNot Included
Included ItemsCheck flowrator (Piston) for cooling and heat pump applications - Piston #0.057
Additional InformationAll-aluminum evaporator coil
Cooling BTU25,000
Blower MotorMulti Speed - PSC
Drive TypeDirect
Maximum CFM1255
Horsepower1/3
Electric HeatElectric Heat Strip
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts
ConfigurationMulti-Position
RefrigerantR410A
Filter Size16" x 20"
Liquid Line3/8"
Suction Line3/4"
Electrical208/240  V, 1 Phase,  60 Hz
Max Breaker Size15 amps
Min. Breaker Size15 Amps
Tonnage2 Ton
Fuel TypeElectric
Height45"
Width17.5"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
5 Kilowatt 16,200 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC05XC
Weight (in lbs)8
Brand/ManufacturerGoodman
UPC650361147441
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size35 amps
Min. Breaker Size32 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
8 Kilowatt 23,800 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC08XC
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361147311
Heating BTU23,800
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size50 amps
Min. Breaker Size48 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
10 Kilowatt 34,100 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC10XC
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361147335
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker Size60 amps
Min. Breaker Size57 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
15 Kilowatt 51,150 BTU Goodman Heater Coil
FeatureSpec
SKUHKSC15XB
Weight (in lbs)9
Brand/ManufacturerGoodman
UPC650361148288
Heating BTU51,150
Electric Heat15 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Max Breaker SizeCircuit 1: 60 amps / Circuit 2: 25 amps
Min. Breaker SizeCircuit 1: 57 amps / Circuit 2: 25 amps
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
2.5 Ton ACiQ Hybrid Upgrade - R454B
FeatureSpec
SKUACIQ-30-EHPD-UPG
Weight (in lbs)120
Brand/ManufacturerACiQ
RefrigerantR454B
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Very loud but works great.
    Quality
    80%
    Service
    100%
    Price
    100%
    We had this unit installed in 2022 by an independent contractor. Cools great, but it's quite loud. Do wish it was a little quieter. But on the bright side, it cools nicely without too many problems.

    Review by

    Posted on

  2. Great deal
    Price
    100%
    Service
    100%
    Quality
    100%
    HVAC direct consistently beat my local distributor….their loss. I will continue with hvac direct.

    Review by

    Posted on

  3. Extremely pleased
    Quality
    100%
    Price
    100%
    Service
    100%
    The product and customer service are above and beyond what I was expecting. I ordered the wrong product and they helped me with my mistake to get my order correct. Ben was awesome as well as the entire dock crew. I will order from here again.

    Review by

    Posted on

  4. very noisey
    Price
    100%
    Service
    100%
    Quality
    100%
    Like the unit . Had an old Goodman unit which was about 41 years old. Had to replace it. Bought a new Goodman GSX130301. It was installed on July 22. 2022. Very cold air. Just very noise.

    Review by

    Posted on

  5. happy with product
    Price
    100%
    Service
    100%
    Quality
    100%
    I have had this product for about 3 weeks. Works very good. Happy with the GSX 130301 a/c unit. My old a/c unit was a Goodman it lasted 45 year old. My old unit was put in in 1977. That is why I bought another Goodman a/c unit.

    Review by

    Posted on

  6. Works Great
    Service
    100%
    Quality
    100%
    Price
    100%
    The product works great, I enjoy shopping with you guys for any product and promote your business to others. Upon receiving their was a medium size dent on the sheet metal jacket, however everything works fine and I can mostly hide the dent. So no worries

    Review by

    Posted on

  7. Superb co.
    Quality
    100%
    Price
    100%
    Service
    100%
    My company has been in buisness for 32 yrs and sense HVAC direct has opened it has not only made my co.more successful but has taken so much of the ordering stress off me and our staff.

    Review by

    Posted on

  8. Very happy
    Quality
    100%
    Price
    100%
    Service
    100%
    My nephew who is licensed installed it, the line set and coil, cools great, very happy. Quiet as well.

    Review by

    Posted on

See more reviews
Customer Questions
Does the freon for this unit come charged during shipping?
Yes, this unit will come pre-charged with R410A refrigerant. If you have any further questions we recommend that you give us a call! Thanks.
Did you find what you were looking for?
Why Choose a Goodman Product?
Why Choose Goodman?

For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
