2.5 Ton 14.3 SEER2 Goodman Ceiling-Mount Heat Pump Split System with 8kW Heat

Model

GSZB403010 / ACSF30LN1608 / 0151R00210S

ID

157015

Rating:
99% of 100
AHRI Certified

AHRI Number:210998192

Your Low Price $120.00
Free Shipping

Required Fields *

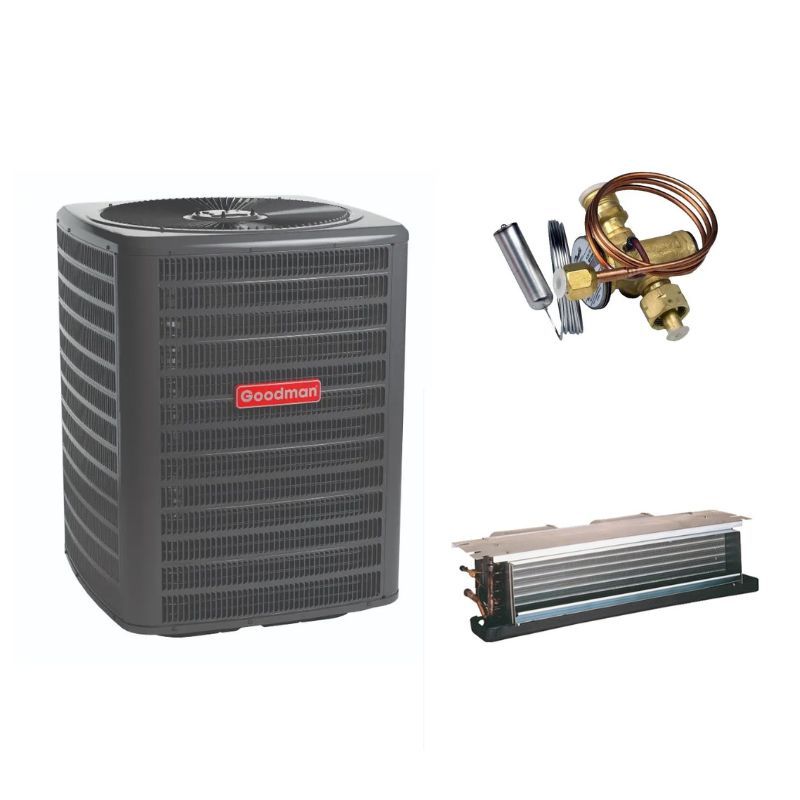

Customize 2.5 Ton 14.3 SEER2 Goodman Ceiling-Mount Heat Pump Split System with 8kW Heat
2.5 Ton 14.3 SEER2 Goodman Heat Pump - 7.5 HSPF2
2.5 Ton 30,000 BTU Goodman Ceiling Mount Air Handler
Goodman 3 Ton Fixed TXV Kit - R-410A Refrigerant
2.5 Ton 14.3 SEER2 Goodman Ceiling-Mount Heat Pump Split System with 8kW Heat

$120.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

A Goodman ceiling-mounted system is a perfect choice to keep your apartment or condo comfortable all year long. With tons of extra features and a great price, this system is the best option for all your heating and cooling needs.

2.5 Ton 14.3 SEER2 Goodman Heat Pump - 7.5 HSPF2

OVERVIEW

The Goodman GSZB403010 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman's equipment, the GSZB403010 is manufactured with high-quality materials to provide a superior comfort in your home.

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

  • Ideal size to cover a smaller house in ideal climates
  • 2.5 ton, 14.3 SEER2 heat pump condenser
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

2.5 Ton

The Goodman GSZB403010 heat pump has a capacity of 2.5 tons. In an ideal climate, this tonnage will normally cover up to a small house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

14.3 SEER2

At 14.3 SEER2, the GSZB403010 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER2 ratings. If you are replacing an existing heat pump, in most cases this SEER2 rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

Warranty

The GSZB403010 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The Goodman GSZB403010 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

Installation and Maintenance

The Goodman GSZB403010 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn't have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

Comfort in Mind

With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZB403010 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

Why Buy at HVACDirect.com

HVACDirect.com is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.

2.5 Ton 30,000 BTU Goodman Ceiling Mount Air Handler

Goodman is one of the biggest names in home heating, cooling and energy-efficient home comfort. The Goodman ACSF30LN1608 Ceiling Mounted Air Handler is designed for use with R-410A refrigerant and may be installed in a variety of locations.

Features

  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, multi-speed motor
  • Sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 and 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • AHRI Certified; ETL Listed
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • 10 Year Parts Limited Warranty with online registration
Goodman 3 Ton Fixed TXV Kit - R-410A Refrigerant

Thermostatic Expansion Valves (TXVs) are:

  • Required for 14 SEER or higher split system heat pumps
  • Required for many condensers or heat pump systems designed for R-410A refrigerant
  • An optional upgrade for any other air conditioner or heat pump systems

Your system will operate better and with higher efficiency with a TXV kit. This kit offers more control over how much liquid refrigerant enters the evaporator coil. The valves only allow a certain amount of liquid into the coil to make sure that all liquid that enters completely evaporates. This allows for the prevention of too little liquid from entering the evaporator which would make the system run less efficiently. It also stops too much liquid from entering the evaporator which can cause excess in the lines. Thermostatic Expansion Valves are provide multi-position mounting on the evaporator coil inlet and are consistent, efficient and virtually hassle-free. Select the TXV to match the tonnage of your air conditioner or heat pump, as well as to match the type of refrigerant your systems uses, R-22 (standard) or R-410A (new alternative)

This capacitor gives an extra "jolt" of electricity upon startup to push the refrigerant against higher head pressures that are present with a TXV system. When using a TXV, manufacturer's recommend also installing a hard-start in your heat pump or condenser. If a hard-start capacitor is not installed, the equipment compressor has a possibility of having trouble getting started.

Compatibility

Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:

GSXC704810 GSXC706010 GSXH504210 GSXH504810 GSXH506010 GSXB404210 GSXB404810 GSXB406010 GSXN404210 GSXN404810 GSXN406010 GSXN3N4210 GSXN3N4810 GSXN3N6010 GSZH504210 GSZH504810 GSZH506010 GSZB404210 GSZB404810 GSZB406010

Product Specifications

More Information
2.5 Ton 14.3 SEER2 Goodman Heat Pump - 7.5 HSPF2
SKUGSZB403010
Weight190.000000
ManufacturerGoodman
ReplacesGSZ140301
HSPF27.5
Cooling BTU30,000
Heating BTU30,000
Blower MotorSingle Speed PSC Motor
Decibel Level (dBA)75
Horsepower0.167 HP
RefrigerantR410A
SEER214.3
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size30 Amps
Min. Breaker Size18.6 Amps
Tonnage2.5 Ton
Valve TypeSweat
Height39 1/2"
Width29"
Depth29"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
2.5 Ton 30,000 BTU Goodman Ceiling Mount Air Handler
SKUACSF30LN1608
Weight79.000000
ManufacturerGoodman
Cooling BTU30,000
Blower MotorMulti-Speed ECM
Maximum CFM927
Electric Heat8 Kilowatts
ConfigurationCeiling Mounted
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size40 amps / 45 amps
Tonnage2.5 Ton
Height10"
Width49 1/4"
Depth11 1/4"
Warranty10 Years Limited with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 3 Ton Fixed TXV Kit - R-410A Refrigerant
SKU0151R00210S
Weight2.500000
ManufacturerGoodman
ReplacesTXV-FX-KX-3T
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
