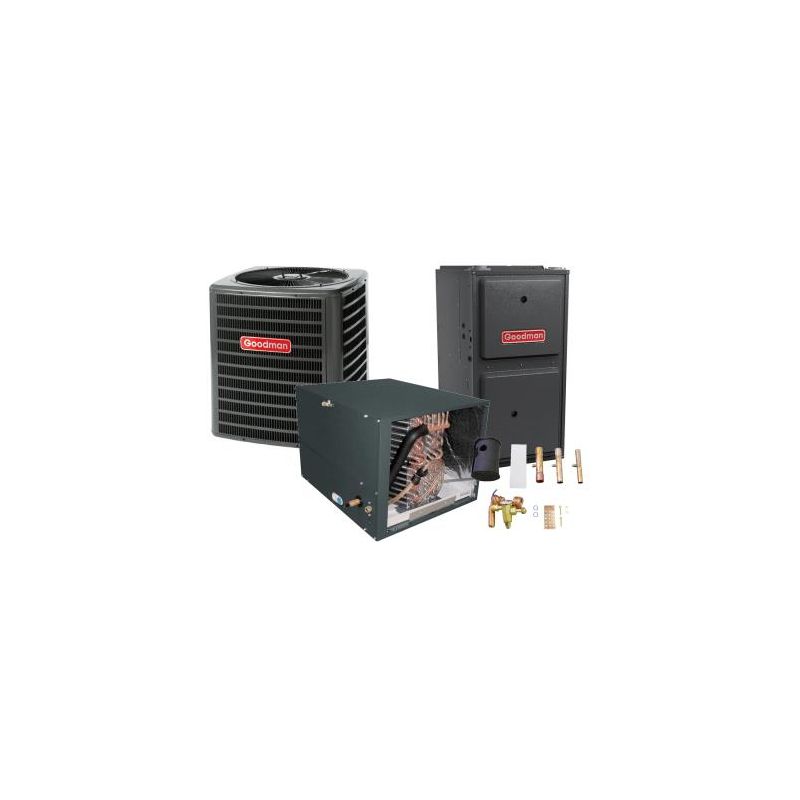

2.5 Ton 14.5 SEER 96% AFUE 60,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal

By

Goodman

Model

GSZ140301 / CHPF3636B6 / GMEC960603BN / TX3N4

ID

40491

Rating:
98% of 100
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:202351135

Your Low Price $2,067.00



Save up to 70% off Local HVAC Prices

Free Shipping

Requires: Plastic / PVC Flue Vent Piping

Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing
People that viewed this product purchased this instead:
SAVE $818.00
SAVE $821.00
SAVE $825.00
SAVE $870.00

Description

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GMEC960603BN is a perfect choice for heating.

Not intended for use in mobile homes.

60,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Upflow/Horizontal

OVERVIEW

As a high-efficiency system, the GMEC960603BN Goodman gas furnace features many money saving features. The two-stage, multi-speed furnace uses a superior heat exchanger for better heat transfers to your home. Considered one of the best efficiencies on the market, the GMEC960603BN is a good way to go if you want to lower your gas bill.

QUICK FACTS

  • This furnace is ideal to heat a medium-sized house (depending on climate)
  • 60,000 BTU 96% AFUE natural gas furnace
  • Requires plastic/PVC flue venting
  • Can be used in the upflow or horizontal orientation
  • Can be converted to an LP furnace with an optional conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

Heating up to a medium-sized house in normal conditions, the GMEC960603BN Goodman gas furnace has an input of 60,000 BTU’s and an output of 57,600 BTU’s. The output in this case is determined by taking the input times the efficiency rating.

96% AFUE

The GMEC960603BN Goodman gas furnace is a 96% efficient furnace, making it a condensing setup. This efficiency means that only 4% of the fuel going into the furnace is used up in furnace operations, while 96% of the fuel is used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you need to use metal flue venting, you would need an 80% efficient furnace.

Two Stage Multi-Speed Furnace

With a two stage burner, the GMEC960603BN provides two heating outputs: one at a 60% heating output and one at a 100% output. The furnace also has a multi speed ECM motor instead of the last-generation inefficient PSC motor. Both of these built-in upgrades allow for your furnace to adjust the heating output and airflow more precisely to better suit your home’s comfort needs and provide a slightly higher efficiency.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman GMEC series furnaces come with a 10-year parts, 10-year unit replacement, and lifetime heat exchanger warranty through the manufacturer.

Durability and Reliability

The exterior casing on the GMEC960603BN is heavy-gauge steel that is insulated for enhanced protection and to lower air leakage and sound output from normal furnace operation. The hot surface ignitor is more efficient than earlier models and standing pilot lights thanks to its revolutionary new technology. Both of these end up saving you money on installation, maintenance, and bills.

Installation and Maintenance

The cost-saving benefits of the Goodman brand doesn’t stop at efficiency. The GMEC960603BN Goodman furnace can be upflow or horizontal, increasing the number of ways that your installer can install the system. The low-voltage terminals that are color-coded, the installation is faster and easier over standard non-colored systems. Straight from the factory, the GMEC960603BN comes with natural gas valves. However, increasing its versatility in installation, Goodman offers an LP conversion kit (found here at an additional cost) if you need it to be propane instead of natural gas. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the on board self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution.

3 Ton 17.5" Goodman Horizontal Evaporator Cased Coil

OVERVIEW

The Goodman CHPF3636B6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF3636B6 is an inexpensive yet quality choice for you.

QUICK FACTS

  • 3 ton evaporator coil
  • Installable in the horizontal configuration
  • Usable with either a heat pump or an AC-only condenser
  • Works with R410A or R22 refrigerant
  • Low air leakage
  • Check flowrater expansion device for use in any application
3 Tons

At an output of 3 tons, the Goodman CHPF3636B6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit’s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF3636B6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPF3636B6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit’s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

Goodman 2.5 to 3 Ton TXV Kit - R-410A

Goodman's TXV valves are designed to improve the reliability and efficiency of your central split system. With the TX3N4, you can be assured that your two-and-a-half or three ton system is getting the proper refrigerant flow, even through changing conditions. Since this valve is installed externally, it is easy to service and maintain. If you're looking to improve the efficiency and performance of your system, the TX3N4 is a good start.

Compatibility

Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:

GSX130301 GSX130361 DSXC160361 GSZ130301 GSZ130361 SSZ140301 SSZ140361 SSZ140381 SSZ160301 SSZ160361 DSZC160361 DSZC180361 CAPF3030*6 CAUF3030*6 CAPF3642*6 CAUF3642*6 CHPF3636B6 CSCF3036N6 CSCF3642N6

2.5 Ton ACiQ Hybrid Upgrade
No Thank You

Product Specifications

More Information
60,000 BTU 96% AFUE 2 Stage Goodman Gas Furnace - Upflow/Horizontal
SKUGMEC960603BN
Weight (in lbs)115.000000
Airflow DirectionUpflow/Horizontal
Exhaust Flue RequirementPlastic / PVC
Brand/ManufacturerGoodman
Furnace Efficiency / AFUE 96%
Heating BTU60,000
Blower MotorMulti-Speed - ECM
Maximum CFM1200
ConfigurationUpflow/Horizontal
Exhaust PipePVC
Flue LocationRight
Energy StarYes
Electrical115 V. 1 Phase 60 Hz
Burner StagesTwo
Fuel TypeGas
Height34.5"
Width17.5"
Depth28.75"
WarrantyLifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
3 Ton 17.5" Goodman Horizontal Evaporator Cased Coil
SKUCHPF3636B6
Weight (in lbs)50.000000
Brand/ManufacturerGoodman
ConfigurationHorizontal
RefrigerantR410A or R22
Liquid Line3/8"
Suction Line7/8"
Tonnage3 Ton
StyleA-Coil
Height21.125"
Width17.5"
Depth26"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 2.5 to 3 Ton TXV Kit - R-410A
SKUTX3N4
Weight (in lbs)2.500000
Brand/ManufacturerGoodman
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
2.5 Ton ACiQ Hybrid Upgrade
SKUACIQ-3X-EHPB-UPG
Weight (in lbs)120.000000
Brand/ManufacturerACiQ
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
No Thank You
SKUNOTHANKYOU
Weight (in lbs)120.000000
