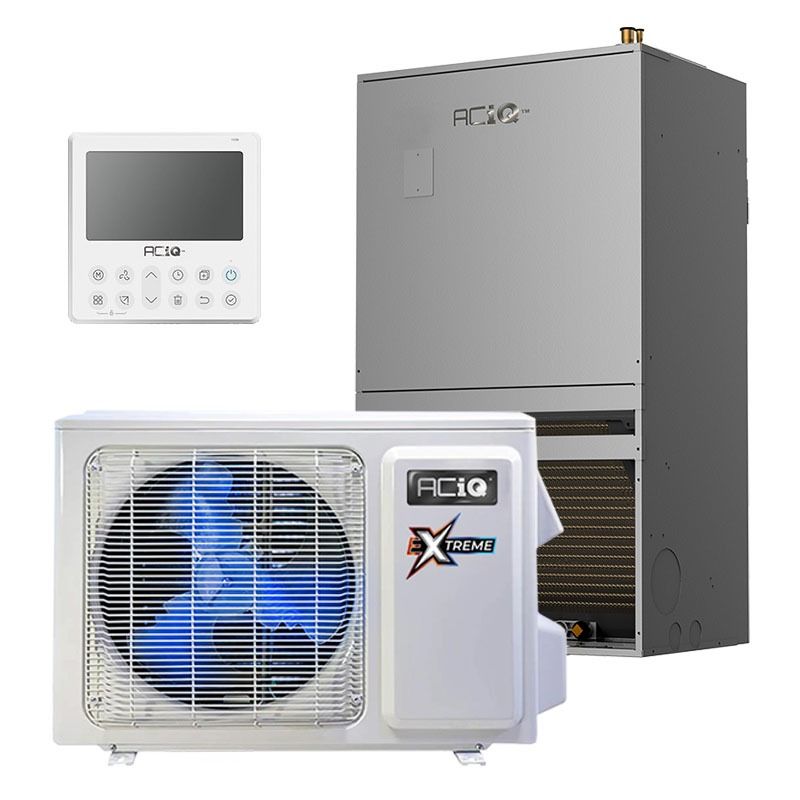

Today's Hours 8am - 11pm estACiQ 2.5 Ton 16.9 SEER2 High Efficiency Heat Pump Split System - R410A Inverter - Wall-Mounted
Required Fields *
Customer reviews
Out of stock
By
ACiQ
Out of stock
Model
ACIQ-30-HPB / ACIQ-30W-WM
ID
182420
This ACIQ High Efficiency system boasts a heat pump equipped with inverter technology, alongside a wall-mounted air handler sporting a compact design, perfect for multi-tenant applications. Compatible with optional 3 kW, 5k kW, 8kW or10kW electric backup heat strips.
ACIQ 3 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-03-WM is a 3kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
2.5 Ton Wall Mounted ACiQ Air Handler -R410A
The ACiQ Wall Mounted Central Air Handler is ideal for multi-tenant buildings with its compact design, perfect for closets. It features a digital EEV for precise refrigerant flow control and is designed for vertical wall mounting with an up-flow-only configuration. The included smart thermostat, equipped with Wi-Fi, communicates with both the inverter condenser outside and the variable air handler inside, allowing the system to self-adjust BTU output for maximum efficiency and comfort. It efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.
Features:
- Digital EEV
- Wired smart thermostat with WiFi included
- Or – use your preferred 24v thermostat
- Variable DC blower
- Upflow-only configuration
- Manufactured Home and mobile home approved
- Designed to optimize performance from ACIQ inverter heat pumps and air conditioners
Installing the ACiQ Wall Mounted Central Air Handler is similar to installing any replacement air handler. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as connecting to your return and supply ductwork. This air handler is designed for vertical wall mounting with an up-flow-only configuration. Any 24V thermostat with 2 stages of heating can control the system, but the supplied thermostat is recommended. You can add electric strip heat for backup on the coldest days. The intelligent control board displays fault codes if maintenance is needed.
NOTE: to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.
50 Feet of 3/8" x 3/4"
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
ACIQ 5 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-05-WM is a 5kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
ACIQ 8 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-08-WM is a 8kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
ACIQ 10 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-10-WM is a 10kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
