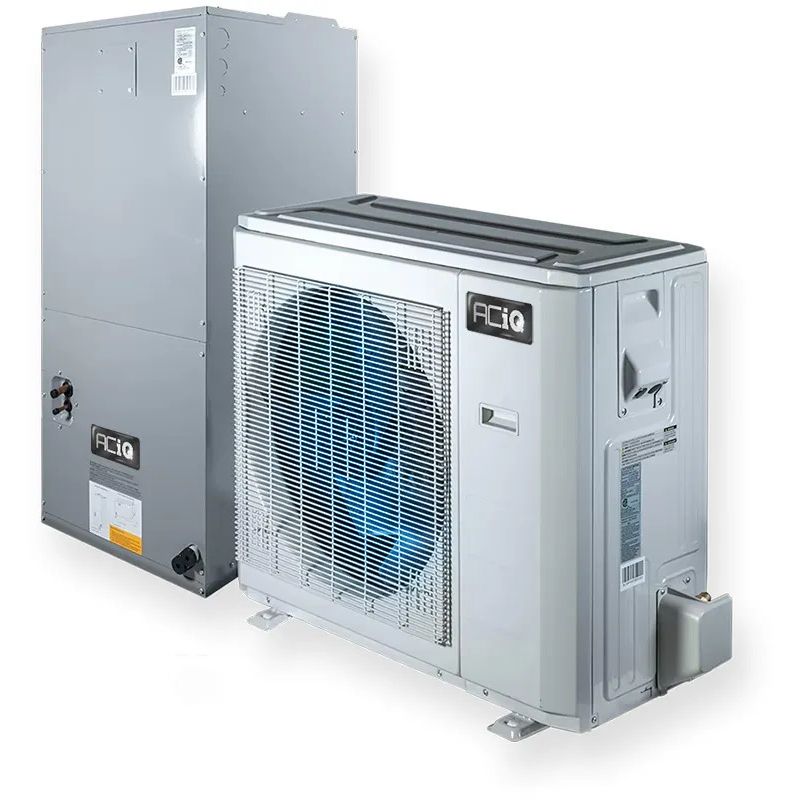

ACiQ 2.5 Ton 17.3 SEER2 High Efficiency Heat Pump Split System - R410A Inverter - Multi-Positional

OVERVIEW

Inverter Heat Pump - The ACiQ-30-EHPB 2.5-ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the system to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.

Intelligent System - Equipped with advanced sensors, this system monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-30-EHPB can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

QUICK FACTS

• Variable output based on demand
• Inverter heat pump system for ducted applications
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Reliable heating from 5°F to 75°F outdoor temperatures
• Durable Gold Fin condenser coil coating for longevity
• Quiet operation, even under high workloads

30,000 BTU, 16.9 SEER2

Boasting an efficiency rating of 16.9 SEER2, the ACiQ-30-EHPB provides versatile comfort across a range of climates. Reliable comfort with variable output that eliminates short cycling for lasting efficiency. Use our size calculator Here to determine the demand for your home.

Enhanced Comfort at Maximum Efficiency

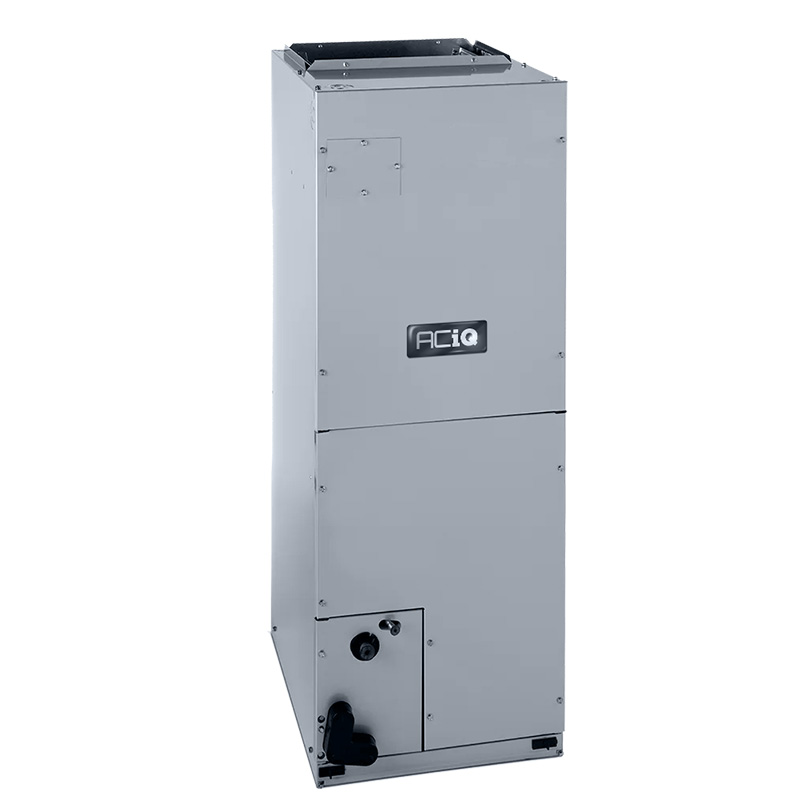

The ACiQ-30-AHB air handler features a variable DC blower and communicating technology to maximize comfort and efficiency at the same time. The included smart thermostat communicates with the inverter condenser outside, and the variable air handler inside, allowing the system to self-adjust BTU output to maximize efficiency while providing ideal comfort. The air handler efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.

• 30,000 BTU, 2.5 ton central ducted air handler
• Wired smart thermostat included
• Or – use your preferred 24v thermostat
• Variable DC blower
• Upflow, downflow, horizontal left or right
• Manufactured Home and mobile home approved

Installation and Maintenance

Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat and communication connections, plus, connect to your return and supply ductwork. The ACiQ Central Ducted Air Handler is multi-positional (upflow, downflow or horizontal) and mobile-home approved. Any 24V thermostat with 2 stages of heating can control the system, although the supplied thermostat is recommended. You can add electric strip heat as a backup system for the coldest days of the year. The intelligent control board in the air handler displays fault codes in case part of the system requires maintenance.

Please note - in order to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

• 1/2" x 6' Electrical Whip – SKU: 84136
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

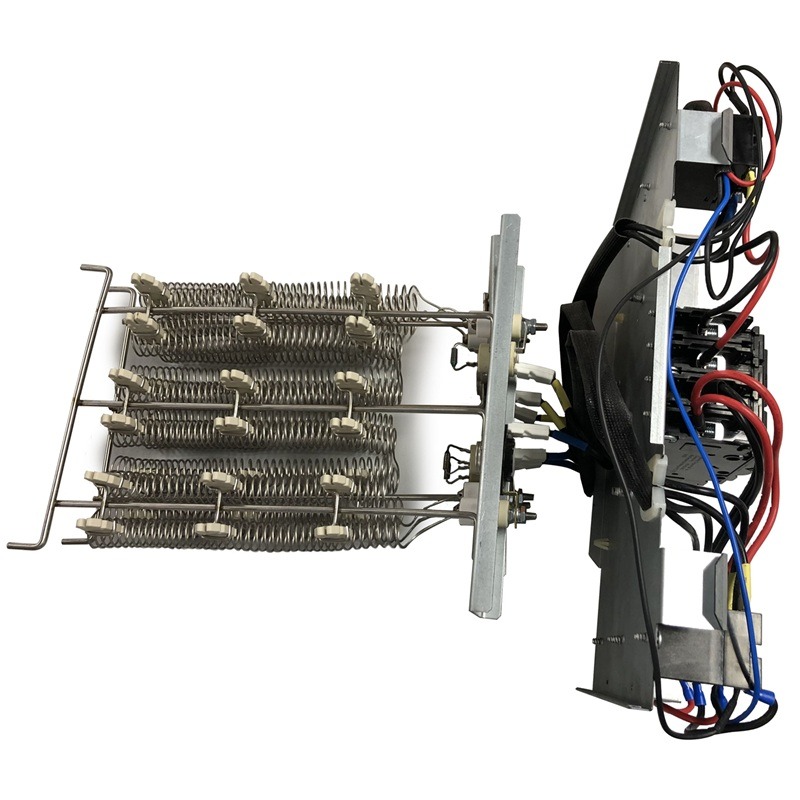

The EAH-05B is a 5kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Compatible Air Handlers:

• ACiQ-24-AH
• ACiQ-36-AH
• ACiQ-48-AH

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

The EAH-08B is a 8kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 26,000 BTU, this heater coil can generally cover an average house in ideal climates. Please note that this heater coil requires one 40 amp breaker to function. Compatible Air Handlers ACiQ-24-AH ACiQ-36-AH

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Smarter Comfort. Sleek Control.

The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.



QUICK FACTS

• Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems

• Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
• Modern Touchscreen: Auto-wake screen with responsive touch interface
• Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
• Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
• Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology

The EAH-10C(UL) is a 10kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Compatible Air Handlers

• ACiQ-18-AHD
• ACiQ-24-AHD
• ACiQ-30-AHD
• ACiQ-36-AHD
• ACiQ-42-AHD
• ACiQ-48-AHD
• ACiQ-60-AHD

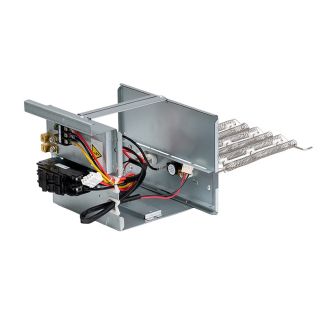

The EAH-15C(UL) is a 15kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Compatible Air Handlers

• ACiQ-24-AHD
• ACiQ-30-AHD
• ACiQ-36-AHD
• ACiQ-42-AHD
• ACiQ-48-AHD
• ACiQ-60-AHD
