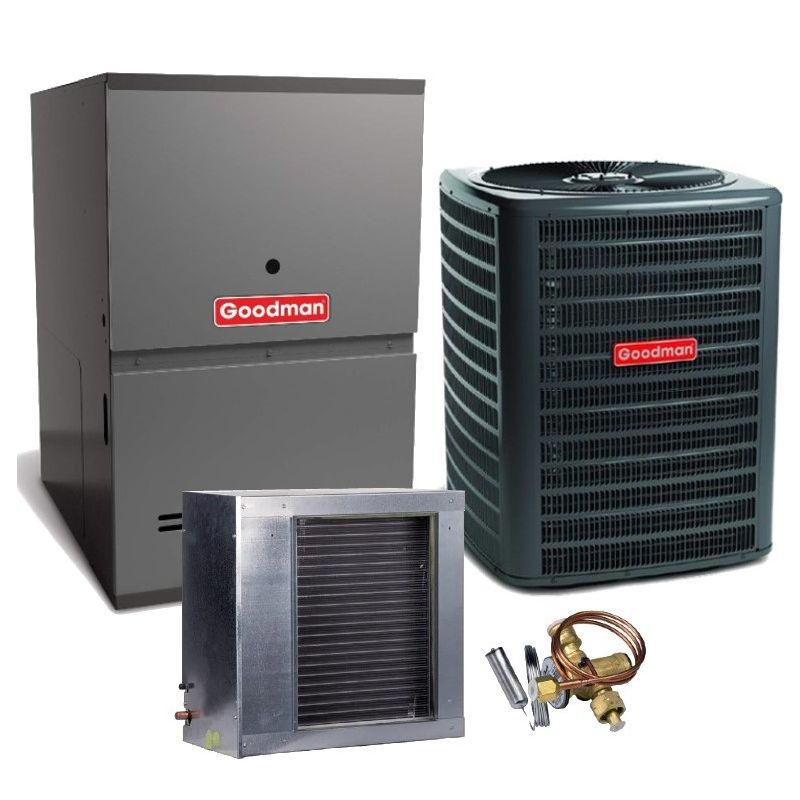

Goodman 2 Ton 13.4 SEER2 96% 60,000 BTU Furnace & AC System - R410A Horizontal

OVERVIEW

The GM9S960603BN Goodman gas furnace features high-quality construction and efficient operation at a great value. The GM9S960603BN single-stage, 9-speed furnace utilizes Goodman's superior heat exchanger design to provide efficient, reliable heating to your home. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the Goodman GM9S960603BN.

QUICK FACTS

• This furnace is ideal to heat a small to medium house (depending on climate)
• 60,000 BTU 96% efficient natural gas furnace
• Requires plastic/PVC flue venting
• Can be used in the upflow or horizontal orientation
• Can be converted to an LP furnace with a conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

60,000 BTU

The GM9S960603BN Goodman gas furnace is 60,000 BTU’s. This BTU count is a measure of the input of the furnace per hour, while the output of this furnace is 57,600 BTU’s (60,000 X 96% AFUE) per hour. In ideal climate conditions, this 60,000 BTU furnace is usually used to heat a small to medium house.

96% Efficiency Rating

The GM9S960603BN Goodman gas furnace is 96% efficient, and the standard furnace efficiency on the market today. This means that 96% of the gas going into the furnace is used to heat your home and the remaining 20% is lost out of the flue venting. Please note that all 96% furnaces must be vented using plastic/PVC flue venting, while anything higher than 90% efficient must be vented using plastic/PVC venting.

Single Stage Furnace

The GM9S960603BN Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace’s burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.

Natural Gas or LP Furnace

From the factory, the GM9S960603BN runs on natural gas. However all Goodman gas furnaces can be converted to propane using the furnace’s corresponding LP conversion kit, an optional accessory at an additional cost that consists of a replacement set of orifices and springs.

9-Speed ECM Blower Motor

Instead of the last generation PSC blower motor, the GM9S960603BN utilizes a 9-speed ECM motor, which uses less power and provides smarter air circulation. All of this causes an overall increase in the electrical efficiency of your furnace, which saves you money.

Warranty

With installation that follows your state and local codes and with online registration, all Goodman furnaces come with a 10-year parts and lifetime heat exchanger warranty through the manufacturer.

Durable Hot Surface Igniter

The hot surface igniter on modern Goodman furnaces are more durable than previous designs, decreasing related issues and lowering maintenance costs. These hot surface ignitors are also more efficient than standing pilot and older HSI designs, saving you even more money.

Self-Diagnostic Control Board

The Goodman brand has improved technology from years of production experience, allowing for a long-lasting product that rarely has any issues. However, if something does go wrong on the furnace, the control board has a set of sensors that allow it to diagnose basic issues, allowing for easy troubleshooting and to notify the owner if basic maintenance or warranty work is recommended. This increases the overall safety of the unit, for the furnace itself and the occupants of the home where it is installed.

Heavy Gauge Steel Cabinet

The heavy-gauge steel cabinet on new Goodman furnaces provide adequate protection to the internal mechanisms of the unit. The cabinet is also more air-tight than previous models, allowing for a quiet, more economical unit due to losing less heat and preventing more sound from exiting the unit.

Ease of Installation

The value of modern Goodman furnaces doesn't end at efficiency. Today’s Goodman furnaces feature many different connection options to reduce installation. The GM9S960603BN model has a more universal design, which consists of its ability to be installed in both an upflow or horizontal configuration. This allows for an easier installation in more locations, from your attic to your basement. The furnace also comes with color-coded low-voltage terminals that allow for a shorter and easier installation time, which decreases installation costs.

Please note that this furnace requires a drain kit if installed horizontally. Upflow configurations do not require the kit.

OVERVIEW

Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning System - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for cooling - The self-adjusting inverter design allows you to size your system based on demand. The ACiQ Inverter Condensers automatically adjusts to run like a 1 ton to keep you cool and dry.

QUICK FACTS

• 12,000 BTU to 24,000 BTU variable output based on demand
• Inverter heat pump system for use with ductwork
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Efficient heating from 5°F to 75°F outdoor temperatures
• Durable Gold Fin condenser coil coating
• Quiet operation at even the highest workloads

24,000 BTU, 19.4 SEER

With an efficiency rating of 20 SEER, the variable output ACiQ-24-AC-UPG will keep you comfortable across a wide range of conditions. Use our handy size calculator Here to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 24,000 BTU without short cycling.

---

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

---

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

---

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
