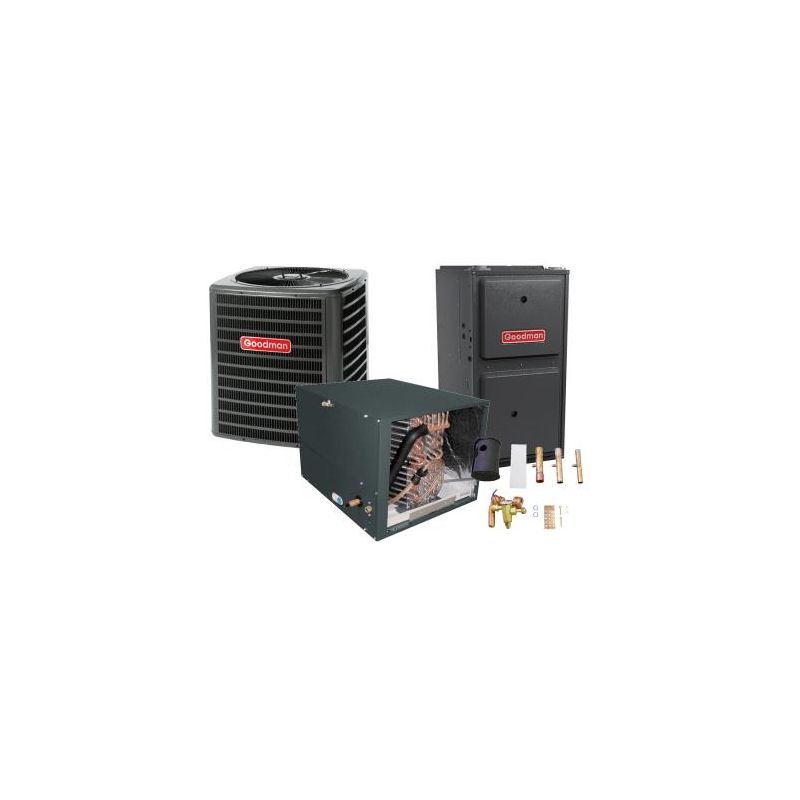

2 Ton 14.5 SEER 96% AFUE 40,000 BTU Goodman Gas Furnace and Heat Pump System - Horizontal

OVERVIEW

The Goodman CHPF3636B6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF3636B6 is an inexpensive yet quality choice for you.

QUICK FACTS

• 3 ton evaporator coil
• Installable in the horizontal configuration
• Usable with either a heat pump or an AC-only condenser
• Works with R410A or R22 refrigerant
• Low air leakage
• Check flowrater expansion device for use in any application

3 Tons

At an output of 3 tons, the Goodman CHPF3636B6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit’s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF3636B6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

The Goodman CHPF3636B6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit’s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

OVERVIEW

The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GCEC960403BN gas furnace is no exception to Goodman’s ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.

QUICK FACTS

• This furnace is ideal to heat a smaller house (depending on climate)
• 40,000 BTU 96% AFUE natural gas furnace
• Requires plastic/PVC flue venting
• Can be used in the downflow or horizontal orientation
• Can be converted to an LP furnace with an optional conversion kit (sold separately)
• Innovative design for electrical efficiency, safety, and lower sound output

40,000 BTU

Heating up to a smaller house in average environmental conditions, the GCEC960403BN Goodman furnace has an input of 40,000 BTU’s and an output of 38,400 BTU’s (input X efficiency rating = output).

96% AFUE

The GCEC960403BN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.

With a two stage burner, the GCEC960403BN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a multi speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.

With installation that follows your state and local codes, the GCEC960403BN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through Goodman.

The outer casing on the GCEC960403BN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.

The cost-saving benefits of the Goodman brand doesn’t stop at efficiency. The GCEC960403BN Goodman furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the GCEC960403BN comes with natural gas valves built in. However, increasing its installation potential, the GCEC960403BN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.
