0% Financing for 12 Months* or up to 48 Months* Terms Available - Buy Now and Pay later!

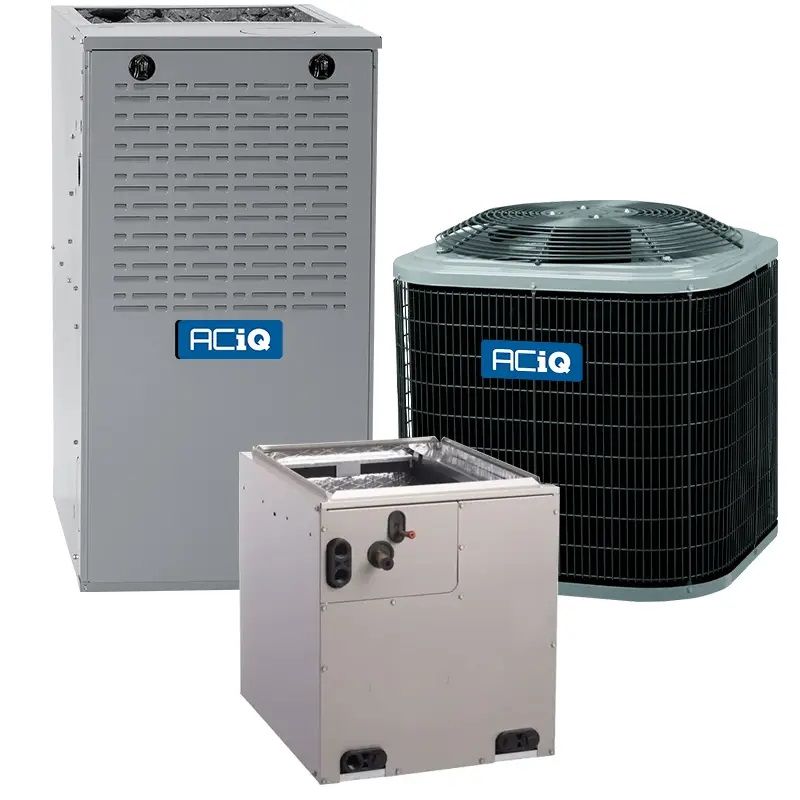

2 Ton 15.2 SEER2 96% AFUE 100,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

SAVE $0.00
2 Ton 15.2 SEER2 96% AFUE 100,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional
2 Ton 15.2 SEER2 96% AFUE 100,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

Required Fields *

Customer reviews
Rating:
4.9 out of 5
Out of stock
By

ACiQ

Out of stock

Model

R4H5S24AKAAA / EAM4X36L21A / N96MSN1002120A

ID

156628

An ACiQ combination system is a great choice to keep your home comfortable all season long. With tons of features and a great price, an ACiQ dual fuel system is a perfect choice for all of your heating and cooling needs.

2 Ton ACiQ Hybrid Upgrade - R454B
No Thank You
More Information
ACiQ 2 Ton 14.3 SEER2 Heat Pump Condenser - R410A Single Stage
FeatureSpec
SKUR4H5S24AKAAA
Refrigerant Charge15'
Weight (in lbs)173
Brand/ManufacturerACiQ
ReplacesR4H424GKC
UPC634707349492
Cooling BTU24,000
Heating BTU24,000
Maximum CFM2652
Decibel Level (dBA)76 Decibels
Motor RPM825
Horsepower0.1 HP
RefrigerantR410A
SEER2 (Efficiency)14.3
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Valve Size3/8"
Suction Valve Size5/8"
Electrical208 / 230v 1 Phase 60 Hz
PhaseSingle Phase
Max Breaker Size25 Amps
Min. Breaker Size14.5 Amps
Tonnage2 Ton
Height31 11/16"
Width31 3/16"
Depth31 3/16"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Adobe® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 96% 100,000 BTU Single Stage Gas Furnace - 21" Width - Multi-Positional
FeatureSpec
SKUN96MSN1002120A-1
Weight (in lbs)164
AHRI Certificate Number213148762
Brand/ManufacturerACiQ
UPC689526876490
Equivalent

Carrier Equivalent: 59SC5B100E21--20

Tempstar Equivalent: TN95ESN1002120A

Bryant Equivalent: 915SB60100E21

Furnace Efficiency / AFUE 96%
Heating BTU100,000
Blower MotorECM
Maximum CFM2125
ConfigurationUpflow/Downflow/Horizontal
Energy StarYes
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height35"
Width21"
Depth29 1/2"
Warranty20 Year Heat Exchanger / 10 Year Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
ACiQ 3 Ton 21" Width Multi-Positional Evaporator Cased Coil-R410A
FeatureSpec
SKUEAM4X36L21A
Weight (in lbs)73
Brand/ManufacturerACiQ
UPC704674225348
Equivalent

Carrier Equivalent: CAPMP3621ALA

Tempstar Equivalent: EAM4X36L21A

Bryant Equivalent: CAPMP3621ALA

ConfigurationMulti-Positional
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Tonnage3 Ton
StyleA-Coil
CertificationUL Listed
Height29 3/4"
Width21"
Depth20 5/8"
Warranty10 Years Parts Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
2 Ton ACiQ Hybrid Upgrade - R454B
FeatureSpec
SKUACIQ-24-EHPD-UPG
Weight (in lbs)120
Brand/ManufacturerACiQ
RefrigerantR454B
Safety InformationPROPOSITION 65 WARNING

Customers Say

Across multiple installations, buyers report fast delivery—often within 2 to 4 days—and straightforward DIY setups, including a 60,000 BTU furnace heating a 1,500 square foot home and an 80,000 BTU model replacing a 20-year-old Carrier, with several noting quieter operation and quicker warm-up than older 17- to 30-year-old units. Owners mention lower gas bills, reliable performance after up to 5 years in a 1,700 square foot home, and savings of over $6,000 versus contractor quotes, though some cite shipping delays, limited tracking updates, minor shipping damage, a leaking flexible gas line, and small installation adjustments such as propane conversion steps or fixing a stripped fan screw.

AI Generated from the text of customer reviews

Top reviews
  1. Great BUY
    Quality
    100%
    Service
    100%
    Price
    100%
    Fantastic delivery, installed with no problem. Works great! Doesn't run constantly Hot or Cold immediate! Homeowner, and I did it myself!

    Review by

    Posted on

  2. New 60,000 btu furnace
    Quality
    100%
    Service
    100%
    Price
    100%
    My 21 year old furnace died in the middle of winter. Called on Friday and had a new 60,000 btu Aciq delivered to my garage in 4 days . Installed it the next day and it’s been doing great. Hopefully helps with the gas bill ????

    Review by

    Posted on

  3. Very impressed
    Quality
    100%
    Service
    100%
    Price
    100%
    Received unit in 3 working days and I am totally satisfied with the unit and the company as a whole, I am planning to remove a FHA oil furnace in another building and will definitely be using your company again!

    Review by

    Posted on

  4. Aciq
    Quality
    100%
    Service
    100%
    Price
    100%
    I’ve sold carrier for years . And this furnace is exactly the same furnace except the name tag

    Review by

    Posted on

  5. Decent unit
    Quality
    80%
    Service
    100%
    Price
    100%
    Been great so far, fairly simple install. Really happy with it so far. Only issues I had was that it came with the bear air filter housing and they didn't tell me that when I was chatting with them about my order. I ordered the housing separately and ended up with two. Also the flexible gas line I ordered in the install kit leaked badly, you could see a ridge down the flare. Not a big deal though all in all it was good. Got it in about a week, and installed it over the weekend. Efficiency seems great, got this unit to replace my 30 year old broken down furnace.

    Review by

    Posted on

  6. Works great
    Quality
    100%
    Service
    100%
    Price
    100%
    Purchased a scratch and dent unit, it was dented as advertised when it arrived. Packaging for shipment to me was very well done. Preexisting damage was nothing that affected installation or operation. Has been working for a month now with no issues. Very satisfied.

    Review by

    Posted on

  7. Easy to DIY install and quiet furnace
    Quality
    100%
    Service
    100%
    Price
    100%
    I got the ACiQ natural gas upflow forced air 80,000 BTU model to replace a failed 20 year old Carrier in my home. I ordered Thursday late afternoon and got it on Monday morning in NJ. I paid for liftgate delivery; the driver brought the unit to my front door. The packaging was fantastic; there were no dents, scratches and damage. Accessories needed to install were all there inside the unit by the blower. The unit is much quieter and simpler design than the one it replaced. It should be easier to maintain. It has been working flawlessly for over a week now. Very happy with my purchase!

    Review by

    Posted on

  8. Looks Good
    Quality
    100%
    Service
    100%
    Price
    100%
    The furnace came promptly and it was packaged well so there was no damage. Looking it over, it seems to be good. I won't know how well it works as it is scheduled to be installed for the next heating season. I would buy here again.

    Review by

    Posted on

See more reviews
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.
