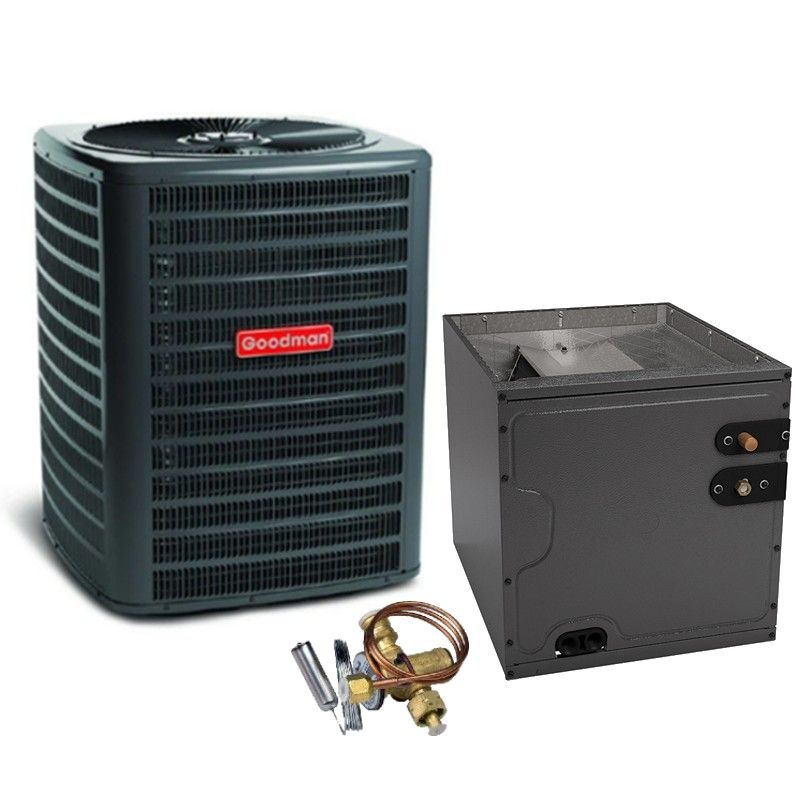

2 Ton 15.2 SEER2 Goodman Air Conditioner with Vertical 24.5" Cased Coil

By

Goodman

Model

GSXH502410 / CAPFA3022D6 / 0151R00209S

ID

120080

Availability: Ships in 5-7 Business Days
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:208680586

Your Low Price $2,694.00



Save up to 70% off Local HVAC Prices

Free Shipping

Required Fields *

Customize 2 Ton 15.2 SEER2 Goodman Air Conditioner with Vertical 24.5" Cased Coil
2 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser
2 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser   + $1,954.00
2.5 Ton 24.5" Width Goodman Vertical Evaporator Coil - Cased
2.5 Ton 24.5" Width Goodman Vertical Evaporator Coil - Cased   + $620.00
Goodman 2 Ton Fixed TXV Kit - R-410A Refrigerant
Goodman 2 Ton Fixed TXV Kit - R-410A Refrigerant   + $120.00
2 Ton 15.2 SEER2 Goodman Air Conditioner with Vertical 24.5" Cased Coil

$2,694.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

A Goodman combination system is a great choice to keep your home cool all season long. With tons of extra features and a great price, a Goodman air conditioning system is the perfect choice for all of your cooling needs.

2 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser

OVERVIEW

Goodman has always set its goals at superior comfort at a high efficiency, all the while balancing the unit's cost. The GSXH502410 is no exception, with its durability, reliability, and one of the highest efficiencies available.

QUICK FACTS

  • Ideal size to cover a smaller house in ideal climates
  • 2 ton, 15.2 SEER2 AC-only condenser
  • Fully charged for up to 15' of line set
  • Low sound output
  • Factory-installed filter drier

2 Ton

The GSXH502410 AC-only condenser is 2 tons, normally enough to cover up to a smaller house. Please note that in some cases, the system bundle pairs this unit with a larger tonnage coil to maintain the system's efficiency.

15.2 SEER2

The GSXH502410 condenser is designed to be up to 15.2 SEER2 in ideal system configurations. Considered a high-efficiency, 15.2 SEER2 is around 12% more efficient than a 14.3 SEER2 system, saving you a lot of money in energy bills. 15.2 SEER2 efficiency ratings tend to be where cost meets efficiency, and is normally the best value for the efficiency.

Warranty

The GSXH502410 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet of Goodman's condensers are manufactured out of heavy-gauge galvanized-steel with a baked-on painted finish that is approved for 500 hours of salt spray. The durable cabinet of the GSXH502410 is also compliant with 2010 Florida building code integrity requirements for hurricane-strength weather.

Installation and Maintenance

For easier maintenance, Goodman designed the GSXH502410's cabinet with two maintenance access panels - one on the top and one on the side. For easier installation, the GSXH502410 is made with easy-access gauge ports and service valves with sweat connections. Both of these lower installation and maintenance times and costs, keeping money in your pocket for the things you care about most.

Comfort in Mind

Superior comfort has always been the primary goal for Goodman. The GSXH502410 follows this goal, made with high-quality parts and even designed to have one of the lowest sound outputs on the market, thanks to superior sound-dampening and insulation technology. All of this makes you comfortable and lowers your bills while staying in-budget.

2.5 Ton 24.5" Width Goodman Vertical Evaporator Coil - Cased

OVERVIEW

With the CAPFA3022D6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPFA3022D6 is designed to be versatile in design and to provide an efficient comfort at a low cost.

QUICK FACTS

  • 2.5 ton evaporator coil
  • Installable in the upflow or downflow configurations
  • Usable with either a heat pump or an AC-only condenser
  • Low air leakage
  • Check flowrater expansion device for use in any application
2.5 Tons

The Goodman CAPFA3022D6 evaporator coil is rated for a 2.5 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.

Warranty

The CAPFA3022D6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPFA3022D6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access. Please note that this coil will not work as a replacement for any single-piece air handler coils.

Enhanced Comfort

The CAPFA3022D6 evaporator coil’s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit’s run time. With compatible equipment, the CAPFA3022D6 evaporator coil lives up to Goodman’s enhanced comfort and efficiency standards at a reasonable price.

Goodman 2 Ton Fixed TXV Kit - R-410A Refrigerant

Thermostatic Expansion Valves (TXVs) are:

  • Required for 14 SEER or higher split system heat pumps
  • Required for many condensers or heat pump systems designed for R-410A refrigerant
  • An optional upgrade for any other air conditioner or heat pump systems

Your system will operate better and with higher efficiency with a TXV kit. This kit offers more control over how much liquid refrigerant enters the evaporator coil. The valves only allow a certain amount of liquid into the coil to make sure that all liquid that enters completely evaporates. This allows for the prevention of too little liquid from entering the evaporator which would make the system run less efficiently. It also stops too much liquid from entering the evaporator which can cause excess in the lines. Thermostatic Expansion Valves are provide multi-position mounting on the evaporator coil inlet and are consistent, efficient and virtually hassle-free. Select the TXV to match the tonnage of your air conditioner or heat pump, as well as to match the type of refrigerant your systems uses, R-22 (standard) or R-410A (new alternative)

This capacitor gives an extra "jolt" of electricity upon startup to push the refrigerant against higher head pressures that are present with a TXV system. When using a TXV, manufacturer's recommend also installing a hard-start in your heat pump or condenser. If a hard-start capacitor is not installed, the equipment compressor has a possibility of having trouble getting started.

Compatibility

Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:

GSXC702410 GSXH501810 GSXH502410 GSXM401810 GSXM402410 GSXB401810 GSXB402410 GSXN401810 GSXN402410 GSXN3N1810 GSXN3N2410 GSZH501810 GSZH502410 GSZB401810 GSZB402410 GSZM401810 GSZM402410

Product Specifications

More Information
2 Ton 15.2 SEER2 High Efficiency Goodman Air Conditioner Condenser
SKUGSXH502410
Weight (in lbs)169.000000
Brand/ManufacturerGoodman
ReplacesGSX160241
Cooling BTU24,000
Blower MotorSingle Speed PSC Motor
Decibel Level (dBA)73
Horsepower0.167 HP
RefrigerantR410A
SEER2 (Efficiency)15.2
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line3/4"
Electrical208/230v 1 Phase 60Hz
Max Breaker Size25 Amps
Min. Breaker Size15.3 Amps
Tonnage2 Ton
ConnectionSweat
Height32"
Width29"
Depth29"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
2.5 Ton 24.5" Width Goodman Vertical Evaporator Coil - Cased
SKUCAPFA3022D6
Weight (in lbs)52.000000
Brand/ManufacturerGoodman
ConfigurationUpflow / Downflow
RefrigerantR410A or R22
Liquid Line3/8"
Suction Line3/4"
Tonnage2.5 Ton
StyleA-Coil
Height22"
Width24 1/2"
Depth21"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 2 Ton Fixed TXV Kit - R-410A Refrigerant
SKU0151R00209S
Weight (in lbs)2.500000
Brand/ManufacturerGoodman
ReplacesTXV-FX-KX-2T
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
