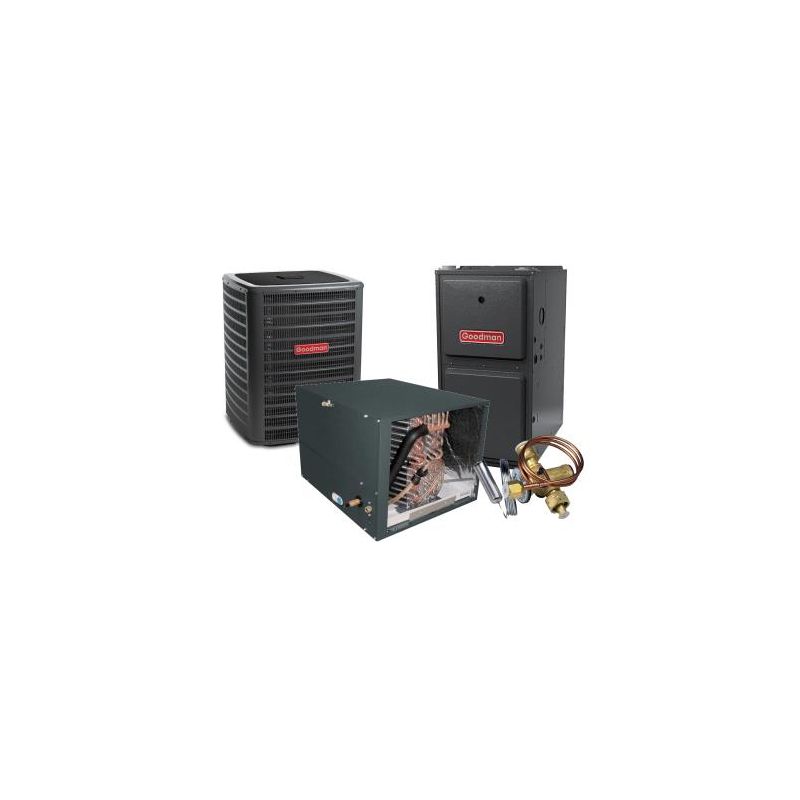

2 Ton 16 SEER 92% AFUE 60,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal

By

Goodman

Model

GSX160241 / CHPF3636B6 / GMES920603BN / TXV-30

ID

38590

Rating:
100% of 100
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:203469573

Your Low Price $554.00



Save up to 70% off Local HVAC Prices

Free Shipping

Requires: Plastic / PVC Flue Vent Piping

Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

A Goodman combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the GMES920603BN is a perfect choice for heating.

Not intended for use in mobile homes.

3 Ton 17.5" Goodman Horizontal Evaporator Cased Coil

OVERVIEW

The Goodman CHPF3636B6 evaporator coil is designed for any installations that the coil needs to sit on its side, in the horizontal position. With its enhanced comfort and superior efficiency design, the CHPF3636B6 is an inexpensive yet quality choice for you.

QUICK FACTS

  • 3 ton evaporator coil
  • Installable in the horizontal configuration
  • Usable with either a heat pump or an AC-only condenser
  • Works with R410A or R22 refrigerant
  • Low air leakage
  • Check flowrater expansion device for use in any application
3 Tons

At an output of 3 tons, the Goodman CHPF3636B6 evaporator coil is ready for almost any horizontal installation at that size. In many situations, a condenser that is paired with the condenser is going to be smaller than this coil. This is intentional and is to maintain the overall unit’s efficiency.
Please note that for this coil to function, a furnace or blower and a condenser is required, all sold separately. This coil is not designed to replace a coil in a single-piece air handler.

Warranty

The CHPF3636B6 coil is covered under Goodman’s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible R410A condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CHPF3636B6 evaporator coil is designed with a durable outer casing and a rust-resistant drain pan to lower general wear and tear to make sure the coil works for years to come. To ease installation, the unit is designed to be slim and able to fit in many crawl spaces and attics, and with its foil-face insulation making the unit’s air leakage minimal, installation location does not necessarily have to be insulated for normal temperature operations. For maintenance, the coil has a split-seam on the front of it for easier access.

Goodman 1.5 to 2.5 Ton Fixed TXV Kit - R-410A

Thermostatic Expansion Valves (TXVs) are:

  • A requirement for 14 SEER or higher split system heat pumps
  • A requirement for many condensers or heat pump systems that use the new R-410A refrigerant
  • An optional upgrade for any other air conditioner or heat pump system

Your system will operate more precisely and with greater efficiency with a TXV. These valves offer more control over how much liquid refrigerant enters the evaporator coil. The valves only allow a precise amount of liquid into the evaporator coil to ensure that all liquid that enters fully evaporates. This prevents too little liquid from entering the evaporator making the system run less efficiently. It also prevents too much liquid from entering the evaporator which can cause excess liquid in the suction line. Thermostatic Expansion Valves can be mounted in any position on the evaporator coil inlet and are reliable, efficient and virtually trouble-free. Select the TXV to correspond with the tonnage of your air conditioner or heat pump, as well as to match the type of refrigerant your systems uses, R-22 (standard) or R-410A (new alternative).

When using a TXV, manufacturer's recommend also installing a hard-start capacitor in your heat pump or condenser. This capacitor gives an extra "jolt" of electricity upon startup to push the refrigerant against higher head pressures that are present with a TXV system. If a hard-start capacitor isn't installed, the equipment compressor may sometimes have difficulty starting.

Compatibility

Please note that this is not an exhaustive list. Use Ctrl+F to simplify your search. This part is compatible with the following models:

GSX160181 GSX160241 GSX160301

Product Specifications

More Information
3 Ton 17.5" Goodman Horizontal Evaporator Cased Coil
SKUCHPF3636B6
Weight (in lbs)50.000000
Brand/ManufacturerGoodman
ConfigurationHorizontal
RefrigerantR410A or R22
Liquid Line3/8"
Suction Line7/8"
Tonnage3 Ton
StyleA-Coil
Height21.125"
Width17.5"
Depth26"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Goodman 1.5 to 2.5 Ton Fixed TXV Kit - R-410A
SKUTXV-30
Weight (in lbs)2.500000
Brand/ManufacturerGoodman
RefrigerantR410A
Safety InformationPROPOSITION 65 WARNING
