Today's Hours 8am - 11pm estACiQ 2 Ton 17.5 SEER2 High Efficiency Heat Pump Split System - R410A Inverter - Wall-Mounted
Required Fields *
Customer reviews
Out of stock
By
ACiQ
Out of stock
Model
ACIQ-24-HPB / ACIQ-24W-WM
ID
182441

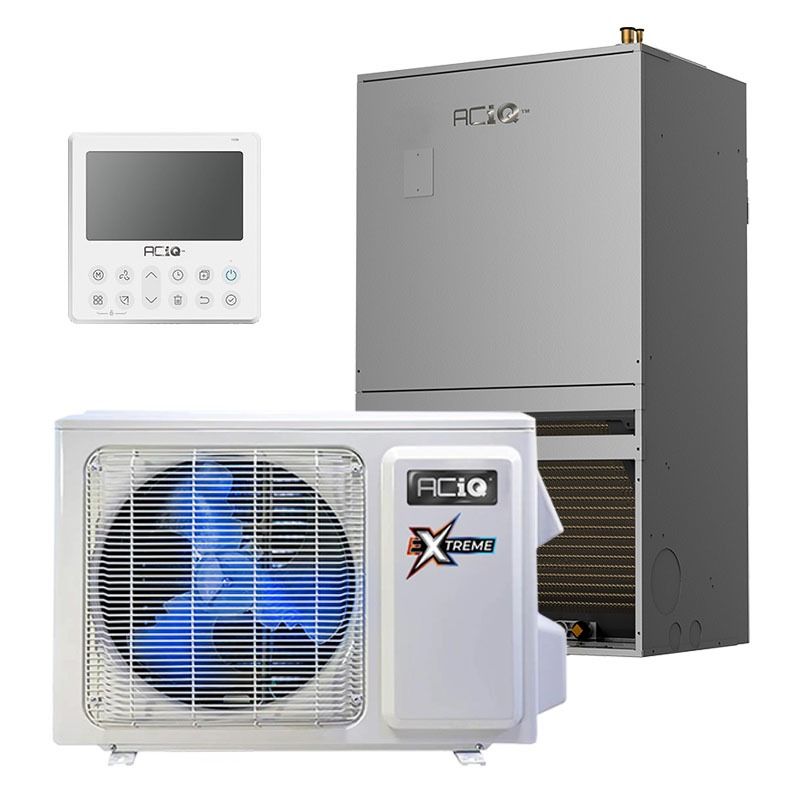

This ACIQ High Efficiency system boasts a heat pump equipped with inverter technology, alongside a wall-mounted air handler sporting a compact design, perfect for multi-tenant applications. Compatible with optional 3 kW, 5k kW, 8kW or10kW electric backup heat strips.
ACIQ 3 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-03-WM is a 3kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
2 Ton Wall Mounted ACiQ Air Handler -R410A
The ACiQ Wall Mounted Central Air Handler is ideal for multi-tenant buildings with its compact design, perfect for closets. It features a digital EEV for precise refrigerant flow control and is designed for vertical wall mounting with an up-flow-only configuration. The included smart thermostat, equipped with Wi-Fi, communicates with both the inverter condenser outside and the variable air handler inside, allowing the system to self-adjust BTU output for maximum efficiency and comfort. It efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.
Features:
- Digital EEV
- Wired smart thermostat with WiFi included
- Or – use your preferred 24v thermostat
- Variable DC blower
- Upflow-only configuration
- Manufactured Home and mobile home approved
- Designed to optimize performance from ACIQ inverter heat pumps and air conditioners
Installing the ACiQ Wall Mounted Central Air Handler is similar to installing any replacement air handler. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as connecting to your return and supply ductwork. This air handler is designed for vertical wall mounting with an up-flow-only configuration. Any 24V thermostat with 2 stages of heating can control the system, but the supplied thermostat is recommended. You can add electric strip heat for backup on the coldest days. The intelligent control board displays fault codes if maintenance is needed.
NOTE: to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.
30 Feet of 3/8" x 3/4"
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
50 Feet of 3/8" x 3/4"
Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
ACIQ 5 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-05-WM is a 5kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
ACIQ 8 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-08-WM is a 8kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
ACIQ 10 Kilowatt Heater Coil for Wall Mount Air Handler
The EAH-10-WM is a 10kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
Top reviews
- 2 ton aciqThe installation went well. Had a hard time finding S1 S2 inside the air handler. Very hard to unscrew the screws on S1 S2 because the board was in the top of the inside panel with very little room.
The thermostat (controller) is hard to read and can’t tell where the buttons are in the dark. Buttons need to be backlit.
Also needs to be adjustable to set the temperature to 0.5 degrees or 1 degree. It seems to take 2 degrees for the unit to come on or off. Maybe a set of dip switches to do this. Could use some improvement.
The tech was very helpful but the second time i called he said i needed special shielded cables even though the manual says it is not needed. I had the orange and yellow wires mixed up because they had faded. Once i got the right wires it fired right up. Runs great.Posted on
- Looks well builtDelivery was fast and the unit was packaged good. Nothing cheap about the indoor or outdoor unit, looks well made.
Posted on
- AC IQ unit works great. Super happy with it.Will be buying another in the future
Posted on
- Will spread the wordI haven’t installed my new unit yet, but I was very pleased with my experience ordering it. The rep I spoke with with very helpful and friendly, recommended the product that I purchased, and was very informative. If I need anything else in the future I will definitely call you guys back, and will spread the word.
Posted on
- Great product very impressedGreat product, you don’t even realize it is running it is so quiet
Posted on
- Wonderful ExperienceI have had a absolutely wonderful experience working with you guys. From Davis in sales, working with the tech experts, shipping and the products themselves, I could not be happier!
We ordered 2 sets of high quality equipment to meet our needs on this rehab project and the work continues.
Currently none of the systems are 100% operational, but every day is a step in the right direction.
I could not be more impressed with the way your company stands by your product lines, the helping hand if needed and the prices that you offer.
I have told our story to all the real estate agents, contractors and fellow developers in my circle here in St. Louis.
Thanks again fir your support and looking forward to working with you in the future.Posted on
- 4th system purchasedThis our 4th system purchase from HVAC direct. We have been very happy with the previous purchases. This last purchase seems all okay except for one issue. the Line set was to be 3/4†and 3/8†30 foot. Since we just opened all of the boxes today, we found the 3/8†pipe was missing from the line set box. Only the 3/4†insulated pipe was in the box. The weather has been so cold we have stored the shipment until today.
Other than this issue everything has been stellar! We are about ready to order another system.Posted on
- Been greatI have been working with Jim Schmitt to help me get the final settings on my Heat Pump. He's great and patient and very knowledgeable and encouraging. I have some non-professional experience and he makes me feel confident and is willing to help me make sure I understand what is going on. You made a great choice hiring him. Unfortunately, at this time, I only have a need for one air conditioner. I am seriously thinking about becoming a tech though.
Posted on
