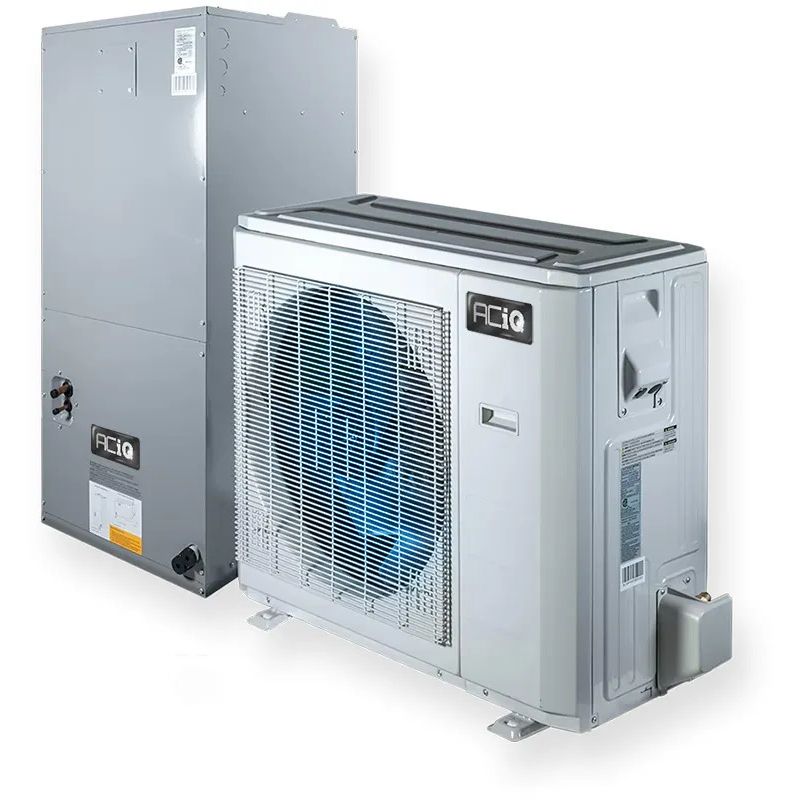

ACiQ 2 Ton 19.4 SEER High Efficiency Heat Pump Split System - R410A Inverter - Multi-Positional

SAVE $0.00
ACiQ 2 Ton 19.4 SEER High Efficiency Heat Pump Split System - R410A Inverter - Multi-Positional
ACiQ 2 Ton 19.4 SEER High Efficiency Heat Pump Split System - R410A Inverter - Multi-Positional

Required Fields *

Customer reviews
Rating:
4.8 out of 5
Out of stock
By

ACiQ

Out of stock

Model

ACiQ-24-EHPB / ACiQ-24-AHB

ID

144114

ACiQ’s High-Efficiency 2 Ton Heat Pump System, featuring the ACIQ-24-EHPB inverter condenser and ACIQ-24-AHB air handler, offers the perfect balance of smart inverter technology and seamless integration with your existing ductwork.

How is it different from a traditional heat pump?

  • Variable BTU Inverter: Automatically adjusts output to match demand.
  • Smart system with soft startups: Maximizes efficiency and reduces energy waste.
  • Sized for heating: Allows you to size for heat without worrying about short cycling in cooling mode.
  • Rated for efficient heating: Operates down to 5°F outdoor temperatures.

OVERVIEW

Inverter Condenser: Inverter technology converts AC power to DC, allowing the compressor to speed up or slow down as needed, adjusting the BTU output to match weather conditions and demand, delivering energy savings and precise comfort.

Learning System: Packed with sensors that monitor air temperature, system performance, refrigerant levels, and duct pressure, this system learns from its environment, optimizing startup and run cycles for peak efficiency.

Size for Heat: The inverter design allows you to size the system based on heat demand, avoiding the risk of a muggy indoor climate during the summer. The 1-ton ACiQ-12 system adjusts its output dynamically, ensuring optimal comfort year-round.

QUICK FACTS

  • Variable BTU output based on demand
  • High-efficiency inverter heat pump system designed for use with ductwork
  • Efficient cooling from 5°F to 122°F outdoor temperatures
  • Efficient heating from 5°F to 75°F outdoor temperatures
  • Durable Gold Fin condenser coil coating
  • Quiet operation, even at maximum capacity

24,000 BTU, 17 SEER2

With a 17 SEER2 rating, the variable output ACIQ-12-EHPB will keep your home comfortable across various conditions. Reliable comfort with variable output that eliminates short cycling for lasting efficiency. Use the size calculator to find the perfect fit for your home.


ACiQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACiQ Highest Efficiency

ACiQ Longer Warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.

Recommended: Pro1 T755 - 7 Day Programmable Thermostat

The Pro1 700 family of thermostats offers the most commonly desired features at a great value. These models are easy to use and will provide years of reliable service.

  • 7 Day, 5/1/1 Programmable or Non-Programmable
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 4 sq. inch display
  • Blue back-light
  • Glow in the dark light button
  • Easy access battery compartment
  • Electric or Gas configurable
  • Separate B & O terminals
  • Separate heating and cooling swing (cycle rate) adjustments
  • Filter change indicator (select-able on or off)
  • Room temperature calibration adjustments
  • 5 minute compressor delay protection (select-able on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24V power
  • 5 year warranty
Installation Kit for Condensers

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

What’s Included:

  • 3/4" x 6' Electrical Whip – SKU: 84138
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

ACiQ 5 Kilowatt 16,200 BTU Heater Coil

The EAH-05B is a 5kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Compatible Air Handlers:

  • ACiQ-24-AH
  • ACiQ-36-AH
  • ACiQ-48-AH
30" Wall Mount Bracket

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

  • Steel: 10 GA
  • Powder-coated grey Finish
  • Load rating: 600 lbs per pair
  • Holes will accommodate anchors for installation
  • Warranty: 1 year
  • ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

30 Feet of 3/8" x 3/4"

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

I understand that this system should only be used as replacement units due to EPA updates and may not be installed as a complete system.
Ecobee Smart WiFi Thermostat with Alexa

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Not at your thermostat? No problem.

Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.

Connects to your existing home network

Convenient Wi-Fi capabilities offer a secure and reliable connection.

Knows you have a life

Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.

Control the volume

If it's getting a little loud for your taste, you can use the app to adjust the volume.

Built to last

ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.

ACiQ 8 kilowatt 26,000 BTU Heater Coil
The EAH-08B is a 8kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 26,000 BTU, this heater coil can generally cover an average house in ideal climates. Please note that this heater coil requires one 40 amp breaker to function. Compatible Air Handlers ACiQ-24-AH ACiQ-36-AH
50 Feet of 3/8" x 3/4"

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
Versatile Application: Compatible with heat pumps and conventional split systems.
Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

Equipment Pad and Risers Kit

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

I understand that this system cannot be returned.
ACIQ 10 Kilowatt 34,100 BTU Heater Coil
The EAH-10-WM is a 10kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM
More Information
2 Ton ACiQ Central Air Handler
FeatureSpec
SKUACIQ-24-AHB
Weight (in lbs)127.43
AHRI Certificate Number208106635
Brand/ManufacturerACiQ
UPC0850038750053
Cooling BTU22000 BTU
Heating BTU27000 BTU
Maximum CFM882
Decibel Level (dBA)43
Electric HeatHeat Pump
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 10 Kilowatts
Energy StarYes
RefrigerantR410A
HSPF11
SEER1 (Efficiency)18-20
EER12.5
Liquid Line3/8"
Suction Line3/4"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size15
Min. Breaker Size4
System Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeMulti-Positional
Zone CompatibilitySingle Zone
ConnectionBlaze or Fare
Height45"
Width17.52"
Depth21.02"
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 2 Ton 19.4 SEER High Efficiency Heat Pump Condenser - R410A Inverter
FeatureSpec
SKUACIQ-24-EHPB
Refrigerant Charge25'
Weight (in lbs)109.13
Brand/ManufacturerACiQ
UPC850038750855
Cooling BTU24000 BTU
Heating BTU24000 BTU
Maximum CFM1765
Decibel Level (dBA)60
Electric HeatHeat Pump
RefrigerantR410A
HSPF29.2
SEER1 (Efficiency)20
SEER2 (Efficiency)17
EER210.5
Condenser StagesVariable Speed
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size30 Amps
Min. Breaker Size19 Amps
Tonnage2 Ton
Min/Max Outdoor Temp for Heating5~75
Min/Max Outdoor Temp for Cooling 5~122
Zone CompatibilitySingle Zone
Length35.04"
Height26.50"
Depth13.46"
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Pro1 T755 - 7 Day Programmable Thermostat - 3H/2C
FeatureSpec
SKUT755
Weight (in lbs)1
Brand/ManufacturerPro1 Technologies
UPC95247201587
Resources You will need Adobe® Acrobat® Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING
Ecobee Smart WiFi Thermostat with Alexa
FeatureSpec
SKUEB-STATE6P-01
Weight (in lbs)0.5
Brand/Manufacturerecobee
UPCna
Energy StarYes
Warranty3 years
Resources
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight (in lbs)15
Brand/ManufacturerOnline Supply
UPCna
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 5 Kilowatt 16,200 BTU Heater Coil
FeatureSpec
SKUEAH-05B(UL)
Weight (in lbs)8
Brand/ManufacturerACiQ
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Warranty12 year compressor, 7 year parts with online registration
Safety InformationPROPOSITION 65 WARNING
30" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKUACB-30
Weight (in lbs)9.2
Brand/ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 8 kilowatt 26,000 BTU Heater Coil
FeatureSpec
SKUEAH-08B(UL)
Weight (in lbs)8
Brand/ManufacturerACiQ
Heating BTU26,000
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Warranty12 year compressor, 7 year parts with online registration
Safety InformationPROPOSITION 65 WARNING
ACIQ 10 Kilowatt 34,100 BTU Heater Coil
FeatureSpec
SKUEAH-10B
Weight (in lbs)8
Brand/ManufacturerACiQ
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Warranty12 year compressor, 7 year parts with online registration
Safety InformationPROPOSITION 65 WARNING
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
FeatureSpec
SKULS38343830
Weight (in lbs)35
Brand/ManufacturerOnline Supply
UPCna
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness3/4"
ColorBlack
Length30 feet
50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
FeatureSpec
SKULS38343850
Weight (in lbs)22
Brand/ManufacturerOnline Supply
UPC094913016456
Liquid Line3/8"
Suction Line3/4"
Suction Line Insulation Thickness3/4"
ColorBlack
Length50 feet
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25
Brand/ManufacturerOnline Supply
UPCna
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Good equipment
    Quality
    100%
    Service
    100%
    Price
    100%
    Bought the unit for a small house I just remodeled was perfect fit still getting use to it and how quite it operates

    Review by

    Posted on

  2. easy to install
    Quality
    100%
    Service
    100%
    Price
    80%
    The unit replacement was straightforward — no complications or setbacks.

    Review by

    Posted on

  3. great product
    Quality
    100%
    Service
    100%
    Price
    100%
    easy to order sales rep understood my needs and delivered a great product fast delivery
    I will look to HVACDIRECT for my cooling and heating needs in the future they will be my first call

    Review by

    Posted on

  4. HVAC Replacements
    Quality
    100%
    Service
    100%
    Price
    100%
    Had to replace 3 HVAC units in our house we recently purchased. I was able to get 2 units installed prior to the weather change that has had our nights below freezing for multiple weeks. The performance of the units has been much better than the SEER 10, 1989 units we replaced. With temps in the low 20's at night the warming capabilities have been tested for almost 2 months. We are very satisfied with purchases and support from HVACDirect.

    Review by

    Posted on

  5. 2 ton split unit to replace trane installed in 2008
    Quality
    100%
    Service
    100%
    Price
    100%
    Excellent equipment, I have an old friend in the HVAC biz. Quoted $8600 for a "Better" Goodman installed. I had installed an Inverter package in my Mom's house a few years ago and was very impressed with Function and efficiency - and wanted the same for my master suite. I went ahead and had the 'professionals' install it for $1050 and still saved MORE than 50%. They were very impressed with the unit and ease of install (2 wire thermostat) - plus my wife thinks the blue tooth phone setting is Cool - and the $4k we saved took us, the kids, and all the grandkids for week long beach Trip! Happy wife - Happy life!!

    Review by

    Posted on

  6. All the great thing you hear is true
    Service
    100%
    Quality
    100%
    Price
    100%
    Massively simple wire hook up 2 wires from the t stat down to the air handler and two out to the condenser. Little braze work I let nitrogen set in the line overnight for one it was late in the evening at that point. Was a late start doing this install. And two I never fully trusted compression fittings. ACiQ did an amazing job with theirs not a single drop in pressure over night! next morning pulled a vacuum down and released the 410 built a new plenum and the customer had cold air blowing by noon. Did a follow up with customer a week later they love their new system, homeowner was concerned with the condenser sitting outside his small Childs bedroom window. of the noise. stated he has to walk outside and almost two feet away to really hear it running. price point and ease of installation I would highly recommend an ACiQ system to everyone

    Review by

    Posted on

  7. A Quality Heat Pump
    Service
    100%
    Quality
    100%
    Price
    80%
    This ACiQ heat pump is quiet and quite efficient when paired with an ACiQ indoor air handler in serial communications with each other. It’s well made but there are design issues. There is really no protection for the heat exchange fins. A stray stone or tree branch can easily damage this unit. The the power and communications compartment is not water proof. This heat pump will need to be protected from hard rains. The high side pipe is 5/8” and the low side is 7/8;” are unusual sizes that were harder to source where I live. And the price is higher than it should be because it’s just a rebranded Midea (Senville comparable) heat pump. It didn’t even come with an ACiQ sticker on it!! Should be around $800 to $900, not $1800.

    Review by

    Posted on

  8. Very satisfied and so are the neighbors
    Service
    100%
    Quality
    100%
    Price
    100%
    So efficient and quiet

    Review by

    Posted on

See more reviews
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose ACiQ?
Why Choose ACiQ?

ACiQ designs AC systems that are based on principles learned from nature: clean, energy-efficient, and quiet. ACiQ systems are built in a such a way that they are easily adapted to fit multiple variations a homeowner needs. ACiQ offers technology in mini-split and full split inverter system offerings that provide the smartest way to buy and save on your home’s comfort solution, so that it meets the needs of your family. ACiQ specializes in home comfort, regardless of your needs.

blockboard tech
