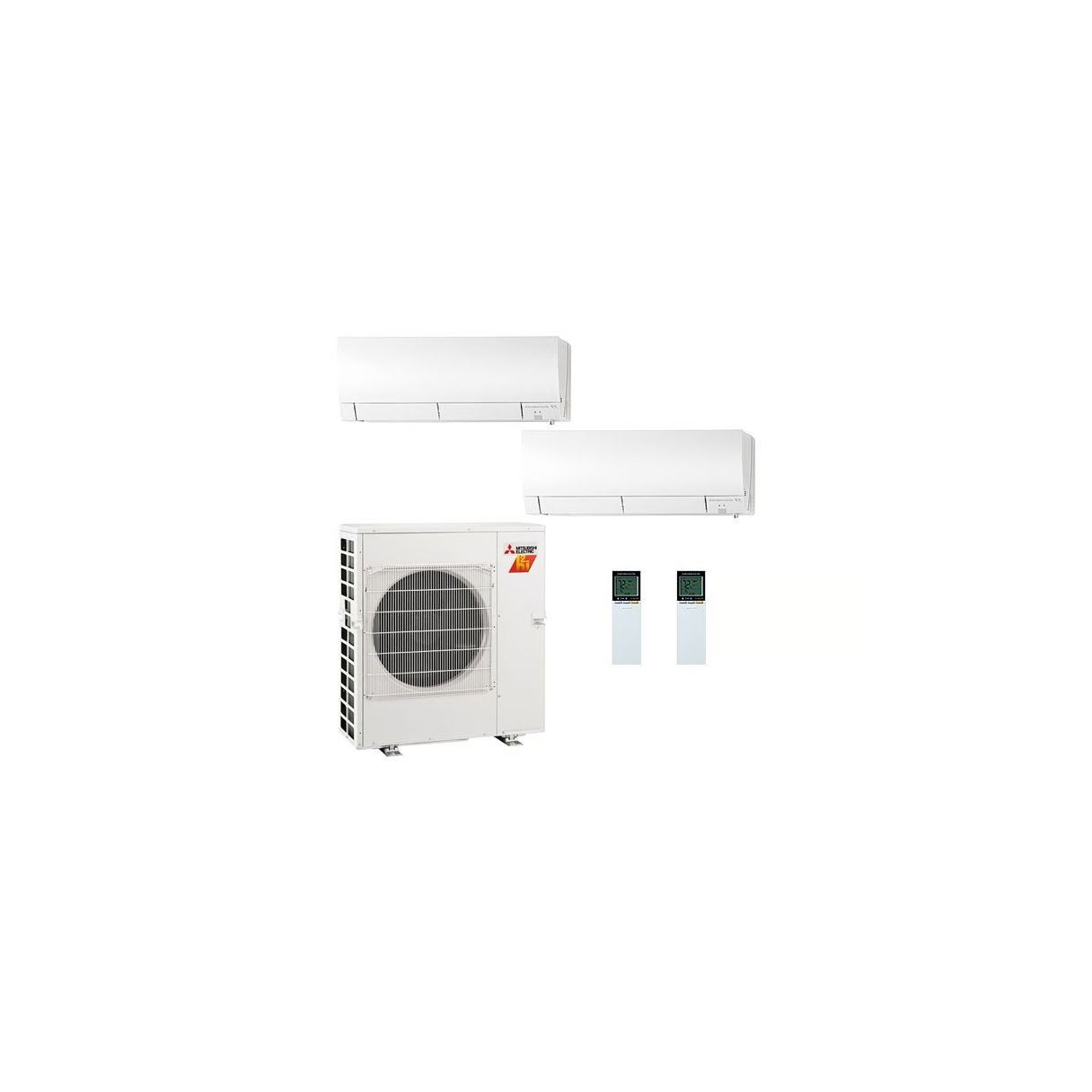

Mitsubishi 20,000 BTU FX-Series 19.3 SEER2 Dual Zone Wall Mounted Mini Split Hyper Heat Pump System – R454B | 230V 6 + 6

20,000 BTU Mitsubishi FX-Series 19.3 SEER2 Dual Zone Wall Mounted Mini Split Hyper Heat Pump System - R454B | 6 + 6
20,000 BTU Mitsubishi FX-Series 19.3 SEER2 Dual Zone Wall Mounted Mini Split Hyper Heat Pump System - R454B | 6 + 6 BM101WA BM101WA BM101WA BM101WA BM101WA BM101WA 87762 EL1838-3 87762 / EL1838-3 87762 / EL1838-3 87762 / EL1838-3 MSK001 MXZ-2D20NLHZ MSZ-FX06NL MSZ-FX06NL MSZ-FX06NL 201813 366390 216740 366395 366396 HW-600

Required Fields *

By

Mitsubishi

In stock

Model

MXZ-2D20NLHZ / 2-MSZ-FX06NL

ID

199782

Be the first to review this product
ONLY 7 LEFT!
Was $5,714.90
Your Low Price $4,756.00

Free Shipping
Customize Mitsubishi 20,000 BTU FX-Series 19.3 SEER2 Dual Zone Wall Mounted Mini Split Hyper Heat Pump System – R454B | 230V 6 + 6
20,000 BTU Mitsubishi Multi Zone Condenser - R454B
20,000 BTU Mitsubishi Multi Zone Condenser - R454B
20,000 BTU Mitsubishi Multi Zone Condenser - R454B   + $3,222.00
6,000 BTU Mitsubishi FX-Series Wall Mount Mini Split Air Handler - R454B
6,000 BTU Mitsubishi FX-Series Wall Mount Mini Split Air Handler - R454B
6,000 BTU Mitsubishi FX-Series Wall Mount Mini Split Air Handler - R454B   + $767.00
6,000 BTU Mitsubishi FX-Series Wall Mount Mini Split Air Handler - R454B
6,000 BTU Mitsubishi FX-Series Wall Mount Mini Split Air Handler - R454B
6,000 BTU Mitsubishi FX-Series Wall Mount Mini Split Air Handler - R454B   + $767.00
15 feet - 1/4" and 3/8" Line Set
15 feet - 1/4" and 3/8" Line Set
Equipment Pad
Installation Kit for Condensers
Cielo Breez Max Mini Split Thermostat with WiFi
20,000 BTU Mitsubishi FX-Series 19.3 SEER2 Dual Zone Wall Mounted Mini Split Hyper Heat Pump System - R454B | 6 + 6

$4,756.00

Mitsubishi Electric MXZ-2D20NLHZ with 2 × MSZ-FX06NL Wall-Mounted Indoor Units

The Mitsubishi Electric MXZ-2D20NLHZ is a high-efficiency, dual-zone outdoor heat pump system designed to deliver reliable year-round comfort. When paired with two MSZ-FX06NL wall-mounted indoor units, it offers precise temperature control and energy savings for small to medium-sized spaces.

Outdoor Unit: MXZ-2D20NLHZ

  • Cooling Capacity: Up to 20,000 BTU/h (depending on configuration)
  • Heating Capacity at 47°F: Up to 25,500 BTU/h
  • Heating Capacity at 5°F: Up to 22,000 BTU/h
  • Heating Capacity at -13°F: Up to 19,200 BTU/h
  • SEER: Up to 19.3
  • HSPF: Up to 10
  • Compressor: INVERTER-driven with Hyper-Heating INVERTER® technology
  • Sound Pressure Level: As low as 51 dB(A) in cooling mode
  • Features: Built-in base pan heater, seacoast protection, quiet operation

Indoor Units: 2 × MSZ-FX06NL (6,000 BTU Each)

  • Cooling Capacity: 6,000 BTU/h per unit
  • Heating Capacity: 7,000 BTU/h per unit
  • Design: Wall-mounted unit suitable for small rooms
  • Features: Quiet operation, energy-efficient performance

This combination provides a reliable and energy-efficient solution for maintaining comfort across two zones, making it ideal for residential applications.

Mitsubishi 6,000 BTU FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler – R454B | 230V

MSZ-FX06NL Air Handler Overview

The MSZ-FX06NL is a compact, reliable indoor air handler designed for use in smaller residential and light commercial spaces. Built for quiet operation, sleek design, and enhanced air quality, it provides consistent comfort when paired with the MUZ-FX06NLHZ outdoor condenser. With its user-friendly controls and low-maintenance design, this air handler is a smart choice for efficient year-round climate control.

Key Features

  • Quiet Operation: Engineered for low sound levels, making it ideal for bedrooms, offices, and other spaces where a peaceful indoor environment is important.
  • Compact and Stylish Design: Sleek and space-saving, the MSZ-FX06NL blends seamlessly into modern interiors without taking up valuable room.
  • Advanced Filtration: Equipped with filtration that captures dust, allergens, and other airborne particles to promote a cleaner and healthier indoor atmosphere.
  • Durability: Designed with high-quality materials and a corrosion-resistant coating for reliable performance and a long lifespan, even in humid or challenging environments.

Specifications

  • Cooling Capacity: 6,000 BTU/h
  • Heating Capacity: 7,000 BTU/h
  • Power Supply: 208-230V, 60Hz, 1-phase
  • Dimensions: 33-7/16" (W) x 11-5/8" (H) x 25-1/4" (D)
  • Weight: 24 lbs

Convenience Features

  • Remote Control: Comes with a user-friendly remote to adjust temperature, fan speed, and operation modes with ease.
  • Auto Restart: Automatically resumes operation with previous settings after a power outage for uninterrupted comfort.
  • Self-Diagnosis: Displays error codes for easier troubleshooting and service support.
  • Washable Filters: Easy-to-clean filters help maintain airflow, efficiency, and indoor air quality over time.

Installation and Maintenance

  • Flexible Installation: Compact size and versatile mounting options make it simple to install in a wide range of spaces.
  • Low Maintenance: Designed with washable filters and durable construction to minimize upkeep and ensure long-term reliability.

Applications

  • Residential: Ideal for bedrooms, small living areas, or home offices that require quiet, efficient comfort.
  • Light Commercial: Suitable for small offices, retail shops, or server rooms where consistent airflow and dependable operation are essential.

The MSZ-FX06NL air handler is a practical and efficient solution for small residential and light commercial applications. With quiet operation, advanced filtration, and a modern design, it enhances indoor comfort while being easy to install and maintain. When paired with a compatible outdoor unit, it ensures dependable, year-round climate control.

Mitsubishi 20,000 BTU M-Series H2i Multi Zone Mini Split Hyper Heat Pump Condenser – R454B | 230V

MXZ-2D20NLHZ - Hyper-Heating INVERTER® Heat Pump Outdoor Unit

The MXZ-2D20NLHZ is a high-performance, energy-efficient outdoor heat pump unit designed for residential and light commercial applications. Equipped with Mitsubishi Electric's advanced Hyper-Heating INVERTER® (H2i®) technology, it delivers reliable heating performance even in extremely cold climates. This unit is compatible with M-Series, P-Series, and CITY MULTI® indoor units (a branch box is required for M- and P-Series connections), offering versatile solutions for various building layouts. Below are the key features and specifications of this model:

Key Features:

  • Hyper-Heating INVERTER® (H2i®) Technology: Provides 100% heating capacity at 5°F and maintains operation down to -13°F, ensuring comfort in colder climates.
  • INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
  • Quiet Operation: Operates at sound pressure levels of 51 dB(A) in cooling mode and 53 dB(A) in heating mode, minimizing noise disturbances.
  • Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
  • Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
  • Advanced Protections: Includes high-pressure protection, fan motor overheating/voltage protection, compressor thermal protection, and compressor overcurrent detection for enhanced safety and reliability.
  • Seacoast Protection: Features seacoast protection on the heat exchanger and base panel, rated for 2,000 hours in accordance with ASTM B117 testing, making it suitable for coastal areas.

Specifications:

  • Cooling Capacity at 95°F:
    • Maximum: 20,000 BTU/h
    • Rated: 18,000 BTU/h (Non-Ducted), 19,000 BTU/h (Mixed), 20,000 BTU/h (Ducted)
    • Minimum: 11,600 BTU/h (Non-Ducted), 13,800 BTU/h (Mixed), 16,000 BTU/h (Ducted)
  • Heating Capacity at 47°F:
    • Maximum: 25,500 BTU/h
    • Rated: 22,000 BTU/h
    • Minimum: 11,400 BTU/h (Non-Ducted), 13,850 BTU/h (Mixed), 16,300 BTU/h (Ducted)
  • Heating Capacity at 17°F:
    • Maximum: 22,000 BTU/h
    • Rated: 14,300 BTU/h (Non-Ducted), 13,400 BTU/h (Mixed), 12,500 BTU/h (Ducted)
  • Heating Capacity at 5°F:
    • Maximum: 22,000 BTU/h
  • Heating Capacity at -13°F:
    • Maximum: 19,200 BTU/h
  • Efficiency Ratings:
    • SEER2: 19.30 (Non-Ducted), 16.80 (Mixed), 14.30 (Ducted)
    • EER2: 13.50 (Non-Ducted), 12.30 (Mixed), 11.10 (Ducted)
    • HSPF2 (IV): 10 (Non-Ducted), 8.95 (Mixed), 7.90 (Ducted)
    • COP at 47°F: 4.00 (Non-Ducted), 3.90 (Mixed), 3.82 (Ducted)
    • COP at 17°F (Maximum Capacity): 1.94 (Non-Ducted), 1.92 (Mixed), 1.92 (Ducted)
    • COP at 5°F (Maximum Capacity): 2.00 (Non-Ducted), 1.98 (Mixed), 1.98 (Ducted)
  • Electrical Requirements:
    • Power Supply: 208/230 V AC, Single-phase, 60 Hz
    • Guaranteed Voltage Range: 198 - 253 V AC
    • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
    • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
    • Recommended Wire Size (Indoor to Outdoor): AWG 14
    • Short-circuit Current Rating (SCCR): 5 kA
    • Minimum Circuit Ampacity (MCA): 21.7 A
    • Maximum Overcurrent Protection (MOCP): 38 A
  • Fan Motor:
    • Full Load Amperage: 1.74 A
    • Output: 88 W
    • Airflow Rate: 2,119 CFM (Cooling), 2,228 CFM (Heating)

The MXZ-2D20NLHZ is ideal for applications requiring powerful and dependable performance in both heating and cooling. Its hyper-heating capabilities, quiet operation, and protective features make it a top choice for challenging environments and year-round comfort.

Cielo Breez Max Mini Split Thermostat with WiFi

Introducing Cielo Breez Max, the ultimate smart thermostat for your mini-splits, designed to elevate your comfort with intelligent climate control. Transform your air conditioner into a smart powerhouse and manage your cooling or heating from anywhere using your phone. This award-winning device, available in black and white, prevents overheating or overcooling with AI-powered Comfy Max, while seamlessly detecting any mini-split brand for hassle-free setup.


Features:

  • Energy Savings
  • WiFi Connectivity
  • Weekly Schedule
  • Geofencing
  • Temperature Range Lock
  • Real-Time Notifications
  • HVAC Zoning

Weekly Schedule lets you set on and off periods throughout the week based on your needs.

Geofencing uses your smartphone's location to trigger actions in your system, such as turning the air conditioner on or off based on your proximity to home.

Temperature Range Lock ensures your air conditioner operates within a set temperature range for optimal comfort and efficiency.

Real-Time Notifications keep you informed with important updates, helping you manage your air conditioner better.

HVAC Zoning allows you to create customized temperature control zones by grouping multiple mini-split units.

The Cielo Breez Max offers innovative features and extraordinary performance, making it a perfect fit for any room air conditioner. Enjoy maximum energy savings and simplified home comfort with this advanced smart thermostat.

Installation Kit for Condensers - Accessory Set

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

Key Features:

✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.

What’s Included:

  • 1/2" x 6' Electrical Whip – SKU: 84136
  • 60A Non-Fused Disconnect – SKU: 83335
  • Surge Protector – SKU: ICM517
  • CPS Charging Adapter – SKU: 87-AD87
  • Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 17” Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.

E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet

This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.

Features:

  • Insulated
  • Flared Line Ends
  • Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

  • One pair, heavy duty refrigerant lines
  • Flared line ends
More Information
Mitsubishi 6,000 BTU FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler – R454B | 230V
SKUMSZ-FX06NL
Weight29.000000
ManufacturerMitsubishi
ReplacesMSZ-FS06NA-U1
HSPF213
Decibel Level (dBA)20-42
RefrigerantR454B
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height12-11/16"
Width36-7/16"
Depth9-3/16"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Mitsubishi 20,000 BTU M-Series H2i Multi Zone Mini Split Hyper Heat Pump Condenser – R454B | 230V
SKUMXZ-2D20NLHZ
Weight137.000000
ManufacturerMitsubishi
ReplacesMXZ-2C20NAHZ4-U1
Cooling BTU20000
Heating BTU25500
Decibel Level (dBA)53
RefrigerantR454B
SEER219.3
Compressor TypeTwin Rotary
Liquid Valve Size1/4" (2)
Suction Valve Size3/8" (2)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size38
Min. Breaker Size22
BTU/Tonnage20,000 BTU/1.75 Ton
Zone CompatibilityMulti Zone
Height31.32"
Width37.13"
Depth13"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Cielo Breez Max Mini Split Thermostat with WiFi
SKUBM101WA
Weight1.000000
ManufacturerCielo
ElectricalMicro USB with Standard Plug
Height4.25"
Width4.25"
Depth1"
Warranty1 Year Full Replacement
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight9.200000
ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
SKU216740
Weight30.000000
ManufacturerOnline Supply
Length30'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
SKU366390
Weight25.000000
ManufacturerOnline Supply
Length25'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
SKU366396
Weight45.000000
ManufacturerOnline Supply
Length50'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
SKU366395
Weight35.000000
ManufacturerOnline Supply
Length35'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
SKU201813
Weight15.000000
ManufacturerOnline Supply
Length15'
Height1/2"
Width1/2"
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:Mitsubishi 20,000 BTU FX-Series 19.3 SEER2 Dual Zone Wall Mounted Mini Split Hyper Heat Pump System – R454B | 230V 6 + 6
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Difference Between a Heat Pump and Furnace and AC Unit
Choosing between a heat pump and a furnace and air conditioning unit requires understanding their distinct heating and cooling methods, which impact energy efficiency and climate suitability. Knowing these differences will help you select the best option for your home.
July 11, 2024
Why Choose Mitsubishi Mini Splits?
Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
