Mitsubishi 20,000 BTU FX-Series 20 SEER2 Dual Zone Wall Mounted Mini Split Heat Pump System – R454B | 230V - 9 + 9
Required Fields *
By
Mitsubishi
In stock
Model
MXZ-2D20NL / 2-MSZ-FX09NL
ID
199759
In Stock - 14 Ready to Ship
Was $5,376.56
Your Low Price $4,301.25
Free Shipping

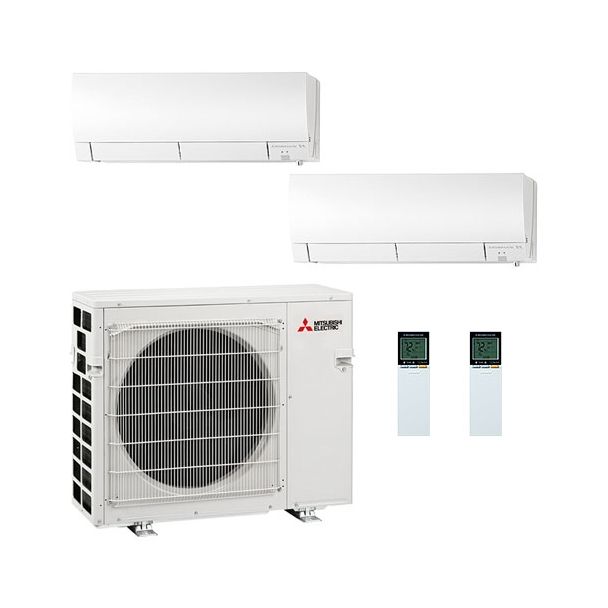

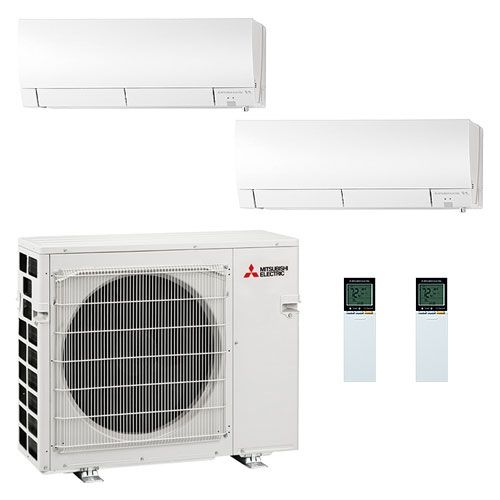

Mitsubishi Electric MXZ-2D20NL with 2 MSZ-FX09NL Indoor Units
The Mitsubishi Electric MXZ-2D20NL is a 20,000 BTU/H multi-zone outdoor heat pump designed to provide efficient heating and cooling for two zones. When paired with two MSZ-FX09NL indoor units, it offers a compact and energy-efficient solution for residential applications.
Outdoor Unit: MXZ-2D20NL
- Cooling Capacity: Up to 22,000 BTU/h (depending on configuration)
- Heating Capacity at 47°F: Up to 25,800 BTU/h
- SEER: Up to 20
- HSPF: Up to 10
- Compressor: Twin Rotary with inverter-driven technology
- Sound Pressure Level: As low as 51 dB(A) in cooling mode
- Dimensions (W x D x H): 33-1/16" x 13" x 27-15/16"
- Weight: 119 lbs
- Features: Blue Fin anti-corrosion coating, freeze-prevention base pan heater, quiet operation
Indoor Units: 2 x MSZ-FX09NL
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,900 BTU/h
- Refrigerant: R-454B
- Design: Wall-mounted with a sleek and compact profile
- Features: Quiet operation, energy-efficient performance
This combination provides a reliable and energy-efficient solution for maintaining comfort across two zones, making it ideal for residential applications.
Mitsubishi 20,000 BTU SEZ-AD-Series Multi Zone Mini Split Heat Pump Condenser R454B | 230V
*Please Note* This product is currently estimated to ship sometime in January 2026

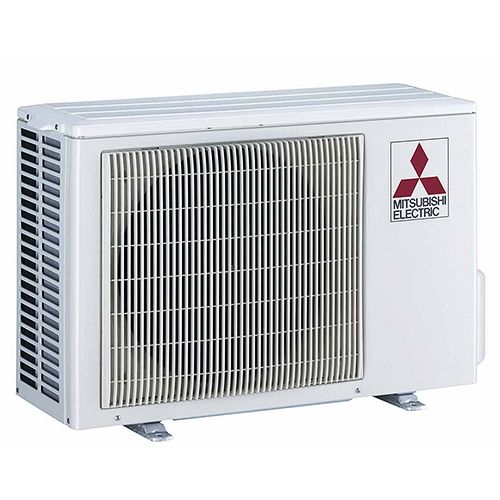

MXZ-2D20NL - Mitsubishi 2 Zone M-Series Outdoor Condenser
The Mitsubishi MXZ-2D20NL is a high-performance, 2-zone M-Series outdoor condenser engineered for precise, efficient multi-zone heating and cooling. Designed for residential and light-commercial zoned installations, this outdoor unit delivers quiet operation, inverter-driven efficiency, and broad indoor-unit compatibility — all in a compact footprint.
Overview
Built on Mitsubishi Electric's proven Inverter technology, the MXZ-2D20NL supports up to two indoor units and offers flexible piping and layout options for custom zoning. It uses the lower-global-warming-potential refrigerant R454B and features an electronic linear expansion valve and variable-speed compressor to maintain accurate temperature control while minimizing energy use. Ideal for duplex rooms, apartments, multi-room add-ons, or tailored comfort zones where independent temperature control matters.
Key Benefits
- True multi-zone flexibility: Connect two independent indoor units for per-room control and comfort.
- High seasonal efficiency: Designed with inverter technology and precision refrigerant metering for strong SEER2 / HSPF2 performance in typical configurations.
- New R454B refrigerant:R454B to reduce environmental impact while maintaining performance.
- Quiet operation: Engineered for low sound levels at normal operating speeds—perfect for neighborhood and residential installations.
- Robust control & compatibility: Works with a wide range of M-Series indoor units (wall, floor, ceiling cassette, ducted) and supports M-NET / wired control interfaces for integration.
Why Choose the MXZ-2D20NL?
If you need a compact, efficient 2-zone condenser with modern inverter control and a low-GWP refrigerant option, the MXZ-2D20NL is engineered to deliver quiet, reliable comfort and flexible indoor-unit pairing. Whether you're retrofitting two rooms or building a small two-zone new installation, this M-Series condenser balances performance, efficiency, and installation flexibility.
Mitsubishi 9,000 BTU FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler R454B | 230V

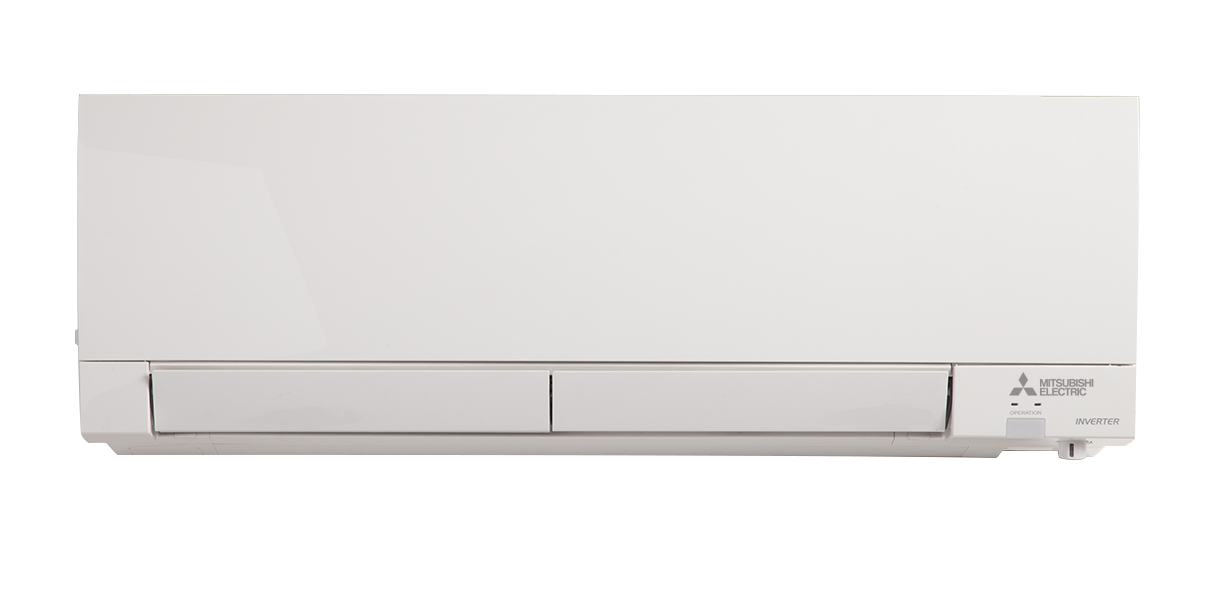

MSZ-FX09NL Air Handler Overview
The MSZ-FX09NL air handler provides efficient and reliable heating and cooling for residential and light commercial spaces. With quiet operation, advanced filtration, and a compact design, it delivers year-round comfort while maintaining energy-efficient performance.
Key Features
- Energy-Efficient Operation: Optimizes energy use while maintaining consistent indoor temperatures, helping reduce electricity costs.
- Quiet Performance: Low sound operation ensures a peaceful indoor environment, ideal for bedrooms, offices, or small commercial spaces.
- Compact and Sleek Design: Modern, space-saving design fits seamlessly into various interiors, making it suitable for tight spaces.
- Enhanced Air Quality: High-performance filtration reduces dust, allergens, and other airborne particles for a healthier indoor environment.
- Durable Construction: Corrosion-resistant materials ensure long-lasting reliability even in humid or challenging conditions.
Specifications
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,900 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions: 33-7/16" (W) x 11-5/8" (H) x 25-1/4" (D)
- Weight: 24 lbs
Advanced Features and Benefits
- Inverter Technology: Adjusts compressor speed to match cooling or heating demand, improving energy efficiency and maintaining consistent indoor temperatures.
- Remote Control: Allows easy adjustment of temperature, fan speed, and operating modes from anywhere in the room for convenient climate management.
- Auto Restart Function: Restores previous settings after a power outage, ensuring uninterrupted comfort without manual intervention.
- Self-Diagnosis System: Detects issues and provides error codes for easy troubleshooting, minimizing downtime and service needs.
- Washable Filters: Easily cleaned for improved airflow and air quality, reducing maintenance costs and extending the system's lifespan.
Installation and Maintenance
- Flexible Installation: Compact design allows installation in a variety of spaces, making it suitable for residential and light commercial environments.
- Low Maintenance: Washable filters and simple servicing procedures ensure optimal performance and longevity with minimal upkeep.
Applications
- Residential Use: Ideal for small to medium-sized homes and apartments, offering efficient climate control in bedrooms, living rooms, or home offices.
- Light Commercial Use: Suitable for small offices, retail spaces, or server rooms, providing reliable temperature control without taking up excessive space.
In summary, the MSZ-FX09NL air handler is a compact, energy-efficient, and reliable solution for residential and light commercial applications. With quiet operation, advanced filtration, and user-friendly controls, it ensures consistent indoor comfort while minimizing energy costs and maintenance requirements.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers - Accessory Set
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
Write Your Own Review
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
