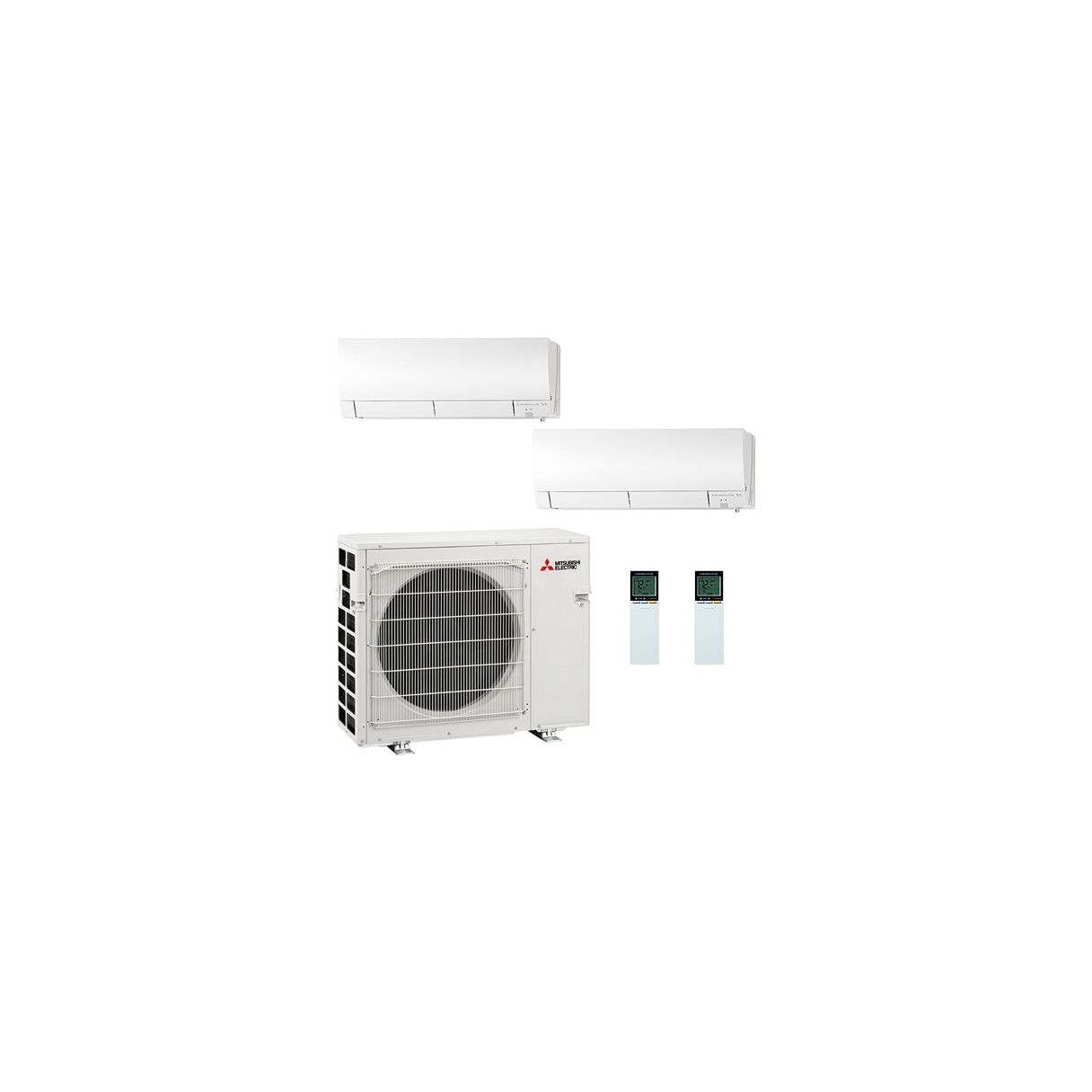

20,000 BTU Mitsubishi GX-Series 20 SEER2 Dual Zone Wall Mounted Mini Split Heat Pump System - R454B | 9 + 12

MSZ-GX09NL Air Handler Overview

The MSZ-GX09NL air handler is a high-performance HVAC system designed to provide efficient and reliable cooling and heating for both residential and light commercial applications. When paired with the MUZ-GX09NL outdoor unit, it offers exceptional comfort and energy efficiency throughout the year. Featuring advanced technologies such as Inverter-driven performance, a sleek design, and quiet operation, the MSZ-GX09NL is an ideal choice for users seeking a compact, efficient, and durable HVAC solution.

Key Features

• Energy Efficiency: The MSZ-GX09NL air handler is engineered for high energy efficiency, helping reduce electricity consumption while maintaining optimal performance and comfort levels. This results in reduced operating costs and environmental impact.
• Quiet Operation: Designed with quiet operation in mind, the MSZ-GX09NL ensures a peaceful indoor environment. Its advanced sound-reducing technology makes it ideal for bedrooms, offices, and other spaces where noise reduction is a priority.
• Compact Design: The MSZ-GX09NL features a compact, modern design that allows for flexible installation in a variety of spaces. Its sleek profile blends seamlessly into both residential and commercial interiors, maximizing usable space while providing superior performance.
• Advanced Filtration: This air handler is equipped with a high-performance filtration system that helps remove dust, allergens, and other airborne particles, ensuring improved indoor air quality and a healthier living or working environment.
• Durability and Reliability: Built with a corrosion-resistant coating, the MSZ-GX09NL is designed for long-lasting durability, even in humid or corrosive environments. This ensures reliable operation and minimal maintenance needs over the system's lifespan.

Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 10,900 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
• Weight: 24 lbs

Advanced Features and Benefits

• Inverter Technology: The MSZ-GX09NL incorporates inverter-driven technology that adjusts the compressor speed to match cooling or heating demand. This allows for better energy efficiency, consistent indoor temperatures, and reduced wear on the system for longer-lasting performance.
• Hyper Heating Technology: This unit is designed to provide effective heating performance even in extreme outdoor temperatures, ensuring comfort in cold weather conditions. Hyper Heating technology ensures a reliable source of warmth, even during the winter months.
• Remote Control: The MSZ-GX09NL includes an intuitive remote control that allows users to easily adjust temperature settings, fan speed, and operating mode from anywhere in the room, providing convenient and flexible climate control.
• Auto Restart Function: In the event of a power failure, the MSZ-GX09NL automatically restarts with the previous settings, eliminating the need for manual reprogramming and ensuring continuous comfort without disruption.
• Self-Diagnosis and Error Reporting: The air handler features a self-diagnosis system that detects issues and displays error codes for easy troubleshooting, reducing the need for service calls and ensuring reliable operation over time.

Installation and Maintenance

• Easy Installation: The MSZ-GX09NL is designed for easy installation in a variety of residential and commercial spaces. Its compact design and flexible mounting options make it suitable for installations in tight or hard-to-reach areas.
• Low Maintenance Requirements: With its durable construction and washable filters, the MSZ-GX09NL requires minimal maintenance. Regular cleaning of the filters helps maintain optimal airflow and air quality, reducing the need for frequent maintenance or part replacements.
• Washable Filters: The air handler features washable filters, which can be easily removed and cleaned to maintain efficient performance and improve air quality. This feature helps reduce ongoing maintenance costs and enhances the system's lifespan.

Applications

• Residential Use: The MSZ-GX09NL is ideal for cooling and heating small to medium-sized homes, apartments, or individual rooms. Its energy-efficient operation, quiet performance, and compact design make it a great fit for living rooms, bedrooms, or home offices.
• Commercial Use: This air handler is also well-suited for light commercial applications such as small offices, retail spaces, or server rooms, where energy efficiency and reliable climate control are necessary to maintain a comfortable environment.

In conclusion, the MSZ-GX09NL air handler offers a highly efficient and reliable solution for both residential and light commercial climate control needs. With advanced features such as inverter technology, Hyper Heating, and quiet operation, it ensures consistent comfort year-round while keeping energy costs low. Its compact design, durable construction, and ease of maintenance make it an excellent choice for anyone seeking a high-quality, energy-efficient HVAC system.

MSZ-GX12NL Air Handler Overview

The MSZ-GX12NL air handler is a high-performance, energy-efficient HVAC system designed to deliver consistent and reliable heating and cooling for both residential and light commercial applications. When paired with the MUZ-GX12NL outdoor unit, it provides optimal comfort throughout the year, ensuring an energy-efficient and reliable solution for diverse environments. With features such as inverter-driven technology, Hyper Heating capabilities, and quiet operation, the MSZ-GX12NL is ideal for users seeking superior comfort, efficiency, and long-term durability.

Key Features

• Energy Efficiency: The MSZ-GX12NL is engineered to maximize energy efficiency, helping to reduce overall electricity consumption while maintaining consistent and reliable performance, which ultimately lowers operating costs and environmental impact.
• Quiet Operation: The air handler operates quietly, ensuring minimal disruption to indoor environments. This feature makes it suitable for bedrooms, offices, and other spaces where maintaining a peaceful atmosphere is important.
• Compact and Stylish Design: The MSZ-GX12NL features a compact, modern design that allows for flexible installation. Its sleek profile ensures it integrates well with a variety of residential and commercial spaces, saving space while providing efficient climate control.
• High-Performance Filtration: Equipped with a high-performance filtration system, this air handler helps reduce airborne allergens, dust, and other particulate matter, improving indoor air quality and creating a healthier living or working environment.
• Corrosion-Resistant Coating: Built to withstand harsh environments, the MSZ-GX12NL features a corrosion-resistant coating that ensures long-lasting durability and dependable operation, even in humid or corrosive conditions.

Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 14,300 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions: 31-1/2" (W) x 11-5/8" (H) x 25-1/4" (D)
• Weight: 26 lbs

Advanced Features and Benefits

• Inverter Technology: The MSZ-GX12NL utilizes inverter-driven technology, allowing the system to adjust the compressor speed based on real-time cooling and heating demands. This results in higher energy efficiency, stable room temperatures, and lower wear on components for a longer-lasting system.
• Hyper Heating Technology: Hyper Heating ensures the air handler continues to provide effective heating even in extremely low outdoor temperatures. This makes the MSZ-GX12NL suitable for use in colder climates, providing warmth during the winter months when other systems may struggle.
• Remote Control: The MSZ-GX12NL is equipped with an easy-to-use remote control that allows users to adjust the temperature, fan speed, and operational modes from anywhere in the room, providing convenience and flexibility in managing indoor comfort.
• Auto Restart Function: The air handler includes an auto-restart function, which automatically restores the previous settings after a power interruption. This ensures that the system continues to provide comfort without requiring manual intervention after power is restored.
• Self-Diagnosis and Error Reporting: The MSZ-GX12NL features a self-diagnosis function that detects faults and displays error codes for easy troubleshooting. This feature helps reduce service calls and downtime, ensuring the system operates smoothly for longer periods.

Installation and Maintenance

• Easy Installation: The MSZ-GX12NL is designed for flexible and straightforward installation. Its compact design and versatile mounting options make it an excellent choice for various residential and commercial spaces, where installation space may be limited.
• Low Maintenance Requirements: The air handler is designed to require minimal maintenance. Regular cleaning of the washable filters ensures optimal performance, improves air quality, and reduces the need for professional maintenance.
• Washable Filters: The MSZ-GX12NL comes with washable filters, which can be easily removed and cleaned. This feature reduces the frequency of filter replacements, lowering maintenance costs and ensuring better airflow and air quality over time.

Applications

• Residential Use: The MSZ-GX12NL is perfect for cooling and heating medium-sized homes, apartments, or individual rooms. It provides energy-efficient climate control, quiet operation, and a compact design that fits seamlessly into modern living spaces.
• Commercial Use: This air handler is also suitable for light commercial applications, including small offices, retail spaces, and server rooms, where quiet, efficient, and reliable climate control is essential for maintaining a comfortable and productive environment.

In conclusion, the MSZ-GX12NL air handler is a high-performance, energy-efficient solution for cooling and heating needs in both residential and light commercial applications. With its advanced inverter technology, Hyper Heating capabilities, quiet operation, and superior filtration, this system ensures year-round comfort while minimizing energy consumption. Its compact design, corrosion-resistant construction, and low maintenance requirements make it an excellent choice for those looking for a durable and efficient HVAC system.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
