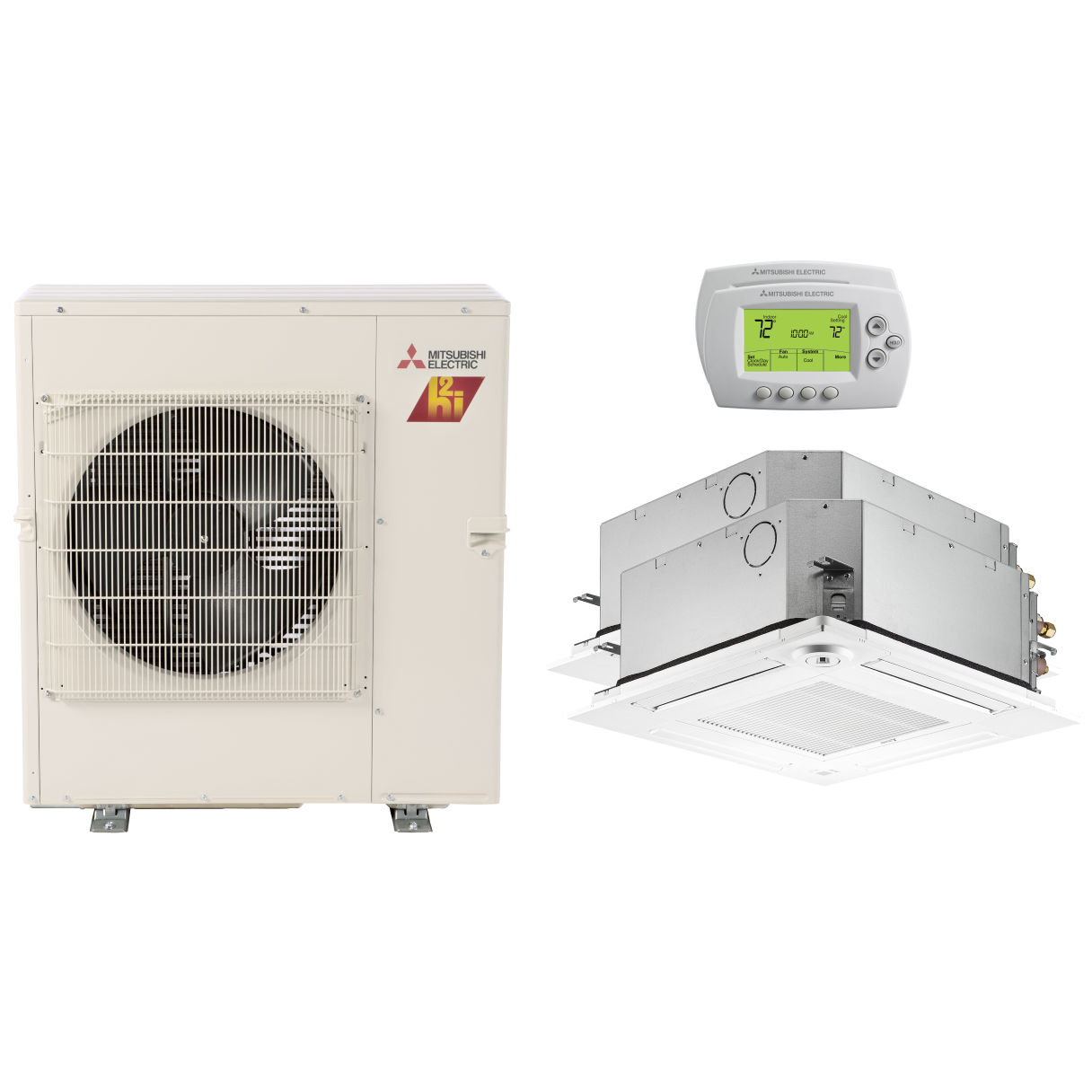

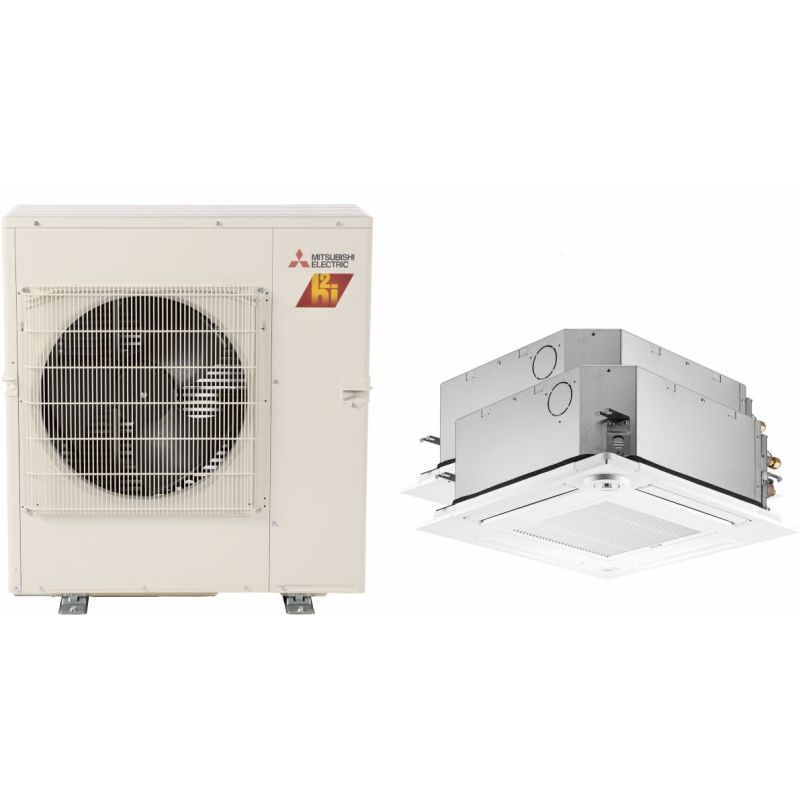

Mitsubishi 20,000 BTU P-Series 19.3 SEER2 Dual Zone Ceiling Cassette Mini Split Hyper Heat Pump System – R454B | 230V 9 + 9

MXZ-2D20NLHZ - Hyper-Heating INVERTER® Heat Pump Outdoor Unit

The MXZ-2D20NLHZ is a high-performance, energy-efficient outdoor heat pump unit designed for residential and light commercial applications. Equipped with Mitsubishi Electric's advanced Hyper-Heating INVERTER® (H2i®) technology, it delivers reliable heating performance even in extremely cold climates. This unit is compatible with M-Series, P-Series, and CITY MULTI® indoor units (a branch box is required for M- and P-Series connections), offering versatile solutions for various building layouts. Below are the key features and specifications of this model:

Key Features:

• Hyper-Heating INVERTER® (H2i®) Technology: Provides 100% heating capacity at 5°F and maintains operation down to -13°F, ensuring comfort in colder climates.
• INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
• Quiet Operation: Operates at sound pressure levels of 51 dB(A) in cooling mode and 53 dB(A) in heating mode, minimizing noise disturbances.
• Blue Fin Heat Exchanger Coating: Enhances corrosion resistance, extending the unit's lifespan, especially in coastal or humid environments.
• Built-in Base Pan Heater: Prevents ice buildup in the base pan during heating operation in cold weather conditions.
• Advanced Protections: Includes high-pressure protection, fan motor overheating/voltage protection, compressor thermal protection, and compressor overcurrent detection for enhanced safety and reliability.
• Seacoast Protection: Features seacoast protection on the heat exchanger and base panel, rated for 2,000 hours in accordance with ASTM B117 testing, making it suitable for coastal areas.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum: 20,000 BTU/h
  • Rated: 18,000 BTU/h (Non-Ducted), 19,000 BTU/h (Mixed), 20,000 BTU/h (Ducted)
  • Minimum: 11,600 BTU/h (Non-Ducted), 13,800 BTU/h (Mixed), 16,000 BTU/h (Ducted)
• Heating Capacity at 47°F:
  • Maximum: 25,500 BTU/h
  • Rated: 22,000 BTU/h
  • Minimum: 11,400 BTU/h (Non-Ducted), 13,850 BTU/h (Mixed), 16,300 BTU/h (Ducted)
• Heating Capacity at 17°F:
  • Maximum: 22,000 BTU/h
  • Rated: 14,300 BTU/h (Non-Ducted), 13,400 BTU/h (Mixed), 12,500 BTU/h (Ducted)
• Heating Capacity at 5°F:
  • Maximum: 22,000 BTU/h
• Heating Capacity at -13°F:
  • Maximum: 19,200 BTU/h
• Efficiency Ratings:
  • SEER2: 19.30 (Non-Ducted), 16.80 (Mixed), 14.30 (Ducted)
  • EER2: 13.50 (Non-Ducted), 12.30 (Mixed), 11.10 (Ducted)
  • HSPF2 (IV): 10 (Non-Ducted), 8.95 (Mixed), 7.90 (Ducted)
  • COP at 47°F: 4.00 (Non-Ducted), 3.90 (Mixed), 3.82 (Ducted)
  • COP at 17°F (Maximum Capacity): 1.94 (Non-Ducted), 1.92 (Mixed), 1.92 (Ducted)
  • COP at 5°F (Maximum Capacity): 2.00 (Non-Ducted), 1.98 (Mixed), 1.98 (Ducted)
• Electrical Requirements:
  • Power Supply: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Voltage (Indoor to Outdoor, S1-S2): 208/230 V AC
  • Voltage (Indoor to Outdoor, S2-S3): 24 V DC
  • Recommended Wire Size (Indoor to Outdoor): AWG 14
  • Short-circuit Current Rating (SCCR): 5 kA
  • Minimum Circuit Ampacity (MCA): 21.7 A
  • Maximum Overcurrent Protection (MOCP): 38 A
• Fan Motor:
  • Full Load Amperage: 1.74 A
  • Output: 88 W
  • Airflow Rate: 2,119 CFM (Cooling), 2,228 CFM (Heating)

The MXZ-2D20NLHZ is ideal for applications requiring powerful and dependable performance in both heating and cooling. Its hyper-heating capabilities, quiet operation, and protective features make it a top choice for challenging environments and year-round comfort.

SLZ-AF09NL Air Handler Overview

The SLZ-AF09NL is a high-performance air handler designed for residential and light commercial use. Paired with the SUZ-AA09NL outdoor unit, this air handler offers reliable and efficient heating and cooling solutions. It features a compact, low-profile design that allows for easy installation in tight spaces, making it ideal for applications where space is limited.

Key Features

• Compact and Low-Profile Design: The SLZ-AF09NL is designed to fit into tight spaces such as ceilings or recessed areas, offering flexibility in installation while maintaining high performance.
• High Energy Efficiency: The air handler is engineered with energy-saving features that reduce electricity consumption, making it a cost-effective option for both residential and commercial applications.
• Quiet Operation: With its advanced noise-reduction technology, the SLZ-AF09NL operates quietly, ensuring a comfortable and peaceful indoor environment.
• Advanced Filtration: The unit is equipped with a high-efficiency filter that improves indoor air quality by capturing dust, allergens, and other airborne particles.
• Flexible Drain Options: The air handler provides flexibility in installation, with options for both horizontal and vertical drainage to suit different building layouts.

Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 26-3/8" x 10-1/8" x 27-1/4”
• Weight: 39.7 lbs
• Refrigerant: R410A
• Airflow: 490 CFM

Benefits

• Space-Saving Design: The compact size of the SLZ-AF09NL allows it to fit into small or confined spaces, making it ideal for installations in apartments, small offices, or commercial settings.
• Energy Efficiency: By optimizing cooling and heating output, the SLZ-AF09NL helps reduce energy costs while maintaining high comfort levels.
• Quiet and Comfortable: The quiet operation makes it suitable for environments where noise levels need to be minimized, such as bedrooms, living rooms, or offices.
• Improved Air Quality: With its advanced filtration system, the SLZ-AF09NL enhances indoor air quality by trapping harmful particles, providing a healthier indoor environment.

Applications

• Residential Applications: Perfect for homes where space is limited, the SLZ-AF09NL provides efficient heating and cooling without taking up valuable room space.
• Light Commercial Applications: Ideal for small commercial spaces, such as small offices, retail stores, and other commercial environments requiring compact and efficient climate control.

Maintenance

• Low Maintenance: The SLZ-AF09NL air handler is designed for easy maintenance. Regular filter cleaning and occasional professional servicing ensure long-lasting performance.
• Durable Components: Built with high-quality materials, this air handler is designed to withstand regular use and provide reliable performance for many years.

The SLZ-AF09NL is an efficient, compact air handler suitable for both residential and light commercial applications. Paired with the SUZ-AA09NL outdoor unit, it provides a reliable and cost-effective solution for year-round comfort. With its advanced features, such as quiet operation, high energy efficiency, and flexible installation options, it is an excellent choice for anyone looking to enhance indoor comfort while minimizing energy consumption.

* Please Note * This product does NOT include a remote controller and one would need to be purchased separately.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.

The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!

The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.

Features:

• Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
• Backlit display
• Can sense temperature at indoor unit (default) or at controller
• Fahrenheit °F / Celsius °C
• No batteries required
• Single zone compatible
• Multi zone compatible
• English, French, Spanish

Compatible Indoor Units:

Wall Mounted

• GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
• FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
• EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
• JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
• WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
• D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
• P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7

Ducted

• KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
• P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7

Ceiling Cassette

• KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
• KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
• P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7

Floor Mounted

• MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1

Multi Position Air Handler

• KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
• P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7

Ceiling Suspended

• P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
