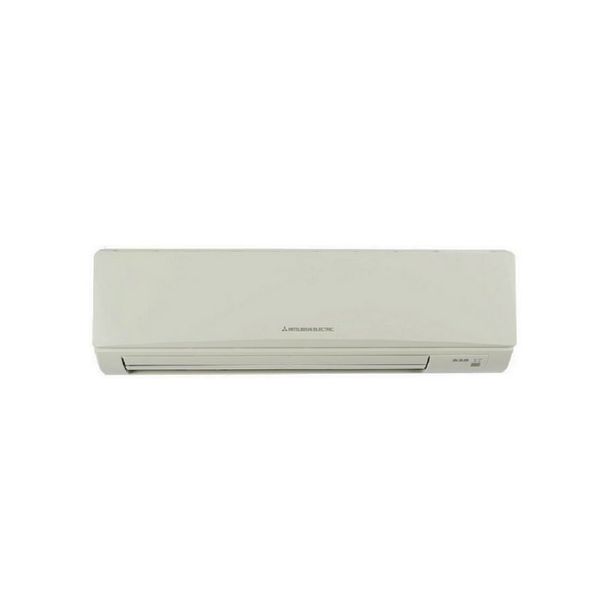

24,000 BTU Mitsubishi P-Series Single Zone Wall Mounted Mini Split Air Handler - PKA-A24KA6

Mitsubishi 24,000 BTU 21.4 SEER Single Zone Heat Pump System - Wall Mounted
SAVE $1,150.00
By

Mitsubishi

In stock
Model

PKA-A24KA6

ID

201143

Be the first to review this product
In Stock - 22 Ready to Ship
Was $2,400.00 Your Low Price Special Price $1,250.00

Free Shipping

The PKA-A24KA6 is a 24,000 BTU wall-mounted indoor unit from Mitsubishi Electric's P-Series. It is designed for efficient and reliable cooling in commercial and light industrial applications, making it ideal for offices, classrooms, and server rooms.

Key Features

  • Cooling Capacity: 24,000 BTU/h
  • Wall-mounted design saves floor space and allows for easy installation
  • Quiet operation: Sound levels as low as 36 dB(A)
  • Wide airflow coverage with adjustable vanes
  • Compatible with PUY-A24NHA6 outdoor unit
  • Removable front panel for easy cleaning and maintenance
  • Commercial-grade performance for demanding environments
  • Eco-friendly R-410A refrigerant

Specifications

  • Voltage: 208/230V, 1-phase, 60Hz
  • Airflow Rate: 570–775 CFM
  • Moisture Removal: 5 pints/hour
  • Sound Level: 36–45 dB(A)
  • Operating Temperature Range: 23°F to 115°F standard, down to -20°F with wind baffle
  • Dimensions (HxWxD): 14 3/8" x 46 1/16" x 11 5/8"
  • Weight: 46 lbs
  • Refrigerant: R-410A

The Mitsubishi PKA-A24KA6 is a powerful wall-mounted indoor unit designed for use in commercial and residential split systems. Offering a sleek, compact design and wide airflow coverage, it delivers 24,000 BTU of efficient cooling and heating performance. Ideal for offices, classrooms, and large living areas, this unit operates quietly and can be paired with compatible Mitsubishi outdoor units for year-round comfort.

Key Features:

  • 24,000 BTU Cooling & 27,000 BTU Heating Capacity
  • Wide airflow pattern with adjustable swing control
  • Quiet operation – as low as 34 dB
  • Auto restart and dry mode functionality
  • Wall-mounted for easy installation
  • Compatible with PUY-A24NHA6(-BS) outdoor unit

Specifications:

  • Width: 46-1/16"
  • Height: 13-3/8"
  • Depth: 10-5/8"
  • Weight: 33 lbs
  • Sound Level: 34–46 dB(A)
  • Airflow (H/M/L/Q): 618 / 530 / 441 / 388 CFM

Warranty:

  • 5-Year Parts
  • 7-Year Compressor
  • Up to 12-Year Extended Warranty with Diamond Contractor installation and registration
More Information
24,000 BTU Mitsubishi P-Series Single Zone Wall Mounted Mini Split Air Handler - PKA-A24KA6
SKUPKA-A24KA6
Weight (in lbs)45.000000
Brand/ManufacturerMitsubishi
Cooling BTU24,000
Maximum CFM570-700
Decibel Level (dBA)39-45
Energy StarYes
SEER1 (Efficiency)17
EER10.6
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Operating ModeCooling
Height13-3/8"
Width46-1/16"
Depth10-5/8"
Warranty5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:24,000 BTU Mitsubishi P-Series Single Zone Wall Mounted Mini Split Air Handler - PKA-A24KA6
Your Rating
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
