24,000 BTU MRCOOL Advantage 18.7 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

24,000 BTU MRCOOL Advantage 5th Gen 18.7 SEER2 Single Zone Mini Split - R454B | 230V - A-24-HP-230D-O
24,000 BTU MRCOOL Advantage 5th Gen 18.7 SEER2 Single Zone Mini Split - R454B | 230V - A-24-HP-230D-O 24,000 BTU MRCOOL Advantage 5th Gen 18.7 SEER2 Single Zone Mini Split - R454B | 230V - A-24-HP-230D-O A-24-HP-C-230D-O A-24-HP-C-230D-O A-24-HP-WMAH-230D-O A-24-HP-WMAH-230D-O A-24-HP-WMAH-230D-O MSK001 221885 366426 216748 366427 366428 HW-600
SAVE $146.00

Required Fields *

By

MRCOOL

In stock

Model

A-24-HP-230D-O

ID

198424

Be the first to review this product
In Stock - Ready to Ship
Was $1,608.00
Your Low Price $1,462.00

Free Shipping
  • Heating & Cooling
  • Ductless Solution
  • Perfect for a 1000-1500sqft Rooms
  • Wi-Fi & Smartphone App Capabilities
    • Customize 24,000 BTU MRCOOL Advantage 18.7 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
    24,000 BTCOOL Single Zone Condenser - R454B
    24,000 BTCOOL Single Zone Condenser - R454B
    24,000 BTCOOL Single Zone Condenser - R454B   + $1,007.00

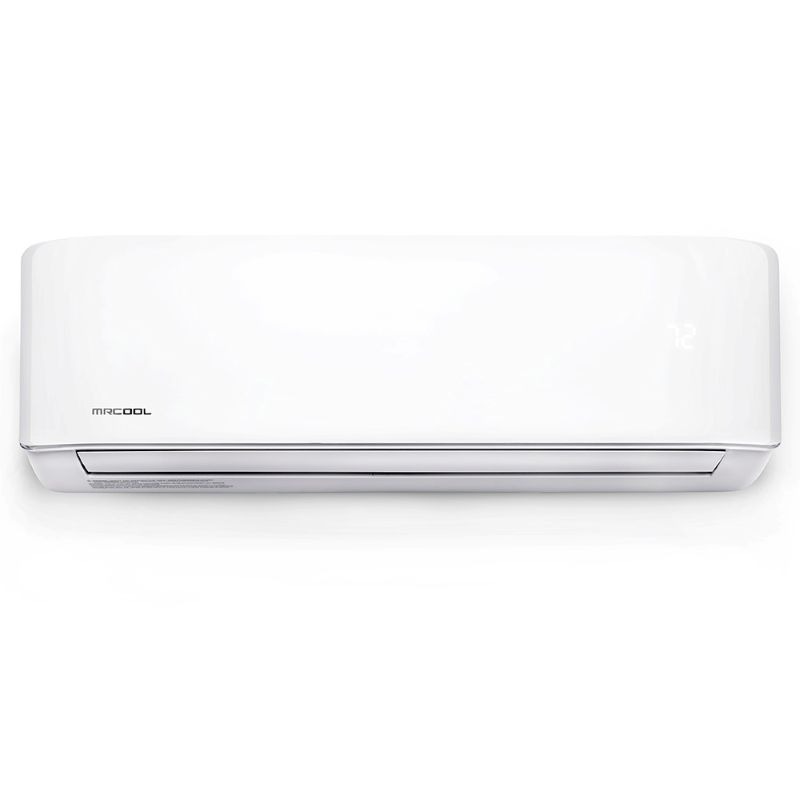

    24,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B
    24,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B
    24,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B   + $455.00
    Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
    Wall Mount Bracket for Mini Split Systems
    Installation Kit for Condensers
    24,000 BTU MRCOOL Advantage 5th Gen 18.7 SEER2 Single Zone Mini Split - R454B | 230V - A-24-HP-230D-O

    $1,462.00

    Please note this unit is meant to be installed by a licensed professional. Want a to Do-It-Yourself unit? Check it out here!

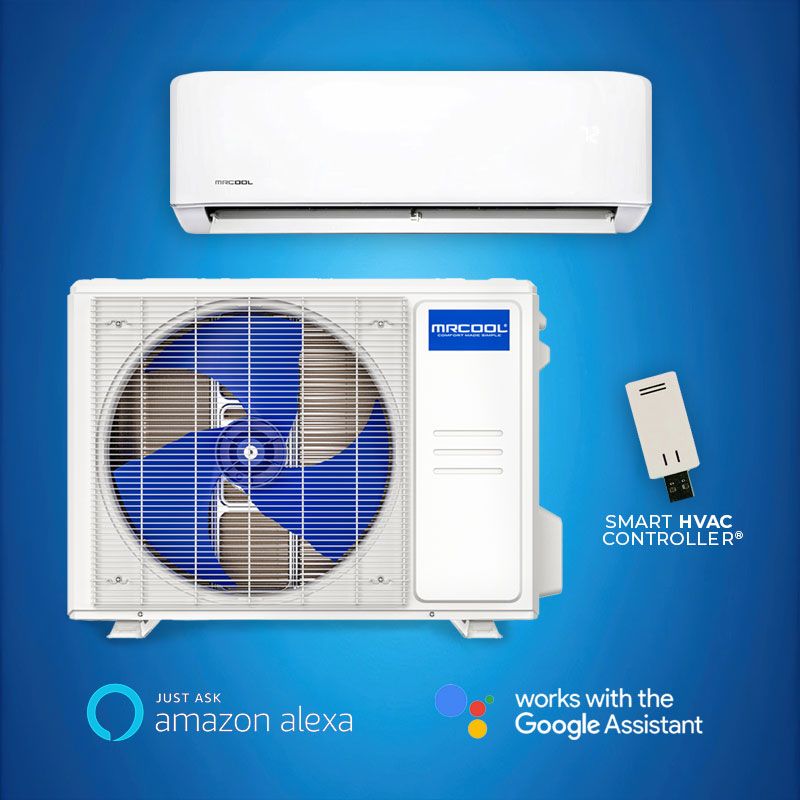

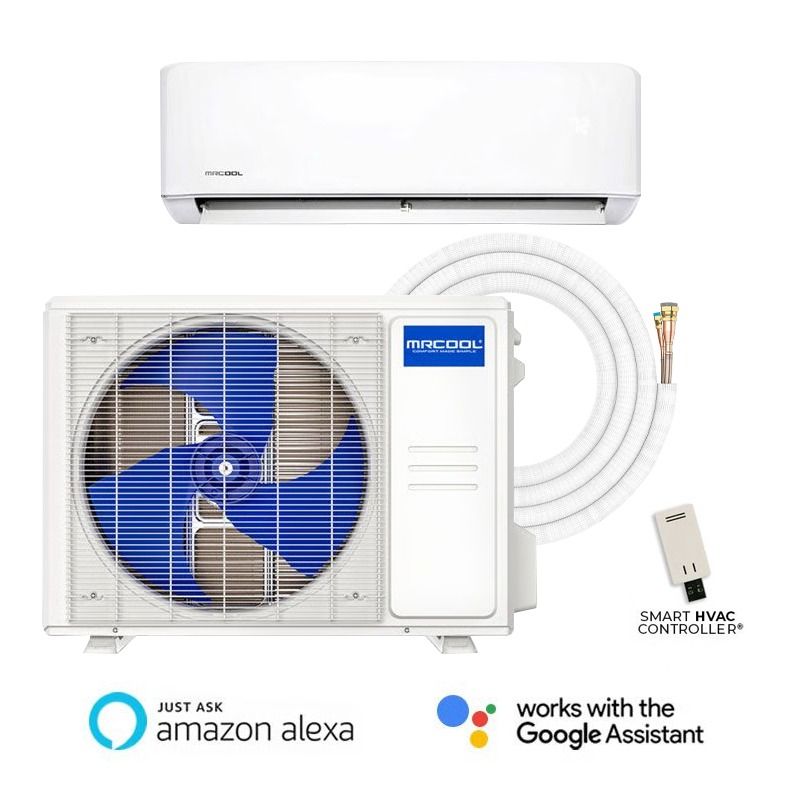

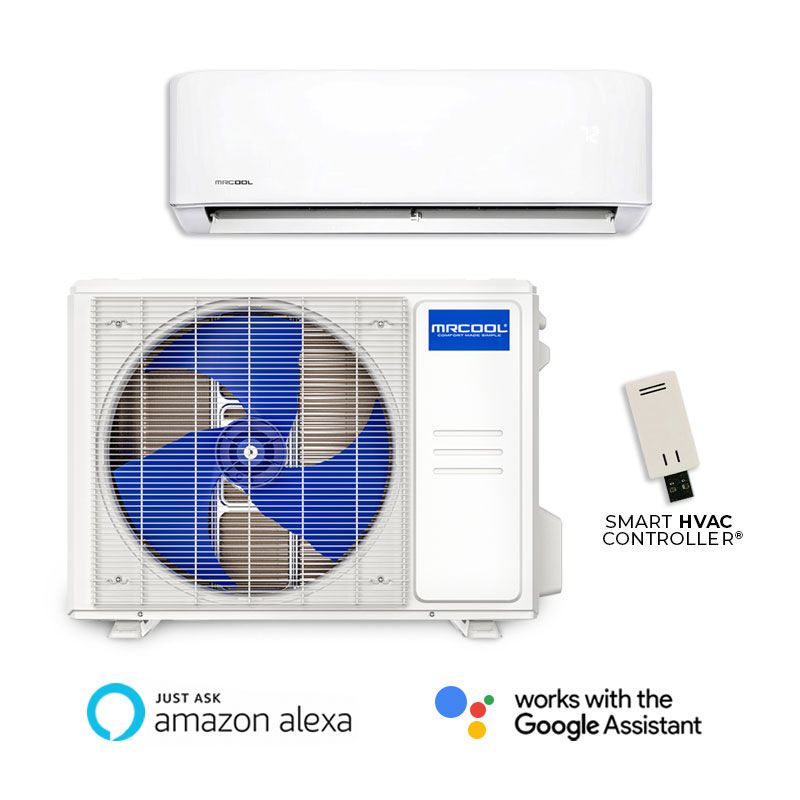

    MRCOOL Advantage 5th Gen 24,000 BTU Mini Split System (A-24-HP-230D-O)

    The MRCOOL Advantage 5th Generation single-zone mini split offers powerful heating and cooling with a 24,000 BTU capacity and a high 18.7 SEER2 / 9.6 HSPF2-4 rating. Designed for larger spaces up to 1,300 square feet, it uses eco-friendly R-454B refrigerant. The system features a quiet indoor air handler and an inverter-driven outdoor condenser with Gold Fin corrosion-resistant coating. It also includes a built-in Wi-Fi Smart HVAC Controller for smartphone and voice control convenience.

    Key Features

    • High Efficiency: 18.7 SEER2, 11.9 EER2, 9.6 HSPF2-4 for energy savings
    • Eco-Friendly Refrigerant: Uses low-GWP R-454B refrigerant
    • Smart Controls: Wi-Fi enabled with app compatibility and voice control via Alexa and Google Assistant
    • Quiet Operation: Indoor unit operates quietly for comfortable environments
    • Durable Design: Gold Fin condenser coating resists corrosion
    • Low Ambient Cooling: Operates efficiently down to 5 F
    • Professional Installation: Requires licensed HVAC installation
    • Warranty: Includes 2-year parts and 1-year compressor warranty with optional extended coverage

    Benefits & Applications

    • Zone Comfort: Ideal for large rooms, open spaces, or small homes
    • Energy Efficient: High SEER2 and HSPF2 ratings reduce energy costs
    • Smart Home Ready: Remote control and voice commands for convenience
    • Quiet and Reliable: Minimizes noise while delivering consistent comfort
    • Environmentally Responsible: Utilizes next-generation refrigerant with low environmental impact

    Package Includes

    • 24,000 BTU inverter condenser
    • 230V wall-mounted air handler with Wi-Fi module
    • Wireless remote control
    • Installation and user manuals

    This MRCOOL Advantage 5th Gen 24,000 BTU Mini Split system combines efficient, smart, and quiet heating and cooling for spaces up to 1,300 sq ft, offering eco-friendly technology and modern convenience.

    More Information
    24,000 BTU MRCOOL Advantage Single Zone Mini Split Heat Pump Condenser - R454B | 230V
    SKUA-24-HP-C-230D-O
    Weight94.580000
    ManufacturerMRCOOL
    HSPF29.3
    Cooling BTU24000
    Heating BTU24000
    Decibel Level (dBA)59.5
    RefrigerantR454B
    SEER218.7
    Compressor TypeRotary
    Liquid Line3/8
    Suction Line5/8
    Liquid Valve Size 3/8
    Suction Valve Size 5/8
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size20
    Min. Breaker Size19
    BTU/Tonnage24,000 BTU/2 Ton
    Zone CompatibilitySingle Zone
    Height26.5"
    Width35.04"
    Depth13.46"
    Warranty7 Years Base Compressor Warranty, 1 Year Base Parts Warranty, Extended Limited Lifetime Registered Warranty
    Resources You will need Adobe Acrobat Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    24,000 BTU MRCOOL Advantage Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
    SKUA-24-HP-WMAH-230D-O
    Weight30.640000
    ManufacturerMRCOOL
    Cooling BTU24000
    Heating BTU24000
    Maximum CFM729
    Decibel Level (dBA)41.5
    RefrigerantR454B
    SEER218.7
    Compressor TypeRotary
    Liquid Line3/8
    Suction Line5/8
    Liquid Valve Size 3/8
    Suction Valve Size 5/8
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size15
    Min. Breaker Size3
    BTU/Tonnage24,000 BTU/2 Ton
    Zone CompatibilitySingle Zone
    Height13.19"
    Width42.52"
    Depth8.9"
    Warranty2 Years Base Compressor Warranty, 1 Year Base Parts Warranty, Extended Limited Lifetime Registered Warranty
    Resources You will need Adobe Acrobat Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
    SKU216748
    Weight30.000000
    ManufacturerOnline Supply
    Length30'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
    SKU366428
    Weight45.000000
    ManufacturerOnline Supply
    Length50'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
    SKU366426
    Weight25.000000
    ManufacturerOnline Supply
    Length25'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
    SKU221885
    Weight15.000000
    ManufacturerOnline Supply
    Length25'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
    SKU366427
    Weight35.000000
    ManufacturerOnline Supply
    Length35'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Wall Mount Bracket for Mini Split Systems
    SKUHW-600
    Weight9.200000
    ManufacturerOnline Supply
    Length17"
    Height20"
    Width6"
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    Installation Kit for Condensers - Accessory Set
    SKUMSK001
    Weight15.000000
    ManufacturerOnline Supply
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
